Used Engel Schneckenzylinder 4550/5550 for sale (1,163)

Condition: new, Engel bimetallic screw cylinder, new and unused Bsdpfxox Up U Ts Af Rslh Diameter: 105 mm LD 22 Unit 4550: 3380 cm3 Unit 5550: 3700 cm3

Condition: ready for operation (used), Year of construction: 2011, operating hours: 61,666 h, functionality: fully functional, clamping force: 6,500 kN, screw diameter: 90 mm, column diameter: 175 mm, injection weight: 2,520 g, opening stroke: 1,400 mm, The machine is in excellent condition; all hydraulic hoses were replaced in the fourth quarter of 2024! TECHNICAL DETAILS Clamping force: 6,500 kN Column spacing (H x V): 1,100 x 960 mm Platen size (H x V): 1,510 x 1,440 mm Tool height (min./max.): 650 / 1,150 mm Opening stroke: 1,400 mm Maximum distance between platens: 2,050 mm Maximum tool weight: 11,000 kg Ejector force: 95 kN Ejector stroke: 250 mm Column diameter: 175 mm Injection unit (unit 5550) Screw diameter: 90 mm Maximum shot volume: 2,740 cm³ Maximum shot weight (PS): 2,520 g Injection pressure (max./increased): 2,180 bar Injection pressure (standard): 1,910 bar L/D ratio of the screw: 20 Screw stroke: 430 mm Maximum screw speed: 148 rpm Plasticizing volume: 77 g/s Nozzle closing force: 150 kN MACHINE DETAILS Control: CC200 Drive and Supply Installed drive power: 90 kW Cylinder heating power: 56 kW Number of heating zones: 6 Hydraulic tank capacity: 1,000 l Installed drive power: 90 kW Operating hours: 61,606 h EQUIPMENT Robot: Viper 40 Blodpfxjy T Hfyj Af Roh Key features: 6 hydraulic circuits on the moving platen 2 hydraulic circuits on the fixed platen Cascade valves: 4 units (mounted on the fixed platen)

Condition: excellent (used), Year of construction: 2007, operating hours: 102,000 h, clamping force: 6,500 kN, DUO 5550/650 Advanced Year 2007 Clamping force: 6500 kN Screw: D90, S6, tempered, with flight armouring and ionitriding, abrasion resistant Control unit: CC200 A01 Languages: Slovenian (SL), German (DE) Operating hours: 102,000 1x core mowing platen 1x core pull, additional, on movable platen Mold height increase of 200 mm Variant C, according to the technical sales manual (Min. mold height remains standard, max. mold height increases, platen stroke remains standard, max. platen distance remains standard) Connections for external filter station Bodpey Ug Ahjfx Af Rjlh 8x mold heating control Expansion module for 8 temperature measuring or control points Standard 8-way cooling water flow regulator (0-10 l/min) Cooling water flow regulator, 10-way Magnetic mold clamping platen system TECNOMAGNETE, temperature resistant up to 120 degrees C, incl. interface Euromap 70.1, nozzle adaptation and assembly ENGEL ROBOTER TYPE ERC 63-F X-Max. travel distance: 100 mm Total Y-axis length: 900 + 900 mm (tandem) Z-total: 2360 mm C-axis (125 Nm) 2 switchable vacuum/compressed air circuits RC 200 integrated with C30 E handheld control unit

Condition: excellent (used), Year of construction: 2011, Clamping force: 650 t Screw diameter: 90 mm Distance between tie bars V: 960 mm Distance between tie bars H: 1100 mm Shot volume: 2740 cm3 Type: Horizontal Drive: Hydraulic Bsdpfoy Uffhox Af Rolh VIPER 40 Linear robot available The machine has approximately 61,600 operating hours. 6 core pulls on the moving platen, 2 cores and 4 cascade valves on the fixed platen.

Condition: ready for operation (used), Year of construction: 2003, clamping force: 8,000 kN, screw diameter: 90 mm, total width: 3,000 mm, total height: 2,500 mm, overall weight: 44,000 kg, product length (max.): 8,900 mm, Hydraulic injection moulding machine manufactured in 2003. This Engel DUO 5550/800 features a clamping force of approximately 800 tons and a screw diameter of about 90 mm. It has a shot volume of around 2700 cm³ and a maximum injection pressure of approximately 1900 bar. If you are looking to get high-quality injection moulding capabilities, consider the Engel DUO 5550/800 machine we have for sale. Contact us for further details. Bljdpoy Alwmsfx Af Rsh • Shot volume: ~2700 cm³ • Max. injection pressure: ~1900 bar • Plasticizing capacity: ~77 g/s • Clamping unit: Two-platen design (no traditional toggle), larger mold space for easier changes, even clamping force distribution • Injection unit: Hydraulic, high-performance plasticizing; suitable for thick-walled or large-volume parts • Typical applications: Automotive components (e.g., bumpers, dashboard elements), large housings and covers, industrial parts, thick-walled technical components • Advantages: High clamping force for large parts, more compact than traditional tie-bar machines, stable industrial design, easy to automate Additional equipment • Not specified/included in the provided information

Condition: ready for operation (used), Year of construction: 2004, PET preform injection molding machine clamping force 320t injection weight 6935gr. screw 130mm preform removal system SERVO IV, TPS robot TRT-M4-72-E, 72-fold, 4-stage, incl. removal set, conveyor belt LT/h 1825 Output approx. 17,000 preforms/hour Option1: MHT mold 72-cavity for 30.8 gr. PCO 1810 or 1881 (shorty, 28mm neck ring, 1.5 liter bottles) Option2: 72 core sets for 27.8 gr. PCO 1810 or 1881 (shorty, 28mm neck ring, 1.0 liter bottles) Bljdsnxkxwepfx Af Roh Line comes from our own preform production and was in production until our new line was replaced.

Condition: excellent (used), Year of construction: 2011, Injection Moulding Machine: ENGEL DUO 5550/650 pico Control System: CC200 Year of manufacture: 2011 Operating hours: 61,606 h 1. Clamping Unit Clamping force: 6,500 kN Tie bar clearance (H × V): 1,100 × 960 mm Platen dimensions (H × V): 1,510 × 1,440 mm Mould height (min./max.): 650 / 1,150 mm Mould opening stroke: 1,400 mm Max. daylight between platens: 2,050 mm Max. mould weight: 11,000 kg Ejector force: 95 kN Ejector stroke: 250 mm Tie bar diameter: 175 mm 2. Injection Unit (Aggregate 5550) Screw diameter: 90 mm Max. injection volume: 2,740 cm³ Max. shot weight (PS): 2,520 g Injection pressure (max./boost): 2,180 bar Injection pressure (standard): 1,910 bar L/D ratio: 20 Screw stroke: 430 mm Blodsywrtwspfx Af Reh Max. screw speed: 148 rpm Plasticising capacity: 77 g/s Nozzle contact force: 150 kN 3. Drive and Power Supply Installed drive power: 90 kW Cylinder heater power: 56 kW Number of heating zones: 6 Hydraulic oil tank capacity: 1,000 l 4. Special Equipment and Hydraulics Core pull circuits: - 6 hydraulic circuits on the moving platen - 2 hydraulic circuits on the fixed platen Cascade valves: - 4 pcs. (installed on the fixed platen) 5. General Specification Two-platen machine (DUO series) designed for the production of large plastic parts. The design ensures high rigidity of the clamping system and allows operation with heavy moulds while maintaining a large opening stroke. The CC200 control unit enables precise process parameter control and integration with automation systems and peripherals. If you wish, I can also prepare: - a sales offer version (more marketing-oriented), - translation into German or English, - or a market value assessment of this machine.

Condition: used, Year of construction: 1997, Engel ES 4550/650 Year of manufacture: 1997 Weight: 44,000 kg Clamping force: 6,500 kN / 650 t Dimensions: 2,600 x 11,300 mm (W x L) Control system: CC100 Design: Tie-bar The machine is still in operation and has been maintained at short intervals during production. It remains connected and is fully functional. Viewing and testing on site is possible. Complete documentation is available. The machine is equipped with a Sepro “Success 33” linear extraction robot. Technical specifications: Operating voltage: 400 V 3~ 50 Hz Screw diameter: 90 mm Max. dosing stroke: 390 mm L/D ratio: 22 Nozzle thread: M45x3 Shot weight (PS): 2,331 g Tie bar spacing (horizontal): 1,025 mm Tie bar spacing (vertical): 925 mm Max. opening stroke: 900 mm Min. mould height: 400 mm Max. mould height: 920 mm Engel ES 330/80 Year of manufacture: 1991 Weight: 4,000 kg Clamping force: 800 kN Dimensions: 3,910 x 1,380 x 2,050 mm (L x W x H) Control system: CC100 Design: Tie-bar, toggle lever The machine is in good condition and has been maintained at short intervals during production. It remains connected and is fully functional. Viewing and testing on site is possible. Complete documentation is available. Screw, heating cylinder tube, and RSP were replaced in 2022 by Plasma Kunststofftechnik. Technical specifications: Operating voltage: 400 V 3~ 50 Hz Screw diameter: 45 mm Screw geometry: 3-zone Max. dosing stroke: 160 mm Nozzle thread: M28x1.5 Max. injection pressure: 1,300 bar Blodpfxeyu Rzye Af Rjh Shot weight (PS): 239 g Tie bar spacing (horizontal): 405 mm Tie bar spacing (vertical): 345 mm Max. opening stroke: 430 mm Min. mould height: 150 mm

Condition: ready for operation (used), Year of construction: 2013, operating hours: 65,000 h, clamping force: 5,000 kN, screw diameter: 90 mm, total height: 2,355 mm, overall weight: 14,000 kg, product length (max.): 7,800 mm, This Engel DUO 4550/500 pico was manufactured in 2013. It features a clamping force of 5,000 kN, a screw diameter of 90 mm, and a maximum injection volume of 2,480 cm³. The machine dimensions are 7,800 x 2,405 x 2,355 mm, and it weighs 14,000 kg. Currently in production with approximately 65,000 operating hours, it remains in excellent condition. Contact us for more information about this machine. • Maximum injection volume: 2,480 cm³ Bljdpfsx Nr Uxsx Af Roh • Minimum mold height: 350 mm • Maximum mold height: 900 mm • Platen opening stroke: 1,300 mm • Platen dimensions (W x L): 1,270 x 1,260 mm • Tie-bar distance (H x V): 910 x 830 mm • Motor power: 83 kW • Heater power: 61.2 kW • Number of electrical connection pins: 32 • Injection nozzle radius (tip): R35 • Centering ring diameter: 200 mm • Robot interface: Euromap 67 • Number of cores: 0 • Number of heating zones: 0 • Operating hours: approx. 65,000 h • Condition: Excellent • Status: In production Additional equipment • Robot (equipped)

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, clamping force: 3,188 kN, injection weight: 6,935 g, screw conveyor diameter: 130 mm, production capacity: 17,000 unit/h, No reserve price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Clamping force: 320 t Shot weight: 6,935 g Screw diameter: 130 mm Performance: 17,000 preforms/h MACHINE DETAILS Configuration: 72-cavity, 4-stage EQUIPMENT Take-out unit Conveyor belt LT/h 1825 Bjdpsx A Efhofx Af Rslh TPS robot TRT-M4-72-E

Condition: excellent (used), Year of construction: 2010, Injection Moulding Machine ENGEL DUO 5550/1100 Robot: ERC 200 Year of manufacture: 2010 Operating hours: approx. 79,000 h Clamping force: 1,100 tons Injection Unit – 5550 Screw diameter: 90 mm Injection pressure (specific): 2,180 bar Injection volume: 2,740 cm³ Screw L/D ratio: 22 Cylinder: type M3, bimetallic – increased wear and corrosion resistance Screw: type S4V, heat-treated, chrome-plated, with armoured edges – high wear and corrosion resistance Clamping Unit – DUO 1100 Clamping force: 1,100 tons Distance between tie bars: 1,400 x 1,150 mm Mould height: from 600 mm to 1,200 mm Ejector stroke: 300 mm Equipment Hydraulic cores: 2+1 Pneumatic cores: 1+1 GK heating zones: 3 x 8 = 24 zones Rotameters: 20 circuits Control system: CC 200 A02 Installed programs: - Micrograph Plus - Microplast - QDP - PD Graphics II Robot ERC 63/1-F, RC 200 X-axis: 1,300 mm Blsdpfxew U Sz Is Af Rsh Y-axis: 1,800 mm Z-axis: up to 2,840 mm C-axis: rotary movement 0–90° 2 vacuum circuits 1 pressure circuit for sprue removal

Condition: ready for operation (used), Year of construction: 2004, operating hours: 70,250 h, functionality: fully functional, machine/vehicle number: 51760, clamping force: 11,000 kN, screw diameter: 90 mm, injection pressure: 1,910 bar, tool height: 1,270 mm, TECHNICAL DETAILS Clamping force: 11,000 kN Bsdpfexuqbrjx Af Rslh Platen size (H x V): 2,340 x 2,040 mm Tie bar spacing (H x V): 1,575 x 1,320 mm Min. tool height: 592 mm Max. tool height: 1,270 mm Max. opening stroke: 3,016 mm Injection unit Screw diameter: 90 mm Shot volume: 2,480 cm³ Shot weight (PS): 2,256.8 g Injection pressure: 1,910 bar MACHINE DETAILS Net weight (including control cabinet): 62 + 11 t Operating hours: 70,250 h EQUIPMENT ENGEL ERC 84-1E robot

Condition: ready for operation (used), Year of construction: 2004, operating hours: 70,029 h, functionality: fully functional, machine/vehicle number: 51561, clamping force: 2,300 kN, screw diameter: 135 mm, injection pressure: 1,600 bar, opening stroke: 3,800 mm, tool height: 1,890 mm, TECHNICAL DETAILS Clamping force: 2,300 kN Platen size (H x V): 2,900 x 2,500 mm Tie bar distance (H x V): 2,000 x 1,600 mm Minimum/maximum mould height: 700 mm/1,890 mm Maximum opening stroke: 3,800 mm INJECTION UNIT Screw diameter: 135 mm Shot volume: 8,870 cm³ Shot weight (PS): 8,071 g Bljdpfx Afey T Hx Ho Rsh Injection pressure: 1,600 bar MACHINE DETAILS Net weight (with control cabinet): 113 t + 18 t Operating hours: 70,029 h

Condition: like new (used), Year of construction: 2021, operating hours: 200 h, functionality: unexamined, machine/vehicle number: S/ NOS : 248534, 248535, 248536, clamping force: 3,800 kN, screw diameter: 60 mm, displacement volume: 877 cm³, injection weight: 300 g, ejector stroke: 210 mm, plate length: 1,140 mm, plate width: 1,140 mm, overall weight: 20,400 kg, type of input current: three-phase, input frequency: 60 Hz, input voltage: 480 V, year of last overhaul: 2024, number of digital displays: 1, Equipment: CE marking, documentation/manual, unit sold as is where is Two colors injection molding machine (two shots) Three machines available , price is per machine Manf. : Engel Austria Model : e-Motion 740H / 50MV / 420 T Combi US S/ NOS : 248534, 248535, 248536 Year Built : 12/2021 Condition : very good Material : THERMOPLAST Clamping Force : 420 Ton Injection Unit 1 : 740/. H-arrangement Injection Unit 2 : 50/. MV-arrangement Machine Net W : 20 400 Kg Gross Dim of crate : 23’ x 8’ 10” x 9’ 7” (H) Capacity : 427 Ton Bljdpfx Afsx Szwhj Reh Shot Size : 10.2 oz Second Shot Size : 0.45 oz Tie Bar Spacing : 30.7" x 30.7" Platen Size : 44.89" x 44.89" Min /Max Mold Height : 45.3"/61" Clamp Stroke : 27.55" Ejector Stroke : 8.26" Control : CC300 Voltage : 480 Min/Max Mold Height : 43.3" - 61.02" 2-Shot Injection Molding Press Main Injection Unit: 10.2 oz (45mm) Secondary Vertical Injection Unit: .45 oz. (18mm) Core Pull Pneumatic Valve Gate Including: Engel Viper Robot

Condition: good (used), Year of construction: 2016, Ref. no.: 18657 Manufacturer: ENGEL Type: e-victory 440/160 CC300 ecodrive Hybrid machine Year of construction: 2016 Clamping unit Clamping force: 160 ton Opening stroke: 900 mm Mould height min.: 300 mm Mould height max.: 600 mm Platen size (h x v): 750 X 750 mm Injection unit Screw diameter: 35 mm Injection volume: 168 cm³ Shot weight: 151 g Injection pressure: 2400 bar Measurements and weight Dimensions: 5,7 X 1,8 X 2,2 m Machine weight: 10200 kg Further information: Tie-bar-less + electric injection = maximum flexibility and precision ENGEL e-victory 440/160: This is a hybrid machine (servo-hydraulic + electric) How it works Electric part: Bodpoy Ipgpofx Af Rjlh * Injection unit (screw movement) * Ensures very high precision and process stability Hydraulic part: * Clamping unit (mould closing) * Maintains clamping force efficiently without continuous energy consumption This system combines: * The precision of an all-electric machine * With the power and efficiency of a hydraulic system This is a modern servo-hydraulic injection moulding machine from the well-established ENGEL e-victory series, known for its energy efficiency, high precision, and tie-bar-less design. The machine has a clamping force of 160 tons and is ideally suited for technical plastic parts as well as demanding applications in industries such as automotive, medical, and general manufacturing. Key features: * Tie-bar-less design for maximum mould flexibility * Servo-hydraulic drive for high energy efficiency * Precise and stable processing performance * Compact footprint with a large mould installation area * Modern ENGEL control system The machine was manufactured in 2016 and appears to be in very good condition, both technically and visually, as can be seen in the pictures. Thanks to its tie-bar-less design, this machine offers clear advantages when working with large or complex moulds and ensures highly flexible production.

Condition: excellent (used), Year of construction: 2015, ENGEL victory 650/120 tech (25.109 h) (S&P 3793) Manufacture year: 2015 Operating hours: 25,109 Stunden Screw: 35 mm Bljdpfx Aszbaziof Rsh Injection pressure: 2400 bar Stroke volume: 192 cm³ Clamping Force: 120 t Tie bar distance: 740 x 680 mm Mould installation height min.: 300 mm Plate distance max.: 800 mm Dimensions: 5100 x 1500 x 2350 mm Eeight: 7000 kg Connected load: 22 kW Automatic door, Corepuller 1x, Airvalve, Hotrunner, price when new 122.000,- € etc... Price: on request contact: Mr. Ralf Schulz

Condition: used, Year of construction: 2005, Technical details: screw size: 70 mm injection shot weight in Polysterol: 687 g/PS closing pressure: 3000 kN weight of the machine ca.: 19,4 t PreHeating unit and airsoaking unit is not in package !! * Bledpfxewftr Dj Af Rjh

Condition: good (used), Year of construction: 1991, For sale: control boards for EC88/CC90 controllers, removed from operational Engel injection molding machines. Price for all: 1000 EUR Bedpsxfzb Rjfx Af Relh It is possible to purchase individual boards. PRICE REDUCED FROM 1000 TO 800 EUR!!!

Condition: excellent (used), Year of construction: 2016, clamping force: 6,500 kN, Equipment: documentation/manual, Clamping force: 600 t Bedpezbdcwefx Af Relh Screw diameter: 60 mm Distance between tie bars V: 910 mm Distance between tie bars H: 1030 mm Shot volume: 705 cm3 Type: Horizontal Drive: Hydraulic Core pullers 2+2 Robot Viper 40

Condition: excellent (used), Year of construction: 2016, clamping force: 6,500 kN, Equipment: documentation/manual, Clamping force: 700 t Screw diameter: 60 mm Distance between tie bars V: 960 mm Blsdpfezbdb Hex Af Roh Distance between tie bars H: 1100 mm Shot volume: 705 cm3 Type: Horizontal Drive: Hydraulic Hydraulic cores 2 + 2 \+ 6 AXIS robot arm (KUKA)

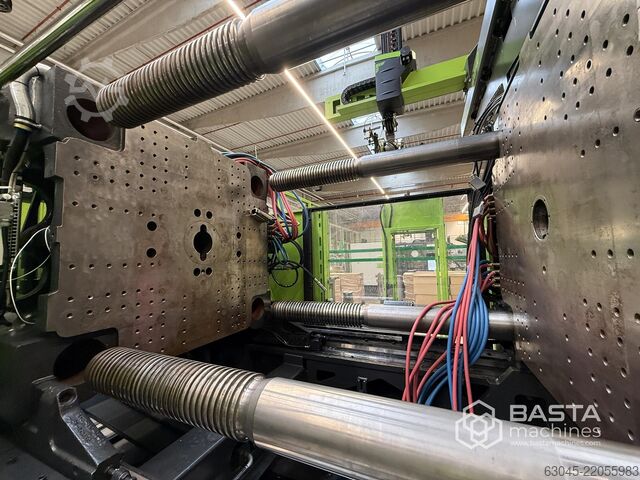

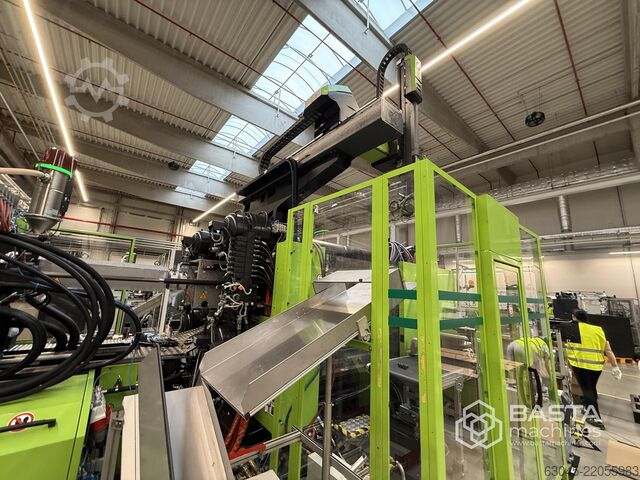

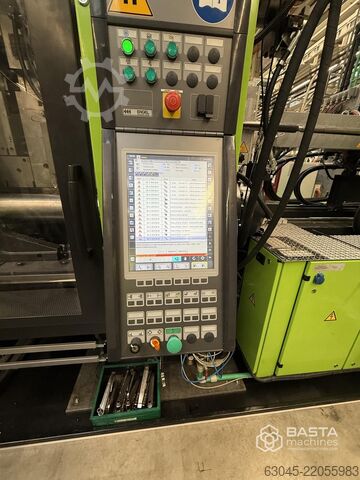

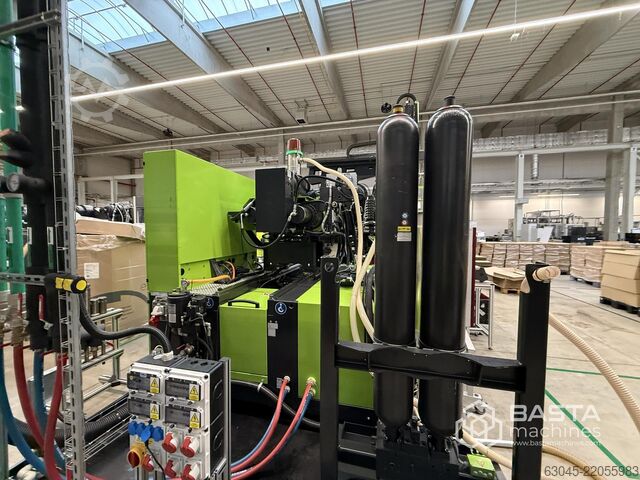

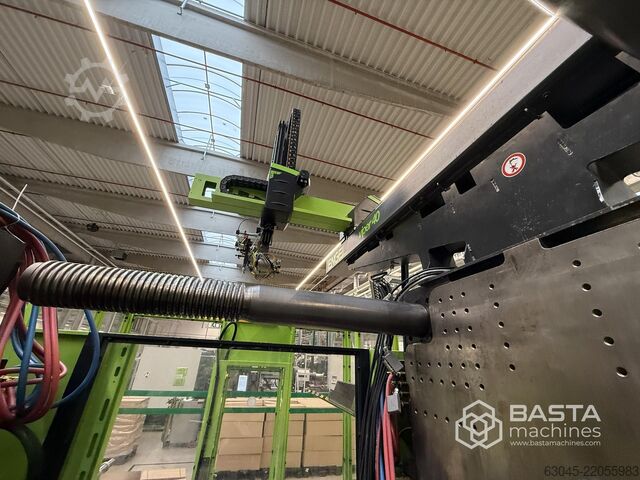

Condition: excellent (used), Year of construction: 2014, 🔧 *M001 — ENGEL DUO 1800 / 700* (2014) 📐 *CLAMPING UNIT* • Clamping force: 700 T • Coining: NO • Max mold weight: x kg • Max mold weight per plate: 7300 kg • Size between bars (WxH): 1100x960 mm • Min mold height: 450 mm • Max mold height: 950 mm • Max stroke open: 1850 mm • Centering ring FIX / MOVE: 160 / 160 mm • Fast clamping system: NO 🔌 *MOLD INTERFACE* • Heating zones: 16 (16 pin TC, 16 pin PW) • Water cooling circuits: 8+8 • Hydraulic circuits (cores): 2+2 • Hot runner sliders hydraulic (nozzles): 8 • Hot runner sliders pneumatic: 4 💉 *INJECTION UNIT* • Screw diameter: 60 mm • Nozzle face + thread: R20+UNF 7/8" • Injection unit type: 1800 • Screw stroke: 270 mm • Max injection capacity: 763.41 cm³ • Max injection pressure: 2360 Bar • Max injection rate: 710 cm³/s • Accumulator SW / HW: YES / YES ⚡ *ELECTRICAL / ROBOT* • Mold ejector clamp: YES • Sockets 400V/16A: 4 • Sockets 400V/32A: 7 • Sockets 400V/63A: 1 • Robot type: Linear • Quick connector gripper: WGS-QLRD Midi • Vacuum ports: 4 Bedpozbdbtofx Af Rjlh • Air pressure ports: 6 • User inputs / outputs: 18 / 8

Condition: good (used), Year of construction: 2009, ENGEL EM 440/100T Clamping force: 1000 kN Opening stroke: 400 mm Ejector stroke: 130 mm Ejector force: 37 kN Screw diameter: 40 mm Max. swept volume: 220 cm³ Blsdpjyktp Sefx Af Roh Screw speed max: 420 rpm Injection rate: 224 cm³/s Specific injection pressure: 2200 bar Nozzle stroke: 305 mm Nozzle contact force: 40 kN

Condition: new, Year of construction: 2025, clamping force: 6,500 kN, Equipment: documentation/manual, Clamping force: 650 t Bsdpjza Au Nefx Af Rjlh Screw diameter: 80 mm Distance between tie bars V: 1440 mm Distance between tie bars H: 1510 mm Opening min max: 450-950 Shot volume: 1810 cm3 Type: Horizontal Drive: Hydraulic

Condition: excellent (used), Year of construction: 2018, ENGEL duo 8160H/860W/1700 combi Machine type: ENGEL duo 8160H/860W/1700 combi Year: 2018 Machine version: 2-component machine Injection unit arrangement: H/W arrangement, one above the other, distance 300 mm Clamping force: 17,000 kN Min./max. mould height: 800 / 1,600 mm Max. opening stroke: 2,550 mm Max. platen distance: 3,350 mm Rotary table diameter: 2,250 mm Mould weight: DS: 30,000 kg AS with rotary table: 21,590 kg Total: 36,586 kg AS without rotary table: 25,790 kg Rotary table weight: 4,200 kg Bledpfjzatkhex Af Rsh Injection unit 1 / 3660H Nozzle: hydraulic shut-off nozzle Nozzle radius: R35 Nozzle bore: Ø8 mm Screw diameter: 105 mm Max. stroke volume: 4,070 cm³ Max. shot weight PC-ABS: 4,600 g Max. shot weight PP: 3,700 g Max. shot weight PA6 GF30: 5,500 g Max. shot weight TPU: 4,960 g Injection unit 2 / 500W Nozzle: open nozzle Nozzle radius: R35 Nozzle bore: Ø4 mm Screw diameter: 50 mm Max. stroke volume: 432 cm³ Max. shot weight TPV 55 Shore: 390 g Max. shot weight EPDM 65 Shore: 483 g Tie bars / platens Tie-bar spacing horizontal: 1,850 mm Tie-bar spacing vertical: 1,415 mm Tie-bar diameter: 265 mm Centring rings Nozzle side: 1K Ø250 mm / 2K Ø200 mm, pitch 300 mm Ejector side: Ø250 mm Centring groove DS: 300 mm below nozzle centre, 100 × 32H8, depth 18 mm Ejector Max. ejector stroke: 300 mm Central ejector: without Thread: M20 Ejector rod diameter: Ø50 mm Limit monitoring connector: 4-pin Core pullers AS: 4× + 1× proportional valve DS: 4× + 1× proportional valve Core in: SKM13IR3 / alternative SKM10IR2 Core out: SKS13IR3 / alternative SKS10IR2 Limit monitoring connector: 16-pin according to Euromap 13 Valve gate control Hydraulic: 16-fold / SKM10IR2 / SKS10IR2 Pneumatic valves Ejector side: 1× blow function Nozzle side: 1× blow function Mould temperature control Ejector side: 16 circuits Nozzle side: 16 circuits Machine-side water connection: Hasco N9 Tool-side water connection: USA system DME N9 / alternative N6 Mould heating 64 control zones 8 plugs for sensors and heating 16-pin Robot / handling Robot: ENGEL viper 60-RC 300 Travel Z: 3,320 mm Travel X: 1,500 mm Travel Y: 2,600 mm C-axis: 210 Nm B-axis: 210 Nm Automation Conveyor belt for parts deposit Belt width: 1,600 mm Light barrier Special features iQ weight control Gas-assisted processing / blowing agent processing Injection compression moulding Cavity pressure sensors MuCell prepared, not yet installed Electrical data Main connection A: 3×400V + N + PE / 50 Hz Nominal current A: 0 A Rating A: 250 kW Main fuse A: 630 A Short circuit current rating: 10,000 A Control voltage: 230V AC / 24V DC Main connection B: Nominal current B: 210 A Rating B: 150 kW Main fuse B: 250 A

Condition: excellent (used), Year of construction: 2019, Clamping force: 650 t Screw diameter: 60 mm Bedpfx Afezaqygj Rjlh Distance between tie bars V: 960 mm Distance between tie bars H: 1100 mm Shot volume: 890 cm3 Type: Horizontal Drive: Hydraulic
