Used Gannomat Dowel Boring Machine for sale (67,006)

Condition: excellent (used), Year of construction: 1990, functionality: fully functional, Dowel and long-hole drilling machine GANNER JUNIOR 320 LBM in very good condition, like new, the machine comes from a small carpentry shop and was used very little there it can be used to mill long holes and drill dowel holes in 2 levels without reclamping 380V, 1500W Speed: 2800 rpm Year of construction: 1990 with this machine, you can mill long holes for, for example, lock housings and similar items, or create all types of frame dowel joints at right angles, flush, and mitered ideal for the production of dowel joints in timber frame construction, furniture, door, window, and stair construction, and for similar applications drilling on 2 levels, the grid and stops, and the design of the machine allow dowel joints to be produced in a very short time, which makes the machine very economical Iiodpfjz I Eggox Amgsh the machine requires a compressed air connection of 6 bar (air consumption is very low) Right-hand rotation mills and drills very well and cleanly with 2 angle stops (one center stop and one side stop, which can be used on both sides) 2 stop rails can be attached on the left and right, the stop rails are 1000 mm long, each with 2 folding stops the workpiece is clamped using 2 pneumatic clamping cylinders the height adjustment from one drilling level to the other is also pneumatic; the pneumatic switch for this is located at the front of the machine, which ensures fast adjustment of grids and drilling levels with a precision 12mm grid rail, which has a center grid and 12 grids on the left and right can be quickly converted for long-hole milling; the machine can then be used without a grid with 2 adjustable stops on the left and right, and then has a working width of max. 420mm the max. borehole height is 100mm the max. borehole depth is 150mm with stop and scale the max. workpiece height is 160mm everything works perfectly we will personally deliver and demonstrate the machine anywhere in Germany for 220.00 euros, so you have no risk when purchasing; delivery to Austria and the EU is also possible on request the machine table is 870mm wide, 140mm deep on the sides, and 350mm deep in the middle professional equipment, not cheap hardware store junk you can start working with the machine immediately with 2 chucks up to 20mm very stable and durable construction the precision guides with the backlash-free ball bearing bushings are in good condition and move smoothly

Condition: used, Year of construction: 1998, Number of spindles in the hole row: 11 Number of horizontal spindles: 3 Pot-band drilling head: yes, Hettich Drill spacing: 32mm Iiodoz I Ivdopfx Amgsh Power consumption: 2.2kW Drilling unit: swiveling

Condition: reconditioned (used), Year of construction: 1990, Motors 2x1.85A 50Hz 380V 2800 rpm Air operating pressure 6 bar 30 spindles D=10 mm mount Iedpfx Ajv Nptmsmgeih Combination foot switch Emergency stop switch Main switch Manual height adjustment Manual side adjustment

Condition: like new (used), Year of construction: 2025, GANNOMAT "JUNIOR 323" FRAME DOWEL AND SLOT MORTISING MACHINE Complete in standard configuration as per price list 01/22/D with: - Precision collet chuck for ER 40 collets Ø 3–26 mm, including collets Ø 10 / 13 / 16 / 20 - Motor 1.5 kW, 2800 rpm Ijdpfx Amexdttiogoih - Positioning via digital counter - Pneumatic 2-level positioning adjustment (0–100 mm) - Max. drilling depth: 150 mm - Precision indexing rail with 12 mm pitch, featuring: - Center detent and lateral adjustment 320 mm - 2 pneumatic safety clamping cylinders - Complete fence system consisting of: • 1 center stop and 1 stop for oversized frames • 1 round stop bar approx. 850 mm long (can be mirrored from left to right) • 2 flip stops - Tiltable slot mortising device with 2 program cams (400V, 3Ph, 50Hz, 1.5kW) - Extraction hood Ø 80 mm, dust-tested - Central mitre stop 45° - Pair of auxiliary workpiece supports, pivotable (left and right) - Drill head holder - 3-spindle drilling head, 32 mm pitch (can be rotated 90°) - Chassis with 4 wheels for easy machine movement Availability: Short-term – immediately –

Condition: good (used), Year of construction: 1998, Ganner Universal Dowel Drilling Machine Universal dowel drilling machine for: Drilling carcass frames, hardware, and row of holes Drilling beam with 21 spindles Pitch 32 mm Guide rails for drilling rows of holes Angle stops Additional accessories Pneumatic pivoting of the drilling beam Working width 640 mm Isdpfx Amoz Dt Hyogsih Portal passage approx. 750 mm Drilling stroke approx. 100 mm Position adjustment of the drilling unit 0-45 mm Position adjustment of the row of holes approx. 300 mm Motor 1.5 kW Technical data available upon request The data has been taken from a brochure, therefore no guarantee is given.

Condition: good (used), Year of construction: 2015, functionality: fully functional, machine/vehicle number: 16201201, drilling depth: 70 mm, type of input current: three-phase, compressed air connection: 8 bar, input voltage: 400 V, workpiece height (max.): 65 mm, number of spindles: 21, operating pressure: 8 bar, input frequency: 50 Hz, workpiece length (max.): 850 mm, workpiece width (max.): 3,000 mm, For sale is a used Felder FD 921 dowel drilling machine from 2015. This machine is ideally suited for precise dowel joints and series hole drilling in the furniture, interior design, and carpentry sectors. Thanks to its robust design and proven Felder quality, it is ideal for professional use. Further technical data: Drilling unit with 21 spindles Motor power: 1.5 kW Rated current: 3.8 A Working pressure: 6 - 8 bar Multi-spindle dowel drilling machine for efficient series and dowel drilling Precise workpiece stops and easy operation Number of drilling heads: 21 (11 right-rotating, 10 left-rotating) Axial distance between the drilling heads: 32 mm Max. workpiece size: 850x3000 mm The machine is in used, fully functional condition and shows the usual signs of wear of a workshop machine. It is ideally suited for carpentry shops, joineries, and professional furniture and interior design. Inspection and test run possible by appointment. Iedpfjz Rvd Nox Amgjih

Condition: excellent (used), Gannomat slot mortising machine / dowel drilling machine with Leroy-Somer motor - Motor type: LS80L2 - Power: 1.1 kW - Speed: 2810 rpm - Voltage: 220/380 V - Frequency: 50 Hz - Protection class: IP54 3-phase drive - Stable work table Iodey Saw Hspfx Amgoih - Precision guide rails - Adjustable stops - Robust metal construction - Ideal for series production and precise wood joints – with drill and cup cutter - Air pressure must be shut off manually

Condition: good (used), Year of construction: 1982, functionality: fully functional, Power 380V 3.3A Motor power 1.1kW 2800 rpm Automatic pneumatic control with control panel Drill head with 23 spindles, pitch 32 mm Drill hole depth adjustable drill shaft 10 mm position adjustment 5-60 mm Clamping height 80 mm Passage width 800 mm Dimensions: 1200 x 900 mm Weight approx. 400 kg 1x setting gauge row bore 1x setting gauge side stop 1x stop ruler 1500 mm 1x fence 2000 mm Ijdpfx Aeq Auwtsmgsih

Condition: used, Year of construction: 1990, functionality: fully functional, machine/vehicle number: 254002, type of input current: three-phase, overall weight: 130 kg, input voltage: 380 V, number of spindles: 8, input frequency: 50 Hz, Schleicher frame dowel hole drilling machine DBH 600, Drilling motor 1.5 kW, 380 Volt, 50 Hz, Drilling stroke 0 - 130 mm, Iiodpoz Nkutefx Amgjh Special drilling gear with 3 rows and 8 spindles, 1 clamping cylinder, Special stop system for window frames and window mullions Weight approximately 130 kg as is, at the Seevetal location, excluding transport, EXW (Ex Works), subject to prior sale.

Condition: excellent (used), Year of construction: 1977, overall weight: 370 kg, Ayen automatic nut runner with a large number of tools. Iedpfx Amoz Ekqlogeih

Condition: not inspected (used), Year of construction: 2013, Bore diameter , mm Number of heads horizontal , St. Number of heads vertical , St. Götzinger Drilling and Milling Centre Iodpfev N N Spox Amgoih ----- For sale on behalf of a client! Machine for ‘left-hand’ and ‘right-hand’ parts. The machine was controlled via window-making software, but can also be operated via the machine’s own software. The machine is equipped as follows: - Drilling units on the left and right for end-face drilling. - 3 units for drilling and milling for longitudinal machining. - Parts are loaded once and the unit carrier then moves to perform the various machining operations. Machine installation length approx. 6 m. For further information, see the attached PDFs.

Condition: used, Year of construction: 2024, DOWEL HOLE DRILLING MACHINE GANNOMAT "DB 21400V, 3Ph, 50Hz / 1.5 kW, complete in standard design with: - Fully automatic electronic control with pulse operation via foot valve for clamping-drilling-releasing, electric intermittent operation. - Automatic retraction of the drilling unit after reaching the set drilling depth. - Automatic extension of the drilling hole depth when drilling on the end face. This eliminates the need to adjust the drilling hole depth from flat-face to end-face drilling (+10 mm, e.g. for a dowel length of 35 mm, drilling depth on the flat face 14 mm and drilling depth on the end face 24 mm). - 1 drilling bar with 21 spindles, pitch 32 mm, motor 1.5 kW (drilling feed 0-70 mm), incl. 21 quick-change chucks (Ganner system) for easy changing of the drill bits. - Easy pivoting of the drilling unit from 0° to 90°, supported by gas cylinders. - 1 clamping support movable in the Y-axis with 3 pneumatic clamping cylinders, for workpiece height up to max. 80 mm. Ideal stop system consisting of: - 1 stop rail 1800 mm for drilling shelves (aluminum profile 40x40 mm) with 3 stop blocks, with quick-change system, easily interchangeable from right to left stop side for drilling shelves in carcass structures in mirrored fashion, also suitable for row drilling in the 32 system. - Side stops and position settings, as well as the position of the drilling height above the support table, are adjusted by means of mechanical digital counters. - Side stops can be easily pivoted away, for the shortest possible conversion from carcass to frame and row drilling. - Clamping arms for the clamping support designed for row drilling positions up to max. 300 mm. - Ideal three-stage tool system. - 1 set of drill bits for dowels: - 5 carbide dowel drill bits, Ø 8x77 mm, right-hand - 4 carbide dowel drill bits, Ø 8x77 mm, left-hand Basic machine DOWEL HOLE DRILLING MACHINE GANNOMAT "DB 21400V, 3Ph, 50Hz / 1.5 kW, complete in standard design with: - Fully automatic electronic control with pulse operation via foot valve for clamping-drilling-releasing, electric intermittent operation. - Automatic retraction of the drilling unit after reaching the set drilling depth. - Automatic extension of the drilling hole depth when drilling on the end face. This eliminates the need to adjust the drilling hole depth from flat-face to end-face drilling (+10 mm, e.g. for a dowel length of 35 mm, drilling depth on the flat face 14 mm and drilling depth on the end face 24 mm). - 1 drilling bar with 21 spindles, pitch 32 mm, motor 1.5 kW (drilling feed 0-70 mm), incl. 21 quick-change chucks (Ganner system) for easy changing of the drill bits. - Easy pivoting of the drilling unit from 0° to 90°, supported by gas cylinders. - 1 clamping support movable in the Y-axis with 3 pneumatic clamping cylinders, for workpiece height up to max. 80 mm. - Ideal stop system consisting of: - 1 stop rail 1800 mm for drilling shelves (aluminum profile 40x40 mm) with 3 stop blocks, with quick-change system, easily interchangeable from right to left stop side for drilling shelves in carcass structures in mirrored fashion, also suitable for row drilling in the 32 system. - Side stops and position settings, as well as the position of the drilling height above the support table, are adjusted by means of mechanical digital counters. - Side stops can be easily pivoted away, for the shortest possible conversion from carcass to frame and row drilling. - Clamping arms for the clamping support des Isdpjxnlflefx Amgoih

Condition: excellent (used), Year of construction: 1982, with 2 drilling beams Used, good condition Make Scheer Type DB 3 Year of construction 1982 Machine no. 73021 Number of spindles: 25 Number of drill beams: 2 Spindle spacing/grid: 32 mm Drilling from above Hydraulic feed brakes: 2 Linear stop: 1 approx. 2500 mm Working width: approx. 800 mm (768 mm) Drilling depth: approx. 100 mm stroke Drill chuck: M 10 Pendulum stops: 3 Clamps: 3 Drill programs: 4 Space required: approx. 1400 mm x 1300 mm x 1800 mm Weight: approx. 1000 kg Iiedpfjv Trlmjx Amgsh Location: Arrives at the end of April at warehouse 54634 Bitburg - free on freight - Handed over in the current condition, as seen, without overhaul, without warranty or guarantee

Condition: used, Year of construction: 2015, The machine is suitable for precise and efficient drilling and dowel insertion in furniture production. Technical specifications: Year of manufacture: 2015 Machine dimensions: 2.6 × 1.6 m 3 × vertical drills 3 × horizontal drills X, Y, and Z axes – NC controlled and computer-adjustable Barcode scanner Iiodpoz Incdefx Amgsh Uses dowels with a diameter of 8 mm Machine is in good condition The machine is available for inspection by prior arrangement. For additional information, pricing, or to arrange an inspection, please contact me.

Condition: good (used), Year of construction: 2007, functionality: fully functional, NC-controlled drilling and dowel-inserting machine Manufacturer: Weeke Model: Optimat ABD 150 Year of manufacture: 2007 Workpiece dimensions: Length: 20 - 1250 mm Width: 100 - 800 mm Thickness: 10 - 60 mm Active center stop: maximum length 600 mm Equipment: - Horizontal drilling unit with 3 individually selectable spindles, spindle pitch 32 mm - 1 dowel insertion unit (spaced 32 mm from the first drilling spindle) Iedoxdl Raopfx Amgeih - Glue nozzle with adjustable glue output - Glue flow monitoring - Mist oiler for glue nozzle - Standard dowel sizes: 8x30 mm / 8x35 mm - Vibratory feeder for automatic dowel feed 1. BASE MACHINE - Rigid welded steel frame construction - Axis travel in X, Y, and Z directions - Ball screw drives (Y- and Z-axis) and rack and pinion drive (X-axis) - Digital AC servo motor - Support table with left and right side stops and rear fence - Pneumatic center stop, manually actuated via selector switch - 6 overhead pneumatic clamps, manually adjustable - Centralized lubrication system power control PC85T Modern control system based on Windows PC

Condition: used, Year of construction: 1997, Second-hand machine Year of manufacture: 1997 Condition: well-maintained Features and technical specifications: - Number of drilling spindles: 21, spaced at 32 mm intervals - Drilling direction: from below & from the front - Swivel range: 0–90 degrees via handwheel Iiodjzk Nuijpfx Amgeh - Pneumatic workpiece clamps: 3 pcs. - Passage dimensions: max. 100 mm in height and max. 640 mm in width - Motor: 1.5 kW - Extraction diameter: 120 mm - Includes a wide range of stops (see images) Availability: at short notice Storage location: Röllbach

Condition: good (used), Year of construction: 2001, Fully functional dowel insertion machine, Gannomat Selekta 252. - Electronic vibratory feeder - Automatic dowel length and dowel diameter control - Fully automatic electronic control with program selector switch COATING - APPLYING GLUE - INSERTING - 8-stage glue quantity selector switch with time preselection via electronic control - Selector switch GLUE/WATER for flushing the glue system #CS2 Iodpfx Aoz I Eh Djmgjih

Condition: used, Year of construction: 1997, Second-hand machine Year of manufacture: 1997 Features and technical specifications: - Number of drilling spindles: 21, spaced at 32 mm intervals - Drilling direction: Bottom & end face - Swivel range: 0–90 degrees via handwheel - Pneumatic workpiece clamps: 3 pcs. - Opening: Max. 100 mm in height and max. 640 mm in width - Motor: 1.5 kW - Extraction diameter: 120 mm - Includes a wide range of stops (see pictures) Iisdpezn Ah Rsfx Amgeh Availability: at short notice Storage location: 63934 Röllbach

Condition: used, Year of construction: 2018, 1 x CNC-CONTROLLED DRILLING, GLUING AND DOWEL INSERTING MACHINE GANNOMAT "INDEX 130 PRO" (with options as Index 180 Pro) 400V, 3Ph, 50Hz complete in standard design with: - Support with linear guide consisting of: 1 x single-spindle horizontal drilling unit, 1.1 kW motor, tool speed selectable via operator software (3000/5000/8000 rpm) 1 x blow-out, gluing and dowel inserting station in reinforced design for dowels Æ 8 mm, dowel length 30 mm - fully automatic, electronically controlled central lubrication - X-axis NC controlled, with working length 1300 mm, travel speed max. 78 m/min. - Z-axis, position via support table 5-40 mm programmable with NC-controlled Z-axis option - Dowel driving overhang of 7-20 mm, programmable with NC-controlled Y-axis option, drilling depth of 0-35 mm (with drill length GL 70 mm) is automatically set with driving overhang - Closed glue system with 6 bar glue pressure via glue nozzle, for glues with a viscosity of 150 to 350 mPas - Glue quantity continuously adjustable via operator software - GL/WATER selector switch for rinsing the glue system, 1 stainless steel container each for 5 kg glue and 5 l water - Control lamp for residual glue quantity display in the glue container - 1 side stop left, 1 side stop right and 1 center stop (all removable) - 4 start buttons for individual working with 1-4 workpieces - 4 pcs. Pneumatic inclined clamping cylinder 10° for workpiece thicknesses up to max. 80 mm, workpiece length (Y) min. 70 mm - 1 pc. suction funnel, connection Æ 80 mm - 1 pc. TCT control with: built-in industrial PC, incl. Soft PLC type Beckhoff TWINCAT, operating temperature range 0-50°C, TFT industrial display 15" resistive touchscreen, resolution 1024 x 768, CPU 2 GHz, 256 MB RAM, 2x network interface adapters, IDE hard disk, 4x USB rear, 1x USB front, operating system: WINDOWS 7 - programming via menu-driven user software, drilling distances freely programmable with ABSOLUTE, RELATIVE or GRID dimensioning, automatic workpiece mirroring and work step optimization, 4 work fields can be assigned with different programs, graphic workpiece display, parametric programming, 0-point shift, programmable work lists, error diagnosis with plain text OPTIONS: 1 electronic, optical glue monitoring system G.I.C. (Glue Insert Control) for 1 glue nozzle 4 vertical inclined clamping cylinders 10° with holder, additionally, (total 8 clamping cylinders) 1 surcharge for machine bed length 1800 mm with working length 1800 mm 1 surcharge for: 1 horizontal drilling unit, motor 1.5 kW, with multi-spindle drilling head with 3 individually controllable drilling spindles, pitch 32 mm arranged in X-axis, tool speed 3000 rpm. (The standard working length is not reduced) 1 Y-axis NC-controlled, with recirculating ball screw and dynamic traversing speed of 300 mm/sec. The dowel driving overhang 7-30 mm and the drill hole depth 0-42 mm can be programmed via software. (with drill length GL 77 mm) for vertical drilling unit drilling from TOP, Y-axis position 5-42 mm 1 surcharge Y-axis NC-controlled position 5-62 mm instead of 5-42 mm 1 surcharge for: 1 vertical drilling unit drilling from TOP, motor 1.5 kW, with multi-spindle drilling head with 3 individually accessible drilling spindles, 32 mm pitch arranged in X-axis, tool speed 3000 rpm. Y-axis position 5-42 mm, workpiece length (Y) min. 130 mm, (the standard working length is not reduced) 1 Z-axis NC-controlled, with K Iisdpfexwaz Hex Amgsh

Condition: ready for operation (used), Year of construction: 2003, Rilesa VLG 1524 3 drilling units from above Iisdpfx Aeu Shzfemgeh 2 right/left aggregates

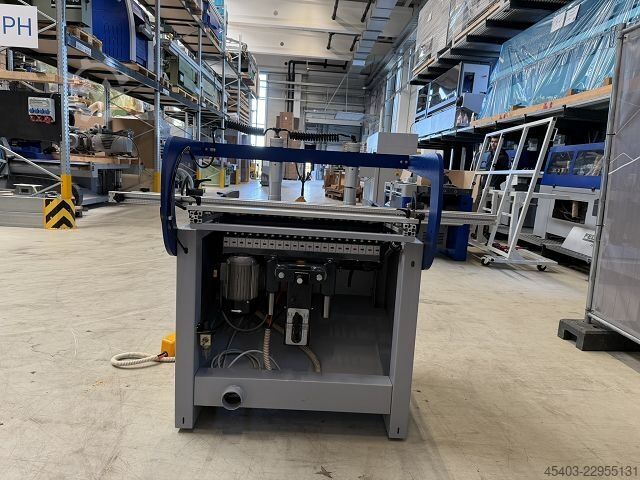

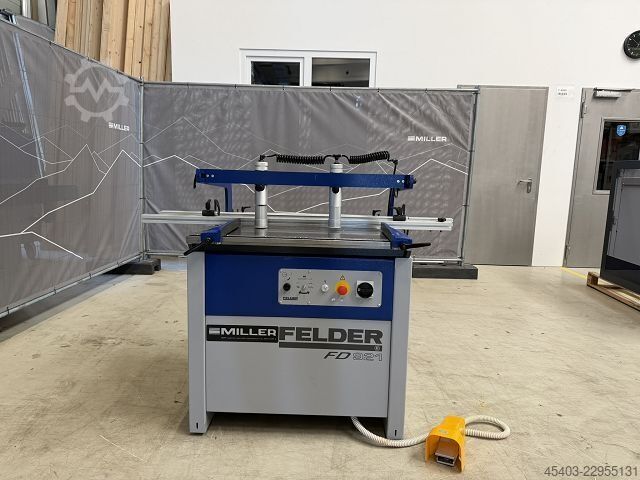

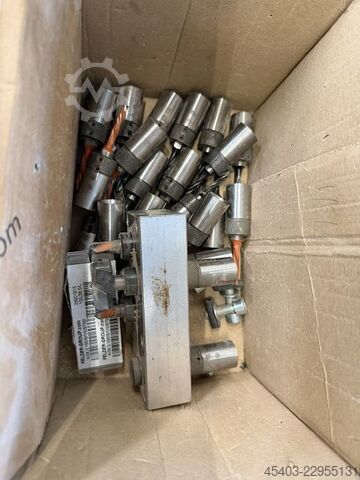

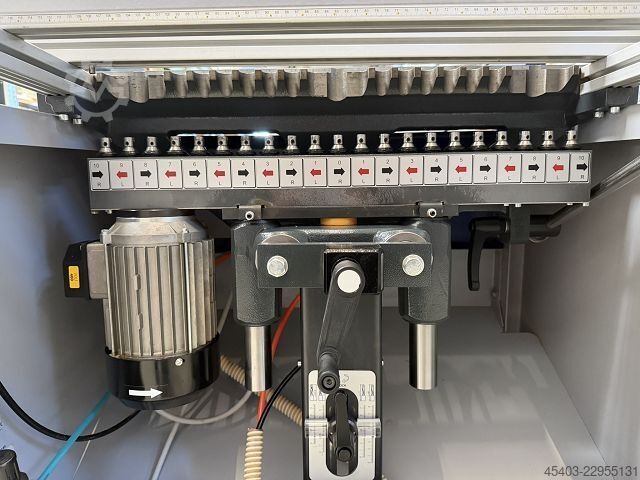

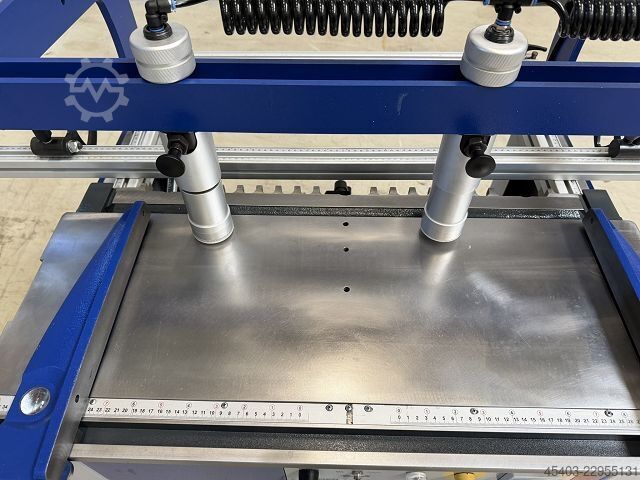

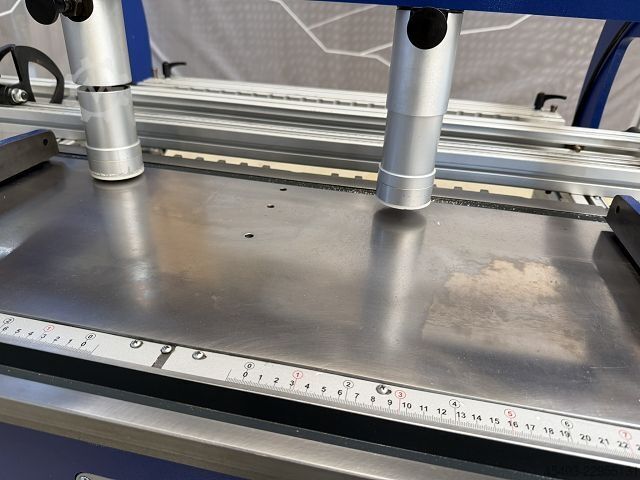

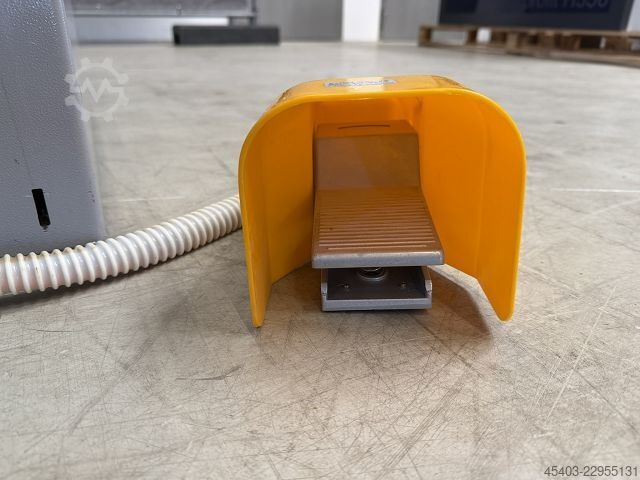

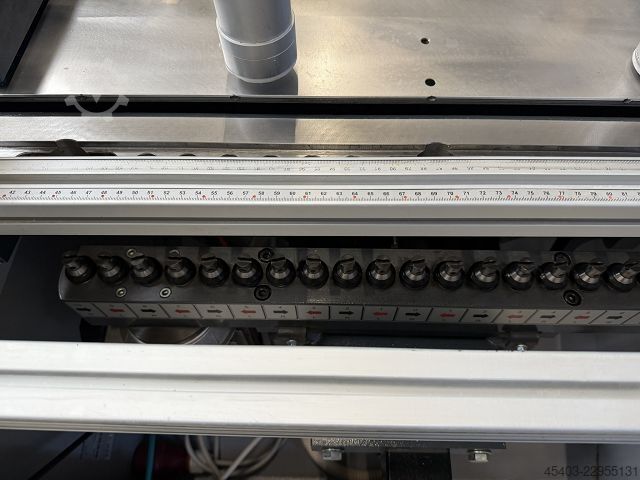

Condition: like new (used), DEMONSTRATION MACHINE For sale is a Felder FD-21 dowel boring machine. The machine is in use in our showroom and is therefore in mint condition. Technical data: - Version with 21 spindles - 2 hold-down clamps - 2 stops, each 1.5 m, for line boring - 2 side stops with reading optics - Indexing system for side stop with 8 positions - Motor power: 2 HP - Year of manufacture: 2025 The machine is located in A-5431 Kuchl and can be inspected and picked up during our opening hours at any time. Subject to prior sale! Iodoxxi T Uspfx Amgsih Related terms: dowel milling machine, drilling machine, line boring Reference: R-A0117

Condition: used, Year of construction: 1985, Used Machine Year of Manufacture: 1985 Features and Technical Specifications: - For horizontal and vertical structural drilling - For vertical row drilling in a 32 mm grid - Vertical drilling unit with dual-spindle drill heads, freely positionable on an indexing shaft - 1.5 kW motor with 1,400 rpm - 1.5 kW motor with 2,800 rpm - Drill heads with pneumatic stroke - Pneumatic workpiece clamps - Passage width approx. 850 mm - Includes various stops and drill bits Iijdpfxozk N Dwe Amgoh - Machine needs to be inspected/serviced. Basic functions are intact Availability: available shortly Location: 63934 Röllbach

Condition: new, Year of construction: 2025, CNC-controlled drilling, gluing, and dowel insertion machine Complete in standard configuration with: - Support with linear guide consisting of: 1 pc. single-spindle horizontal drilling unit, motor 0.65 kW, stroke 70 mm Tool speed selectable via operator software (3000/5000/8000 rpm) 1 pc. blow-out, gluing, and dowel insertion station for dowels Ø 8 mm, dowel length 25–50 mm - Fully automatic, electronically controlled central lubrication - X-axis NC controlled, with working length 700 mm, max. traversing speed 95 m/min - Z-axis manually adjustable via mechanical digital counter, position on support table 5–40 mm - Dowel insertion projection adjustable from 7–20 mm via mechanical digital counter, drilling depth 0–35 mm (with drill length TL 70 mm), automatically set with insertion projection - Closed glue system with 6 bar glue pressure via glue nozzle, for glues with viscosity from 150 to 350 mPas - Glue quantity steplessly adjustable via operator software - Selector switch GLUE/WATER to flush glue system, each with: 1 stainless steel container for 7.5 kg glue and 7.5 l water - Indicator lamp for residual glue level in glue container - 1 pc. left side stop, 1 pc. right side stop (all removable) - 2 pcs. start buttons for individual operation with 1–2 workpieces - 2 pcs. pneumatic angled clamping cylinders 10° for workpiece thickness up to max. 80 mm, workpiece length (Y) min. 70 mm - 1 pc. extraction funnel, connection Ø 80 mm - 1 pc. TCT controller with: Integrated industrial PC, incl. Beckhoff TwinCAT soft PLC, operating temperature range 0–50°C, 15" capacitive touchscreen TFT industrial display, operating system: WINDOWS 10 IoT LTSC (long term support channel) - Programming via menu-guided user software, drilling distances freely programmable with ABSOLUTE, RELATIVE, or GRID dimensioning, automatic workpiece mirroring and process optimization, 2 working fields assignable with different programs, graphical workpiece display, parametric programming, zero-point shift, programmable work lists, plain text error diagnosis - Integrated options: - Electronic optical glue monitoring system G.I.C. (Glue Insert Control) for 1 pc. glue nozzle, art. no. 0470-0810 - 1 EASY CLEAN system, for automatic test glue shots before starting the drilling/gluing/dowel insertion program. E.C.S. for 1 pc. glue nozzle, art. no. 0471-Z010 - 1 single-spindle vertical drilling unit from ABOVE, 0.65 kW, (3000/5000/8000 rpm), position (Y) manually adjusted via mechanical digital counter Iisdpfxsw Sgm Hj Amgsh Adjustable from 5–40 mm, drilling depth (Z) max. 30 mm (with drill length TL 57 mm) Workpiece thickness (Z) max. 50 mm, workpiece length (Y) min. 130 mm (incl. drilling depth compensation, e.g., for Häfele Minifix) Art. No. 0471-0830 - 4 vertical angled clamping cylinders 10° with mount, additional, Art. no. 0470-0850 Available: short notice

Condition: used, Year of construction: 2000, 220V, 1 phase, 50Hz Air connection: 6 bar Iijdpfx Aezktq Ijmgeh Complete in standard design with: - Dowel feed via electronic vibratory feeder - Automatic dowel length and dowel diameter control - Fully automatic electronic control with program selector switch GLUING – APPLYING – INSERTING - 8-stage glue quantity selector switch via time pre-selection by electronic control - Closed glue system with 6 bar glue pressure via glue nozzle for glues with a viscosity of 150 to 350 mPas - Selector switch GLUE/WATER for rinsing the glue system - Control lamp for displaying the remaining glue quantity in the glue container - 1 stainless steel container for 5 kg of glue and - 1 stainless steel container for 5 liters of water for rinsing including 1 gun for dowels Ø mm, dowel length 25 - 50 mm, pre-set to 35 mm, insertion overhang 7 - 20 mm Location: Nattheim

Condition: new, Year of construction: 2023, New machine Year of manufacture: 2023 Multi-spindle universal dowel drilling machine with 3 numerical axes (+/- 0.1 mm) with horizontal and vertical drilling capability electronic adjustment of height, depth and drilling angle (0-90°) with 7" color touchscreen with memory for up to 1000 programs with parallel guides with numerical adjustment with 21 drilling spindles (10 left and 11 right) Spindle spacing: 32 mm max. drilling distance: 640 mm max. tool diameter: 40 mm max. drilling depth: 65 mm max. horizontal drilling height: 35 mm Working height: 860 mm max. plate thickness: 60 mm max. plate size: 900 x 3000 mm Motor: 1.5 kW - 2800 rpm Isdpjlk R Epefx Amgjih Pneumatic connection: 6/8 bar Compressed air consumption per working cycle: 5 NL Dust extraction connection: 80 mm Machine footprint: 1580 x 950 x 1400 mm Net weight: 340 kg Availability: short-term Location: Flörsheim
