Used Graebener Toggle Press - Double Column for sale (24,433)

Condition: used, Year of construction: 1988, pressure 400 t distance between columns 1100 mm stroke 250 mm no. of strokes 25 - 75 /min distance table/ram, max. stroke up, adjustment up 900 mm table surface area 1100 x 965 mm capacity of ejector in table 30 t ejector stroke of ejector in table 80 mm capacity of ejector in ram 3 t stroke of ejector in ram 60 / 70 mm ram surface 980 x 800 mm Bjdpfx Aozrpt Usblolk column travel -side 800 mm ram adjustment 20 mm power capacity 80,0 + 5,5 kW weight 47,0 t Dimensions (WxDxH) 3,5 x 3,3 x 6,0 m weight of switch cabinet 1,4 t dimensions of electrical cabinet (WxDxH) 4,9 x 0,5 x 2,6 m Multi-station cold extrusion press with link drive with infinitely variable drive, hydraulic clutch-brake combination (Ortlinghaus), hydraulic overload protection in the slide, motorised slide adjustment, pneumatic counterbalance cylinder in press frame, cam-controlled ejector in table (30 t / 80 mm), pneumatic ejector in slide (3 t, 60 mm), motorised central lubrication

Condition: used, Year of construction: 1987, pressure 800 t stroke 100 mm no. of strokes 45 /min distance between columns 600 mm table surface area 560 x 650 mm capacity of ejector 5 t ejector stroke 15 mm ram surface 590 x 450 mm power requirement 22,0 kW Weight 17,0 t dimensions (WxDxH) 1,7 x 2,55 x 3,1 m Nominal force travel 1,46 mm Bljdpozl E Saefx Ablsk With knuckle-joint drive, flywheel brake, hydraulic clutch with 2nd brake, press frame balancing, single ejector in table, self-monitoring control

Condition: used, pressure 100 t distance between columns 310 mm no. of strokes 80 Hub/min ram - range of adjustment 40 mm table surface area 400x300 mm ram surface 250x190 mm Bledpfx Aslp U Sdoblek table height 960 mm tool hole in ram Ø 35 mm weight of the machine ca. 1,5 t dimensions of the machine ca. BxTxH 1500x1500x2200 m

Condition: used, Year of construction: 2000, pressing force: 260 t, stroke length: 250 mm, table width: 840 mm, table length: 1,500 mm, air pressure: 9.807 bar, compressed air connection: 9.807 bar, ram adjustment: 120 mm, We are offering this used Chin Fong OCP-260N eccentric press with double column, year of construction 2000. Model: OCP-260N Bedjykbcmspfx Ablolk Factory number: A00373 Year of construction: 2000-11 Capacity: 260 tons Stroke frequency: 20–40 strokes/min Stroke: 250 mm Maximum die height: 500 mm Upper bolster clearance: 7 mm Slide adjustment (range): 120 mm Upper platen surface (L × W): 1130 × 700 mm Lower platen surface (L × W): 1500 × 840 mm Main motor power: 22 kW Poles: 4 Machine weight: 31.8 tons Compressed air pressure: 9.807 bar Oil temperature max.: +100 °C Oil temperature min.: -10 °C Oil volume: 180 liters If you have any questions or need more information, please feel free to send us a message or call us.

Condition: used, Year of construction: 2005, Pressure 800 t distance between columns 2560 mm stroke 1050 mm Distance table/ram, stroke up 1870 mm Table surface area 2500 x 1730 mm pressure of drawing cushion in table 300 t Die cushion stroke in table 395 mm Die cushion area in table 2300 x 1300 mm Ram surface 2500 x 1730 mm Die cushion pressure in ram 63 t Die cushion stroke in ram 150 mm Side window 1000 mm Oil volume 4300 l Power capacity 200,0 kW Dimensions (WxDxH) 4,1 x 2,8 x 10,0 m Height above floor 7,0 m year of manufacture 1974 overhaul 2005: formerly type BZE 800, converted to ZE 800 by manufacturer with new ram and new cylinder mit ölhydraulischem Antrieb, hydraulischem gesteuertem Ziehkissen im Tisch und Stößel stored in dismantled condition - Video at seller’s site before dismantling available Bledpfszrpt Iox Ablok

Condition: used, Year of construction: 2005, Pressure 600 t distance between columns 2600 mm stroke 900 mm Blsdpfx Ajzrptzoblsk Distance table/ram, max. stroke up, adjustment up 1600 mm Table surface area 2500 x 1730 mm pressure of drawing cushion in table 250 t Die cushion stroke in table 400 mm Die cushion area in table 2300 x 1300 mm Die cushion pressure in ram 63 t Die cushion stroke in ram 160 mm Die cushion area in ram 1900 x 1300 mm Ram surface 2500 x 1730 mm Side window 1100 mm Oil volume 3500 l Power capacity 200,0 kW Dimensions (WxDxH) 4,1 x 2,8 x 9,6 m Height above floor 6,4 m year of manufacture 1974 - overhaul 2005: complete new electrical cabinet with control Siemens S7 and safety control Pilz with oil-hydraulic drive, hydraulic controlled drawing cushion in table and ram, hydraulic cutting impact cushioning stored in dismantled condition - Video at seller’s site before dismantling available

Condition: used, Year of construction: 1998, Pressure 800 t distance between columns 3550 mm stroke 1100 mm Distance table/ram, max. stroke up, adjustment up 1900 mm Table surface area 3500 x 1800 mm pressure of drawing cushion in table 350 t Die cushion stroke in table 280 mm Die cushion pressure in ram 80 t Die cushion stroke in ram 160 mm Ram surface 3500 x 1800 mm Side window 1900 mm Weight 100,0 t Floor Space (WxD) 5,3 x 4,3 m Height above floor 7,3 m Height below floor 5,0 - 6,0 m year of manufacture 1970 - overhaul 1998 Bedpfx Aezrptneblolk with oil-hydraulic drive, hydraulic controllable drawing cushion in table and ram, hydraulic cutting impact cushioning, moving table (without rails for the moving table) Height beneath floor approx. 5 - 6 m stored in dismantled condition - Video at seller’s site before dismantling available

Condition: used, Year of construction: 1987, pressure 2000 t distance between columns 975 mm stroke 400 mm distance table/ram, max. stroke up, adjustment up 1000 mm Bljdpozrpr Rsfx Abljk table surface area 1015 x 1050 mm table height over floor 800 mm capacity of ejector in table 6,3 t ejector stroke in table 100 mm capacity of ejector in ram 65 t ejector stroke in ram 100 mm ram surface 975 x 1050 mm return capacity 150 t speed down 235 mm/s speed up 250 mm/s working speed 5 - 20 mm/s oil volume 4000 l height over floor 3,65 m height beneath floor 3,75 m power requirement 194,0 kW weight 105,0 t dimensions (WxDxH) 5,0 x 6,5 x 7,4 m Calibrating press with oil-hydraulic drive, hydraulic ejector in table and ram

Condition: used, Year of construction: 2010, pressure 600 t distance between columns 3640 mm stroke fix 350 mm no. of strokes 11 - 44 /min dayligth (stroke and adjustment up) 1550 mm Bsdpfxozrppcj Ablelk column travel -side 2200 mm table surface area 3600 x 2500 mm ram surface 3600 x 2500 mm ram adjustment 400 mm band width 2000 mm material thickness 0,6 - 2,5 mm material cross-cut 1600 x 2,5 mm² coil weight 35,0 t Number of Straightening rolls 13 0 straightening roll diameter 50 mm Blanking Line (press, coil line, blank stacking system) yom 1993 - 2010: new control Siemens S 7 - press Schuler type EBS 4-600 with infinitely variable drive, fly-wheel brake, pneumatic clutch/brake combination, hydraulic overload protection in ram, pneumatic counterbalance in ram, motoric ram adjustment, ram interlocking moving tables (2x) without rails for the moving tables - decoiler make Schleicher, type HE - 355 - 2100, yom 1994 with auxiliary drive, snubber roll - coil lifting device - extractor device make Schleicher - shear - straightening machine make Schnutz, type RME 18/50/13-2000 TZ, yom 1994 with infinitely variable drive, 30 intermediate rolls, 117 supporting rolls - coil loop bridge - roll feed make Schleicher, type WV-SYS-A 160-2000, yom 1994 - blank stacker NSM-Magnettechnik stored in dismantled condition - Video before dismantling available

Condition: used, Year of construction: 1977, pressure 250 t distance between columns 1110 mm stroke 250 mm Distance table/ram, max. stroke up, adjustment up 500 mm Table surface area 1100 x 900 mm Table height above floor 950 mm Side window 690 mm Ram surface 1100 x 900 mm Oil volume 730 l Bsdpfx Ajzrptheblolk Power capacity 56,0 kW Dimensions (WxDxH) 2,3 x 1,55 x 3,96 m with oil-hydraulic drive, controllable dependent on pressure/time and way, cutting impact cushioning, depth stop No foundation pit necessary

Condition: used, Year of construction: 1985, pressure 40 t distance between columns 495 mm stroke 150 mm distance table/ram, max. stroke up, adjustment up 300 mm Blsdpfx Abozrptbeljk table surface area 490 x 400 mm hole in the table 50 mm table height over floor 950 mm side window 155 mm ram surface 150 mm speed down 480 mm/s speed up 480 mm/s working speed 20 mm/s oil volume 115 l power requirement 7,5 kW weight 2,2 t dimensions (WxDxH) 1,35 x 1,1 x 2,2 m with oil-hydraulic drive, upper and lower stroke limitation, mechanical depth stop, two-hand and foot operation

Condition: used, Year of construction: 1990, pressure 500 t distance between columns 1220 mm stroke 600 mm distance table/ram, max. stroke up, adjustment up 1000 mm table surface area 1600 x 1200 mm pressure of drawing cushion in table 320 t Bljdpfxszrpqto Ablek stroke of drawing cushion in table 150 mm drawing cushion surface in table 750 x 625 mm pressure of drawing cushion in ram 180 t stroke of drawing cushion in ram 100 mm drawing cushion area in ram 750 x 625 mm ram surface 1600 x 1200 mm table height over floor 800 mm speed down 665 mm/s speed up 530 mm/s working speed 34 - 100 mm/s quantity of oil 2000 l power requirement 180,0 kW weight 40,0 t Dimensions (WxDxH) 3,2 x 2,4 x 7,5 m Depth of foundation pit 4,1 m Height above floor 5,55 m YOM 1975 - Overhaul 1990 with oil-hydraulic drive, hydraulic drawing cushion in table and ram

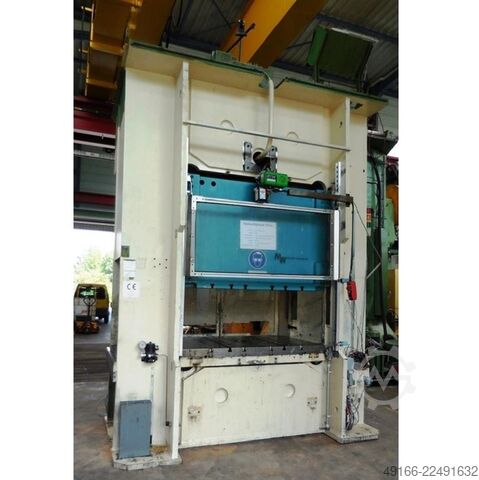

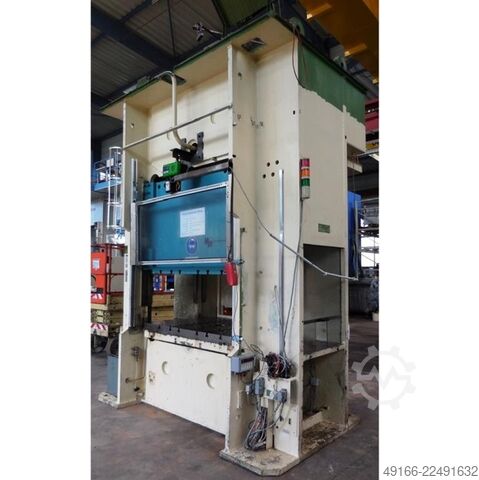

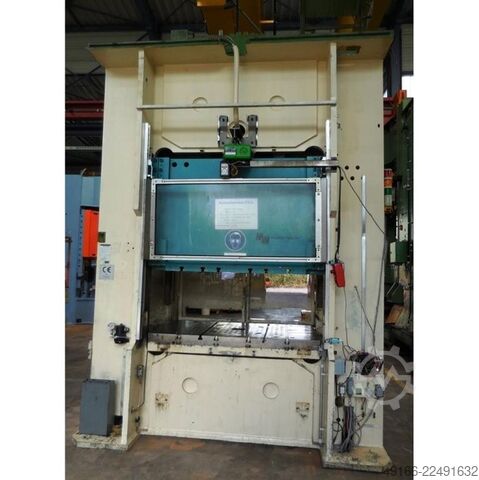

Condition: used, Year of construction: 1993, pressure 315 t distance between columns 1660 mm stroke 400 mm Distance table/ram, stroke up 600 mm Table surface area 1600 x 1000 mm table height over floor 960 mm Die cushion pressure in table 80 t Die cushion stroke in table 200 mm Die cushion area in table 950 x 650 mm Side window 720 mm Bodpfx Aezrptuebljlk Ram surface 1600 x 1000 mm Oil volume 1400 l Power capacity 57,0 kW Weight 30,0 t Dimensions (WxDxH) 3,0 x 2,9 x 4,4 m with oil-hydraulic drive, hydraulic drawing cushion in table

Year of construction: 1995, condition: used, machine/vehicle number: 211045 H110, Response time: 133 ms, clamping force: 2,500 kN, control unit, two-hand operation, upstream light barrier, separate control cabinet, 1 workbench with a Garant two-jaw vise mounted on it, storage shelf. Blodpfx Ajzqzcrjblsk

Year of construction: 2006, condition: used, machine/vehicle number: 10510, Drive power: 138 kW, clamping force: 4,500 kN, machine weight: approx. 74,000 kg, max. tool weight: 7,500 kg, tool dimensions: approx. 2,150 x 1,300 mm, stroke: approx. 61 mm, SIEMENS SIMATIC C MULTI PANEL control, two-hand operation, upstream light curtain, separate RITTAL control panel system, cooling system, including accessories: 1 workbench, 1 sheet metal cabinet, contents: various hand tools. Blodpfx Aszqzd Asblok

Condition: new, Year of construction: 2025, pressure 1000 t distance between columns 4250 mm stroke 400 mm Control SIEMENS S7-1500F table dimension - longitudinal 4000 mm table dimension - cross 1600 mm total power requirement 200 kW weight of the machine ca. 250 t Bjdpfx Absym D E Ajlelk dimensions of the machine ca. 7,5 x 4,8 x 7,4 m

Condition: used, Year of construction: 1994, KAISER Press Bledpfjzp Ed Rjx Ablek Pressing force 4,000 kN Stroke adjustment 40-200 mm Ram adjustment 150 mm Stroke rate 20-80 1/min Table area 2,340 x 1,600 mm Ram area 2,000 x 1,500 mm Installation height 550 mm

Condition: as good as new (ex-display), Year of construction: 2020, pressing force: 20 t, Double column press 20 T capacity, a) Closing speed up to 10 mm/sec b) opening speed up to 30 mm/sec c) table size between columns 1400x1100 mm d) ram size between columns 1400x1100 mm e) Manual lubrication (via grease nipple) f) UKF pump-cooling-filtration ( electrical cooling ) g) Pressure adjustment from 4 T to 20 T ( adjustable via rotary control ) h) Travel adjustable via slide control Type of construction Press design Double column press ,hydraulic Thermally neutral 80 - 120 °C Number of operating sides 1 side Forces Pressing force max. 200 kN Free ripping force max. 20 kN Pressure build-up time Closed tool Steel on steel Max. 4 sec. Dimensions Max. Opening width 500 mm Stroke 300 mm Table height above floor, approx. 900 mm Height above floor (headroom) approx. 2800 mm Hall height min. 3,500 mm Parallel deviation at 20°C #ERROR! mm Deflection Determined at max. clamping force with 2/3 occupancy < = 0.4 mm/m Weight Total weight of the press without operating materials approx. 3 to Table cut-out Size 1100x850 mm Speeds Fast closing with 9 mm sec. Pressing speed 9 mm sec. Sound pressure Sound pressure level, measured at 1.5m height at the control panel according to DIN 45635-T16-KL3 max. 78 db(A) Hydraulics Number of press/driving cylinders 2 pcs. Operating pressure max. 280 bar Pressing pressure build-up time 3-5 sec. Bedpfxehmbhqj Ablslk Pressure accuracy during pressing stroke +/- 5 bar Main pump BOSCHREXROTH/PARKER approx. 35 L/min Oil volume approx. HLP 46 D 150 litres Ambient temperature max. 40 °C Oil temperature max. 55 °C Flow temperature °C Circulation pump for cooling ACS approx. 6.5 L/min Electrical system Main supply 400 V AC Control voltage 24 V Frequency 50 Hz Hydraulic connection Main motor 3 kW Total connection Approx. 5 kW

Condition: as good as new (ex-display), Year of construction: 2022, pressing force: 400 t, Press design double column press Thermally neutral 80 - 120 °C Number of operating sides 1 side Forces Pressing force max. 4000 kN Free ripping force max. 400 kN Pressure build-up time Closed die steel to steel Max. 4 sec. Dimensions 3,800 mm long and 4,475 mm wide Max. Opening width 800 mm Stroke 800 mm Table height above floor 1100 mm Height above floor (headroom) approx. 4300 mm Hall height min. 5500 mm parallel deviation at 20°C +/- 0,1 mm Deflection Determined at max. clamping force with 70% occupancy < = 0.2 mm/m Weight Total weight of press without operating materials and table plate approx. 28 t Press table Table size 1500x1500 mm Speeds Fast closing with 100 mm sec. Pressing speed 8 - 3 mm sec. Sound pressure Sound pressure level, measured at 1.5m height at the control panel according to DIN 45635-T16-KL3 max. 78 db(A) Hydraulics Number of pressing cylinders/driving cylinders 1 pc. Operating pressure max. 300 bar Pressing pressure build-up time 4 sec. Pressure accuracy during pressing stroke +/- 3 bar Main pump BOSCHREXROTH axial piston pump approx. 145 L/min Oil volume approx. HLP 46 MW 1000 liters Ambient temperature max. 40 °C Oil temperature max. 55 °C Flow temperature °C Auxiliary pump BOSCHREXROTH, gear pump 10 L/min Pressure stabilization for up to 300 sec. Electrical system Main supply 400 V AC Control voltage 24 V DC Frequency 50 Hz Connection hydraulics main motor 40 kW Sliding table press with 400 T capacity, Closing speed up to 100 mm/ ( adjustable via touch screen ) Opening speed up to 100 mm/sec ( adjustable via touch screen ) Starting press speed 10 mm/sec ( adjustable via touch screen ) table top size 1500x1500mm Bledpfx Aeph Uk Nsblek ram size approx. 1600x1500mm Oil temperature monitoring 55 degree warning, 60 degree shutdown Automatic lubrication ( adjustable via touch screen ) Free positioning of the ram ( adjustable via touch screen ) SICK/PILZ light barriers 14 mm, front, up to 1800 mm height Hydraulic and mechanical ram protection Circuit oil cooling ( adjustable via touch screen ) Ejector in table, 20 T press force, 350mm travel Ejector moves outwards with the table Table plate milled flat, with DIN 22 T grooves Pressure adjustment from 60 T to 400 T ( adjustable via touch screen ) Travel limitation either by pressure or position Set-up mode, single stroke and cycle sequence ( adjustable via touch screen ) Swiveling control panel on the cabinet Two-hand operation, with opening button, manual/single stroke/cycle switchover button Installation, commissioning, instruction against separate charge The control is supplied by SIEMENS. ( S 7 1200 ) Also the touch screen monitor with 9 inch. The remote maintenance unit SECOMEA -Ethernet is included in the delivery. The side of the press has two 1000 mm high and 800 mm wide windows with double doors. (sliding table press, hydraulic press, hydraulic press, double column press)

Condition: new, pressing force: 400 t, pressure:400 t distance between columns:3400 mm stroke:500 mm total power requirement:55 kW weight of the machine ca.:49 t draw back pressure:26 t pump capacity:131 Lt./min dimensions:7.900 x 5.500 x 4.300 mm :5000 mm :2800 mm table height over floor:700 mm distance between table / ram:1000 mm :700 l Bedpfjfhcc Rjx Ablelk traversing speed:0-33 mm/sec. down speed:0-10 mm/sec :0-25 mm/sec.

Condition: as good as new (ex-display), Year of construction: 2017, machine/vehicle number: DF0052, pressing force: 200 t, pressure:200 t distance between columns:1200x1000 mm Blsdpefxyirefx Ablok stroke:600 mm total power requirement:32,5 kW weight of the machine ca.:20,5 t dimensions of the machine ca.:4000x2600x5000 m draw back pressure:20 t Master cylinder:1 Stück voltage:400 V frequency:50 Hz :24 V :BOSCH/REXROTH dayligth:800 mm :1200x1000 mit T-Nuten nach Kundenwunsch DIN 650-22 mm work height max.:1100 mm pre-running speed:170 mm/sec return speed:150 mm/sec Speed printing phase:15 mm/sek. Hydraulic block:REXROTH demand for oil:500 l pressure control:über PLC (Mindestdruck 20t) Oil Cooling:elektrisch :220 (im Schaltschrank) V memory:200 Programme :über Monitor von 20-200 t Controll:Zweihandbedienung beweglich :2-10 mm/sec :0-10 sec

Condition: new, Year of construction: 2019, pressing force: 275 t, pressure:275 t distance between columns:3000 mm total power requirement:30 kW weight of the machine ca.:40 t draw back pressure:27 t pump capacity:Axialpumpe mit Proportionalventil :6000 mm :max. 3000 mm Table dimensions:6000 x 3000 mm table height over floor:700 mm Blodpfx Abofxyigelok distance between table / ram:1100 mm :450 l traversing speed:auf X und Y, 30-33 mm/sec. down speed:2-10 mm/sec :2-50 mm/sec. Cylinder hub:900 mm Cylinder diameter:440 mm Stestle extension:200 / 200 mm / Ø :40 mm Siemens Control System:S7 1200 Monitor Siemens 9":Touch Panel Tax desk:tragbar

Condition: used, Year of construction: 2008, Pressure total: 100 ton Daylight: 1.400 mm Table surface area : 1.300 x 1.000 mm Slide area: 1.300 x 1.000 mm Bsdpfxsznn Upo Ablolk Ejector Force: 35 kN max. capacity of swivelling ram plate: 40 kN Die Weight on table max.: 80 kN max. capacity of tilting table: 50 kN Oil volume: 200 l Required power: 10 kW Dimensions L x W x H: 3.95 x 2.3 x 4.5 m Distance between the columns F - B: 1.050 mm Weight of machine approx.: 10 ton

Condition: good (used), Press force: 200 tons Table: 1500x1000 mm Motor: 45 kW Weight: 18,000 kg Frame width: 1500 mm Blsdpsgvz Hxofx Ablek Dimensions: Machine: 5500x2610x2150 mm

Condition: used, pressure 1000 t distance between columns . mm stroke . mm total power requirement . kW The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. Bjdpfx Aszk Rcusblolk About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team
