Used Guideway Grinding Machine for sale (65,290)

Condition: used, Guideway and surface grinding machine WMW FRITZ HECKERT Aschersleben type SZ 1000 x 1250 x 3000 / 344 make no. 13.2236.2 year of construction 1989 nominal grinding area 3000 x 1250 mm table clamping area 3240 x 1000 mm grinding length max. 3300 mm Machining width 1250 mm Machining height 1250 mm grinding wheel diameter (surface grinding support) max. 600 mm grinding wheel width (flat grinding support) max. 100 mm grinding wheel diameter (swivel support) max. 450 mm Mains connection 400 Volt, 50 Hz - grinding support swiveling, drive power 16,5 kW, infinitely variable speed Pgodjhv A A Depfx Ag Djk - grinding support for surface grinding, drive power 15 kW, infinitely variable speed - new electrical control, based on SIEMENS S7 from year 2001 - new electric control cabinet beside, year of construction 2001 - infinitely variable grinding wheel speed at both grinding supports - swiveling wheelhead for guideway and profile grinding - swivel-mounted and height-adjustable control panel - coolant system adjacent - Hydraulic system adjacent - oil circulation lubrication adjacent - Various grinding wheels and holders space requirement complete L x W x H 11900 x 7700 x 4600 mm weight 45 ton. very good condition

Condition: good (used), Year of construction: 1972, Slideway grinding machine WMW SFBZ 2200/6000 Manufactured by WMW Germany in 1972 Main technical data: Table size: 2240x6000 mm Max. grinding width: 2200 mm Max. grinding length: 6000 mm Max. grinding height: 2000 mm Max. workpiece weight: 15000 kg Machine weight: 130 tons The machine underwent a general overhaul in 2022. The feed boxes with electromagnetic couplings were replaced with motors and gearboxes for both heads. The bearings for the universal grinding head were also replaced. Pedpfx Agew U A Rmo Djgk For more information, please contact us.

Condition: ready for operation (used), Year of construction: 1979, functionality: fully functional, machine/vehicle number: 2.4212.06, grinding width: 1,450 mm, workpiece weight (max.): 11,000 kg, grinding length: 3,000 mm, table width: 3,000 mm, table length: 1,250 mm, No reserve price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Table and Workpiece Clamping area of the table: 3,000 x 1,250 mm Overall table size: 6,000 x 1,800 x 1,000 mm Clearance between columns: 1,650 mm Grinding length: 3,000 mm Grinding width: 1,450 mm Max. workpiece height: 1,250 mm Cross beam adjustment: 1,250 mm Max. workpiece weight: 11 t Table feed rate: 1 to 45 m/min Control System and Grinding Supports Universal grinding support: 7.5 kW Swiveling range of grinding spindle: +/- 110° Grinding wheels (universal support): 500 x 60 mm Vertical adjustment (universal support): 350 mm Peripheral grinding support: 22 kW Grinding wheels (peripheral support): 600 x 120 mm Vertical adjustment (peripheral support): 150 mm MACHINE DETAILS Electrical Data Total connected load: 40 kW Podpew Srzcofx Ag Dogk Dimensions & Weight Weight: approx. 45 t Installation dimensions: 12,000 x 6,000 x 4,800 mm Note: The machine can be dismantled and loaded for €10,000.

Condition: good (used), Year of construction: 2012, grinding width: 2,000 mm, workpiece weight (max.): 18,000 kg, grinding length: 8,000 mm, Manufacturer: Waldrich Coburg Type: 30-10 S 3640 Control system: SIEMENS 840D Year of construction: 2012 Guideway / Slide way / Surface Grinding Machine Universal grinding head S10 with 110 Degree tilting / 2500 Rpm / 7.5 kW Vertical grinding head S30 with Ø 600 x 150 / 930 Rpm / 22 kW Double SIEMENS 840D Control panel Left & Right side machine KNOLL HL650/4000 Filtration system new 2023 Automatic doors (4x) for easy machine / load / clamping acces Hydraulic table drive with 18000 kg work load Rebuild in 2012 for 1.5 Mil EUR Large package flanches and stones Large package spare parts / ballscrews / measuring / protection covers Specifications Metric US Standard X - axis 8825 mm Y - axis 3010 mm Z - axis 2500 mm Table length 8000 mm Table width 1800 mm Table load 18000 Feed X - axis 1 - 45.000 mm/min. Feed Z-axis 100 - 3000 mm/min. Grinding stone dimensions 600 x 150 mm Pjdjtp T N Tspfx Ag Dogk Power output 22 kW Rotational speed 930 rpm Coolant system Knoll 4000 L Feed Y - axis 1 - 700 mm/min. Dimensions (estimate) length 24360 mm width 9550 mm height 7000 mm weight 80200 kg Please note: The information on this page has been obtained from the manufacturer to the best of our knowledge and belief, and where possible, the information is given in good faith but accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contract and we recommend that you check all relevant details.

Condition: ready for operation (used), Year of construction: 1980, operating hours: 15,339 h, functionality: fully functional, grinding width: 2,650 mm, grinding length: 11,500 mm, table load: 10,000 kg, grinding height: 2,000 mm, grinding wheel diameter: 600 mm, The machine was retrofitted by the seller in 2020! The machine remained powered until 01.08.2025! TECHNICAL DETAILS Grinding Area: Maximum grinding width: 2,650 mm Maximum grinding length: 11,500 mm Maximum grinding height: 2,000 mm Maximum workpiece height: 2,120 mm Maximum distance between columns: 2,670 mm (by removing the guideways, a width of 2,750 mm can be achieved) Table size: 2,240 x 12,000 mm Maximum table load with even weight distribution: 10,000 kg/m Travel and Adjustment Ranges: Cross slide travel: 1,800 mm Vertical adjustment of universal grinding support: 450 mm Pedpjw I Ebuofx Ag Dogk Vertical adjustment of grinding support with horizontal spindle: 250 mm Head inclination: ±90° Grinding Spindle: Wheel diameter: 600 mm Wheel width: 120 mm Wheel bore: 200 mm Wheel speed: 1,000 rpm Spindle power: 30 kW MACHINE DETAILS Control: Fanuc CNC 31i Model A Operating hours: 15,339 hours EQUIPMENT Enclosure without roof

Condition: good (used), Year of construction: 2015, operating hours: 250 h, functionality: fully functional, For Sale: Guideway Grinding Machine (Retrofitted from Metal Planing Machine) We offer a robust guideway grinding machine, which has been professionally converted from an original metal planing machine. The main advantage lies in its relatively compact footprint in relation to the workpiece capacity. Technical Specifications: • External dimensions (LxWxH): 4,800 x 2,500 x 2,000 mm • Required floor space: 4,800 x 3,500 x 2,700 mm (+ control cabinet, coolant tank, access) • Table size: 2,000 x 800 mm • Distance between columns: 1,000 mm • Travel paths (X/Y/Z): 2,000 / 1,000 / 600 mm Upgrades & Features: • New ball screw spindles and bearings • 2 new motors + 2 overhauled motors • 3 new frequency inverters • New Siemens SINUMERIK 802C baseline CNC system • Large grinding spindle: 2,840 rpm – refurbished + new motor Pgjdjxx Uudopfx Ag Dek • Small grinding spindle: 18,000 rpm – refurbished • Including control cabinet, coolant tank with pump, and separate, wall-mounted inverter for small spindle Inspection and trial run possible by appointment. Please contact us for more information.

Condition: ready for operation (used), functionality: fully functional, DESCRIPTION OF MACHINE INCLUDED A LOT BELTS Pgodpfxowxrnwj Ag Djk A Löser abrasive belt grinding machine offers the most flexible grinding / linishing on the market today. The combination of basic machine plus a variety of contact arms and attachments offers dozens of possible applications for many different purposes. There are over 20 standard attachments available for this machine allowing it to be used for centerless grinding, internal polishing, grinding of hollow bodies and small radius and turbine blade finishing to name but a few. Fields of application of these abrasive belt grinding machines include: *Foundries *Medical engineering *Aircraft industry *Vehicle construction *Mechanical engineering *Specifications Abrasive belt grinding machine, type KS 350 *Grinding belt length 3000-4000 mm *Grinding belt width 5 - 75 mm Loser KS 350 Belt design features:: *Drive motor 4 kW (standard design) with fitted variable speed inverter drive *Drive wheels of 100 - 280 mm diameters = 3 - 46 mtr./sec. belt speed *Mechanical belt tensioning *In case of a belt break the drive is immediately disconnected. Therefore, the risk of an accident is eliminated. *Contact disks of 50 - 400 mm diameters, with a wide choice of grinding attachments for any kind of surface finishing * DC injection breaking unit fitted. *Maintenance-free, dust-proof contact disk bearing with permanent lubrication, contact disk change in less than 1 minute. *LÖSER abrasive belt grinding machines open up new fields of application for belt linishers that in the past could not be processed with normal belt grinders. *When using 3 to 4 m long grinding belts, the 3-contact wheel system ensures the constant and optimal belt speed no matter which contact disk diameter is being used. *Driven by the motor pully, the three pully system allows the belt which is constantly tensioned a higher degree of torque at the same motor rating. *When working with Scoth-Brite disks or belts or with felt polishing belts, the drive can be infinitely adjusted even for speeds as low as 3 mtr. /sec. Due to the advantages offered by the 3-contact point system, any required surface finishing is possible using contact disks from 50 to 400 mm, contact rolls or contact rollers from 15 to 50 mm, contact belts of 6 or 30 mm width, polishing brushes, polishing disks and polishing belts.

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, machine/vehicle number: MGB1320E, center height: 180 mm, workpiece weight (max.): 100 kg, grinding length: 500 mm, grinding wheel diameter: 400 mm, total width: 14,150 mm, total length: 18,000 mm, total height: 14,750 mm, grinding diameter: 320 mm, workpiece length between centers: 350 mm, grinding wheel width: 50 mm, spindle speed (max.): 3,000 rpm, feed length X-axis: 500 mm, feed length Z-axis: 150 mm, feed rate X-axis: 10 m/min, feed rate Z-axis: 1 m/min, overall weight: 2,100 kg, workpiece spindle speed (max.): 400 rpm, Equipment: rotational speed infinitely variable, Beijing Second Machine Tool Beijing Second Semi-automatic High Speed Cylindrical Grinding Machine MBS1320E On-line production equipment; test machine available; roundness within 0.001 beier machine tool works co ltd Online production equipment Pgsdpjtr Azkefx Ag Dok machine testing available The roundness within 0.001

Condition: ready for operation (used), Year of construction: 2013, functionality: fully functional, machine/vehicle number: 52.362, input voltage: 400 V, MACHINE DETAILS Type of input current: Alternating current (AC) Input voltage: 400 V Podpfx Aoy A Ipfog Djgk Operating voltage: 400 V AC Frequency: 50 Hz Total connected load: 50 A Max. feed current: 22 A

Condition: ready for operation (used), Year of construction: 2012, functionality: fully functional, machine/vehicle number: GD12002, workpiece weight (max.): 150 kg, grinding length: 1,000 mm, grinding diameter: 360 mm, overall weight: 4,700 kg, TECHNICAL DETAILS Max. grinding diameter: 360 mm Max. grinding length: 1,000 mm Max. workpiece weight: 150 kg Pgedpfsy A Nl Uex Ag Dok MACHINE DETAILS Main drive power: 5 kW Dimensions & Weight Dimensions (L x W x H): 3,030 x 2,250 x 2,030 mm Weight: 4,700 kg EQUIPMENT PLC controlled Tailstock Work spindle Grinding spindle with flange and grinding wheel Internal grinding device Wet grinding system Electronic handwheel Work lamp Center point Chuck Manual

Condition: good (used), Year of construction: 1998, grinding wheel diameter: 915 mm, overall weight: 14,000 kg, GIUSTINA Grinder R242 to ground big bearings (up to 800mm). All machine's actions are controlled by Bosch Control. Beside controlling parts grinding process, the NC programs are also an operator guide for the machine set up and a source of information about wheel wear, thus allowing the operator to check wheels without opening the hood. Equipped with: Bosch CNC Control Podpfx Agjrtr D Io Dogk Specifications: Wheel Rotation Axis: Horizontal Grinding Wheel Size (OD): 915 mm Grinding Wheel Size, Usable Width: 65 mm Grinding Wheel Size, Peripheral Speed: 30 ms Spindle Motors: 75 kw Grinding Feedrate: 0.1 - 1000 mm/min Spindle Type: Moving Quill Angular Contact Spindle Bearings (Precision): ABEC-7 (ISO4) Slide Position Accuracy: 0.001 mm Coolant Flow Rate: 600 l/min Work Capacity (Approx) Rotary: 20 -200 Dia. In.

Condition: good (used), Jones and Shipman Suprema 650 M Easy Universal OD/ID Cylindrical Grinder s/n SO19131, w/ J&S PLC Control, 12" Swing x 25" Centers, Swivel Wheelhead w/ OD & ID Capability, Internal Spindle, Hydromation Coolant System, Heidenhain DRO, Workholding NOT Included Podpfxjywfyqe Ag Degk

Condition: excellent (used), Year of construction: 2003, 2003 Mitsubishi CNC Shaving Gear cutter grinder Model ZA30CNC, Year 2003, With Fanuc Series 16i-M HMI, Includes Pgsdpfoywftkjx Ag Dsk FN-0013 Dust Collector, Power 200/220 Volts / 3 Phase , Weight 15000 Lbs.

Condition: used, Year of construction: 2001, 2001 Kellenberger CNC Grinder KEL-VARIA RS175/1000 Psdpfx Ajywftdeg Dogk

Condition: used, Year of construction: 2012, Control Siemens 840 D weight of the machine ca. 13,5 t dimensions of the machine ca. 7m x 4m x 2,75m m Accessories: Coolant tank Grinding wheels Various spare parts Operating and maintenance instructions CE conformity Dimensions: 7x4x2.75 m ( LxWxH) TECHNICAL DATA: Workpiece data: max. outer diameter: 250 mm with max. grinding wheels Ø 450 mm max. diameter to be machined over table: 375 mm Profile depth for dressable grinding wheels: 40 mm max. workpiece length: 3,600 mm max. distance between centers (1): 2,800 mm max. bevel angle: +/- 90° Number of teeth of the workpiece: 1 - 999 Pjdpsxh Rqtjfx Ag Djgk max. weight of the workpiece: 250 kg Working area: Center distance between workpiece and tool spindle: 355-170 mm Radial travel: 185 mm Axial travel: 3,000 mm Swivel angle: +/- 90°

Condition: good (used), Year of construction: 2011, LANDIS LT-2 TWIN WHEEL CNC ORBITAL CRANK GRINDER Equipped with: Landis 6400 CNC Control Siemens TOUCH HMI Arobetech Steady Rest Marposs P7 Gage System Lateral Locator Twin CBN Grinding Wheels Rotary Dresser Headstock Tailstock Rittal AC Units Specifications: Podortrxxspfx Ag Djgk Maximum Center Distance: 680 mm

Condition: good (used), Year of construction: 2013, TOYODA (JTEKT) GL32M-63 CNC UNIVERSAL CYLINDRICAL GRINDER Equipped with: CBN Grinding Wheel Flagging Steady Rest Workhead Mounted Rotary Dresser Marposs P3SE System Monitoring Toyoda In Process Gaging Marposs E20N Acoustic Controller Air Gap Eliminator Workpiece Collision Control Coolant Pumps W/Magnetic Separator Pendant Control RH Workhead with Center LH Workhead with Center Work Rests Worklight Light Curtains Stacklight Extra Wheels Specifications: -Grind Center to Floor: 1,000 mm -Swing Over Table: 320 mm -Distance Between Centers: 630 mm -Grinding Diameter Range: 10 - 150 mm -Floor Space (Base machine w/auxiliary equipment): 3,400 x 5,000 mm -Net Machine Mass (approx.): 10,500 kg Grinding Wheel: -Type: CBN Wheel -Wheel Size (OD): 350 mm -Maximum Wheel Width: 60 mm -Surface Speed: 120 m/s Wheelhead: -Spindle Bearing: TOYODA STAT Bearing -Slide: V and Flat -Feed System: Ballscrew -Rapid Feed (on diameter): 30 m/min -Minimum Incsrement (on diameter): 0.0001 mm Workhead: -Type: Dead Spindle -Work Speed (Max): 500 rpm -Center Taper: MT #4 Podpjrtrzpjfx Ag Dogk Footstock: -Type: Hydraulic -Taper Compensation: Manual -Maximum Center Retraction: 60 mm -Center Taper: MT #4 Motors: -Wheel Drive Motor: 15 kW, Belt-Drive -Wheelhead Feed Servomotor: 1.3 kW Tank Capacities: -Wheel Spindle Lubrication Oil: 80 L -Hydraulic/Lubrication Oil: 20 L

Condition: used, JONES SHIPMAN 1305 EIU CYLINDRICAL GRINDING MACHINE MAKE JONES AND SHIPMAN, MADE IN ENGLAND MODEL 1305 EIU CENTRE HEIGHT 185.0 mm MAX DIAMETER 370.0 mm MAX GRINDING LENGTH 1016.0 mm MAX GRINDING WHEEL 350.0 mm x 40.0 mm GRINDING SPEED 40 – 320 RPM TABLE ROTATION 16 DEGREE TO – 12 DEGREE MAX INTENAL SPINDLE SPEED 24,000 RPM PLUS HEIDENHAIN DRO INTERNAL SPINDLE ATTACHMENT Pgodpfx Agey Hi Epj Dsk EXTENSIVE RAGE OF TOOLING AND ACCESSORIES RANGE OF MAGNETIC CHUCKS PENDANT CONTROL HYDRAULIC PACK CLEAN

Condition: used, Year of construction: 1998, functionality: fully functional, machine/vehicle number: 80317, input voltage: 380 V, travel distance X-axis: 4,400 mm, travel distance Y-axis: 2,300 mm, travel distance Z-axis: 235 mm, Machine full working order use every week Podpfx Agoy Au Rpo Dogk

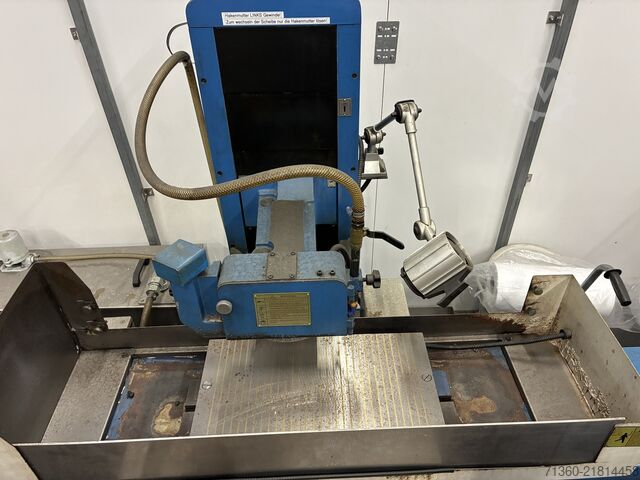

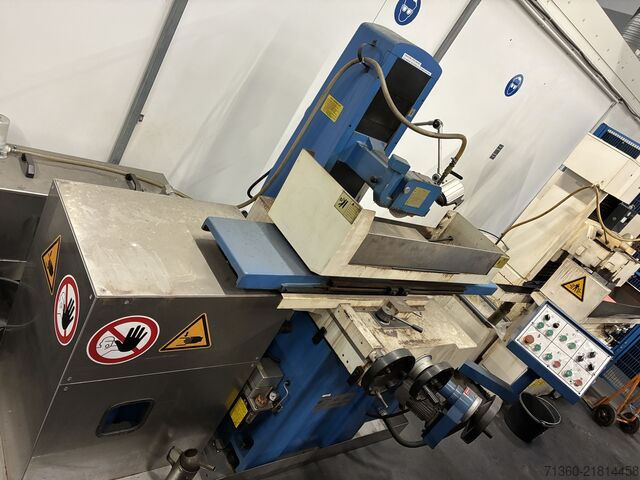

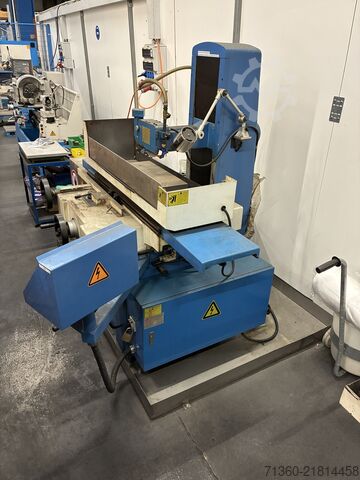

Condition: used, Year of construction: 2008, functionality: fully functional, machine/vehicle number: 146978, Knuth Surface Grinding Machine Flat HFS 2500C Working Area & Capacities Table dimensions: 250 x 500 mm Grinding area (max.): approx. 500 x 250 mm Max. workpiece weight: 180 kg Distance spindle center to table surface: 450 mm Travel Distances & Feeds Longitudinal travel (X-axis): 560 mm Cross travel (Y-axis): 275 mm Hydraulic table feed (X): 7 – 23 m/min Pedpey H Dg Iefx Ag Dsgk Rapid traverse cross (Y): 990 mm/min Rapid traverse vertical (Z): 460 mm/min Spindle & Grinding Wheel Grinding spindle motor power: 2.2 kW Grinding wheel dimensions: 200 x 20 x 31.75 mm Scale graduation: Y-axis 0.02 mm / Z-axis 0.005 mm Dimensions & Weight Machine dimensions (LxWxH): approx. 2650 x 2150 x 1675 mm Total weight: approx. 1800 kg

Condition: ready for operation (used), Year of construction: 1981, drill diameter 50 mm total power requirement 2,2 kW weight of the machine ca. 0,6 t Pgodpfxewu Hkls Ag Dek

Condition: used, Year of construction: 2007, functionality: fully functional, Magnetic table: 1000 x 500 mm Longitudinal traverse: 1140 mm Pgedoy Hqg Uopfx Ag Djk Cross traverse: 540 mm Grinding spindle speed: 1450 rpm Distance spindle center to table: 584 mm Table load capacity incl. magnetic table: 1000 kg Automatic increment on all axes Installation area (mm): 4445 x 2200 Packing dimensions: 3440 x 2260 x 2250 mm Net weight of machine: approx. 5800 kg

Condition: new, Maximum grinding length 3200 mm Pgodoy Hgw Ajpfx Ag Dsk Work area (length*width) 3180*180 mm Grinding wheel size 200*100*32 mm (can be customized) Rail: Machine guide rail with wear-resistant strip Cooling system: Water tank with integrated water pump for spray circulation cooling Grinding precision ≤0.05 mm/m Operating voltage: 380V 50Hz Machine spindle reciprocating speed: approx. 17 m/min Grinding head drive type: Belt drive Grinding head motor power (custom grinding machine motor): 4.0 kW Traverse motor power: 0.75 kW Water pump power: 0.125 kW Total power: approx. 5.5 kW Total weight: approx. 2800 kg Overall dimensions: 5350*1300*1300 mm CE certified

Condition: used, Plane grinding machine Brand HIDRO PRECIS Type RSPB 1500 1500 x 600 mm electromagnetic platen. Psdpfx Aeum U Adeg Dogk

Condition: used, Year of construction: 2001, Technical details: grinding diameter max.: 3-220 mm regulating wheel width: 400 mm max. width of grinding wheel: 400 mm grinding motor: 55 kW peripheral speed: max. 45 m/sec regulating wheel dimensions: 350 x 400 x 203 mm dimensions of grinding wheel: CBN 500 x 400 x 304 mm grinding wheel size: KORUND 600 x 400 x 304 mm total power requirement: 75 kVA weight of the machine ca.: 13 t. dimensions of the machine ca.: 4,47 x 2,77 x 2,49 m. Centerless Grindign Machine JUNKER JUPITER 500 CNC SIEMENS in good condition. Including: · 2 robots Kuka KR 16 Year 2007 · CNC loading and unloading device Promot EPL60NC Year 2007 The machine was lately used for grinding of guide bushes (through grinding). Plunge is possible. JUPITER's Centerless grinding, also available with CBN. Junker this circular grinding method with CBN grinding wheels, which opens up significant productivity benefits from the long service life of the grinding wheel, especially at high volumes. In addition, the simultaneous removal takes on the entire Schleswig-Holstein, which provides both in mass production and in small batches for significantly reduced processing times. Pedpfx Agottxg Ie Djgk The grinding process with JUPITER When centerless grinding, there are two grinding processes: the through grinding and plunge. Both methods are possible with the JUPITER. Applications through grinding: Pin and Bushings Body, rings, smaller rings, piston parts (eg compressors), waves with constant diameter piston rods (eg shock), Small piston for hydraulic and fuel injection, precision wires and rods, piston pins. Applications Plunge: Rotor shafts, transmission parts, bearing surfaces of camshafts, tube and pipe fittings for composite camshafts, universal joints, parts for needle injection, valve stems, barrel rolls. *
