Used Haffner Slotting Machine for sale (65,497)

Condition: excellent (used), Year of construction: 2021, XYZ RMX 3500 3 Axis CNC Bed Milling Machine ProtoTRAK RMX Control YOM 2021 Spindle: 5HP – Programmable 40 – 5000rpm 2 Ranges 40 – 600 & 300 – 5000rpm ISO40 Quill Dia 105mm Table: 1370 x 355mm 4 0ff T Slots T Slot size 15.9mm Max load 600kgs Travel: X – 787mm Y – 508mm Head Vertical (Z) – 500mm Quill (Z) 127mm Dims without travel – 1905 x 2069 x 2225mm Dim with travel – 2758 x 2869 x 2490mm Weight 2430Kgs Power Requirements 22A Air Requirements 6bar YOM 2021 For Sale with Jet Machinery Ltd Jet Machinery Stock Number: #78900 Machine Serial Number: RM310097 £35,000.00 + VAT Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details. Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use. Codpfx Asx D Tbmjdrsrh

Condition: excellent (used), Year of construction: 1990, functionality: fully functional, Dowel and long-hole drilling machine GANNER JUNIOR 320 LBM in very good condition, like new, the machine comes from a small carpentry shop and was used very little there it can be used to mill long holes and drill dowel holes in 2 levels without reclamping 380V, 1500W Speed: 2800 rpm Year of construction: 1990 with this machine, you can mill long holes for, for example, lock housings and similar items, or create all types of frame dowel joints at right angles, flush, and mitered ideal for the production of dowel joints in timber frame construction, furniture, door, window, and stair construction, and for similar applications drilling on 2 levels, the grid and stops, and the design of the machine allow dowel joints to be produced in a very short time, which makes the machine very economical the machine requires a compressed air connection of 6 bar (air consumption is very low) Right-hand rotation mills and drills very well and cleanly with 2 angle stops (one center stop and one side stop, which can be used on both sides) 2 stop rails can be attached on the left and right, the stop rails are 1000 mm long, each with 2 folding stops the workpiece is clamped using 2 pneumatic clamping cylinders the height adjustment from one drilling level to the other is also pneumatic; the pneumatic switch for this is located at the front of the machine, which ensures fast adjustment of grids and drilling levels with a precision 12mm grid rail, which has a center grid and 12 grids on the left and right can be quickly converted for long-hole milling; the machine can then be used without a grid with 2 adjustable stops on the left and right, and then has a working width of max. 420mm the max. borehole height is 100mm the max. borehole depth is 150mm with stop and scale the max. workpiece height is 160mm everything works perfectly we will personally deliver and demonstrate the machine anywhere in Germany for 220.00 euros, so you have no risk when purchasing; delivery to Austria and the EU is also possible on request the machine table is 870mm wide, 140mm deep on the sides, and 350mm deep in the middle Crodpfx Aoz I Eggjdreh professional equipment, not cheap hardware store junk you can start working with the machine immediately with 2 chucks up to 20mm very stable and durable construction the precision guides with the backlash-free ball bearing bushings are in good condition and move smoothly

Condition: like new (used), Year of construction: 1994, functionality: fully functional, HOFFMANN HT 200 Dowel and Slot Drilling Machine In very good condition, this machine comes from an educational institution, has been used very little, and is in absolutely like-new condition; it has only very few signs of wear. It can be used to mill slots and drill dowel holes; the drilling height can be read very precisely on a digital counter. Comes with 3 drill chucks: for drills with an M10 external thread and for drills with 12mm and 16mm shanks. With workpiece support rests on the left and right sides, which are pivotable and have a support roller. The machine has a chassis. With 2 angle stops on the machine table for left and right. The clamping arms are reversible and adjustable. 380V, 1400 and 1800W through the 2 speed ranges. 1400 and 2850 rpm. Year of manufacture: 1994 Weight: approx. 280 kg With this machine, you can mill slots for, e.g., lock cases and similar items, or produce all types of frame dowel joints at right angles, butt joints, and miter joints. Ideal for producing dowel joints in timber frame construction, furniture, door, window, and staircase construction, and for similar applications. The drilling unit can be pivoted on both sides up to 65° and has a detent at 0°; this allows the machine to also be used to drill handrail posts into staircase stringers. The 2 speed ranges allow drills with large diameters to be used without overheating during drilling. Due to the detents and stops and the machine's design, dowel joints can be produced in a very short time, making the machine very economical. The machine requires a compressed air connection of 6 bar (the air consumption is very low). Right-hand rotation. Mills and drills very well and cleanly. Workpiece clamping is done with 2 pneumatic clamping cylinders via a foot pedal. The linear laser at the top of the machine allows marked dowel holes and angles to be drilled quickly and accurately. Comes with a precision 12mm guide rail with a center detent and 13 detents on the left and right. Working travel in width: max. 330mm The max. borehole height is 90mm. The max. borehole depth is 200mm with stop. The max. workpiece height is 150mm. Everything functions perfectly. Comes with manual. We will personally deliver and demonstrate the machine anywhere in Germany for €220.00, so you have no risk when purchasing; delivery to Austria and other countries is also possible upon request. The machine table is 1100mm wide and 250mm deep. Professional equipment, not cheap hardware store junk. You can start working with the machine immediately. Very stable and durable construction. Credpfxoyy Rtzj Adrjh The precision guides with the play-free ball bearing bushings are in good condition and move smoothly; the pivoting mechanism is also very smooth due to a ball bearing; locking is possible with a locking screw.

Condition: like new (used), Year of construction: 2018, machine/vehicle number: DC-2075, Work table 700 x 300 mm, Drilling width 240 mm, Drilling depth 150 mm, Max. travel 230 mm, Drill head height adjustment 160 mm, Drill head swivel 45°-0°-45°, Wescott drill chuck 0 - 20 mm, Speed 3,000 rpm, Motor 2.2 kW, 400 volts, 50 Hz, Weight approx. 345 kg, Ex works, from the Seevetal location, excluding transport, as inspected, Crodpfx Aevl Eynjdroh subject to prior sale.

Condition: excellent (used), Year of construction: 1995, functionality: fully functional, 4 units Cedpoz D Adbsfx Adrsrh 6 pressure clamps regulation of oscillation regulation of slot position up/down regulation units right/left possible drilling without oscillation CE total power 13kW

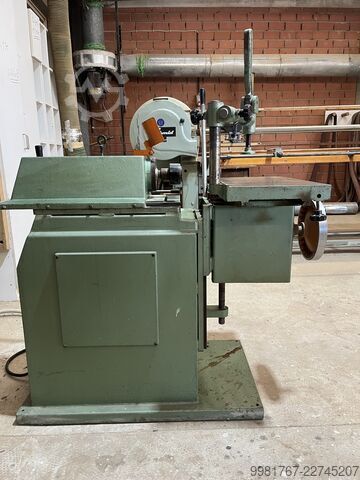

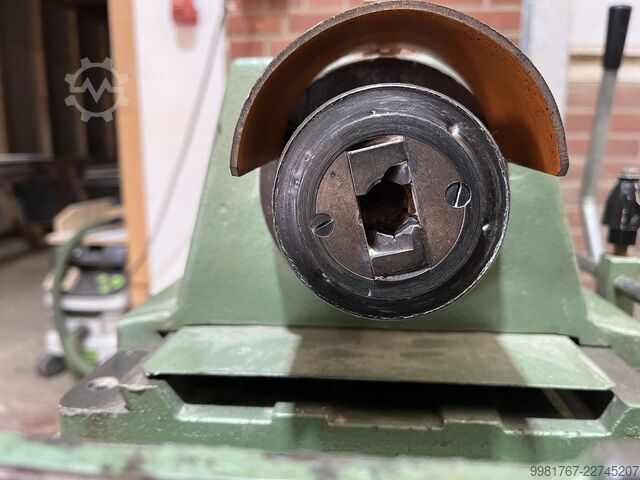

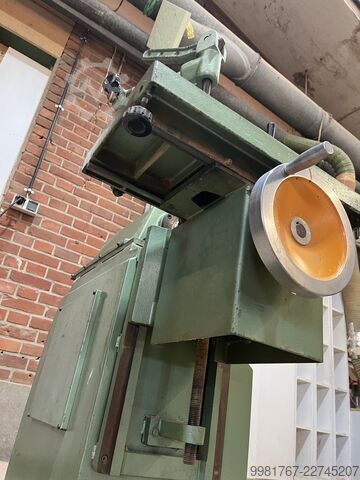

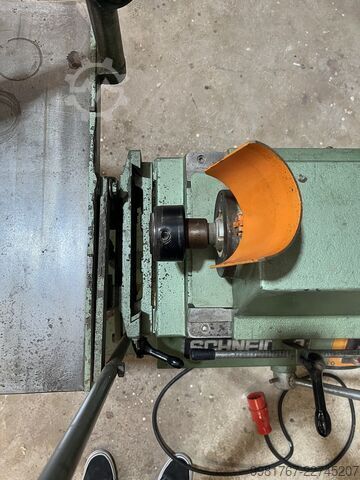

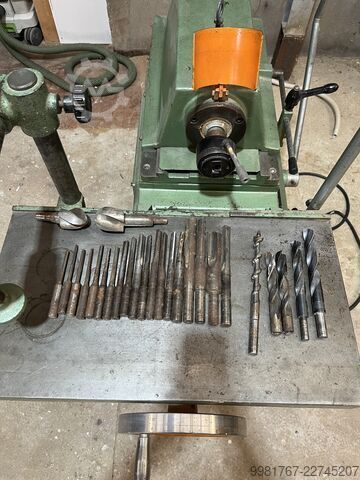

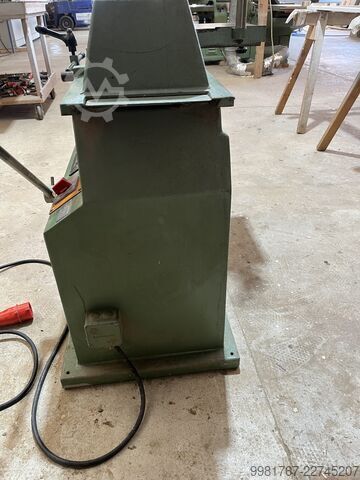

Condition: good (used), Year of construction: 1979, functionality: fully functional, We are offering this used Schneider SL 1 long-hole drilling machine, model SL 1 7429, manufactured in 1979, for sale. Manufacturer: Schneider Model: SL 1 Machine No.: 7429 Crjdpfx Aoz Afd Djdroh Year of Manufacture: 11/79 The advertised price is €1,400 net (negotiable). If you have any questions or require further information, please feel free to send us a message or call us.

Condition: used, Year of construction: 2024, Slot drilling machine with rotating table • Drilling unit rotatable • 2 eccentric clamps • Height display • Mechanical dowel boring device (16-22-25-32 mm hole spacing) • 2 speeds: 1440 / 2880 rpm • Motor power 1.5 kW 1.1 Working table mm 800x400 1.2 Motor kW 1.5 1.3 Spindle speed rpm 2880 1.4 Max. slot height above table mm 160 1.5 Max. longitudinal traverse mm 345 1.6 Max. lateral traverse mm 245 1.7 Spindle stroke mm 160 1.8 Tool clamping diameter mm 0-20 1.9 Max. tool length mm 175 1.10 Number of eccentric clamps 1 1.11 Longitudinal tilt table angle ° 1.12 Spindle rotation ° 1.13 Table rotation ° +/- 45° 1.14 Machine dimensions mm 1500x1100x950 1.15 Machine weight kg 345 P 41 55 Extraction connection 1 P 41 25 2nd eccentric clamp 1 P 41 20 Mechanical dowel boring device 1 P41 07 2-speed motor 1.5/1.9kW 1440/2880 rpm P41 34 Mechanical numeric spindle height measurement Location: Credpfxswd U U Do Adroh

Condition: used, Jig boring/Milling machine HAUSER OP3 Travel X: 400 mm Travel Y: 250 mm Travel Z: 400 mm Cone: CM2 Spindle exit: 130 mm Spindle speedfrom 60 to 3000 RPM Table size: 590 x 320 mm Maxi distance spindle/table: 570 mm Drilling capacity in steel: 20 mm Scale 2 axes MITUTOYO Auto descent: 0,03 mm/min - 0,06 mm/min Credpfxjz H Si Sj Adrjh Variable speed drive at the spindle Voltage: 220 V Tri Width: 1600 mm Depth: 1600 mm Total height: 1600 mm Weight: approx 1,4 T

Condition: ready for operation (used), functionality: fully functional, Year of construction: 1972, operating hours: 24 h, machine/vehicle number: 2025, overall weight: 5,200 kg, power: 10 kW (13.60 HP), input voltage: 380 V, input frequency: 50 Hz, broaching length: 320 mm, workpiece diameter (max.): 630 mm, total length: 2,650 mm, total width: 1,810 mm, total height: 2,890 mm, Slotting Machine STANKO 7M430 The STANKO model 7M430 is a heavy-duty vertical slotting machine, designed for machining internal keyways, slots, internal splines, and profiled surfaces in large and heavy workpieces. Manufactured in 1972, this machine is intended for industrial applications requiring robust construction, high rigidity, and reliable operation. The machine is equipped with a rotary worktable with a diameter of 630 mm, allowing flexible positioning of workpieces. The maximum stroke length of the ram is 320 mm (minimum stroke 120 mm), providing a wide working range for various slotting operations. The slotting head can be swivelled ±10°, enabling angular machining and increased versatility. Feeds along the X- and Y-axes are adjustable in the range of 0.2 to 2.4 mm per double stroke, while the rotary feed of the table can be set from 0.1 to 1.4°, ensuring precise control of cutting parameters. The maximum permissible table load is 3000 kg, making the machine suitable for large and heavy components. The distance from the table surface to the chisel guides is 500 mm, and the machine offers generous table travels: 650 mm longitudinal, 500 mm transverse, with 360° table rotation. The drive motor has a power rating of 10 kW, providing sufficient cutting force for demanding machining tasks. Codpfsx U Tr Aex Adrjrh With overall dimensions of approximately 2650 × 1810 × 2890 mm and a total weight of about 5200 kg, the STANKO 7M430 features a rigid cast-iron construction that ensures excellent vibration damping and long-term stability. Condition: *Used machine *Ready for operation *Fully functional *Operating hours: approx. 24 h Scope of delivery: *Complete set of change gears *Technical passport (Russian) *Operating manual (Russian) Typical applications: *Slotting of internal keyways *Machining of internal splines *Profile machining of internal surfaces *Machining of large and heavy components *General mechanical engineering and repair work

Condition: reconditioned (used), Year of construction: 1999, functionality: fully functional, Two-jaw drill chuck, 2 hand-operated eccentric clamps, dial indicator in the handwheel, 2 speeds 1400 – 2800 rpm. The machine has been fully overhauled and newly adjusted at our facility. Crodsyzc E Sopfx Adroh

Condition: excellent (used), Model: SL 100 Required space approx. 1200 mm x 800 mm x 2000 mm Weight approx. 300 kg Crsdpeyz U Ulefx Adrsh

Condition: used, used, good condition, low operating hours, with accessories with pneumatic lift for drilling on two levels Make: Ganner Model: Junior Motor: 1.5 kW Two-lever operation Table size 850 x 360 mm Drill chuck 20 mm Dowel drilling device with 24 positions Workpiece stop Central stop Pneumatic lift Pneumatic workpiece clamps, 2 pcs Space requirement approx. 300 x 1000 x 1300 mm Weight approx. 270 kg Crsdoythcrepfx Adroh Storage location: 97447 Gerolzhofen, free loading, unpacked Delivery in current condition as inspected, function tested without overhaul, without guarantee or warranty

Condition: good (used), Year of construction: 1995, 1 used hydraulic CNC keyway broaching machine Manufacturer: Leistritz Model: Polymat 50/400 Year of manufacture: 1995 CNC keyway width: 50 mm Maximum stroke: 400 mm Bore diameter: 10–350 mm Pulling force: 15.9 kN Max. workpiece outside diameter: 500 mm Table size: 550 x 675 mm Cutting speed: 20 m/min Return speed: up to 40 m/min Machine weight: approx. 1,400 kg Credpfxoy I R N Se Adroh

Year of construction: 2019, condition: excellent (used), Westphal Mechanik C7x Commutator Slot Center Machine No. M64127 Year of manufacture: 09/2019 Csdpfog H Inzox Adrerh The commutator slot center has four processing steps. The following components are processed in these steps: Contact slot saw Insulation slot saw Deburring tool Brush The Stäubli TS 80 robot with SP1 control has two grippers that transfer the commutator to the individual stations. Software information: Marking Builder2 (2D) Marking Builder2 (3D) Logo designer Power supply: 3/N/PE AC 400/230 V 50 Hz Control voltage: 24 VDC More images are available via this link. Further technical data will follow shortly. Complete factory closure, large selection of storage platforms, pallet racking, shelving, and paternoster lifts. High-quality industrial machines, lathes, grinding machines, and hand tools. More items - new and used - can be found in our shop! International shipping costs on request!

Condition: used, Year of construction: 2002, Second-hand machine Crjdpfx Adozk Nupjroh Year of manufacture: 2002 Table size 580 x 280 mm Drilling table height: 800 mm Drilling depth: 150 mm Drilling length 225 mm with Wescott drill chuck 0–20 mm Height adjustment: 120 mm Swivel range of drilling unit: 2 x 45° with 2 eccentric clamps with one-hand operation with dowel drilling device with dial gauge in the handwheel with digital display with 2 speeds: 1,400 and 2,800 rpm with travel mechanism LxWxH 850x1000x1050 mm Weight approx. 240 kg Availability: at short notice Storage location: Flörsheim

Condition: new, functionality: fully functional, Year of construction: 2026, overall weight: 2,200 kg, power: 3.7 kW (5.03 HP), input voltage: 400 V, input current: 7 A, input frequency: 50 Hz, broaching length: 200 mm, number of broaching positions: 4, broaching speed: 25 m/min, workpiece diameter (max.): 460 mm, total length: 1,717 mm, total width: 1,221 mm, total height: 1,885 mm, Special Offer – 5% Discount Available! Metal Slotting Machine B5020 – 200 mm Stroke The Metal Technics Polska B5020 Metal Slotting Machine is a professional industrial machine designed for machining keyways, splines, internal grooves and other precision slotting operations. Its rigid construction, large rotary table and automatic feeds ensure excellent machining accuracy, high productivity and reliable operation. The machine is ideal for tool rooms, maintenance departments and manufacturing facilities. With a maximum slotting force of 5 kN, a 200 mm ram stroke and a 360° rotary table, it is suitable for a wide range of precision machining applications. Main Features • 200 mm ram stroke • Heavy-duty industrial construction • Ø460 mm rotary table • Automatic longitudinal, cross and rotary feeds • Adjustable ram inclination • Maximum slotting force: 5 kN • High machining precision Codjzf Huispfx Adrjrh • CE certified Technical Specifications • Model: B5020 • Maximum ram stroke: 200 mm • Stroke speeds: 32 / 50 / 80 / 125 strokes/min • Ram inclination: 0°–8° • Vertical ram adjustment: 200 mm • Table diameter: 460 mm • Maximum table load: 400 kg • Longitudinal table travel: 420 mm • Cross table travel: 420 mm • Table rotation: 360° • Maximum tool size: 25 × 40 mm • Maximum slotting force: 5 kN • Main motor power: 3 kW • Feed motor power: 0.7 kW • Machine dimensions: 1717 × 1221 × 1885 mm • Machine weight: 2200 kg Applications • Keyway machining • Internal splines • Internal grooves • Slotting operations • Tool rooms • Maintenance workshops • Metalworking • Industrial manufacturing Transport and Delivery The machine is supplied brand new and includes a 12-month warranty, CE Declaration of Conformity, technical documentation, warranty and professional after-sales support. Spare parts are readily available. We provide professional transport throughout Europe using specialized machinery logistics. Every machine is securely loaded, protected during transport and delivered directly to the customer's premises. We also assist with export documentation and international shipping arrangements. Worldwide shipping is available upon request. About Metal Technics Polska Metal Technics Polska is a manufacturer and distributor of professional metalworking machinery. We supply high-quality machines throughout Europe and provide expert technical advice, spare parts and comprehensive after-sales support. Contact us today for pricing, delivery times, machine availability, additional photos, videos or a personalized quotation.

Condition: new, functionality: fully functional, Year of construction: 2026, overall weight: 290 kg, power: 0.37 kW (0.50 HP), input voltage: 400 V, total length: 800 mm, total width: 750 mm, total height: 1,550 mm, feed length X-axis: 220 mm, feed length Y-axis: 220 mm, feed length Z-axis: 200 mm, grinding spindle motor power: 370 W, Special Offer – 5% Discount Available! Slotting Machine The Slotting Machine is a compact and reliable machine designed for precision slotting, keyway cutting, internal profiling and shaping operations. Its rigid construction and adjustable stroke make it an ideal solution for tool rooms, maintenance workshops and metalworking facilities. The machine features a rotating head with a 90° swivel, allowing greater flexibility when machining complex workpieces. With six selectable stroke speeds and a maximum stroke length of 125 mm, it delivers accurate and efficient machining for a wide range of applications. The robust construction ensures excellent stability and precision while maintaining low operating costs. The machine is suitable for both repair work and small-batch production. Main Features • Heavy-duty construction • Adjustable stroke • Six stroke speed settings • 90° swivelling head • High machining accuracy • Compact design • Easy operation • CE certified Technical Specifications • Maximum stroke: 125 mm Credpfx Adeyux E Horsh • Stroke speed: 60–350 strokes/min • Number of speed steps: 6 • Head rotation: 90° • Table size: 500 × 200 mm • Table travel (X/Y): 220 mm • Z-axis travel: 200 mm • Motor power: 0.37 kW • Tool shank diameter: Ø10 / Ø16 mm • Machine dimensions: 800 × 750 × 1550 mm • Machine weight: 290 kg Applications • Slotting • Keyway machining • Internal profiling • Shaping operations • Tool rooms • Maintenance workshops • Metalworking • Small-batch production Transport and Delivery The machine is supplied brand new and includes a 12-month warranty, warranty service and professional after-sales support. We provide professional transport throughout Europe using specialized machinery logistics. Every machine is securely loaded, protected during transport and delivered directly to the customer's premises. We also assist with export documentation and international shipping arrangements. Worldwide shipping is available upon request. About Metal Technics Polska Metal Technics Polska is a manufacturer and distributor of professional metalworking machinery. We supply high-quality machines throughout Europe and provide expert technical advice, spare parts and comprehensive after-sales support. Contact us today for pricing, delivery times, machine availability, additional photos, videos or a personalized quotation.

Year of construction: 1963, condition: used, Technical details: max. ram stroke: 150 mm workpiece diameter - max.: 250 mm slot width: 50 mm feed speed: 10 m/min. adjustment of stroke: ja mm voltage: 380 V work table:: Ø 250 mm total power requirement: 6,0 kW weight of the machine ca.: 1,05 t dimension machine xH: 1,2 x 0,8 x 1,6 m Application: For the internal grooving of flanges Drawing needle specifications: -total length = 650mm Crodou Ng T Uopfx Adroh -Width = 10; 20; 30; 50mm -Drawing length = approx. 150mm Lubrication takes place via the drawing needles. Equipment: 4 different drawing needle guides (5; 22; 32 and 50mm) 50 different flange holders 23x drawing steel holders shank 18mm; 12x shank 22mm; 7x shank 26, 30, 40 and 45mm incl. accessories see photo i.D. *

Condition: used, Year of construction: 1984, used, in good condition Cleaned Function-tested Test run Manufacturer: Kölle Model: L2 Year of manufacture: 1984 Machine no.: 1788 Motor: 1.5 kW 2-lever operation Chuck runout max. 8/100 mm Table size: 520 x 290 mm Drill chuck: 20 mm Dowel drilling unit with 4 stops: 16, 22, 25, 32 mm Workpiece stop Digital height adjustment display Codpfx Adjy Apfnjrerh Required space approx. 1000 x 1200 x 1300 mm Weight approx. 200 kg Storage location: 97447 Gerolzhofen, free loaded, unpacked Delivery in as-is condition as inspected, function-tested without refurbishment, without warranty or guarantee

Condition: excellent (used), Drill Pade Crodpfxottlbgo Adrjh Model: 3L MATIC

Condition: used, Vertical Slotting Machine GSP M 743 3-jaws chuck Ø 360 mm Table travel: X = 500 mm / Y = 450 mm Slide travel: 300 mm Throat depth: 500 mm Rotary table: Ø 690 mm Slide tilting: + 8° Rotative table/slide maxi height: 450 mm Motor power: 8 CV Strokes/min.: from 3 to 300 strokes/min. Equipped with one tool removal system upon lifting Crjdpfx Adezw A Aaoroh Voltage: 380 V Length: 2000 mm Depth: 2500 mm Total height: 2200 mm Weight: approx 4 T

Condition: excellent (used), Year of construction: 1972, Description to follow! Credpezxh Ttefx Adreh

Condition: used, Slotting Machine MAILLEFER type MAC-350 M Useful travel: 0 - 350 mm Slots width: max 36 mm Motor power: 2,5 CV Feeds: from 0,025 mm to 0,125 mm Bore: from 15 to 160 mm Automatic forward and stop Supplied with many tools (see photos) Crsdpjzw A Atjfx Adrsh Dimensions (L x W x H): 1400 x 800 x 800 mm Weight: approx 700 kg

Condition: used, Year of construction: 2023, Used Machine Year of Manufacture: 2023 Condition: Like new; only a few drill holes have been made Features and Technical Specifications: - Spindle speed: 3,000 rpm Codozk Ni Tjpfx Adrorh - Drilling width: 240 mm - Max. drilling depth at 90°: 180 mm - Drill head height adjustment: 160 mm - Tool clamping range: 0–20 mm - Work table rotation: ±60° - Work table length: 565 mm - Work table width: 315 mm - Exhaust port diameter: 90 mm - Output power: 2.2 kW - Supply voltage: 400 V - Power frequency: 50 Hz Dimensions: 1,290 × 980 × 1,270 mm Weight: 260 kg Availability: Available shortly Location: Röllbach

Condition: used, Year of construction: 2021, machine/vehicle number: DW2110130101, functionality: fully functional, power: 32 kW (43.51 HP), input voltage: 380 V, input current: 85 A, type of input current: three-phase, workpiece length (max.): 3,000 mm, workpiece width (max.): 2,000 mm, workpiece height (max.): 30 mm, number of axes: 4, number of slots in tool magazine: 10, total height: 2,400 mm, total length: 4,300 mm, total width: 2,250 mm, overall weight: 2,000 kg, table length: 3,000 mm, table width: 2,000 mm, year of last overhaul: 2025, Equipment: CE marking, We offer this used Apollo 4AX 2030 CNC Router, year of manufacture 2021. Manufacturer: Apollo Model: 4AX 2030 Year of manufacture: 2021 Condition: used Machine type: CNC Router Csdjz Iz Imepfx Adrerh If you have any questions or need more information, feel free to send us a message or give us a call.
