Used Ima Axis Card for sale (15,488)

Condition: ready for operation (used), Year of construction: 2013, machine/vehicle number: 08450, functionality: fully functional, operating hours: 15,861 h, Edge banding machine + BARBARIC LX U4 B2200 return system! The machine is equipped with the following units: Joint milling VTG gluing unit Quick-Lock glue application Rcjdpfszxgfzox Alasf Pre-melting tank with automatic granule feed Cutting unit Flush/profile milling KFA-x30 contour milling unit Profile and glue joint pulling blades TECHNICAL DETAILS Workpiece thickness: 8–60 mm Feed rate: approx. 6–30 m/min MACHINE DETAILS Power supply: 3 N PE Operating voltage: 400 V Power frequency: 50 Hz Rated power: 32 kW Rated current: 69 A Operating hours of the edge banding machine: approx. 15,861 h BARBARIC LX U4 B2200 return system Year of manufacture: 2014 Serial number: 2130742-102 Operating hours: approx. 8,997 h EQUIPMENT Automatic 12-position edge magazine Pre-melting tank with automatic granule feed

Condition: used, functionality: unexamined, Ferwood Code: RU0002873 - Manufacturer Code: FEP9101-2 - Condition: Used - Functionality: Untested - If interested we offer a revision service, contact us. Rcodpfjv D H Nbsx Alaef

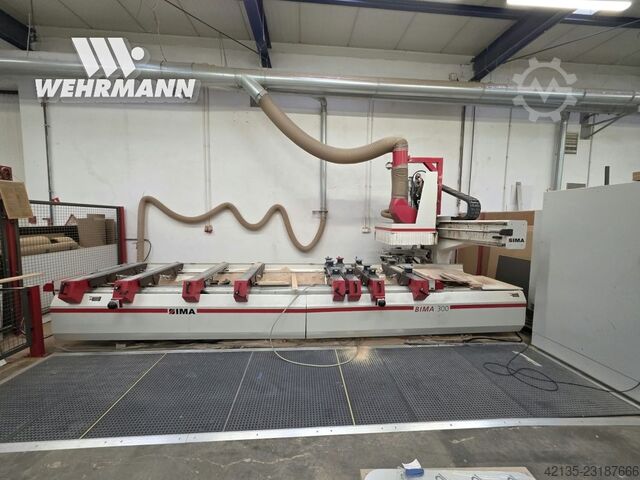

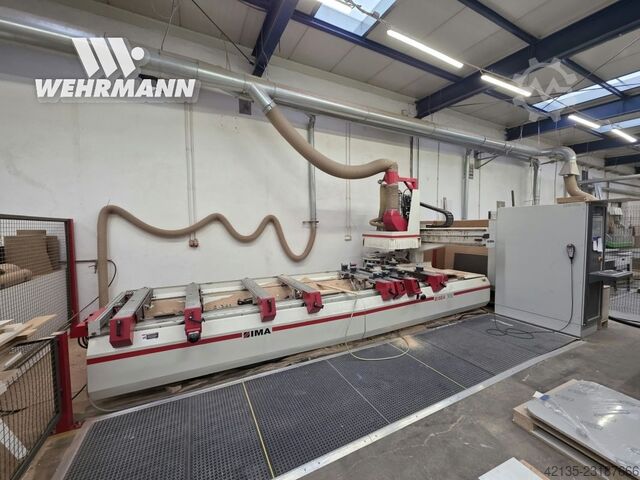

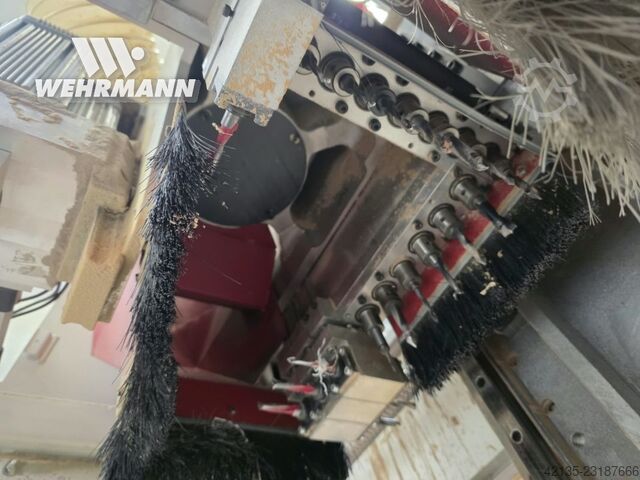

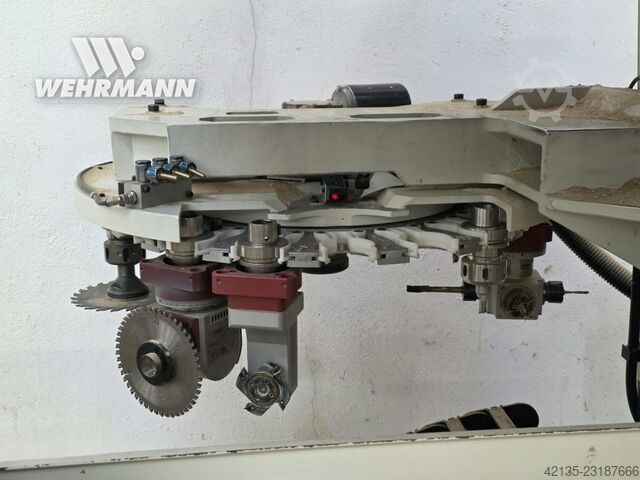

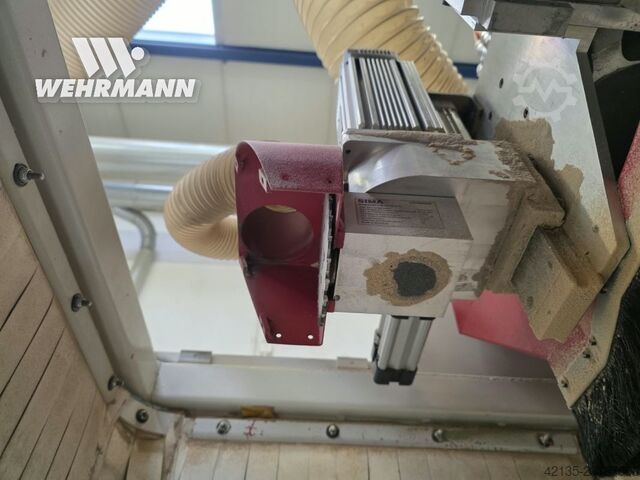

Condition: good (used), Year of construction: 2012, functionality: fully functional, Equipment: documentation/manual, IMA BIMA 300 CNC Machining Center Rcsdpfx Aeza Dm Hjlajf For sale is an IMA BIMA 300, a 4-axis CNC machining center with a cantilever table. Key data: Machining area: X-axis: approx. 5300 mm [IMA BIMA 300 | PDF] Y-axis: up to approx. 1400 mm (depending on the tool) [IMA BIMA 300 | PDF] Max. workpiece height or clamping height: approx. 125 mm [IMA BIMA 300 | PDF] Machine weight: approx. 6500 kg [IMA BIMA 300 | PDF] Machine structure and drive: Steel construction with a movable support in the X, Y, and Z axes [IMA BIMA 300 | PDF] Servo-driven axes with rack and pinion drive (X) and ball screws (Y/Z) [IMA BIMA 300 | PDF] Travel speeds: X: up to 100 m/min Y: up to 60 m/min Z: up to 30 m/min [IMA BIMA 300 | PDF] Main spindle: Power: 7.5 kW (S1) / 10 kW (S6) [IMA BIMA 300 | PDF] Tool holder: HSK F63 [IMA BIMA 300 | PDF] Speed range: up to 24,000 rpm [IMA BIMA 300 | PDF] Clockwise/counterclockwise rotation programmable [IMA BIMA 300 | PDF] Tool and machining units: Tool changer (disc-type tool changer) with approx. 18 magazine positions [IMA BIMA 300 | PDF] CNC-controlled C-axis (360° rotatable) [IMA BIMA 300 | PDF] Drilling unit: Vertical and horizontal drilling spindles Integrated dado saw [IMA BIMA 300 | PDF] Mounting for various adapter units [IMA BIMA 300 | PDF] Table system / clamping technology: Cantilever table with: 10 adjustable support arms several suction plates (vacuum clamping system) [IMA BIMA 300 | PDF] Two vacuum circuits, positionable depending on the workpiece [IMA BIMA 300 | PDF] Second vacuum pump available (90 m³/h) [IMA BIMA 300 | PDF] Control and software: ICOS CNC control system [IMA BIMA 300 | PDF] Programming via IMAWOP (dialog-oriented, graphical interface) [IMA BIMA 300 | PDF] PC-based control with network connection [IMA BIMA 300 | PDF] Additional equipment: Chip conveyor [IMA BIMA 300 | PDF] Central lubrication of the linear guides [IMA BIMA 300 | PDF] Dust extraction connection (Ø 250 mm, approx. 4950 m³/h) [IMA BIMA 300 | PDF] Safety equipment according to CE with safety guards and floor mats [IMA BIMA 300 | PDF] Documentation and spare parts catalog available [IMA BIMA 300 | PDF] Electrical data: Power connection: 400/230 V, 50 Hz, 3N/PE [IMA BIMA 300 | PDF] Further details regarding the equipment and condition can be provided upon request.

Condition: good (used), Year of construction: 2018, machine/vehicle number: 11000-0072, functionality: fully functional, input voltage: 400 V, input current: 57 A, input frequency: 50 Hz, type of input current: three-phase, For sale: a professional, single-sided industrial edge banding machine from the renowned German manufacturer IMA Schelling, model Novimat Compact I G80 / 700 R3. The machine was purchased new in 2018 and has been in operation in the same facility since then. The unit is in continuous use, regularly serviced, well-maintained, and in 100% technically sound condition. Key information and technical condition: Year of manufacture: 2018 Power: 26kW Power supply: 400V (3 phases), 50Hz Rodpfxozvyh Rs Alascf Compatible with polyurethane (PUR) adhesive Usage history: operated in a single-shift mode, only 8 hours per day Condition: good, ready for immediate use.

Condition: used, Year of construction: 2012, - Machining area: 5300x1400 mm - Main spindle replaced 3 years ago - 18-position tool changer Technical data Machining area - In the X direction: 5300 mm - In the Y direction with main spindle + WZ-0: 20 mm: 1400 mm - In the Y direction with drilling unit: (all vertical drills) 890 mm - Single-position machining: X = 2 x 2550 mm Rcsdpfx Aszuw Rtolaof - Free space in the center: X = 200 mm - Alternating field machining: X = 2 x 2250 mm - Free space in the center: 800 mm 1 automatic tool/adapter changer magazine - Arrangement: mounted on the support, moving in the X direction - Disc changer with 18 magazine positions Guidance system - All axes are equipped with pre-tensioned, surface-hardened precision roller guides. Central lubrication - Manual central lubrication for all main axis linear guides and Z ball screw. 1 vacuum pump, 90 m3/h Console table consisting of: - 2 work piece stops fixed on the right and 2 on the left in the X direction, for movement in the Y direction - 10 adjustable support arms in the X direction, each with a rear stop - All stops are controlled by the program - The suction plates are fixed via the patented 2-circuit clamping system, eliminating the need for hoses. - 8 smooth support rails, automatically retractable - 2 push buttons for the workpiece clamping/releasing function Additional 2nd vacuum pump, 90 m3/h 1 additional central stop row, for centering workpieces Chip conveyor 1 main spindle - Drive power: 10.0 kW in S-6 operation - 7.5 kW in S-1 operation - Tool holder: HSK F63, taper diameter = 38 mm, similar to DIN 69893 - Speed range: infinitely variable RPM, programmable 1 centrally integrated CNC axis, rotating 360 degrees - for all adapter units, with torque support on the main spindle and pneumatic interface 1 vertical drilling unit l14 with 6 spindles, horizontal and attachment unit for a dado cutter - Horizontal drilling units with 2 outputs each Attachment unit for a dado cutter - Swivel range: 0 or 90° Control system ICOS CNC Modern, powerful PC-based control system with: - User-friendly interface with Windows standards - Trajectory control of all servo axes - Job list / order processing - IMA backup and recovery system on two hard drives - Uninterruptible power supply (UPS) IMAWOP software package - for dialog-oriented creation of CNC machining programs - - 3D view and basic simulation of the programmed workpiece, the suction cups and consoles including tool and adapter display.

Condition: good (used), Year of construction: 2008, machine/vehicle number: 22410, functionality: fully functional, power: 17 kW (23.11 HP), input voltage: 400 V, input current: 29 A, input frequency: 50 Hz, number of axes: 4, THE MACHINE IS CURRENTLY READY FOR SHIPMENT ON A TRUCK TRAILER. WE CAN ARRANGE DELIVERY FOR €2.00/KM. THE BUYER IS RESPONSIBLE FOR ORGANIZING AND PERFORMING THE UNLOADING. IMA BIMA 300 CNC Machining Center Offered is a fully functional IMA BIMA 300, 4-axis CNC machining center in a console table design. Basic data (no guarantee of accuracy and completeness): Machining area: X-axis: approx. 5000 mm Y-axis: up to approx. 1400 mm Max. workpiece height or clamping height: approx. 125 mm Machine weight: approx. 6000 kg Main spindle: Power: 7.5 kW (S1) / 10 kW (S6) Tool holder: HSK F63 Speed range: up to 24,000 rpm Programmable clockwise/counterclockwise rotation Tool and machining units: Rcedpfxozq U Ris Alasf Tool changer (disc changer) with approx. 18 magazine slots CNC-controlled C-axis (360° rotatable) Drilling unit: Vertical and horizontal drilling spindles Integrated nut saw Mount for various adapter units Table system / Clamping technology: Console table with approx. 6 adjustable support arms and several suction plates (vacuum clamping system) Two vacuum circuits, positionable depending on the workpiece External vacuum pump from Becker available (see images) Control and software: ICOS CNC control Programming via IMAWOP (dialog-oriented, graphical interface) PC-based control with network connection Additional equipment: Central lubrication of the linear guides Extraction connection (Ø 250 mm, approx. 4950 m³/h) Safety equipment according to CE with protective grilles and safety mats (some mats may have intermittent contact) Documentation and spare parts catalog incomplete Electrical data: Mains connection: 400/230 V, 50 Hz, 3N/PE We are available at any time to answer questions or arrange a viewing appointment.

Condition: excellent (used), Year of construction: 2014, machine/vehicle number: 24406, functionality: fully functional, operating hours: 900 h, input voltage: 400 V, input frequency: 50 Hz, ⚙️ IMA BIMA CUT 145/330 – Technical Specifications (Main) 🔹 Working range (axis travel) • X axis: approx. 3300 mm • Y axis: approx. 1450 mm • Number of axes: 3 (typically X, Y, Z) 🔹 Spindle • Spindle power: approx. 18 kW • Applications: milling, drilling, and board nesting 🔹 Tool changer • Automatic tool changer (ATC): up to 18 positions 🔹 Material clamping system • Vacuum table with beams and suction cups 🔹 Saw unit • Saw projection: approx. 145 mm • Cutting length: approx. 330 mm ⸻ 🛠️ Typical features and equipment • 5-sided drilling (top + X+/X−/Y+/Y− sides) • Saw unit for cutting and grooving • Optional horizontal milling aggregate (HBO) • Automatic loading and unloading table (depending on configuration) • Nesting system (panel optimization with simultaneous machining) Rcsdpfsykn Dwox Alaof • Automatic lubrication • Waste and chips conveyor (belt) ⸻ 📌 General information • Manufacturer: IMA Schelling (Germany) • Year of manufacture commonly found in offers: approx. 2010–2016 (often 2014) • Applications: furniture production, MDF panels, HPL, solid wood, nesting

Condition: reconditioned (used), Year of construction: 2000, functionality: fully functional, Equipment: CE marking, IMA BIMA 410 V CNC WORKING CENTRE FOR BORING + ROUTING + EDGE BANDING • Industrial machine with heavy-duty structure • Working area: X:4000 mm Y:1200 mm Z: 100 mm • Travel speed: X:100 m/min Y:80 m/min Z: 25 m/min • 2 Working areas • 8 movable work tables to support the panels. SCHMALZ system Redpozc E A Isfx Alascf • 23 SCHMALZ suction cups with vacuum system for the locking of the working piece • 4 loading device through pneumatic bars assembled on the work tables that lift the pieces • 1 SIEMENS vacuum pump ROUTING UNIT: • 10 HP. Refrigerated router head • Automatic change of the tool • Tool holders: HSK F-63 • C AXIS that allows to turn and 360° angle drive heads with rotation regulation in automatic by numerical control • 0 to 20.000 rpm • Tool magazine 12 positions MULTI-BORING UNIT: • 7 independent spindles for vertical boring in X direction • 5 independent spindles for vertical boring in Y direction • High revolution speed: 9.000 rpm EDGE BANDING UNIT: • Automatic device to apply the edge into straight profiles of shaped panels • Applicable banding material in coils: thin edge and PVC up to 3 mm • Independent unit to edge band shaped panels. It's installed on the main frame of the machine - hot-melt glue pot and premelter - spreading roller to regulate the quantity of apllied glue - edge pression roller • Lamp zone to pre-heat the side of the panel • Multiple magazine for edge coils with 2 positions, to automatically change the edge type • Top and bottom edge trimming head-unit • Top and bottom edge scraping head-unit CONTROL OF THE MACHINE: • IMATRONIC • Software IMAWOP • Command board installed on a separated electrical cabinet to control the machine PROTECTION ENCLOSURE OF THE WORKING UNITS PROTECTION FENCES SECURITY CARPETS SECURITY NORME CE MARK

Condition: used, Year of construction: 2005, Single-sided edge banding machine Manufacturer: IMA Type: Novimat Systems/I/R75/1000 Year of manufacture: 2005 Technical data PC control - ICOS OPEN control system Feed rate 5-25 m/min, frequency-controlled Fence with electronic positioning control Adhesive application above and below Trimming unit with 2 motors, each 4.5 kW, 9,000 rpm, controllable. - Horizontally adjustable via axis Heating element approx. 300 mm long, 2x 1.5 kW Gluing unit - Adhesive application with pneumatic quick-lock system. - Automatic PU melting system Quickmelt for 2 kg cartridges - 32-position edge magazine (8 slots up to 3 mm / 24 slots up to 1.3 mm) Vertical roller holder for 32 rollers, max. diameter 850 mm Cutting unit on the upper pressure roller with 2 motors, each 200 W, 400 V, 12000 rpm. - Horizontal pneumatic swiveling 0-25 - With controllable side contact, for 3 edge thicknesses Trimming unit with 2 motors, each 1000 W, 400 V, 200 Hz, 12000 rpm. - Operating in counter-rotation. Multi-processing unit 08.348 - For chamfering or radius trimming of the upper and lower longitudinal edges, as well as for copying the front and rear workpiece edges. - Program-controlled adjustment for up to 4 profiles - 2 motors, each 660 W, 400 V, 200 Hz, 12000 rpm. Spray nozzles above and below for applying cleaning agents Multi-profile scraper unit - With stepper motor axes for horizontal and vertical positioning. - For 4 profiles. Straight scraper unit - With electro-pneumatic retraction device Copying edge smoothing unit - With 4 smoothing motors, each 250 W - Smoothing unit with 2 lower and 2 upper motors, each 180 W, 50 Hz, 1400 rpm. Smoothing unit - For smoothing and eliminating the white haze on the trimmed PVC/ABS edges - With an upper and lower smoothing zone Rcedpfx Alozuyhnjaof With workpiece return system LGIMATECH ZHR 05/L/145 - Air cushion table, inclined, 2 return belts with brushing devices from below. Note: The technical data and descriptions are a transcript of the original order confirmation. The data is for informational purposes only and is not binding.

Condition: used, Year of construction: 2005, - Automatic infeed table - KFA unit - Return system Used single-sided edge banding machine Manufacturer: IMA Type: Combima Systems / I/R751220/R3 1 single-sided combination machine for trimming, edge gluing and edge finishing of panel-shaped workpieces made of wood and/or wood-based materials. - Automatic infeed table - KFA unit - Return system Technical data "Workpiece": Workpiece length - min.: 238 mm - max.: 2350 mm Workpiece width - min.: 142 mm - max.: 800 mm Workpiece thickness: - min.: 8 - 40 mm Technical data "Strip" (only for longitudinal processing): Roll material: - Paper edge bands & plastic edge bands: 0.3 - 3.0 mm Redpszuypljfx Alaocf - Veneer edge bands: 0.5 - 3.0 mm Edge height: - min.: 14 mm - max.: 45 mm Technical data "Machine": Variable workpiece overhang from the chain conveyor (including edge with edge thickness 0.3-3 mm): - min.: 40 mm - max.: 80 mm - PC control ICOS open - Feed speed v=5-25 m/min, frequency-controlled drive - Inclined roller table as infeed section NC infeed system for front and carcass parts - for length and width-independent automatic workpiece feed in single-sided edge processing machines. Only for the production of strip material in the 2nd pass - An additional stop rail, adjustable via NC axis. Double milling unit 08.376: - Controllable - Motor 1 operating in the same direction and motor 2 operating in the opposite direction - Reserve space on the unit carrier for a double trimming unit with electrical pre-installation for 2 x 6.6 kW. - Heater 300 lg, 2x1.5 kW, for preheating the workpiece edge. - Gluing unit 04.1570 system for straight edges and adhesive application to the workpiece. The edge thickness depends on the magazine used and is max. 3 mm. - Adhesive application for workpiece thickness max. 50 mm - 2 pre-melting tanks for PU adhesive - 12-position edge magazine for roll material 0.3-3 mm thick. (8 slots up to 3 mm, 4 slots up to 1.3 mm) Vertical roll holder for 12 rolls: - max. roll diameter 850 mm - max. edge height 45 mm - Trimming unit 08.42, for 2 motors mounted on the upper pressure bar - Pre-milling and milling unit with height sensor - with 1 motor 1000 W - Multi-profile / chamfer unit, with 2 motors 1000 W - Contour milling unit KFA 30 - Multi-profile drawing blade unit - Flat drawing blade 08.517 - Copy edging unit 08.604 - Edging unit 08.617-2 - Double milling stand 75.184, 1050 mm high, both stand sides can be used - Milling / profile milling / grooving unit 75.34 with 1 motor, without tool, 100 Hz, 6000 rpm - Milling / profile milling / grooving unit 75.34 with 1 motor, without tool, 100 Hz, 600 rpm - Motor spindle for the use of the Hydro-Format tool system - Return system, manufacturer Meinert Note: The technical data and descriptions are a transcript of the original order confirmation. The data is for informational purposes only and is not binding.

Condition: used, Year of construction: 2000, machine/vehicle number: 13304, type of input current: three-phase, workpiece height (max.): 45 mm, workpiece width (max.): 1,300 mm, workpiece length (max.): 2,250 mm, edge thickness (max.): 3 mm, actuation type: electric, total length: 10,000 mm, total width: 8,500 mm, Equipment: CE marking, documentation/manual, We offer a two-sided edge banding machine, IMA COMBIMA I K/II/R75/760/V/R3, manufactured in 2000, renowned for its reliability and efficiency in professional edge processing. This model handles workpieces with a thickness of 10 to 45 mm and a width of 270 to 1300 mm, offering versatility in working with various materials. The feed rate ranges from 6 to 30 m/min, enabling efficient production while maintaining high quality. The machine handles edge banding with a thickness of 0.7–3 mm and workpieces with a length of 270 to 2250 mm, making it an ideal solution for demanding industrial applications. This is a robust option for companies seeking proven machines in good working condition. The machine features a new Beckhoff control system. It is possible to purchase the entire line, including a roller conveyor equipped with a conical rotating table and a two-chamber automatic loading station. Redezgb A Depfx Alascf

Year of construction: 2007, operating hours: 138 h, condition: like new (used), functionality: fully functional, machine/vehicle number: 900K707385, Tablet Press PRESSIMA – as new, in ex-works condition Fully functional machine with complete documentation and software. Including multi-tip tooling set EU-D (5 × 4mm) (purchase price: €12,000, 6 months old) as well as a single-tip tooling set (5mm) EU-B. Both punch sets supplied by Ritter. The machine is equipped with an interchangeable turret. Both B- and D-type tooling can be used, in either EU or TSM standard. Operation • Suitable for small batch production • Main compression force measurement with digital readout on the machine panel • Digital display of parameters set via handwheels • Note: No automatic control system available Technical Data • Speed: 10–75 rpm • Max main compression force: 50 kN • Pre-compression force: 10 kN • Turret diameter: Ø 180 mm • Two-wheel feeder, variable speed • Drive motor: frequency controlled, 1.5 kW • Power supply: 400–480 V, 50/60 Hz • Total power consumption: 1.5 kW • Machine housing and press area: stainless steel • Press area unpainted, easy access, hard-nickel-plated surfaces • Central extraction port • Central manual lubrication pump for punches • Automatic lubrication pump for punches and guideways • Feeder motor integrated in the headpiece Mechanics • Handwheels for tablet thickness, main pressure, pre-compression, and fill • Rotary flap between fill tube and feeder • Solid pre-compression and main compression stations • Scrapers on upper and lower punches • Magnetic brakes on lower punches • 12 mm fill shoe as standard • Lower punch is lowered after dosing • Lower guideway and ejection rail easily removable • Machine status display on control panel Measuring and Analysis System • MS2300 for recording and analysis of up to 16 channels • Measurement/analysis of: o Main compression (upper) o Main compression (lower) o Pre-compression (upper) o Ejection force o Scraping force o Upper and lower punch displacement • Measuring amplifiers for main, pre-comp, ejection, and scraping force included Equipment / Features • Upper and lower punch shank bores with 4.8 mm keyways for guided tooling Rjdpfx Aey Hl Aqolascf • Chamber-type feeder • Turret hard chrome plated • Main compression force measurement incl. indicator on operator terminal • Accessory kit type 8 MX: o 4 EU-B blank dies o 4 EU-D blank dies o 4 plugs for EU-B/EU-D or TSM-B/TSM-D Optional • Control retrofit with Siemens S7-1200 and Siemens TP panel possible.

Condition: excellent (used), C.N.C. WORKING CENTER (POINT TO POINT) with 5 axis (X-Y-Z-C-5th) for routering, boring, cutting and edge banding Numerical Control ICOS CNC (IMAWOP) Max useful working area (without edge banding) mm 4000 x 1600 (2000) x 100 (axe Z stroke mm 650) Max useful working area (edge banding process) mm 4000 x 1600 x 100 (panel thickness) Rcsdsw A Ruqopfx Alajf No. 8 movable rails (supports) length mm 1400, LED displaying both the axe X and axe Y position Vacuum cups (with No. 2 vacuum pumps, capacity 140 m3/h each) Safety side metal grids and front emergency carpets Motorized belt to evacuate the wastes from the working process No. 1 Vertical Electro-spindle ROBOTKOPF HSK F63 (Kw 16) Automatic Tools Changing System, with 18 folds (places) No. 21 Independent vertical boring spindles (4 x Kw 1,2) No. 8 Independent horizontal boring spindles (4 in X + 4 in Y) Circular Saw (tiltable 0°- 90°) diam. (mm) 200 Glueing Unit (P.U.R. Glue + Quick Melt unit 283.203) VT 100 / 100 WITH 45° INCLINED EDGE BANDING UNIT Edge coils supporting unit (No. 2 reels) OPTIONALS: No. 1 Aggregate Flush Milling / Trimming No. 1 Aggregate Flush-Trimming / Profile Scraping Unit

Condition: excellent (used), Year of construction: 2008, Used CNC machining center Manufacturer: IMA Model: BIMA 300 125/430 Year of manufacture: 2008 Rcsdpfx Aey Nzw Nslaef 4-axis CNC machining center with console table 8 supports in X, manually adjustable, 3 vacuum cups per console, vacuum pump 90 m³/h vacuum connection for templates LED display for vacuum cup position indication Working area X: 200 – 4300 mm Working area Y: 0 – 1400 mm (milling/drilling), Working area Z: 12 – 125 mm (clearance 150 mm) Additional central stop row 14 vertical drilling spindles + 6 horizontal horizontal drilling and grooving saw unit, swiveling 90° Milling spindle 7.5 kW up to 18,000 rpm with C-axis 360° interpolation, liquid circulation cooling – 18-position tool changer mounted on the Y-support Edge banding unit VT 100, four-sided/all-around – rotation range 740 degrees with 2-position roller magazine, automatic granule feed Adapter units: – fixed saw 90° – 4-spindle angle head Control ICOS open 231 with 17″ TFT UPS ImaWop 10.0 incl. MDE and production list software Safety fence on right side and foot mats at front; Rear: requires wall installation or separate safeguarding

Condition: ready for operation (used), Year of construction: 2000, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,200 mm, number of axes: 3, This 3-axis IMA BIMA 410 CNC Wood Machining Centre was manufactured in 2000. It features a working area of 3000 mm in X and 1200 mm in Y, with a maximum clamping height of 100 mm. The machine is equipped with an automatic central lubrication system and AC servo motors for precise operation. If you are looking to get high-quality wood machining capabilities, consider the IMA BIMA 410 machine we have for sale. Contact us for further details. • Working area X: 3000 mm • Working area Y: 1200 mm • Max. clamping height Z1: 100 mm • Max. workpiece thickness Z2: depending on equipment/application • Table height: approx. 1000 mm • Pendulum operation X: 2 × 1400 mm • Free space center X: 200 mm • Pendulum operation alternative X: 2 × 900 mm • Free space center alternative X: 1200 mm • Machine weight: approx. 6000 kg • Guide system: precision linear guides hardened approx. 62 HRC • Central lubrication: automatic for all main axes and ball screw • Drive system: AC servo motors with encoder • X/Y drive: rack and pinion • Z drive: ball screw • Feed rate: 40 m/min • Rapid traverse X/Y: 80 m/min Rcsdpfszug Afjx Alaof • Rapid traverse Z: 25 m/min • Acceleration: 3 m/s² • Extraction connection main spindle: 300 mm • Extraction connection drilling spindles: 120 mm • Air speed: approx. 28 m/s • Air volume: approx. 7080 m³/h • Vacuum pump capacity: 100 m³/h • Compressed air connection: 1/2" • Air pressure: 6 bar • Control voltage: 24 V DC • Connected load: approx. 24 kVA • Power supply: 3/N/PE 400/230 V 50 Hz • Frequency converter: 0–480 Hz • Ambient temperature: +15 to +35 °C • Control system: IMATRONIC NT 231 • Interpolation: linear all axes, circular 2.5D • Resolution: 0.001 mm • Spindle: HSK F63 • Tool clamping force: 11000 N • Max tool weight: 6 kg • Speed range: 1500–18000 rpm • Spindle power: 7.5 kW • Cooling: water cooled • CNC axis: 360° rotating • Tool magazine type: plate changer • Tool positions: 18 • Max tool length: 150 mm • Max tool diameter: 100 mm (150 mm with free сосед positions) • Max load: 60 kg • Saw unit motor: 1.5 kW • Saw speed: 5600 rpm • Saw blade diameter: max. 150 mm • Drilling unit: 14 spindles • Spindle stroke: 70 mm • Drive: 2.2 kW • Speed: 3150 rpm • Drill diameter max: 20 mm • Adapter head spindles: 4 • Speed max: 6000 rpm • Drill diameter max: 12 mm Table equipment: • 6 adjustable support arms • 12 suction cups 114 × 159 × 100 mm • 6 suction cups 125 × 75 × 100 mm • Vacuum system: 2-circuit clamping system • Electrical cabinet size: 2000 × 1800 × 600 mm DEFECT: • The main spindle no longer releases the interchangeable drill head

Condition: ready for operation (used), Year of construction: 2013, functionality: fully functional, WE OFFER AN NICE WORKING CONDITION SPINNER U-620 MACHINE WILLBE AWAILIBLE FROM THE PRODUCTION IN FEBRUARY 2026 WITH MACHINE WILL COMES FULLY EQUIPMENT TOOLS AND ACCESSORIESS WITH FULL TOOLS AND ACCESSORIESS MACHIE WILL BE IN FEBRUARY AWAILIBLE FROM THE PRODUCTION OF TOOLMAKER TECHNICAL DETAILS: Redpfx Aloydrztsajcf CONTROLS: HEIDENHAIN ITNC 530 YEAR : 2013 SPINDLE WORKING HOURS: 31995 PROGRAM RUN: 30893 MACHINE ON: 49012 TRAVELS AXES: X=620 mm Y=520 mm Z=420 mm Table diameter: 560 mm Max. part weight: 500 kg Max. spindle speed: 12.000 Rpm Connection power: 29kW Tool holder SK40 Tool changer 32-fold Max lenght of tool: 290mm Max mass of tool: 7kg TRANSPORT DIMENSIONS: L 3500 X W 2300 H 2910 WEIGHT OF MACHINE: 7100 KG FOR DISMANTLING AND LOADING WE CARE WITH AN PROFESSIONAL TEAM WE ALSO CAN ORGANIZE FOR CUSTOMERS TRANSPORT TO THE SITE OF THEIR COMPANY

Condition: ready for operation (used), Year of construction: 1996, travel distance X-axis: 4,000 mm, travel distance Y-axis: 1,200 mm, number of axes: 3, number of slots in tool magazine: 5, total height: 3,100 mm, overall weight: 7,500 kg, table length: 4,000 mm, table width: 1,200 mm, spindle motor power: 7,500 W, spindle speed (max.): 18,000 rpm, This 3-axis IMA BIMA 610 V CNC Wood Machining Centre was manufactured in 1996. It features a working area of 4000 mm in the X-axis and 1200 mm in the Y-axis, with a maximum drilling diameter of 45 mm. The machine is equipped with 5 drilling spindles in the X direction and 11 in the Y direction. If you are looking to get high-quality wood machining capabilities, consider the IMA BIMA 610 V machine we have for sale. Contact us for further details. • CNC Control: NUM CNC Control • Drive System: Siemens SIMODRIVE 611 • Maximum Workpiece Length: 4000 mm • Minimum Workpiece Length: 150 mm • Maximum Workpiece Width: 1650 mm • Minimum Workpiece Thickness: 10 mm • Maximum Workpiece Thickness: 65 mm • Drilling Spindles (X): 5 • Drilling Spindles (Y): 11 • Maximum Drilling Diameter: 45 mm • Main Spindle Power: 7.5 kW • Main Spindle Motor: Water-cooled • Tool Holder: HSK F63 DIN 69893 • Feed Drive Motor Power: 4 kW • Feed Speed: 1,500–18,000 mm/min • Maximum Tool Weight: 5 kg • Maximum Tool Clamping Force: 10,000 N • Operating Voltage: 400 V ±5% • Supply Voltage: 3/N/PE, 400 V, 50 Hz • Frequency: 50 Hz • Total Connected Load: 33 kVA • Rated Power: 41 kW • Rated Current: 62 A • Connection Cross Section: 16 mm² • Control Voltage: 24 V • Control Current: 52 A • Compressed Air Pressure: 6–10 bar Rjdpfxezug Ale Alascf • Air Connection: 1/2" • Required Air Consumption: 28 m³/h • Dust Extraction Connection: Ø100–300 mm • Air Flow Ø100: 14 m³/min • Air Flow Ø140: 28 m³/min • Air Flow Ø160: 36 m³/min • Air Flow Ø180: 46 m³/min • Air Flow Ø200: 56 m³/min • Air Flow Ø280: 105 m³/min • Air Flow Ø300: 127 m³/min • Number of Dust Extraction Ports: 1 • Machine Condition: Disassembled but fully functional Optional Equipment, not included: • Vacuum block suction cups (aluminum) and sliding console • Two milling spindles for synchronous milling with integrated tool changers • Safety fence with associated safety mats • Control cabinet and operating unit • Waste conveyor belt for milled sections

Condition: used, Year of construction: 1994, Storage location: Nattheim Rcsdpfxjwmm Nre Alaef

Condition: used, Year of construction: 2001, - X = 2 x 2,400 - Y = 1,800 mm - Main spindle 12 kW - 18-position tool changer - Gluing unit with 6-position coil magazine Used CNC machining center Manufacturer: IMA Type: BIMA P 480 V, 180/480 Year of manufacture: 2001 Alternative processing: - X = 2 x 2,400 - Y = 1,800 mm - Main spindle 12 kW - 18-position tool changer - Gluing unit with 6-position coil magazine Working area: For standard machines, Y = 1,800 mm Changing table area for alternating machining: X = 2 x 2,400 mm / Milling and drilling X = 2 x 2,100 mm / Gluing CNC line control IMATRONIC NT 231 Automatic adjustment table with clamping plates Main spindle 12 kW With integrated C-axis, 360 degrees Automatic tool/adapter unit changer, 18-position 1 edge banding unit VT100 With glue application device Edge thickness: 0.4 - 3 mm For 4-sided edge banding and all-round edge banding with butt joint 6-position roller magazine 1 trimming unit 0.8 kW Including adapter unit - Saw, fixed at 90 degrees - Horizontal milling unit (corner release) Rcsdpfx Aszux Uaslasf - Chamfer milling unit - Straight milling unit - Profile drawing blade Note: The technical data and descriptions are a transcript of the original order confirmation. The data is for informational purposes only and is not binding.

Condition: used, Imatronic Numerical Control with ImaWop 8.0 Software (software updated in 2020) Working range on X axis mm 7000 Working range on Y axis mm 1400 Full table with support panel for positioning the suction cups Suction cups can be manually positioned on the work surface using a laser indicator No. 2 vertical electrospindles with C axis with automatic tool change Automatic tool changer with 18 positions on the back of the machine Drilling head with 21 spindles arranged as follows: * N° 11 verticals on X axis * N° 10 verticals in Y axis Edgebanding unit with glue pot and pre-melter for EVA glue (glue pot new in 2023) Nordson pre-melter for PUR bonding on Folding panels No. 1 blade aggregate (end cutter) No. 1 trimming aggregate No. 1 cross-shaped aggregate with 4 horizontal drilling lines No. 1 blower aggregate 2-position edge storage unit Front protection and safety system with carpets Full protection cabin (not original IMA) TECHNICAL DETAILS TO BE CHECKED Rcsdpfew El Nhsx Alasf

Condition: like new (used), Year of construction: 2013, IMA COMBIMA 2013 - 2x loading / unloading station Rcjdpfxjtxtkxj Alasf - for PVC, ABS & solid wood edges - U-form layout - with KFA 20 aggregate - immediately available For more Info, Video and technical specs, please contact us.

Year of construction: 2005, condition: ready for operation (used), A single-sided IMA edge processing machine for sizing, edge bonding and post-processing of wood panels is available. Min. workpiece dimensions X/Y/Z: 150mm/130mm/16mm, max. workpiece dimensions X/Y/Z: 2350mm/800mm/40mm, max. workpiece weight: 50kg, workpiece angle: 90°, material: particleboard/MDF, working height: 960mm. This is a complete system with conveying and peripheral units. Documentation available. An on-site inspection is possible. Rodezidi Sopfx Alaecf

Condition: not inspected (used), Year of construction: 2014, functionality: unexamined, workpiece height (max.): 60 mm, edge thickness (max.): 20 mm, feed rate X-axis: 30 m/min, controller model: ICOS OPEN, The machine has the following configuration: Unit: Pre-milling Rjdpeyzy Iwofx Alaecf Manufacturer model: 08.379 Motor power: 4 kW Speed: 8,800 rpm Unit: Cut-off saw unit Manufacturer model: 08.42 / 30 / B Number of motors: 2 Motor power: 0.660 kW Unit: Corner rounding unit Manufacturer model: 08.055 Number of motors: 2 Motor power: 1.850 kW Speed: 12,000 rpm Unit: Profile trimming unit Manufacturer model: SKF-L Number of motors: 4 Max. machining speed: 20 m/min Motor power: 0.180 kW Speed: 12,000 rpm Unit: Scraper blade unit Manufacturer model: 08.519 Unit: Glue scraper unit Manufacturer model: 08.521 Unit: Brushing unit Manufacturer model: 08.617-2 Number of motors: 2 Motor power: 0.180 kW Speed: 1,400 rpm TECHNICAL DETAILS Min. panel height: 8 mm Max. panel height: 60 mm Min. panel length: 150 mm Min. panel width: 65 mm Min. edge thickness: 0.3 mm Max. edge thickness: 20 mm Max. feed speed: 30 m/min MACHINE DETAILS Control: ICOS OPEN EQUIPMENT Magazine for coil material Tank for hot-melt adhesive Edge pressure roller unit Pressure by rubberized belt The machine is sold and delivered in its actual and legal condition ("as seen and approved") based on photographic documentation and technical/commercial documents of descriptive character. The buyer has the right to inspect the goods prior to collection and assumes responsibility for the installation, securing, and operation of the machine at the destination. External reference: 6089

Condition: used, Year of construction: 2011, - Current format: capsule size 0 - 48 posts Rcodpfx Alsx Rz Hyoaof - Max capacity: 200,000 capsules / hour - Automatic checking weight - Year: 2001 and full revamping in 2011 / 12 - spare parts available. - All documentation and pharmaceutical qualification files available

Condition: ready for operation (used), Year of construction: 1997, A 1.5-times linked IMA edge processing line with automatic Venjakob workpiece transfer is offered. Max. working width: 2500mm, transfer angle: 90°, distance between the workpiece edges: 6000mm. Control system: Siemens S5. Including peripheral equipment and conveying system. Required installation space: approx. 250-300m², overall dimensions X/Y: approx. 19000mm/13600mm. IMA. Operator PC: renewed in 2018. Inspection possible by appointment. Rcodpfx Aszh Nh Rolaof
