Used Mikron 102.05 Mps for sale (540)

Condition: used, Year of construction: 1968, max. wheel diameter 120 mm gear width 130 mm max. module 2 no. of teeth to be hobbed 6-325 Z min/max. spiral pitch 20-5000 mm hobbing length 130 mm weight of the machine ca. 860 kg Universal hobbing machine MIKRON 102.05 MPS > External surface gearing Technical data: Maximum millable workpiece diameter: 120 mm Maximum millable length: 130 mm Maximum number of modules: 2 Number of millable teeth: 6-399 (with gear ratio 80:5) Pitch of the spirals: 20 - 5000 mm Njdpfezupliox Aktewk Pitch angle of the spirals (left or right): 0 - 90° 14 milling cutter revolutions (50c/s): 140 - 1870 rpm 13 Axial feeds: 0.05 - 3.0 mm/w.p.rev. Main motor speed: 1500 rpm Main motor power: 1.1 kW Connected load: 3 x 380 VAC Frequency: 50 Hz Control unit: Omron CP1L Machine dimensions L/W/H: 1030x800x1520 mm Weight of the machine: 880 kg

Condition: ready for operation (used), Year of construction: 1991, functionality: fully functional, travel distance X-axis: 140 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 300 mm, workpiece length (max.): 400 mm, The design of the base machine is characterized by the following features: - Horizontal arrangement of the workpiece spindle; vertical arrangement of the milling spindle or milling head - The workpiece is mounted between the workpiece spindle stock (left) and the tailstock (right) - The radial slide is mounted on the base (X-axis) - The axial slide moves on the radial slide (Z-axis) - The swivel milling head is equipped with an automatic angle adjustment (A-axis); the swivel slide (Y-axis) moves tangentially to the workpiece diameter TECHNICAL DETAILS Travel range X-axis: 140 mm Travel range Y-axis: 100 mm Travel range Z-axis: 300 mm Tailstock travel W-axis: 420 mm Nodpfx Aszwmyisktjwk Swivel angle of the end mill head A-axis (left): 50° Swivel angle of the end mill head A-axis (right): 60° Largest millable module with hob cutters according to DIN 8002: 4.5 mm Largest millable module for high-performance milling: 3.0 mm Number of teeth: 2–999 Workpiece diameter with manual loading: max. 200 mm Workpiece diameter with automatic loading: max. 150 mm Workpiece length: max. 400 mm Milling spindle speed range B-axis: 0–1,500 rpm Workpiece speed C-axis: 0–350 rpm Milling tool data Milling tool diameter: 40–102 mm Milling tool length: max. 230 mm Radial front diameter (standard): 16–32 mm Milling coordinates Z-axis: 100–400 mm X-axis: 130–150 mm Y-axis (end face of the milling spindle): 50–230 mm W-axis (end face of the tailstock spindle): 165–585 mm Feed rate X-axis: 3,500 mm/min Feed rate Z-axis: 3,500 mm/min Feed rate Y-axis: 4,000 mm/min Feed rate W-axis: 5,500 mm/min Feed rate V-axis (portal loader): 80,000 mm/min EQUIPMENT IBH control system Loading device Extensive range of accessories

Condition: excellent (used), Year of construction: 2002, Working travels 600 x 450 x 450 mm Table size 850 x 530 mm Spindle taper HSK 63 Spindle speeds -20'000 rpm Nwsdpfx Aszwt Hcektok Tool changer 30 Pos. Control HEIDENHAIN iTNC 530 3D Measuring tracer Tool measurement RENISHAW TS27R Tool breakage control device Tool lenght and diameter measuring device Misc. accessories MARCELS MASCHINEN CH

Condition: good (used), Year of construction: 1995, travel distance X-axis: 1,000 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 600 mm, 4-axis machine X-axis travel: 1000 mm Y-axis travel: 600 mm Z-axis travel: 600 mm Control system: Heidenhain TNC 426 Spindle nose: 100-700 mm Work table: 1,080 x 580 mm Maximum workpiece weight: 550 kg Nodpfx Akozwl Rmstewk T-slots: 7 T-slot width: 14 mm Tool magazine with: 36 positions Maximum tool weight: 8 kg Maximum tool length: 340 mm Machine weight (approx.): 6.2 t Space requirement (approx.): 4,790 x 5,330 x 2,905 mm

Condition: good (used), Year of construction: 1991, travel distance X-axis: 500 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 400 mm, X-travel: 560 mm Nwjdszwk E Nopfx Aktek Y-travel: 500 mm Z-travel: 400 mm Control: TNC 360 Spindle speed: 40-4,000 rpm Total power requirement: 7.5 kW Machine weight approx.: 2.6 t Space requirement approx.: 2.6 x 1.8 x 2.2 m

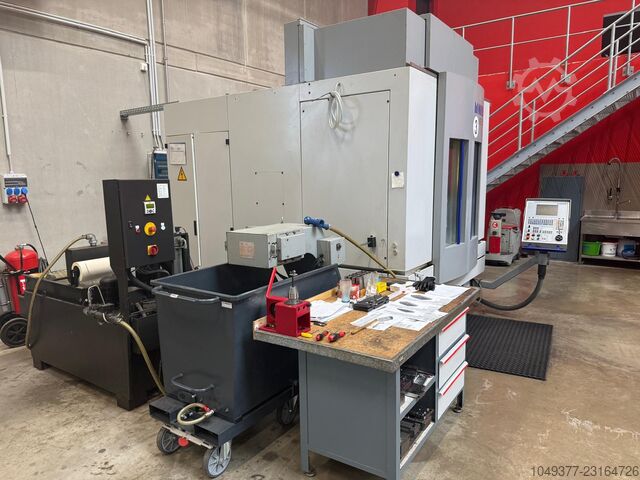

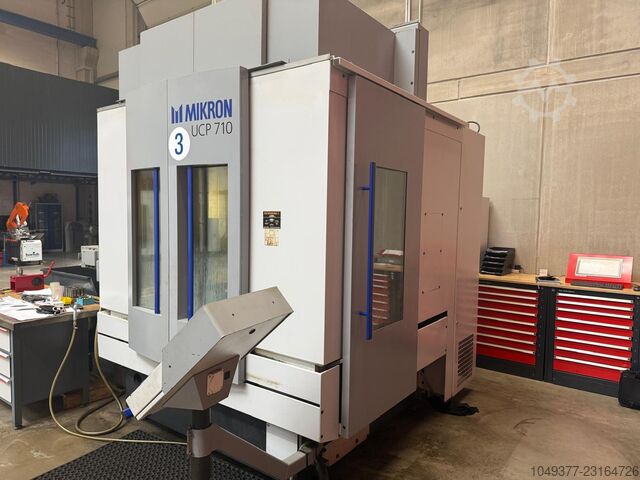

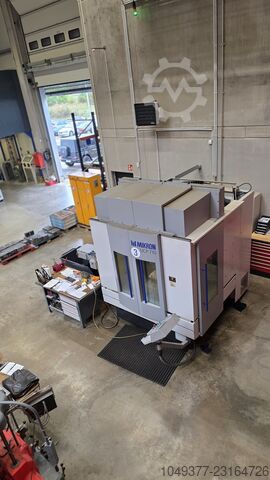

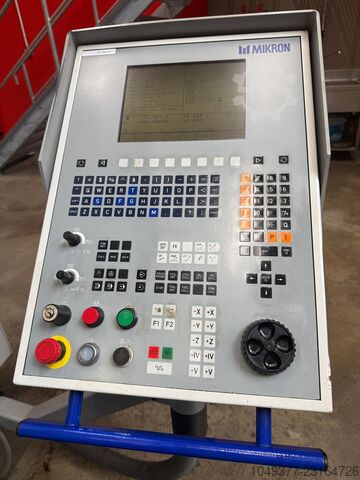

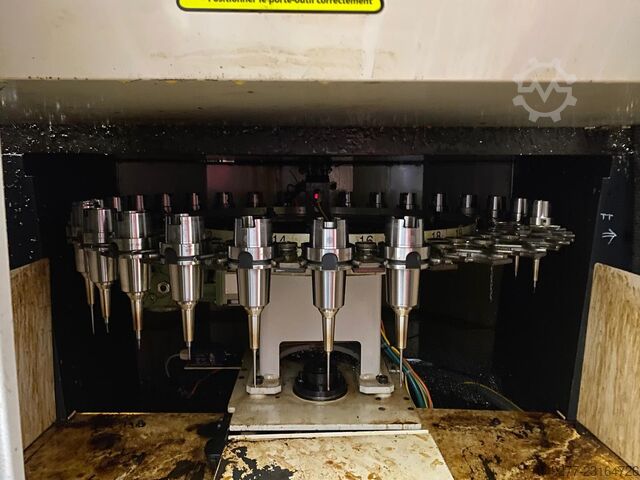

Condition: used, Year of construction: 2001, functionality: fully functional, travel distance X-axis: 710 mm, travel distance Y-axis: 550 mm, travel distance Z-axis: 550 mm, controller manufacturer: HEIDENHAIN, controller model: TNC 430, rotational speed (max.): 18,000 rpm, spindle speed (min.): 18,000 rpm, Equipment: chip conveyor, 5 axes machining center in perfect condition with Heidenhain 430 Nsdpfx Aksh Elngetswk

Condition: used, Year of construction: 2011, Printing & Processing Units: Njdpfx Asy Rp E Djktswk - 5 x EXL offset printing units (single) - 1 x Flexo printing unit (single) - 1 x EC printing unit on rail - 7 x UV drying stations (GEW HCP) - Corona S-unit - Die-cutting and laminating nip - Laminating unit – unwind / rewind Web Handling - Combination unwind / infeed unit S-1000 - Web cleaning unit (TEKNEK, single) - Web turner unit with backside reading - Combination outfeed / rewind unit S-1000 - Edge trimmer / crush cut unit Registration & Control - Single matrix unit - Double vertical die unit (SD) - Main control unit - Web video powerscope 4000 (motorized) - ELTROMAT key adjustment system Auxiliary Systems - Technotrans water dampening system - Cooling water in / out for cooling rollers (UV system) - Exhaust air connection (max. 70 °C)

Condition: good (used), Year of construction: 1987, Mikron WF2SA machining center with a 3-axis Heidenhain Aktiv digital control system. Fixed angular table, SK 40 spindle mount. Ready for operation. Machine can be demonstrated under power by arrangement. Nodezvyh Depfx Aktewk

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, Heidenhain iTNC 530, working area X 600 x Y 450 x Z 450 mm, spindle mount CAT40, 24-position automatic tool changer, 20,000 rpm spindle, machine weight 6,100 kg, power connection 16 kW, main fuse 32 A, operating voltage 400 V, 50/60 Hz Nwsdpfx Akjw Hxzmetjk

Condition: used, Year of construction: 2007, total height: 2,800 mm, total length: 3,000 mm, total width: 2,500 mm, overall weight: 8,300 kg, Mikron HSM 800 – High Speed Machining Center Year 2007 | Heidenhain iTNC 530 | 24,000 rpm | 3-pallet changer High-precision CNC machining center from Mikron / GF AgieCharmilles, designed for demanding HSC applications such as mold & die, graphite and electrode machining, as well as flexible production. Travels: X 800 mm / Y 600 mm / Z 500 mm with pallet size 800 x 600 mm. Equipped with a 3-pallet changer for efficient automated operation. The machine features a high-speed spindle up to 24,000 rpm with HSK-A63 interface and a 50-position tool magazine. Well equipped with high-pressure through-spindle coolant (18–70 bar) including band filter system, chip conveyor, minimum quantity lubrication, oil mist extraction, rotating viewing window and probing system (M&H). Additional features include APS (Advanced Process System) and ITC (Intelligent Thermal Control) for maximum process stability and thermal accuracy. Control: Heidenhain iTNC 530 Spindle speed: 24000 - rpm Nwjdpsy Tkc Asfx Aktjk Travel Y-axis: 600 - mm Dimensions of the clamping surface: 900 x 600 mm Travel Z-axis: 500 - mm Travel X-axis: 800 - mm Dimensions (LxWxH) approx.: 3000 x 2500 x 2800 mm Weight approx.: 8,300 kg Year of construction: 2,007 Condition: in working order Terms of payment: 100% prepayment before pick-up Terms of delivery: From foundation under power: Yes

Condition: used, Year of construction: 2008, x-travel 1350 mm y-travel 900 mm z-travel 750 mm spindle turning speed range 15000 U/min Control iTNC 530 Nwodpoyyqtujfx Aktsk weight of the machine ca. 11,4 t 3-axis vertical machining centre with BÜRENER KFE 63/40-900 Z60 chip conveyor Condition: Well suited for roughing operations Working ranges X-axis travel: 1350 mm Y-axis travel: 900 mm Z-travel: 750 mm Spindle nose to table surface: 135–885 mm Work table Clamping surface: 1425 x 860 mm Max. workpiece weight: 1800 kg Number of T-slots: 10 T-slot width: 1x18H7.9x18H12 Work spindle Speed range: 0 - 15,000 rpm Power: 38 kW Tool magazine: 46 pcs. Tool holder: HSK-A63 Cooling: Water with corrosion protection Footprint L x W x H: 4130 x 3680 x 3150 mm

Condition: used, Year of construction: 2000, x-travel 1000 mm Nodpfxjtig D Io Aktswk y-travel 1040 mm z-travel 750 mm control Heidenhain TNC 426 turning speeds 15000 U/min total power requirement 40 kW weight of the machine ca. 10,1 t required space / m

Condition: used, Year of construction: 2000, 2 x Mikron VCP 800 milling machines, manufactured in 1999 and 2000. Nwedpfx Akezu Ivastek

Condition: excellent (used), For sale is a professional Telestream PRISM MPS-300, designed for monitoring, analyzing, and controlling SDI/IP video signals in broadcast applications and professional AV systems. The device has been tested and is in working condition. It powers on correctly, and the touchscreen functions properly. The condition of the device is visible in the photos. The photos taken during testing show, among other things, a functioning 12G UHD SDI generator – 3840 × 2160 / 59.94 Hz. Model: Telestream PRISM MPS-300 Serial Number: MPS-300 S011149 Software Version: 3.5.2 Selected connections and features: SDI inputs: SDI1 / SDI2 SDI I/O: SDI3 / SDI4 10/25GE interface REF IN / REF OUT AUX OUT Nwodpfxozvl Tle Aktsk DisplayPort GPIO Ethernet LAN USB Headphone output Support for professional UHD/12G SDI signals Built-in touchscreen Portable design with a handle Power supply: 100–240 V AC, 50/60 Hz. The set also includes the professional RF/SDI cables shown in the photos, including Amphenol RF 095-850-193-012 cables. The equipment comes from a professional environment. The housing may have normal signs of use and storage. The scope of the sale is exactly as shown in the photos.

Condition: good (used), CNC control, operator panel, logic unit, path control -Manufacturer: Heidenhain, logic unit path control from CNC machining center Mikron VC500D -Type: LE 407 A 264 430 99 -Individual components: see photos -Dimensions: 475/325/H140 mm Njdpfxjztvqio Aktewk -Weight: 9.4 kg

Condition: good (used), Year of construction: 1972, max. wheel diameter 80 mm Nodpjw N S D Ssfx Aktjwk gear width 60 mm max. module 3 min. module 0,1 total power requirement 0,4 kW weight of the machine ca. 120 kg dimensions of the machine ca. 0,6x0,6x0,75 m

Condition: ready for operation (used), X-axis: 600mm, y-axis: 600mm, z-axis: 450mm, infinitely variable speed range (vertical and horizontal): 10-6,300rpm, AC main spindle drive power at 44% duty cycle: 9kW, drive power at 100% duty cycle: 6kW, max. torque: 800Nm, braking: electrical, number of gearbox stages: 4, max. spindle torque at 44% duty cycle: 800Nm, tool holder: SK40/ DIN69871, retention knob: DIN69872 B, min. clamping force: 12,000N, min. unclamping force: 3,000N, clamping surface of angle table: 530x900mm, number of T-slots: 8, T-slot width: 14H7, T-slot spacing: 63mm, max. workpiece weight: 400kg, coolant tank capacity: 150l, flow rate: 20l/min, connected load: 15kW, with tool holders and documentation. An on-site inspection is possible. Nwsdpfx Akezavyrjtek

Condition: ready for operation (used), Year of construction: 1998, A Mikron CNC vertical machining center is available. Travel X/Y/Z: 900mm/630mm/500mm, table dimensions X/Y: 1200mm/600mm, max. table load: approx. 500kg, tool holder: SK40, speed: 5000rpm, rapid traverse: 10m/min, feed: 10m/min. Machine dimensions X/Y/Z: approx. 2400mm/3400mm/2300mm, weight: approx. 5000kg, control: Mikron, operating hours: approx. 35580h. The main control board of the machine has a defect. Including approx. 100 SK40 tool holders and tools. An on-site inspection is possible. Nedpfx Aszf Ncioktjwk

Condition: ready for operation (used), Rotational speed: 0-3150/min, power supply: 20A, connected load: 9kW, control: Heidenhain TNC 155, length: 2700mm, width: 2900mm, height: 2000mm, weight: 2.3t. An on-site inspection is possible. Nwodpszavyxjfx Aktsk

Condition: ready for operation (used), Year of construction: 1994, Stations: 24, substations: 20, side stations: 20, axes: 2/station, collets: 24, production output single/double cycle: 120/240 pieces/min, stroke: 35mm, max. workpiece diameter: 25mm, spindle speed: 20000rpm, machine weight: approx. 2650kg, control: Mikron MAC 50, operating hours: approx. 17335h. Documentation available. An on-site inspection is possible. Nsdpfx Aow Emx Rsktjwk

Condition: ready for operation (used), Year of construction: 2019, X-travel: 600mm, y-travel: 500mm, z-travel: 540mm, max. distance-table: 690mm, feed: 40m/min, table dimensions: 700x500mm, max. workpiece weight: 800kg, controls: Heidenhain TNC 620, connected load: 18kVA, length: 2240mm, width: 3338mm, height: 2803mm, weight: 5.6t, with documentation, has not run much. Nedpfx Akev Hndfetowk

Condition: good (used), Pressure boosting cylinder, pressure boosting of hydraulic pump, hydraulic power unit, hydraulic pump, hydraulic pump -Manufacturer: Mikron, RAM POWER pressure amplifier from a Mikron VC500D CNC machining center -Type: 152 284 4 RP 9813 -Individual components: see photos Nedpfsztpp Eox Aktewk -Transport dimensions: 580/215/220 mm -Weight: 12.6 kg

Condition: good (used), Servo drive, servo card, output module, CPU card, input processor, power supply, control card, input card, control unit, converter, controller -Manufacturer: Indramat, AC servo power supply from CNC machining center Mikron VC500D -Type: KDV1-3-100-220/300-W1 -Quantity: 1x Power Supply available -Dimensions: 485/390/H105 mm -Weight: 20.9 kg Nwsdpfx Akoztppxotok

Condition: good (used), Servo drive, servo card, output module, CPU card, input processor, power supply, control unit, converter, controller, servo line former, drive control unit, AC mainspindle drive, spindle controller -Manufacturer: Indramat. AC mainspindle drive from a Mikron VC500D CNC machining center Nedpoztppfsfx Aktswk -Type: KDA 3.2-100-3-AP0-W1 -Art.: 776781-001 -Dimensions: 485/390/H150 mm -Weight: 17.8 kg

Condition: good (used), Servo drive, servo card, output module, CPU card, input processor, power supply, control card, input card, control unit, converter, controller -Manufacturer: Indramat, AC servo controller from CNC machining center Mikron VC500D -Type: TDM 1.2-30-300-W0 -Number: 3x servo controllers available -Price: per piece -Dimensions: 325/390/H105 mm Nwsdoztplyspfx Aktsk -Weight: 8.2 kg
