Used Mikron Hsm600U for sale (213)

Condition: ready for operation (used), Year of construction: 2004, operating hours: 22,032 h, travel distance X-axis: 800 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 500 mm, controller manufacturer: HEIDENHAIN, controller model: iTNC 530, overall weight: 910 kg, number of axes: 5, This 5-axis MIKRON HSM600U was manufactured in 2004. It features an impressive X-axis travel of 800 mm, Y-axis travel of 600 mm, and Z-axis travel of 500 mm. The machine is equipped with a high-speed spindle capable of reaching up to 36,000 rpm and a tool magazine with a capacity of 60 positions. If you are looking to get high-quality machining capabilities, consider the MIKRON HSM600U vertical machining centre we have for sale. It includes a pallet changer. Contact us for further details. • Tool magazine capacity: 60 positions • Coolant system: Through-spindle coolant (IKZ) • Lubrication: Minimum quantity lubrication (MQL) • Electrical: 400 V, 50/60 Hz, 4 kVA, 5.7 A (full load) • Condition note: Without tools, pallets and vises (available separately) • Program run time: 35,982 h • Spindle hours: 22,032 h Additional equipment • 6-fold pallet changer • Table system: Delphin system (System 3R) • The following materials were processed on the machine Rsdpfxjyly Sco Ad Aot • Aluminum • Steel • Non-ferrous metals • Plastics • Hardened steel • The following parts were replaced/repaired: • Several power components until the throttle was replaced • Y-axis cover (2x) • X-axis cover • X-axis ball screw bearings • Coolant pump motor • Several proximity sensors • 2x Hydraulic pressure sensors • 1x Hydraulic hose • Since the system was a production variant, it was converted to central lubrication • 2x 3R clamping system maintenance kits • Clamping tables included Technical Specification Taper Size HSK 50

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, controller model: iTNC Heidenhain 530, spindle speed (max.): 42,000 rpm, swivel angle C-axis (max.): 360 °, number of axes: 5, No minimum price – guaranteed sale to the highest bidder! The lot consists of 2x 5-axis HSC machining centers and pallet system with robot MIKRON HSM 600 U (serial number: 217.88.00.070) TECHNICAL DETAILS Travel X-axis travel: 800 mm Y-axis travel: 600 mm Z-axis travel: 500 mm Spindle Spindle speed: 42,000 rpm Tool holder: HSK 40 Axes Rsdpfx Adox Hx T Ae Ajt B-axis swivel range: +30° / –110° C-axis rotation range: 360° C-Axis Combination rotary table range: n x 360° Rotational speed: 360 rpm (2,160°/s) Torque (nominal): 340 Nm Torque (max.): 217 Nm max. Clamping torque: 1,400 Nm B-Axis Swivel range: +30° / –110° Swivel speed: 200 rpm (1,200°/s) Swivel torque: 640 Nm Clamping torque: 2,800 Nm Clamping surface: 320 x 320 mm Table load capacity: max. 120 kg Tool magazine: 68 stations Control: Heidenhain iTNC 530 Workpiece weight: max. 120 kg EQUIPMENT Rotary tilting table with Erowa UCP MIKRON HSM 400 U (serial number: 217.87.00.178) TECHNICAL DETAILS Travel X-axis travel: 400 mm Y-axis travel: 240 mm Z-axis travel: 350 mm Spindle Spindle speed: 42,000 rpm Tool holder: HSK 40 Axes B-axis swivel range: ±110° C-axis rotation range: 360° C-Axis Combination rotary table range: n x 360° Rotational speed: 250 rpm (1,500°/s) Torque (nominal): 132 Nm Torque (max.): 217 Nm max. Clamping torque: 500 Nm B-Axis Swivel range: ±110° Swivel speed: 165 rpm (990°/s) Swivel torque (nominal): 485 Nm Swivel torque (max.): 686 Nm max. Clamping torque: 2,000 Nm Clamping surface: ITS 148 Powerchuck Table load capacity: max. 25 kg Tool magazine: 36 stations Control: Heidenhain iTNC 530 EQUIPMENT Rotary tilting table EROWA ROBOT MULTI TWIN Gripper station: 6 stations Grippers: various Storage system Rotary storage: 5 levels Level allocation Level 1: 5 x UCP 300 x 300 mm Level 2: 5 x UCP 300 x 300 mm Level 3: 15 x ITS 148 Level 4: 15 x ITS 148 Level 5: 30 x ITS 50 GENERAL EQUIPMENT Absolute measuring systems on all axes Infrared touch probe LASER Electronic handwheel for setup mode Graphite dust extraction 2x BURN WK 5806 Rotary pallet storage

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 500 mm, controller manufacturer: HEIDENHAIN, controller model: TNC 530 i, rotational speed (max.): 10,000 rpm, number of slots in tool magazine: 24, MIKRON VCE600PRO machining center with 3+2 axes (on table) X travel 600 Y 450 Z 540 mm, SK40 with 10,000 rpm and ATC 24 tools. Excellent condition. Rsdpfxoqi Ufxe Ad Aet

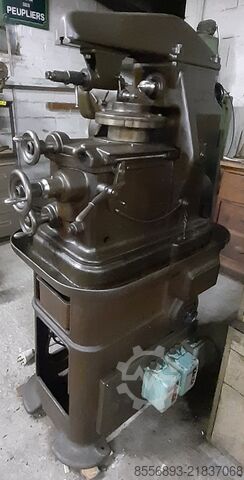

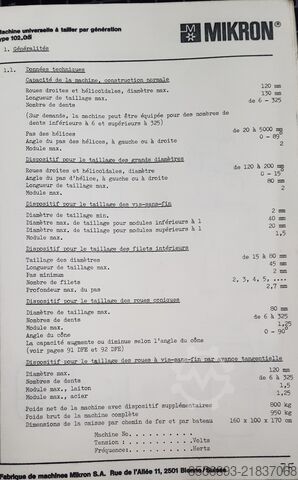

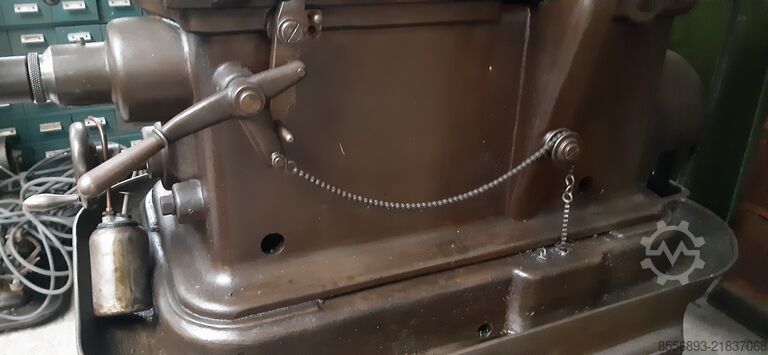

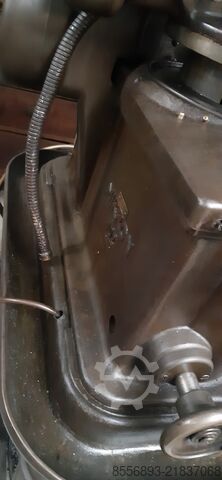

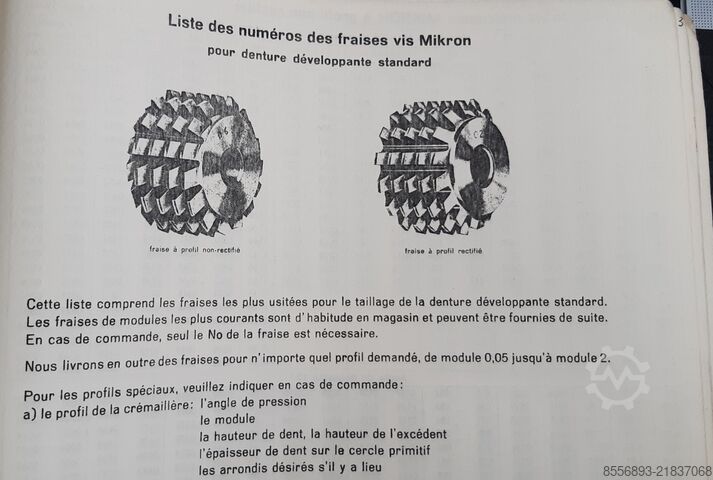

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 090200220, Equipment: documentation/manual, Sale due to business closure Very fine, rare, high-quality machine in working condition Gear hobbing machine for high-precision machining, offering great accuracy and reliability. Capable of cutting straight and helical gears. Straight gear wheels from 0 to 120 mm diameter Straight gear wheels from 120 to 200 mm diameter See technical page photo Machine includes accompanying documentation: Original user manual: 150 pages Mikron representatives’ training course (February 25 – March 1, 1963) Technical data sheet available on request, as well as the list of available cutters: Mikron (12), L. Carpano (23), K. Schnyder-ks (27), Piltz (4) (PDF). Height: 1.515 m Length: 0.97 m Width: 0.526 m Three-phase Machine weight: 680 kg To be collected, dismantling and removal at buyer’s expense. Rjdpfoy Iqkpex Ad Ast

Condition: good (used), Main spindle with drive motor, universal milling head, milling chuck, milling extension, angle milling head, top slide, top slide, dovetail guide, tool slide, cross table -Manufacturer: Mikron, upper tool slide from Mikron VC500D CNC milling machine -Motor: INNDRAMAT 165V 5.5 kW see photo type plate 100C-B050B1-AS03 Rjdpfx Adoy H Ivmo Aot -Speed: 1500/8000 rpm -Spindle head: SK40 mount -Dimensions: 910/1120/H510 mm -Weight: 365 kg

Condition: good (used), Clamping table, clamping angle, T-slot table, rotary table, milling machine table Rsdpfxoy H Itre Ad Aot -Manufacturer: MIKRON, milling machine table T-slot table from CNC machining center type VC500D -Table surface: 400 x 900 mm -T slots: Slot width 18 mm, slot spacing 125 mm -Transport dimensions: 400/900/H175 mm -Weight: 288 kg

Year of construction: 2005, condition: excellent (used), MIKRON HSM 400 U high speed machining center The exact scope of the offer can be seen in the photo gallery. Included are among others: Measuring probe, oil mist separator, fire extinguishing system, chip conveyor, handling device, oil cooler, belt filter system, approx. 50 HSK tool holders etc. 1. TECHNICAL DATA Working area Rodpeigrf Iefx Ad Ajt X axis: 400 mm Y axis: 450 mm Z-axis: 350 mm B-axis: +-110 ° C axis: 360 ° Working spindle Speed range: 100 - 42`000 rpm tool holder: HSK E 40 spindle power at 40 % ED: 13 spindle power at 100 % ED: 10 Torque at 60 % ED: 4,25 Torque at 100 % ED: 3,2 Lubrication: oil/air Feed rate Rapid traverse speed: Max. 40 m/min B axis: 150 rpm C axis: 250 rpm Axis acceleration, XYZ: Max. 1g (10 m/s2) B axis: 100 rad/s2 C axis: 300 rad/s2 Tool changer: 68-fold Chip to chip: 12.5 s Tool change time: 10,0 s Work table: 120 mm Max workpiece diameter that can still be rotated 360 °: 230 mm Max. Workpiece height: 350 mm Max. Workpiece weight: 25 kg Control: Heidenhain iTNC 530 Weight: 5500 kg For the correctness, completeness and topicality of the data we do not take over guarantee.

Condition: excellent (used), MIKRON WF 3 DP universal milling machine TECHNICAL DATA Angular table clamping surface: 450 x 800 mm number of T-slots: 9 T-slot distance: 45 mm Weight: 144 kg Machine dimensions: 1475 x 1770 x 2000 mm Weight: 1800 kg Connected load: 8,7 kW Milling spindle drive spindle speed: 21 steps speed range: 25 - 2500 /min step jump: 1,258 power of spindle motor: 3,3 / 4,0 kW tool holder: ISO 40 / M16 quill movement, vertical: 110 mm Rjdpfxslnfggo Ad Aet Feed drive Feed rates in all 3 axes: Infinitely variable Feed range: 1 - 2000 mm/min Rapid traverse in all feed directions: 3000 mm/min Torque at motor longitudinal + transversal: 4 Nm Vertical: 8 Nm Displacement travel Longitudinal movement of the clamping table (X axis): Automatic: 400 mm Transverse movement of the clamping table (Y axis): Automatic: 400 mm Vertical movement of the clamping table (Z axis): Automatic: 385 mm For the correctness, completeness and topicality of the data we do not take over guarantee

Condition: good (used), Year of construction: 2013, functionality: fully functional, travel distance X-axis: 860 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 600 mm, CNC control Heidenhain iTNC530 24-fold automatic tool changer electronical handwheel chip conveyor coolant through spindle device Technische Daten / technical details: X-Weg / X-travel 860 mm Rodjy Hqmhspfx Ad Aet Y-Weg / Y-travel 560 mm Z-Weg / Z-travel 600 mm Spindelaufnahme / spindle taper SK 40 Drehzahlbereich / spindle speed 0-10000 UpM /rpm Eilgang X,Y,Z / rapid feed X,Y,Z 24,24,20 m/min Tischaufspannfläche / table clamping area 1000x560 mm Werkzeugwechselmagazinplätze / number of tool places in changer 24 Antriebleistung Spindel 40%ED / drive capacity spindle 40%ED 18,5 kW Gewicht ca. / weight 6.500 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: ready for operation (used), Year of construction: 1995, functionality: fully functional, travel distance X-axis: 750 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 500 mm, controller manufacturer: Haas, controller model: Haas, table width: 350 mm, table length: 915 mm, overall weight: 3,500 kg, For sale: 1 used vertical machining center Manufacturer: Haas / Mikron Model: VF2 / VCE750 Year of manufacture: 05/1995 Rjdpfxsy Hta Rj Ad Ast Technical specifications: Control system: HAAS Table length: 914 mm Table width: 350 mm Maximum spindle speed (vertical): 7,500 rpm X-axis travel: 750 mm Y-axis travel: 400 mm Z-axis travel: 500 mm Taper: SK 40 Total number of tools: 20 Includes the tools shown in the photos, two computers (one presumably for CAM), as well as programming and operating manuals. The machine can be inspected at our warehouse in 09599 Freiberg.

Condition: used, Year of construction: 2012, functionality: limited functionality, operating hours: 43,100 h, travel distance X-axis: 800 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 550 mm, controller manufacturer: Heidenhain iTNC530, controller model: 530, feed rate X-axis: 60 m/min, feed rate Y-axis: 60 m/min, feed rate Z-axis: 60 m/min, rapid traverse Z-axis: 61 m/min, rapid traverse X-axis: 61 m/min, rapid traverse Y-axis: 61 m/min, MIKRON HPM 800 U Rodpfx Adowa Alij Aet Year of manufacture 2012 5-axis A-axis -91°/121° C-axis 360° Spindle 20,000 rpm Heidenhain iTNC530 control system Blum laser for tool measurement and breakage detection Infrared measuring probe 210 tools - HSK 63A 7-position pallet changer Knoll high-pressure system 70 bar, 23 L/min Knoll scraper belt chip conveyor

Condition: used, Year of construction: 2017, Milling machines Travel distance X: 800 mm Travel distance Y :800 mm Travel distance Z: 550 mm HSC-machines Number of axis: 5 milling machine / machining center Control: Heidenhain TNC 640 spindle chuck: HSK-A63 spindle revolutions: 20000 rpm Speed range to: 20000 U/min table size X: 450 mm table size Y: 450 mm max. workpiece weight: 300 kg tool changer: 170 - time input Power : 25 kW Torque: 120 Nm Rapid traverse: 50 m/min feed rate: 50000 mm/min spindle cooling chip conveyor control Heidenhain 5-axis CNC machining center Heidenhain TNC 640 control Redpjym Rrvofx Ad Aot 170-position tool changer HSK-A63 spindle interface KNOLL chip conveyor KNOLL oil filtration system KF 400 / FKA 620 HABOR cooling unit suitable for steel machining high precision for tool and mold making automated workpiece handling for series production

Condition: ready for operation (used), Year of construction: 2001, operating hours: 6,707 h, travel distance X-axis: 762 mm, travel distance Y-axis: 406 mm, travel distance Z-axis: 653 mm, controller manufacturer: SIEMENS, spindle speed (max.): 8,000 rpm, number of axes: 3, This 3-axis MIKRON VCE 750 was manufactured in 2001. It features a table size of 914 × 356 mm, with X-axis travel of 762 mm, Y-axis travel of 406 mm, and Z-axis travel of 653 mm. If you are looking to get high-quality milling capabilities, consider the MIKRON VCE 750 machine we have for sale. Contact us for further details regarding this machine. Rodpfoych Rnox Ad Ast • Table size: 914 × 356 mm

Condition: ready for operation (used), Year of construction: 1998, operating hours: 11,320 h, spindle speed (max.): 6,000 rpm, travel distance X-axis: 600 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 450 mm, spindle motor power: 15,000 W, tool weight: 13,000 g, number of axes: 3, This 3-axis MIKRON UM600 TNC 410/426 was manufactured in 1998. It features a maximum longitudinal movement of 600 mm, transverse movement of 500 mm, and vertical movement of 450 mm. The machine is equipped with a robust table size of 520 x 900 mm and a maximum table load capacity of 400 kg. If you are looking to get high-quality machining capabilities, consider the MIKRON UM600 TNC 410/426 vertical machining centre we have for sale. Contact us for further details. • Machining spindles (vertical and horizontal) • Drive power (44% duty cycle): 15 kW • Drive power (100% duty cycle): 6 kW • Motor torque: 50 Nm • Max. torque at spindle (44% duty cycle): 800 Nm • Number of gear stages: 4 • Max. tool diameter: 130 mm • Included options: in-machine measurement and fast spindle • Feed drives (AC) • Programmable feed rate X/Y: 0 – 15,000 mm/min • Programmable feed rate Z: 0 – 12,000 mm/min • Rapid traverse X/Y: 15,000 mm/min • Rapid traverse Z: 12,000 mm/min • Coolant system • Reservoir capacity: 150 l • Flow rate: approx. 20 l/min • Clamping table • Table size: 520 × 900 mm • Number of T-slots: 4 • T-slot width: 14 H7 • Tool changer TCD 44 Rjdpfx Adey D Thvo Aet • Tool positions: 22 • Tool diameter: 80 / 130 mm • Max. tool length: 350 mm • Max. tool weight of Tool changer TCD 44: 6 kg • Max. workpiece weight in drum magazine: 200 kg • Chip-to-chip time: 20–25 s • Tool change time: 12–16 s • Electrical connection • Total installed rated power: 15.8 kW • Useful/connected power: 12.3 kW • Operating voltage/frequency: 3 × 400 V / 50 Hz Technical Specification Taper Size SK 40

Condition: good (used), Year of construction: 1995, travel distance X-axis: 1,000 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 600 mm, x-travel 1000 mm y-travel 600 mm z-travel 600 mm Control: Heidenhain TNC 426 Spindle nose: 100–700 mm Work table: 1,080 x 580 mm Max. workpiece weight: 550 kg Rodpfx Aoy Eng Ajd Aet T-slots: 7 pcs. T-slot width: 14 mm Tool magazine with 36 positions Max. tool weight: 8 kg Max. tool length: 340 mm Machine weight approx. 6.2 t Space requirement approx. 4,790 x 5,330 x 2,905 mm

Condition: good (used), Year of construction: 1991, travel distance X-axis: 560 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 400 mm, X-travel: 560 mm Y-travel: 500 mm Z-travel: 400 mm Redoy Em Swjpfx Ad Ajt Control: TNC 360 Spindle speed: 40-4,000 rpm Total power requirement: 7.5 kW Machine weight approx.: 2.6 t Space requirement approx.: 2.6 x 1.8 x 2.2 m

Condition: excellent (used), Year of construction: 1995, Heidenhain TNC 407 SK 40 Luft Wasser Kühlung Werkzeugwechsler 22 Plätze Verfahrwege 600x500x450 mm Rodpfx Adogydn Io Aot Spindeldrehzahlen 5-5000 U/min Vorschubgeschwindigkeit 0-10000 mm/min Antriebsleistung Hauptspindel 6 kW

Condition: used, Year of construction: 2002, x-travel 600 mm y-travel 450 mm z-travel 450 mm control Heidenhain iTNC530 weight of the machine ca. 6100 kg Rodpfjy Ay Iyox Ad Aot

Condition: used, Year of construction: 2010, x-travel 800 mm Rsdpey Ay Itsfx Ad Aet y-travel 600 mm z-travel 500 mm control Heidenhain iTNC 530 weight of the machine ca. 8300 kg

Condition: used, Year of construction: 1996, Technical details: x-travel: 600 mm y-travel: 500 mm z-travel: 450 mm turning speeds: 5 - 5000 U/min quill stroke: 90 mm Rjdpfxsy A Rmgj Ad Aot total power requirement: 9 kW feed range: 0-10.000 mm/min weight of the machine ca.: 3260 kg dimensions of the machine ca.: 2200x2800x2000 mm spindle: 6 kW Accerories vertical milling head SK 40 CNC universal milling machine (without toolchanger), Equipped with CNC-Heidenhain TNC 407 dwheel coolant device *

Condition: good (used), Year of construction: 2003, All parts shown by hand not come with machine. Rjdey Ddb Tjpfx Ad Ast

Condition: ready for operation (used), Year of construction: 2004, travel distance X-axis: 600 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 450 mm, nominal power (apparent): 10 kVA, overall weight: 6,500 kg, spindle speed (max.): 20,000 rpm, Heidenhain TNC530, 4th axis rotary table spindle 20,000 rpm, HSK 63 Redpfx Adsw Dc Iro Ajt table 850x530 mm travels 600x450x450 mm 30-tool changer weight 6,500 kg

Condition: used, condition Defekt/Ersatzteilträger manufacture Mikron type HSM 400 U The machine is defective and is being sold for spare parts. Accessories, tools, and clamping devices shown are only included if explicitly stated in the additional information. Rodpfx Adoyzt A Uo Ajt Technical data and specifications are subject to change without notice. Prior sale is reserved.

Condition: used, Year of construction: 2007, functionality: fully functional, machine/vehicle number: 0072, travel distance X-axis: 1,020 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 600 mm, rapid traverse X-axis: 36 m/min, rapid traverse Y-axis: 36 m/min, rapid traverse Z-axis: 24 m/min, nominal power (apparent): 16 kVA, controller manufacturer: Heidenhain, controller model: iTNC 530, total height: 2,770 mm, total length: 3,950 mm, total width: 2,270 mm, table width: 560 mm, table length: 1,000 mm, table load: 1,350 kg, overall weight: 6,500 kg, spindle speed (max.): 16,000 rpm, operating hours of spindle: 2,540 h, number of slots in tool magazine: 24, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, We are offering this used Mikron VCE 1000 Pro-X vertical machining center, year of manufacture 2007. Tool holder SK40, internal coolant supply, paper band filter, Rjdpfeyz Dv Sex Ad Ajt spindle cooling, electric probe. If you have any questions or require further information, please feel free to send us a message or call us.

Condition: used, functionality: fully functional, Mikron WF 21 C Brief description: CNC tool milling machine Description: Immediately available from site due to business closure: CNC tool milling machine Rjdpfex Scvfex Ad Ast Mikron Model WF 21 C Year of manufacture: 1980 Control: Heidenhain TNC 155 Table: 800 x 460 mm Travel X / Y / Z: 500 / 500 / 400 mm Tool holder: SK 40 Spindle speeds: 24 - 3150 rpm Weight: 2.2 t
