Used Radial Drilling Machine, Csepel for sale (66,084)

Condition: ready for operation (used), functionality: fully functional, Radial drill, Csepel RFM 51, used machine The disassembly of the machine is the responsibility of the buyer. Manufacturer: Csepel Model: RFM 51 X-axis length: 4000 mm Arm travel: 3100 mm Radius: 2460 mm Lredswcqlcspfx Akyen Distance from base to spindle: 1660 mm Drilling capacity in steel: 100 mm Drilling capacity in cast iron: 120 mm

Condition: ready for operation (used), Radial Drill, Used Equipment Brand: CSEPEL Model: R.F. 2a Description: Column Diameter: 350 mm Vertical Travel of the Arm: 1200 mm Horizontal Travel of the Drill Head: 1000 mm Vertical Travel of the Spindle: 400 mm Spindle Diameter: 65 mm 12 Spindle Speeds: 47.5 – 2100 RPM 8 Feed Rates: 0.048 – 1.2 m/min Motor Power: 9 HP Lsdpfx Aew Db Nujkyorn

Condition: ready for operation (used), Year of construction: 1994, overall weight: 7,000 kg, Arm length 1800 mm, drilling capacity 80 mm, weight 7000 kg Ljdsyzq Dpopfx Akyorn

Condition: used, Year of construction: 1985, Bohrleistung in Stahl (-Ø 45 mm throat 1250 mm Lodpfxjvcrmpj Akyjrn workpiece height max. 1100 mm swival range ° height adjustment 745 mm base plate surface area 1450 x 920 mm Bohrspindel-Ø/ Aufnahme 90 mm / MK 5 bore spindle stroke 355 mm max. torque on the spindle 250 Nm feed power 14000 N turning speed range 20 - 1200 U/min feed range 0,063 - 0,63 mm/U power capacity 3,7 kW weight of the machine ca. 3,0 t dimensions of the machine ca. 2,1 x 0,9 x 3,3 m • cube table 650 x 650 x 500 mm, • coolant device

Condition: used, Year of construction: 1974, Bohrleistung in Stahl (-Ø 35 mm throat 1000 mm workpiece height max. 200 - 1400 mm height adjustment 745 mm base plate surface area 1200 x 930 mm Bohrspindel-Ø/ Aufnahme 90 mm / MK 4 bore spindle stroke 350 mm turning speed range 60 - 1850 U/min feed range 0,09 - 1 mm/U Lodpfx Akjtv Igtjyern power capacity 3,7 kW weight of the machine ca. 3,7 t dimensions of the machine ca. 2,1 x 0,9 x 3,3 m Cube table 800 x 800 x 650 mm Coolant device

Condition: used, Year of construction: 1983, Bohrleistung in Stahl (-Ø 50 mm throat 1500 mm workpiece height max. 1380 mm Bohrleistung in Guß (-Ø 60 mm Abstand Spindelmitte bis Säule 320 - 1250 mm swival range +/- 180 ° base plate surface area 2640 x 1000 mm max. torque on the spindle 310 Nm Bohrspindel-Ø/ Aufnahme 75 mm /MK 5 bore spindle stroke 310 mm spindle turning speed range 28 - 2500 U/min feed: 0,05 - 2 mm/U power capacity 4 kW weight of the machine ca. 4,3 t Ljdpfjtv Iklsx Akyern dimensions of the machine ca. 3,2 x 1 x 2,75 m cube table 500 x 500 x 500 mm

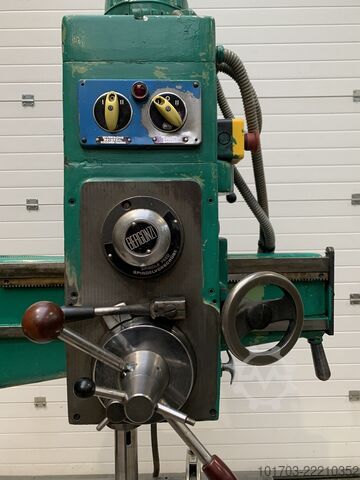

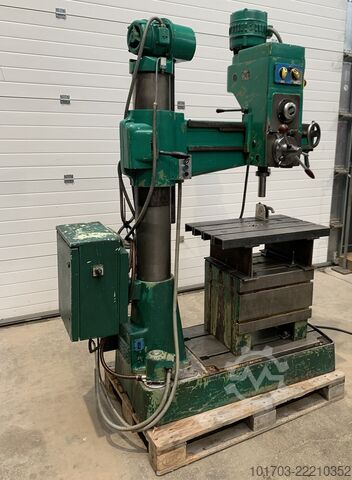

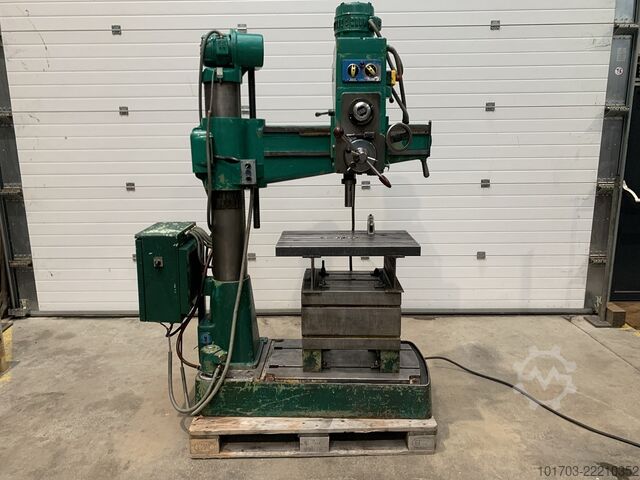

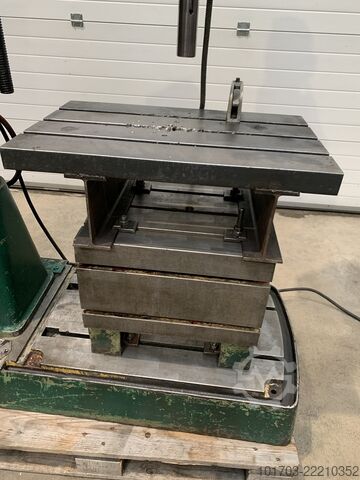

Condition: used, Radial Drilling Machine BERGONZI type UT 25 Spindle: CM3 Spindle exit: 150 mm Spindle speed: from 130 to 900 RPM Arm travel: 500 mm Max height table/spindle nose: 900 mm Column: Ø 180 mm 2 speeds motor Auto descent Return Spring defective Electric arm rise Delivered with: 1 cube Length 500 mm x Depth 400 mm x Height 450 mm 1 false table Lubricant pump Voltage: 380 V Length: 1500 mm Width: 900 mm Total height in height position: 2300 mm Ledpfjzg H Huox Akyern Weight: approx 1,2 T

Condition: used, Radial Drilling Machine SCHLUMBERGER type RF6 Manual raising Cone: CM4 Spindle speed: from 35 to 1800 RPM Table size: 1000 x 650 mm Column slide travel along bed: 750 mm Maxi distance spindle nose/table: 700 mm (in high position) Mini distance spindle nose/table: 250 mm (in low position) Manual up/down of table + column Automatic descent Rotation at 360° on column Lredpfx Akozg H Hhoyen Hydraulic column locking Drilling / tapping function Lubricant pump Voltage: 380 V Width: 1400 mm Depth: 900 mm Height in low position: 2650 mm Height in high position: 3000 mm Weight: approx 3 T

Condition: used, Radial Drilling Machine SCHLUMBERGER 36-12 Spindle: Ø 110 mm - Right rotation Cone: CM4 Spindle exit: 200 mm Rotation: from 40 to 750 RPM Table size: 1000 x 700 mm Slide travel: 700 mm Automatic descent Recent electrical panel Lubricant pump Voltage: 380 V Back table dimensions: 1200 x 750 mm Machine support dimensions: 1400 x 1200 mm Total height in height position: 2800 mm Total height in low position: 2550 mm Lredpszg H A Nefx Akyen Weight: approx 3,5 T

Condition: used, Radial Drilling Machine GSP type 44 T 12 Spindle: CM4 Spindle exit: 300 mm Arm travel: 1000 mm Max height swivel table/spindle nose in height position: 700 mm Max height table/spindle nos ein height position: 1300 mm Swivel table +/- 90 Swivel table dimensions: 1000 x 400 mm Spindle motor: 3,7 kW False table Length 1000 mm x Width 800 mm Auto descent Mechanical locking Ljdpfxozg H Aio Akyorn Lubricant pump Spindle rotation left/right Rotation at 360° around the column Voltage: 380 V Length: 2100 mm Width: 1000 mm Total height in height position: 2700 mm Total height in low position: 2400 mm Weight: approx 2,5 T

Condition: used, Radial Drilling Machine GSP type 49S22 Spindle: Ø 125 mm Cone: CM6 Spindle exit: 600 mm Spindle speed: from 17 to 1050 RPM Arm travel: 1800 mm Maxi height column travel: 1800 mm Column diameter: Ø 600 mm Total column height: 3000 mm Spindle speed: 11 kW Drilling/tapping function Mechanical locking of the column Hydraulic locking of the trolley Auto descent Delivered with one cube Ljdpfx Akezg H Acsyern Cube dimensions: L 800 x W 560 x H 600 mm Table size: L 3300 x W 1400 x H 320 mm Voltage: 380 V Weight: 12 T

Condition: used, Year of construction: 1990, Radial Drilling Machine Z3050 x 16 I Lrjdpfx Akszg Hz Esyjn Spindle: Ø 80 mm Spindle exit: 300 mm Spindle speed: from 25 to 2000 RPM Arm travel: 1600 mm Year of construction: 1990 Column diameter: Ø 320 mm Maxi distance spindle nose/table: 1800 mm Mini distance spindle nose/table: 1200 mm Table useful dimensions: 1700 x 1000 mm Tailstock CM5 Hydraulic clamping trolley + arm + column Auto advance non-functional Lubricant pump Voltage: 380 V Dimensions (L x W x H): 2400 x 1200 x 3200 mm Weight: approx 4 T

Condition: used, Year of construction: 1990, Radial Drilling Machine KOLB KR 55 Year of construction: 1990 Spindle Ø 80 mm Cone CM5 Spindle exit: 400 mm Rotation: from 18 to 2000 RPM Table size: 1800 x 1000 mm Arm travel: 1250 mm Auto descent Auto rise according to the 0 setting Maxi distance spindle nose/table: 1500 mm Mini distance spindle nose/table: 800 mm Column diameter: Ø 315 mm Drilling/tapping function Rotation at 360° Possibility of sensory drilling Automatic gearbox Lrodpfozg A Sgox Akyon Lubrification Hydraulic locking Voltage: 380 V Dimensions (L x W x H): 2900 x 1100 x 3060 mm Weight: approx 5 T

Condition: like new (used), Donau Donauflex 135 High-Speed Radial Drilling Machine Manufacturer: Donau Model: Donauflex 135 Year of manufacture: 2020 Condition: Very good, used but like new Lsdpfxjzgvmqe Akyern Available immediately from stock.

Condition: used, Year of construction: 1997, Technical details: bore capacity in steel (diameter): 32 mm x-travel: 750 mm y-travel: 520 mm drill capacity in cast iron: 45 mm revolution per minute: 90 - 4500 U/min feed steps: 6 bore spindle stroke: 250 mm boring spindle diameter: 30 mm drill spindle - Morse Taper: MK4 vertical adjustment of the arm: 520 mm throat max.: 1000 mm throat min.: 250 mm column diameter: 400 mm swivel range of the arm: 180 ° Lrodpszgwgfofx Akysn table clamping surface LxW: 1150 x 800 mm total power requirement: 3,5 KW weight of the machine ca.: 2000 kg dimension machine xH: 1,7 x 1,07 x 2,61 m The KOVOSVIT VO 32 is a robust and versatile radial drilling machine designed for industrial applications. The machine is suitable for drilling, boring, countersinking, reaming, and tapping operations in steel, cast iron, and other materials. Thanks to its swiveling radial arm and large reach, even large and heavy workpieces can be machined conveniently without the need for complex repositioning. The machine features a massive cast-iron construction, a powerful main drive, and an automatic feed system. The drilling head can be moved along the radial arm, providing a large working area. Its solid design ensures high precision, reliability, and a long service life, even under continuous operation. *

Condition: used, Year of construction: 1980, taper MK 3 feed: 4 Stufen 2580 x-travel 2500 mm throat 1000 mm 1000/2800 mm Lrodpjzfqmpofx Akysn weight 3,7 t

Year of construction: 1989, condition: used, functionality: fully functional, Lot of used machine tools TRANSPORT TO BE AGREED UPON DURING PURCHASE or QUOTATION: -MT180 TRI-PHASE LATHE -INGERS 175 tri-phase LATHE -LEGOR 300 tri-phase -ANSELMI 180 tri-phase LATHE -Idroming 600 (DRM) - GRINDING MACHINE -BERGONZI FS 870 RADIAL DRILLING MACHINE -FRESA Prvomajska 1 -FRESA Prvomajska 2 -SERRMAC RAG 25/L tri-phase COLUMN DRILLING MACHINE Lsdpszg E Hysfx Akyjrn -ITALERI Tri-phase COLUMN DRILLING MACHINE -BIMARK MOD. 30 Tri-phase COLUMN DRILLING MACHINE -Fratelli Rosa Milano tri-phase COLUMN DRILLING MACHINE -Mola Salmoiraghi tri-phase Technical details for each machine are shown in the photos. Transport costs to be determined during the quotation process. For any information, please do not hesitate to contact us. Machines intended for countries outside the EU.

Condition: good (used), Year of construction: 1999, Drilling capacity in steel (diameter): 60 mm / MK5 Quill stroke: 310 mm Spindle speed: 28...2500 rpm Table size: 1470 x 986 mm Total power requirement: 4 kW Lrjdpfx Aozgch Uskyjn Machine weight approx.: 4.6 t

Condition: ready for operation (used), Year of construction: 1975, arm 1200MM stroke head on bench 1400MM universal head portable radial Lodpjvm Akgjfx Akysrn

Condition: good (used), Asquith radial drilling machine offered. Type: ODI X-travel: 910 mm Z-travel: 640 mm Stroke spindle: 350 mm Diameter spindle: 65 mm Speed max: 1550 RPM Table: 510 x 1000 mm Lredpfxoh U Iaxo Akyjn Bed: 1280 x 795 mm Dimensions: 240x125x293 cm LxWxH For more information call us or send an e-mail.

Condition: good (used), Year of construction: 1983, Stock number: 3005 Manufacturer: HKS Singen Year of manufacture: 1983 Machine number: 401044 Model: HKS 40 Drilling capacity: 40 mm Spindle taper: MK 4 Speed range: 26 to 1,940 rpm Feed: 0.05 to 0.45 mm/rev Table: 1,520 x 740 mm Clamping surface: 1,370 x 610 mm Lrsdpfx Aowu Ilwjkysn Outreach min/max: 400 / 1,120 mm Stroke: 200 mm Swiveling range: 360° Vertical adjustment of arm: mm Horizontal adjustment of arm: 720 mm Accessories: Connection: 6.5 kW Footprint: 1,500 x 1,100 mm 2nd plate: 1,500 x 1,000 mm Dimensions: 1,800 x 1,600 x 2,700 mm Weight: 2.3 t

Condition: excellent (used), Year of construction: 1988, Drilling capacity in steel (diameter) 40 mm Overhang 1,250 mm Spindle mount MK 5 Ledpfx Akozgdfbeyjrn Drilling spindle stroke 355 mm Speed range 20 – 1200 rpm Machine weight approx. 3.0 t

Condition: good (used), Year of construction: 1979, functionality: fully functional, Drilling capacity into full 32 mm Tapping capacity into full M 32 mm Motor power 1.5 / 3 kW Tool holder MK 4 Quill stroke 170 mm Stroke approx. 400 mm Speeds : Range 1 , infinitely variable from 38 - 192 rpm Range 2 , infinitely variable from 119 - 596 rpm Lrsdpfx Aezfwh Hekysn Range 3 , infinitely variable from 400 - 2000 rpm

Condition: good (used), bore capacity in steel (diameter) 28 mm arm length 700 mm workpiece height max. 1300 mm tool taper MK3 feeds 0,1-0,3 mm/U Ljdpfszfqmcsx Akyjrn spindle turning speed range 100-1.220 U/min total power requirement 1,4 kW weight of the machine ca. 1,3 t dimensions of the machine ca. LBH 1,8 x 0,8 x 2,3 m Incl. cube table Incl. drilling feed Mechanical clamping

Condition: good (used), Hello, For sale: RF-50/1250 radial drilling machine. The machine is in working condition, currently in continuous operation, and can be inspected and tested on site. Ledpoxykctefx Akyern The price listed in the advertisement is net and VAT must be added. The machine can be viewed in Starachowice at 13 Kwiatkowskiego Street. Telephone contact available from 7:00 to 16:00.
