Used Rapid Glazing Bead Saw for sale (11,092)

Year of construction: 2005, condition: excellent (used), CATALOGUE NUMBER 8004 TECHNICAL DATA - max. disc diameter: 350mm - disc bore diameter: 30mm - mitre cutting capability at 45° - max. cutting height: 100mm - max. workpiece width: 100mm - mitre cutting to the right/left - dust extraction port diameter: 2x80mm - motor: 3.7kW - machine dimensions (length/width/height): 1830x760x1610mm - weight: 308kg ADVANTAGES - suitable for cutting window frame profiles Kodpfjztzdujx Ai Rsdr - used saw - very good condition Net price: 10900 PLN Net price: 2595 EUR, depending on an exchange rate of 4.20 EUR (Prices may vary due to significant exchange rate fluctuations)

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, machine/vehicle number: 006537, The saw has two measuring rods for measuring the window (short and long), which wirelessly transmit the cutting dimension of the glass strips to the saw. The dimensions can then be retrieved on the saw, and the saw's stop is mechanically adjusted. Kdsdpfx Aozqd Hyei Ror

Condition: used, Year of construction: 2021, functionality: fully functional, machine/vehicle number: 01073210005, For sale: a Yilmaz CK 412 strip saw for cutting window frame strips, complete with a Yilmaz SKN 301 electronic measuring device. The measuring device has a length of 3 meters. The machine is equipped with a measuring strip for wireless data transmission to the measuring device. Kedpfx Aiszdruxe Rjdr The measuring device automatically adjusts to the next dimension after each cut. The set also includes a 1.5-meter long feed conveyor. The machine is in full working order and has been recently serviced.

Condition: used, Year of construction: 2007, machine/vehicle number: 1624, Description Type: Glazing bead saw for PVC window profiles Year of manufacture: 2007 Motor power: 2 × 0.45 kW Kjdpfx Aioxxz A Uj Redr Saw blades: 2 × 200 mm diameter Feed: Pneumatic Profile clamping: Pneumatic Application area: Precise cutting of glazing beads for window frames

Condition: used, Year of construction: 1998, total width: 1,400 mm, total length: 3,400 mm, Colour: Green Weight: 250 kg Dimensions (LxBxH): 340 x 140 x 150 cm - Year: 1998 - Documentation available: No - CE certificate present: No - Serial number: - Number of saw units [pcs.]: 2 - Max. cutting width [mm]: 55 - Max. cutting height [mm]: 110 - Arbor saw blade diameter [mm]: 30 - Min. saw blade diameter [mm]: 215 - Max. saw blade diameter [mm]: 220 - Number of pneumatic clamps: 2 - Options: Digital readout, Tiltable saw unit - Min. tilt adjustable [°]: 0 - Max. tilt adjustable [°]: 45 - Voltage [V]: 400 - Current consumption [A]: 4 - Fuse [A]: 16 - Power [kW]: 2.4 - Transport dimensions: 3400mm x 1400mm x 1500mm (l x w x h) - Transport weight [kg]: 250kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Ksdpfxozcnpqj Ai Rjdr Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Year of construction: 2022, condition: like new (used), Circular Saw OMRM 105 Technical Specifications: • Automatic cutting of PVC profiles for glazing beads at 45° • 4 cutting saw blades • Vertical pneumatic clamping system • Adjustment handle for easy mould adaptation • Double cutting of glazing bead at 45° in one single operation • Adjustable cutting speed via regulator on the control panel • Standard equipment includes feeding and measuring conveyors (2.5 m + 2.4 m) Kdjdpfx Aew D Dq Uei Rer

Condition: used, Pneumatic Glazing Bead Saw / Mitre Saw – Elumatec GLS 192/06 – Year 2005 with electronic positioning system for cut length management. Equipped with a protected cutting unit featuring integrated safety systems, electronic control, and a robust structure designed for intensive industrial use. The machine ensures precise machining operations with high productivity and excellent cutting quality. Main Features: Brand: Elumatec Model: GLS 192/06 Application: cutting PVC and aluminum profiles Kodpfxsy Uw Eao Ai Redr Heavy-duty industrial frame with high rigidity Cutting area protection system Ergonomic and user-friendly controls Suitable for window and door manufacturing Used machine in good working condition Technical Specifications: Blade diameter: 200 mm, 98 mm (45° mitre cut) Blade speed: 2,800 rpm Cutting unit feed: pneumatic Output power: 900 W Power supply: 3/PEN 400 V Frequency: 50 Hz Current: 4.8 A Installed power: 1.8 kW Speed: 2800 rpm Operating pressure: 7 bar Dimensions: approx. 5100 x 1050 x 1180 mm Weight: 140 kg Ideal for: Window and door production PVC/aluminum frame workshops Precision industrial machining operations

Condition: as good as new (ex-display), Year of construction: 2025, Pneumatic Glazing Bead Saw Type GLSP-200N-AV Pneumatic Automatic saw feeding Kdjdpfjuydgjx Ai Rer Pneumatic work piece clamping Adjustable table height 2 x 45° motors Accessories: HM Saw blade 200 x 2.2 x 32mm HSS Saw blade 103 x 2.0 x 32mm Z=60/45° Right HSS Saw blades 103 x 2.0 x 32mm Z=60/45° Left Glazing Bead Simulation- System With feed cylinder, 1 Revolver stop with 16 stops and 4 clamping cylinders Fixtures for 2 Glazing Beads, support And leg adjustable for simulation Exhaust support D=80mm

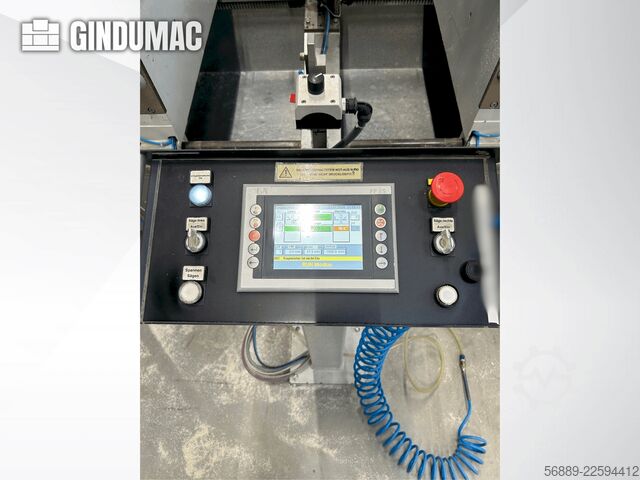

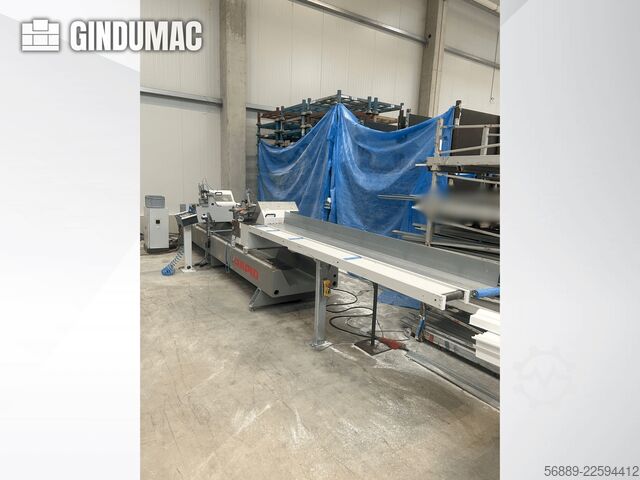

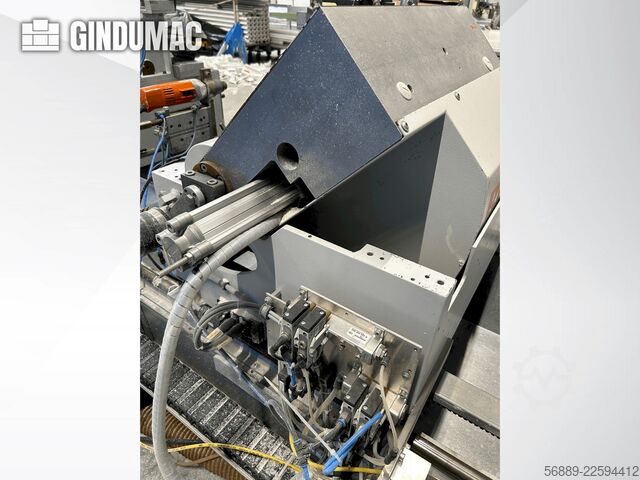

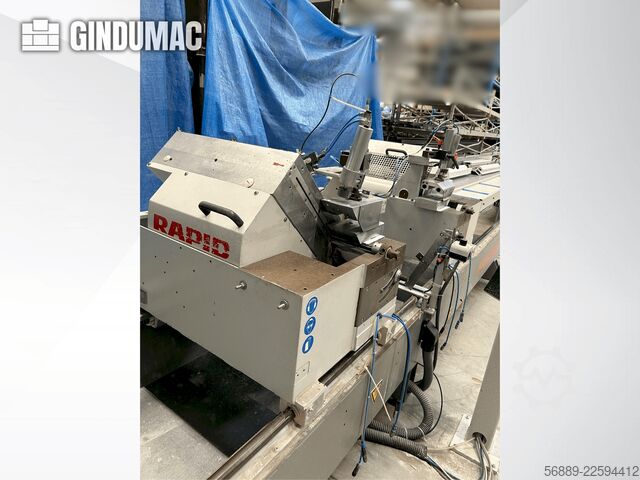

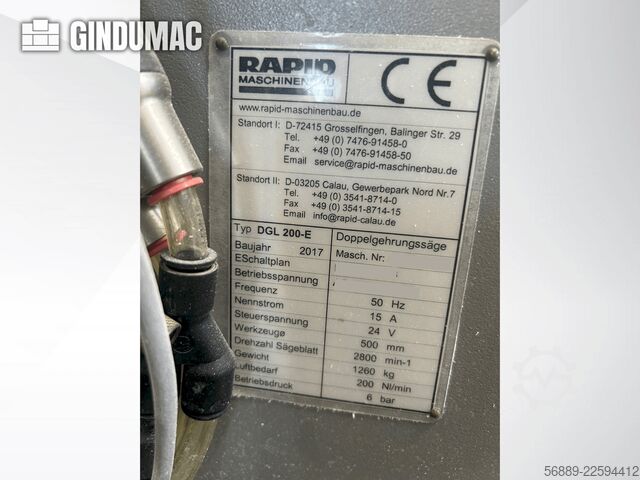

Condition: ready for operation (used), Year of construction: 2017, total height: 1,900 mm, overall weight: 1,260 kg, This RAPID DGL 200-E sawing machine was manufactured in 2017. It features a manual swivel range from 45° to 90°, a 500mm saw blade, and pneumatic saw feed. It includes both horizontal and vertical clamping cylinders, enhancing its versatility. Dimensions for the 3700mm cutting length are 5250 x 1420 x 1900 mm, and it weighs 1260kg. A robust choice for diverse cutting needs. Contact us for further details regarding this sawing machine. Additional equipment • Pneumatic saw feed • Clamping device:2 horizontal clamping cylinders 2 vertical clamping cylinders Machine Benefits Qualitative Machine Benefits • The machine ran in two shifts for approximately 3 years and in one shift for the last few years. Ksdszvu Npspfx Ai Rsdr Technical Machine Benefits • Max blade diameter: 500 mm • Swivel range: manual 45° to 90° • Cutting lengths: 3700 mm Extra Information Drive: 2 x 2.2 kW motors Unit adjustment: Motor-initiated Saw feed: Pneumatic Swivel range: 45-90°, manually adjustable Clamping device: Two horizontal clamping cylinders Control system: Prepared for the attachment of a Rapid control system Fixed center support to support the profiles Saw blades D=500 2x ball screw spindle for unit adjustment Smallest sawing dimension: approx. 310 mm Equipment: DGL-200/R600 ELEKTRONIK with ATV 32 DGL200SE VERT. CLAMP NO. M. AGAINST DGL-200E DGL200TK SHORT T. CONNECTION DGL-200RB Movable roller conveyor, width 215 mm DGL-200E CONNECTION 2.2KW Preparation for FRENIC EXTRACTION CONNECTION Socket connection for extraction up to max. 2.2 kW prepared at the factory DGL200VP - PLANK PACK. FIXED CONTROL PANEL DG1.200 Dimensions Machine Depth 5250 mm

Year of construction: 2018, condition: as good as new (ex-display), Glazing Bead Saw GLSM-200E Manual saw feeding Pneumatic work piece clamping (4) Adjustable table height Adjustable table height 2 x 45° motors Accessories: HM Saw blade 200 x 2.2 x 30mm HM Saw blades 103 x 2.0 x 30mm Z=60/45° Left HM Saw blades 103 x 2.1 x 30mm Z=60/45° right Variable measuring stick 1.5m Variable measuring stick 3.0m Kedpouxxxefx Ai Rjdr Support for measuring stops 3.0m

Condition: used, Year of construction: 1988, Panel saw Manufacturer: Rapid Model: PK 100 Year of manufacture: 1988 Kdodpfxszuynbs Ai Rer Note: The technical data and descriptions are copies of the original order confirmation from that time. The information is provided for informational purposes only and is not binding.

Year of construction: 2023, condition: new, functionality: fully functional, Description Double mitre saw RAPID DGL 200 M Working length: 5,100 mm Working height: 160 mm Can be swiveled: yes Aluminum spraying device available Short dimension stop available Socket for external extraction available Vertical clamping device available Roller conveyor traveling (feed on the right) Rapid DGL 200 M double mitre saw ----- with saw blade diameter 500 mm, manual length adjustment with digital length display digital length display, pneumatic angle adjustment 45° and 90°, Simple operation and top quality ----- For precise and low-burr cutting of aluminum, plastic and wooden profiles. System features: ----- - Manual length and angle adjustment - Saw blade Ø 500 mm - Extremely stable machine bed - Complete grip of the guide bushes around the guide shafts of the saw head - Hardened guide shafts - Swivel axis mounted on both sides Digital length display: ----- Perfect dimensional and angular accuracy guaranteed. ----- To achieve this, we use precise and efficient movement technology: Ball bushing guides for length adjustment, spring suspension of the swivel units for convenient and safe angle adjustment between 45° and 90°. The length and angle of this two-head mitre saw are adjusted manually. Greater ease of use and increased performance can be achieved with the aid of a digital length display and pneumatic swivel device. A wide range of profile systems can be processed with 500 mm saw blades. can be processed. Kjdpfstdgitsx Ai Redr Technical data ----- Drive: 2 x 2.2kW three-phase 400 volt motors Swivel range: manual 45° to 90 Saw blade: 500 mm diameter Cutting lengths: 5,100 mm, Profile clamping: 2 horizontal clamping cylinders Length adjustment: manual Air pressure: 7 bar Dimensions: 5250/1420/1900mm weight: 1.260kg

Condition: as good as new (ex-display), Year of construction: 2026, Number of motors 2 Stück 0 3000 mm Control ja/CNC loading dimensions L x W x H 4000 x 1500 x 1500 mm Weight 800 kg HECHT Double Miter Saw Exenso DS350E - 3000 mm ----- For wooden glazing beads, mullions, profile strips, aluminum strips, etc. Item 1.1 Article number 942.5103 1 pc. HECHT Exenso DS350E - Working length 3000 mm - Swivel range 22.5° (inside) to 135° (outside) - Right head movable - Saw blade holder Ø 350 mm - Includes 1 pc. center support. - Pneumatic clamping of the components. - Exenso DS3 positioning control with 15" touch panel display in a dustproof monitor housing. - 3-axis control, 1 longitudinal axis and 2 swivel axes. - Manual input of cutting data - Processing of data from a cutting list (data set according to specifications) - Processing of measuring rod data (GMF wireless caliper) - Ethernet connection 10/100 (TCP/IP) - USB interface - Includes control cabinet, motor, and software licenses. Item 1.2 Part number 942.5203 DS hydropneumatic feed unit Item 1.3 Part number 723.0121 2 pcs. DS saw blade for wood Bevel/Angle/Flat tooth - Positive Item 1.4 Part number 942.5236 2 sets of DS combined workpiece clamping Combined workpiece clamping consisting of: Pneumatic swivel clamp - for clamping the Materials from above. (Free access to the worktable) Pneumatic horizontal clamp - Anti-rotation clamping cylinder with pressure piece. The clamps can be individually selected via the saw's control system. The clamping sequence can also be set via the control system. Includes safety pre-tensioning pressure. Scope of delivery for 2 sets: - 2 pieces (left/right) vertical swivel clamps. - 2 pieces (left/right) horizontal clamps. Item 1.5 Part number 942.5241 DS350 table support grooved (standard groove, special grooves according to customer specifications available on request!) Item 3.1 Part number 945.2007 Packaging DS350 (transport frame) ----- Total price in this configuration ex works - on request! ----- ALTERNATIVE options, prices on request! ----- For horizontal clamping of the Offcuts for butt-jointed glazing beads instead of the 2nd set Item 1.3 943.5236 DS workpiece clamping combined! Item 2.1 Item number 942.5201 ES / DS workpiece clamping from the front - 2 clamping cylinders, rotationally secured - 2 cylinder holders with clamping levers ----- OPTIONAL accessories, at extra cost upon request: Kedpfeyy A Ikjx Ai Rjdr ----- Item 4.3 Item number 942.5237 DS software "Extra Length" (subsequent steps must be confirmed) Sequence control incl. hardware. After entering a cutting dimension > max. cutting length of the system, the cutting is carried out in a timed sequence. (Left unit cuts, right unit moves the material and cuts to size.) ----- Item 2.1 Item number 944.1023 GMF 3000mm caliper complete set (1500 mm plus 1500 mm extension) Includes charger and receiver. A robust aluminum measuring rail with a measuring range of 3,000 mm is ideal for measuring glazing beads. Functionality For use on doors and large window sashes, the GMF caliper can be mechanically extended safely and quickly to a measuring length of 3,000 mm. Base length: 1,500 mm Extension: 1,500 mm, automatic detection Accuracy of ±0.1 mm Resolutio...

Condition: excellent (used), Year of construction: 2018, Number of motors 1 Stück 0 2500 mm Control nein Hecht ES 350 single-sided glazing bead saw ----- Pneumatic pivoting against fixed stops. Kdedpfx Asvpr N Roi Rer 45º/ 90º/ 135º with pneumatic sawblade feed pneumatic tilting via manual tilt stop with machine base, pneumatic clamping HM sawblade 350 x 3.0/2.2/30 Z 100 Saw stand dimensions: length 700 mm, depth 1,600 mm, height 1,500 mm 1.5 m touch stop 1.5 m support with support 3 m touch stop Support extension from 1.5 m to 3 m with support Table inserts grooved for rebated glazing beads HECHT ASB manual length stop with digital display, 2,500 mm With dust extraction unit (Technical specifications according to the manufacturer - no guarantee!)

Year of construction: 2017, condition: used, Pneumatic material feed Travel length: 800 mm (multi-stroke possible, max. 2,400 mm) Kodpfx Aijkrgius Redr Max. saw blade diameter: 500 mm Cuts between 45° and 90° possible Saw blade RPM: 2850 revolutions per minute. Continuously adjustable saw feed Minimum quantity spray device Piece counter with shut-off automatic Weight: 600 kg

Condition: new, Number of motors 2 Stück 0 2650 mm Control manuell Ruchser RU-GLS-ED 45° glazing bead saw ----- Developed for cutting glazing beads in pairs The RU-GLS-ED45° double glazing bead saw can be adjusted manually to size. The Kdodpjxmk Dqofx Ai Rer Machine was designed for cutting glazing beads in pairs with one Cutting angle of 45° developed and has a fixed and a movable saw unit. The manual length adjustment is equipped with an electric digital display. Cutting lengths of 150 mm - 2650 mm can be achieved be sawn. During the cutting process, the glazing beads are with a pneumatic tensioning device from above and from the front to prevent tipping of the glazing beads. It is operated via a safety Two-hand operation. Saw blade diameter 250 mm, length 3700 mm, width 700 mm, Voltage 400V Pos. 1: RU-GLS-ED45° double glazing bead saw ----- with manual measurement adjustment, for pairs Cutting glazing beads, cutting angle 45°. Manual length adjustment with electric Digital display, cutting length from 150 - 2650 mm. Pneumatic clamping device from above and from in front. Safety two-hand operation, saw blade diameter 250 mm, length 3700 mm, width 700 mm, Voltage 400V ----- Basic price in the above version: on request! ----- Ex works. Plus packaging and shipping as well as current Material cost surcharge of 6% of the total price Options with additional costs: ----- Item 1.1 Set of inserts for rebated glazing beads for RU-GLS-P45° and RU-GLS-ED45° Price request, after checking the glazing beads. Depending on the number of glazing beads used, this can happen several sets of inserts are required. To determine the exact number In order to be able to do this, we need profile drawings before order confirmation the glazing beads to be used. Additional charge: on request, after sending your glazing bead drawings Pos. 1.2 Recording device for scanning gauge RU-GL for transferring the scanning dimensions to the saw with pneumatic installation. Additional price: Pos. 1.3 Measuring gauge for glazing beads, total length 2550 mm, max. scanning length approx. 2450 mm Measuring gauge made of square profile with 2 fixed and 2 adjustable cams for measuring the length of the glazing bead Additional price: Pos. 1.4 Measuring gauge for glazing beads, total length 1500 mm, max. scanning length approx. 1430 mm Measuring gauge made of square profile with 2 fixed and 2 adjustable cams for measuring the length of the glazing bead Additional price: Pos. 1.5 Operating time switching device for independent suction. Adjustable from 5 seconds. up to 3 hours. With every sawing process automatically becomes the set time sucked off. Will be used again within the suction time sawn, the set suction time begins again from the beginning. Additional price: Item 1.6 1 set of carbide saw blades RU-GLS-P45 and RU-GLS-ED45° D = 250 mm x 3.2/2.2 x 30, 80 teeth, each consisting of 1 piece of saw blade L6444(right) and L6443, (left), with special grinding 43°. Additional price: ----- All prices in euros, net, plus statutory. VAT (technical information according to the manufacturer, without guarantee!)

Condition: new, Number of motors 2 Stück 0 2380 mm Control , RUCHSER RU-GL-45° ----- Glass bead saw on the sliding work table Developed for cutting glazing beads in pairs on the sliding work table The RU-GL glazing bead saw is mounted on a sliding work table Scanning and clamping device for two glazing beads. Cutting length min. 230 mm, max. 2380 mm. Left saw fixed, right saw on carriage Manually movable mounted. Pneumatic clamping device from above and from the side, safety two-hand operation. Saw motors 0.37 kW, voltage 400V. Sliding work table with felt pad, length with side shelf 3300 mm, Width 1400 mm, working height 800 - 1000 mm. Pneumatically lowerable Counter bearing for positioning the wings. Pos. 1: RU-GL double glazing bead saw 45° on RU-SA-3000 ----- for glazing beads up to 30 x 70 mm (W x H)!!!, Mounted on the sliding work table with scanning and Clamping device for two glazing beads. Cutting length min. 230 mm, max. 2380 mm. Left saw fixed, right saw on carriage manually mounted movably. Pneumatic clamping device from above and from the side, safety two-hand operation. Saw motors 0.37 kW, voltage 400V. Sliding work table with felt pad, length with side shelf 3300 mm, width 1400 mm, Working height 800 - 1000 mm. Pneumatically lowerable Counter bearing for positioning the wings. ----- Basic price in the above version: on request! ----- Ex works. Plus packaging and shipping as well as current Material cost surcharge of 6% of the total price Options with additional costs: ----- Item 1.1 1 set of carbide saw blades for for glazing bead saw RU-GL D = 200 mm, 64 teeth, consisting of 1 piece each Saw blade L1233 (left) and L1085 (right), with special grinding 43°. Additional price: 502.00 euros Pos. 1.2 Holding device for scanning gauge RU-GL for transferring the scanning dimensions to the saw with pneumatic installation. Additional price: 635.00 euros Pos. 1.3 Measuring gauge for glazing beads, total length 2550 mm, max. scanning length approx. 2450 mm Measuring gauge made of square profile with 2 fixed and 2 adjustable cams for measuring the length of the glazing beads Additional price: 497.00 euros Pos. 1.4 Measuring gauge for glazing beads, total length 1500 mm, max. scanning length approx. 1430 mm Measuring gauge made of square profile with 2 fixed and Kodpfoxmkz Njx Ai Rsdr 2 adjustable cams for measuring the length of the glazing bead Additional price: 445.00 euros Item 1.5 Set of inserts for rebated glazing beads for RU-GLS-P45° and RU-GLS-ED45° Price request, after checking the glazing beads. Depending on the number of glazing beads used, this can happen several sets of inserts are required. To determine the exact number In order to be able to do this, we need profile drawings before order confirmation the glazing beads to be used. Additional charge: on request, after sending your glazing bead drawings Pos. 1.6 Operating time switching device for independent suction. Adjustable from 5 seconds. up to 3 hours. With every sawing process automatically becomes the set time sucked off. Will be used again within the suction time sawn, the set suction time begins again from the beginning. Additional price: 731.00 euros ----- Total price...

Condition: used, Year of construction: 2024, Cutting length: 3700 mm Drive: 2 x 3.0 kW motor 2 saw blades, diameter 600 mm / Z = 138 New saw feed: hydropneumatically prepared for installation of an electronic control system Aggregate on the left is fixed, on the right is movable R700i database for max. 400 basic profiles, 1000 color profiles USB and network connection / remote maintenance Cutting angle: 20° - 90° - 135° Integrated memory TFT color touchscreen Ksdpezhpbdsfx Ai Rjdr Aggregate adjustment: stepless motorized aggregate adjustment 20° - 135° including section clamp (1x per aggregate) Indication of swivel range: swivels outwards Clamping device: vertical clamping device with mounting plate for holding profile-related parts Feed from the right: movable roller conveyor, support length 2900 mm, width 250 mm Stops: socket Extraction Software stop for overlengths Stop for short parts, pneumatically extendable Label printer: RAPID-specific label printer RED-300, installed in the control panel R700 sealing clamping device Control cabinet, freestanding R700 waste conveyor Cutting length 3.7 m Inclined conveyor 1000 mm horizontal x 2500 mm vertical Storage location: customer

Year of construction: 2015, condition: excellent (used), functionality: fully functional, machine/vehicle number: 400 6071 LA398, In very good condition. Kedpfxozdp H Es Ai Redr

Condition: new, Number of motors , Stück 0 , mm Control , 0 cutting width 115 und 82 mm Cutting height 55 mm Motor output 2.0 kW machine weight ab. 45 kg Graule KS crosscut saw for cutting (glass) beads with a rebated joint with manual and electronic length stop Suitable for wood, PVC, aluminum ----- Brief manufacturer's description: - Crosscut and miter saw for precise and user-friendly cutting to length in the strip area - Sturdy gray cast iron construction - A double ball-bearing axle acts as a pivot point below the material support table, facilitating material cutting. The cut is always made at the rear top. - Quick miter adjustment up to 45° - Readjustable fixed stops at 90° and 45° - Upper saw blade guard can be connected to extraction system ----- Technical data: Motor: 400 V / 2.0 kW Speed: 2,800 rpm Max. cutting width: 115 mm (at 90°); 82 mm (at 45°) Max. cutting height: 55 mm Mitre range: 45° - 90° - 45° Saw blade diameter: 250 mm Extraction nozzle diameter: 45 kg ----- Technical description: Item 1.1 Crosscut and miter saw type KS, 2 kW, 400 V, 30/40 mm saw blade holder Item 1.2 Pivot point LEFT Item 1.3 Pneumatic material clamping for KS, on both sides of the saw blade, 2 horizontal pneumatic cylinders, controlled via roller valve during saw stroke, can be switched off Item 1.4 HM circular saw blade for wood 250 x 2.8 x 40 mm 80 teeth neg ----- ----- Price of the above machine on request! Plus packaging and shipping ----- Options with additional charge: Item 1.5: EUR 1,270.00 Digital electronic angle display for one axis, crystal display, 1.5 V battery power supply, reading via magnetic tape and magnetic sensor, resolution 0.1° Item 1.6: EUR 695.00 Machine stand for KS crosscut saw Kedpfx Aoy T R Sqei Rodr ----- Item 2.1: Electronic length stop with support plate EUR 7,290.00 Electronic length stop type RLE 2.0 m – with support plate Mounting side: LEFT Electronic length stop system for cutting strips Travel distance 1.8 m, overall length 2.0 m 10" touch display, 230 V connection Feed speed 40 m/min Direct measuring system – repeat accuracy +/- 0.1 mm Working mode: (1) automatic absolute stop, (2) cutting lists, (3) pusher cutting lists, (4) step measurement, (5) fine adjustment Program memory for up to 999 cutting lists USB import and direct editing of cutting lists on the terminal Stop can be folded away to the rear With support foot Item 2.2: 295.00 EUR Support 2 m, right, 110 mm wide, with support ----- Item 3.1: Manual length stop EUR 600.00 Length stop 2 m, left, with 110 mm wide support, with scale, foldable stop slider and support Item 3.2: EUR 295.00 Support 2 m, right, 110 mm wide, with bracket ----- (Technical data according to manufacturer - no guarantee!) All prices quoted are net. Plus statutory VAT.

Condition: excellent (used), Year of construction: 2019, overall weight: 500 kg, total length: 2,000 mm, total width: 1,600 mm, total height: 2,200 mm, Load capacity: 2,200 kg Kdjdpfx Aiszvqzzo Ror Table – Ø: 1,525 mm Band width: max. 150 mm Band thickness: max. 1.27 mm Stack height: max. 760 mm Speed: max. 10 RPM, continuously adjustable Design: o Frame in a robust welded construction o Loop control via a joystick with a roller o Speed can be pre-selected via a display o Right/left rotation o Fixture for inner diameter

Year of construction: 1977, condition: refurbished (used), I sell the double mitre saw Rapid DGS, year 1977. Tilting heads Drilling front heads on each side included Very good condition. Kodpfed N Rb Dox Ai Redr Available immediately.

Condition: excellent (used), Year of construction: 2001, AN VERY RARE OPORTUNETEY TO BUY AN EXCELLENT MACHINE WITH HUGE AMOUT OF TOOLINGS, DRAWERS, CLAMPING EQUIPMENT... OWER 400 EXPENSIVE TOOLINGS CNC BORING MILL WOTAN RAPID 1 RETRIFITTED 2001 WITH HUGE AMOUNT OF OVER 450 TOOLING VERY LOW HOURS Kdedpjvkkf Hjfx Ai Rjr WORKING TIME DATA: CONTROL ON: 8001 H MACHINE POWER ON: 13692H PROGRAM RUN: 4650 H SPINDLE S1 TIME: 4690 H AXIS TIME: 4568H HYDRAULIC ON TIME: 12702 H WE OFFER AN STUNNING EXCELLENT CONDITION WOTAN CNC RAPID 1 WITH HUGE AMOUNT OF TOOLINGS, FOR A SPECIAL STAINLESS WORK. MACHINE HAVE HEIDENHAIN 530 CONTROLS TECHNICAL DETAILS: SPINDLE SPEED : 6,3-1600 U/Min SPINDLE MOVE : Y AXIS : 1250 mm DRILLING SPINDLE MOVE: Z AXIS: 600 mm W : 1000 mm X : 2000 mm B: 360.000 DEGREE SPINDLE DIAMETER: 105mm TOOL HOLDER: ISO 50 WITHOUT TOOL CHANGER CLAMPING: HIDRAULIC MAX TABLE LOAD: 6000 KG TABLE: 1120 X 1400 NUT -BILD 7 ; 22H7 INDEXING 4 X 90 DEGREE TOTAL WEIGHT: 16000 KG DIMENSION OF MACHINE: LENGHT 4800 X BREIT 4665 X HEIGHT 4200

Condition: ready for operation (used), functionality: fully functional, power: 22 kW (29.91 HP), Steam boiler LOOS DF 600kg/h renovation! EPS EXPANDER continuous operation 600kg/h 15g/liter electric power 22KW Kdedpfxeu U Ad Rj Ai Rjr EPS bead storage 300 m3

Condition: good (used), Rapid DGS Double Mitre Saw – used, fully operational, ready for demonstration For sale is a Rapid DGS double mitre saw in good, well-maintained used condition. The machine is immediately ready for use and can be demonstrated at any time. Features / Specifications: Model: Rapid DGS High-precision double mitre saw for aluminium, plastic, and, where applicable, light metal profiles Sturdy, robust construction Mitre cuts possible (both saw heads adjustable) Clean, technically sound used condition Cutting length: 4 m Saw blade: 3700x3.6/3.0x30 Z=108TF negative Machine dimensions (LxWxH): 5 m x 1.20 m x 1.50 m Ksdpfx Aisxzdvis Rsdr Cutting angles: 45-90° Condition: The machine is in fully functional condition. All functions can be tested live during inspection. Inspection & Collection: Inspection by appointment is possible. Collection by the buyer – loading assistance available if required (crane and forklift on site). Price: Negotiable If interested or if you have further questions, please feel free to contact us!
