Used Schaublin 13 for sale (10,057)

Condition: used, TECHNICAL DETAILS - Strokes : 320 x 150 x 375 [mm] - Distance between vertical spindle-table surface : 310 [mm] - Distance between horizontal spindle-table surface : 410 [mm] - Spindle speeds (continuous adjustment) : 58-2000 [Rpm] - Spindle taper : 30 ISO - Feeds : 12-400 [mm/min] Nodpjuhbw Nefx Adrswi - Fast feed up : 1200 [mm/min] - Supply : 3 x 380 [V/50 Hz] - Motor power : 1.5 [kW] - Total installed power : 2.1 [kW] - Machine floor space : 1500 x 1100 x 1600 [mm] - Machine weight : approx. 700 [kg] EQUIPMENT - Revolving vice - Irrigation system

Condition: excellent (used), Digital display Accessories available Table Usable table surface: 700 x 250 mm Nwjdpoyywnfsfx Adrji Travel paths X-axis travel: 320 mm Y-axis travel: 150 mm Z-axis travel: 370 mm Automatic table movements 8 longitudinal feeds: 11 to 210 mm/min 8 vertical feeds: 11 to 210 mm/min Rapid feed of the table Longitudinal and vertical: 1000 mm/min Spindle taper: ISO 30

Condition: refurbished (used), For sale is a Swiss Schaublin 13 precision milling machine in fully refurbished condition—better than new. The machine has been completely overhauled in Switzerland. Its geometry has been reworked and the electrical system brought up to the latest standard. All guideways are finely scraped and in perfect condition. All wear parts and spindles have been replaced. Belts are renewed, etc. The machine has not been used since the overhaul. Nwjdpfx Adjyw A Hzsrsi In this condition, it is an absolute rarity and already considered an investment piece. Ideal for high-precision applications or collectors who appreciate a perfect machine tool.

Condition: used, machine/vehicle number: 1023, Manufacturing origin Swiss Voltage 380/50/3 Netweight 740 kg Dimensions 155x110x160 cm Total power 2,1 kW Customs position 8459.6930 spindle ISO 30, with digital read-out Sony LM31 - 3 axes TECHNICAL DATA Geometrical characteristics VERTICAL RECTANGULAR TABLE - working surface 740x200 mm - number of T-slots 2 - width of T-slots 12-H7 mm - distance between slots 120 mm FIXED ANGULAR TABLE (accessory 13-5.421) - working surface 700x250 mm - number of T-slots 5 - width of T-slots 12-H7 mm - distance between slots 40 mm - provision for lateral traverse 250 mm in all INCLINABLE UNIVERSAL TABLE (accessory 13-5.300) - working surface 600x210 mm - number of T-slots 4 - width of T-slots 12-H7 mm - distance between slots 40 mm - provision for lateral traverse 350 mm in all Angular setting in all 3 planes, in either direction (horizontal-lateral-transverse) 30°-45°-30° SPINDLE INTERNAL TAPER - horizontal spindle head Iso 30 (40) - vertical spindle head Iso 30 (40) - universal high-speed head Schaublin E20 + ES 20 SWIVEL IN VERTICAL PLANE - vertical spindle head 360 ° Strokes and traverses  LONGITUDINAL STROKE : HANDWHEEL-OPERATED/AUTO. - table 320x300 mm - 1 turn of the wheel equals a long. traverse of 5 mm VERTICAL STROKE : HANDWHEEL-OPERATED/AUTOMATIC - knee 375/355 mm - 1 turn of the wheel equals a vert. traverse of 2 mm TRANSVERSE STROKE : ADJUSTING HANDLE - horizontal spindle head 150 mm - 1 turn of the wheel equals a cross traverse of 5 mm QUILL STROKE - vertical spindle head 60 mm ACCURACY ON READING ON MICROMETER VERNIERS - in all 3 traverses 0,02 mm Drive, motors, power feeds Main motor 1,5 kW 1500 rpm Approach-feed motor (rapid feeds) 0,45 kW 3000 rpm Coolant-system motor 0,15 kW 3000 rpm Spindle speeds (stepless) - 1st range 58-375 rpm - 2nd range 330-2000 rpm Working feeds - longitudinal or vertical 12-400 mm/min - 10 feeds, values in mm/min 12-18-26-38-57 85-125-185-270 400 Approach feed (rapid feed) - longitudinal or vertical 1200 mm/min errors and omissions, excepted data given without obligation Inventory Nr. 2180233 machine equipped with : 1 fix table with 4 T-slots 1 digital read-out Sony LM 31 - 3 axes Nwodpfjfnrxwox Adrsi 1 cooling device 1 lighting 1 chips vat 1 Rest 1 Mill fitter long long ISO 30 Ø 13x97 mm avec pivot 1 do Ø 16x97 mm 1 do Ø 22x137 mm 1 do Ø 27x156 mm 1 Mill fitter short ISO 30 Ø 16x29 1 do Ø 22x14 1 do Ø 22x37 1 do Ø 27x60 1 Mill fitter short ISO 30 for plates 1 Mill fitter cylindrical ISO 30 Ø 20 mm 1 do Ø 12 mm 1 do Ø 6 mm 1 Collet fitter ES-32 ISO 30 1 Set of 29 collets ES-32 various 1 Reduction sleeve Alesa ISO 30 / MT3

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, machine/vehicle number: 211031, Country of manufacture: Switzerland Voltage: 380/50/3 Net weight: 740 kg Overall dimensions: 155 x 110 x 160 cm Installed power: 2.10 kW Customs tariff number: 8459.6930 TECHNICAL SPECIFICATIONS Vertical rectangular table: - usable surface: 740 x 200 mm - number of T-slots: 2 - width of T-slots: 12-H7 - distance between slots: 120 mm Nodpfx Adew Uc Nporewi Fixed right-angle table: - usable surface: 700 x 250 mm - number of T-slots: 5 - width of T-slots: 12-H7 - distance between slots: 40 mm - possible lateral movement: 250 mm total Universal tilting table: - usable surface: 600 x 210 mm - number of T-slots: 4 - width of T-slots: 12-H7 - distance between slots: 40 mm - possible lateral movement: 350 mm total Adjustable in 3 planes, on either side: 30°-45°-30° Spindle internal taper: - horizontal spindle head: ISO 30 (40) - vertical spindle head: ISO 30 (40) - universal rapid head: SV E20+ES20 Swivel in vertical plane: vertical spindle head: 360° Longitudinal travel, hand/automatic: 320/300 mm Vertical travel, hand/automatic: 375/355 mm Cross travel, adjustment handle: 150 mm Quill stroke: 60 mm Readout accuracy on micrometer verniers: 0.02 mm Main motor power/speed: 1.5 kW/1500 rpm Rapid feed motor power/speed: 0.45 kW/3000 rpm Coolant device motor power/speed: 0.15 kW/3000 rpm Spindle speed range: - 1st range: 58-375 rpm - 2nd range: 330-2000 rpm Feed rates (longitudinal or vertical): 12-400 mm/min - 10 feed rates, mm/min: 12-18-26-38-57-85-125-185-270-400 Rapid traverse speed (longitudinal or vertical): 1200 mm/min All technical data is given without obligation and subject to errors or omissions.

Condition: good (used), Working travels 300 x 150 x 355 mm Table size 700 x 250 mm Spindle taper for collets ISO 30 Spindle speeds 58-2'000 rpm Digital read-out Njdpou Eqixofx Adrswi Misc.accessories MARCELS MASCHINEN CH

Condition: excellent (used), functionality: fully functional, Schaublin 135 High-Precision Lathe with 3-Axis K&C Digital Readout NEW and Accessory Cabinet in Excellent Ex-University Condition! Technical Data: >> Centre height: 135 mm >> Distance between centres: 630 mm >> Swing over bed: 315 mm Nwsdpfxjx H Szye Adroi >> Spindle mount: Camlock D1-4 >> Spindle bore: 40 mm >> Longitudinal and cross feeds: 0.025–0.35 mm/rev >> Metric thread pitches: 0.25–14 mm >> Tailstock: MT3 >> Infinitely variable speed range: 55–3000 rpm >> Total power requirement: 4.45 kW >> Weight: approx. 1200 kg Accessories: >> 3-axis digital readout by K&C (new), 12 months manufacturer’s warranty with user manual Functions: Switching mm/inch, coordinate selection ABS/INC, value halving, reference mark, tool programming for up to 200 tools, taper calculation, radius/diameter display, quick zeroing, count direction reversal >> Accessory cabinet containing: - 160 mm 3-jaw chuck with two sets of jaws - Multifix B toolholder with 3 pockets - Internal and external collets with quick-change system - Change gears - 4-jaw chuck - Face plate - Fixed and travelling steady rests - Coolant system - Centres - Operating manual - And much more About the machine: For sale is a Schaublin 135 high-precision lathe. The machine is in excellent condition, coming from a university and only lightly used. Equipped with a NEW K&C 3-axis digital readout and a comprehensive range of accessories. You are invited to inspect the machine under power on site to verify its condition.

Condition: good (used), functionality: fully functional, pneumatic collet clamping device with collets Nwsdpfszmm Dgox Adrsi

Year of construction: 1987, condition: used, Schaublin 102N lathe Nsdpfxszlugyo Adrewi

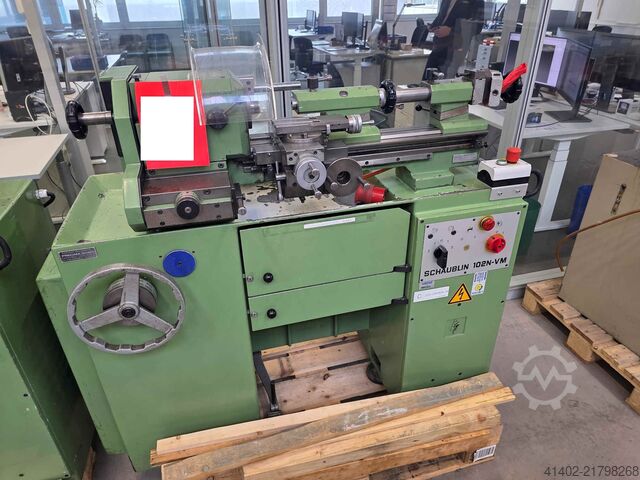

Condition: good (used), Year of construction: 1993, functionality: fully functional, Schaublin 102 N - VM, Machine number BL 330699, Year of manufacture approx. 1993, Machine with leadscrew, Centre height 102 mm, Leadscrew: diameter 40 mm, hardened and thread ground. Leadscrew pitch: 4 mm. Feeds: 8 longitudinal feeds from 0.02 to 0.3 mm/rev. Nedpfxszlc Aps Adrswi Threading range: Metric: 20 pitches from 0.25 to 4 mm. Imperial (inch): 25 pitches from 80 to 6 tpi. Centre distance 450 mm, max. turning diameter over bed 200 mm, max. turning diameter over cross slide 120 mm, Spindle speed up to 2,800 rpm, Tailstock, Accessories,

Condition: good (used), Year of construction: 1998, functionality: fully functional, Schaublin 102 N, Machine number BL 329218, Year of manufacture approx. 1998, Center height 102 mm, Distance between centers 375 mm, Max. turning diameter over bed 200 mm, Max. turning diameter over slide 120 mm, Spindle speed up to 2,800 rpm, Nedpfx Adozlcz Eerewi Tailstock, Accessories.

Condition: like new (used), functionality: fully functional, Ferwood Code: RS0003510 - Manufacturer Code: MEM520-13-15B-5/28-R-6-SSI - Condition: Like new (showroom item) - Functionality: Fully functional - Compatible Machine: - If interested, we offer overhaul service, please contact us. 1KG 20X20X20 Nwedpfxoymfd He Adroi

Condition: used, Schaublin 102 VM We have a total of 5 units in stock. Nwedjzicwbepfx Adrei The price is 2000 Euros per unit. See photo.

Condition: used, Needs some attention and a new fan belt, otherwise it's in good condition. Nwsdpfxozicgio Adrji Accessories are shown in the photo.

Condition: good (used), Year of construction: 1964, functionality: fully functional, feed length X-axis: 700 mm, feed length Y-axis: 250 mm, feed length Z-axis: 490 mm, travel distance X-axis: 700 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 490 mm, total height: 1,720 mm, total width: 1,920 mm, total length: 2,250 mm, table width: 305 mm, table length: 1,100 mm, overall weight: 2,000 kg, space requirement width: 1,920 mm, space requirement length: 2,250 mm, space requirement height: 1,720 mm, Equipment: documentation/manual, We are offering this well-maintained Schaublin 53 milling machine, manufactured in 1964, for sale. Serial number: 271090 Technical data – Schaublin 53 N Model: N Longitudinal travel of table (X): 700 mm Vertical travel (Z): 490 mm Nedpfxsyhm D Dj Adrjwi Cross travel (Y): 250 mm Table clamping area: 1100 × 305 mm Number of T-slots: 5 Max. slot width: 14 H7 mm Spindle mounting (internal taper milling arbor): ISO 40 Spindle bore: 25.2 mm Main motor: 3 / 1500 kW·t/min Rapid feed motor: 1.2 / 3000 kW·t/min Power: 5.1 kW Rapid traverse speed: 3500 mm/s Dimensions (L×W×H): 2250 × 1920 × 1720 mm Weight: 2000 kg Documentation available Accessories available: Dividing head, steady rest, jaw chuck, centering point, various clamping elements and accessories If you have any questions or require further information, please feel free to send us a message or call us.

Condition: good (used), Step chuck, precision chuck, bell chuck, step collet, ring chuck, collet sleeves, collet, tool holder, tool holder, collet sleeves Nwsdpfoyizh Tsx Adrsi -Manufacturer: Schaublin, Step chuck precision chuck mount MK6 -Size: 81 to 106 (see photos) -Overall dimensions: Ø 131 x 175 mm -Weight: 5.3 kg

Condition: good (used), Tailstock for lathe, counter bearing for dividing head, dividing head Nwedpfx Aded Riw Hsrsi -from: Schaublin 102 -Collet chuck: W25 -Drawing: in the photos -Dimensions: 450/360/H170 mm -Weight: 11 kg

Condition: excellent (used), functionality: fully functional, Schaublin 102N precision lathe. Benchtop model. Nwjdpfx Adjziq Dporji In good condition, fully functional. Distance between centers: 450 mm Center height: 102 mm Spindle: W20 Swinging diameter over cross slide: 120 mm and over bed: 200 mm Tailstock quill: MK2 Connection: 50 Hz, 3 x 380 volts.

Condition: used, Technical specifications: X-axis travel: 700 mm Nwjdpfx Aoxtnn Tedrsi Spindle speed: up to 1500 rpm Feed rate: 12 - 1000 mm/min Table size: 1100 x 250 mm Swiveling head: yes Dimensions, approx.: 1750 x 1600 x 1850 mm Weight, approx.: 1900 kg

Condition: ready for operation (used), Year of construction: 2019, spindle speed (max.): 6,000 rpm, travel distance X-axis: 100 mm, travel distance Z-axis: 90 mm, spindle motor power: 1,500 W, total height: 1,370 mm, total width: 800 mm, overall weight: 360 kg, product length (max.): 2,000 mm, number of axes: 2, Horizontal turning machine manufactured in 2019. This SCHAUBLIN 102Mi W25 features a W25 spindle nose and an integrated motor headstock. It includes a pneumatic clamping device and a Tripan-111S quick-change tool holder system. The machine is equipped with a 3-jaw chuck and a tailstock with a rotating center. If you are looking to get high-quality turning capabilities, consider the SCHAUBLIN 102Mi W25 machine we have for sale. Contact us for further details. • Headstock: Integrated motor • Mounting: Mounted on workbench (Version CE) • Cross-slide: Crank cross-slide with digital measurement device • Tailstock: Morse Taper 2 Additional equipment • Workbench: 2000 x 800 x 900 mm Nwedpfsy Snmvox Adrji • Lista drawer cabinet: 564 x 725 x 850 mm • Pneumatic clamping device W25 with graphite distributor • Tripan-111S quick-change tool holder system • Boring bar holder, 30° angled, max Ø12 mm • 3-jaw chuck W25/Ø100 (cast iron, manual) • Tailstock accessory: Rotating center 60°, Ø18 mm (Gepy) • Collet set W25 (0.5–25 mm, 50 pieces) • Mebiflex 70 lamp • Max. Permissible Diameter Over Bed: 200 mm • Max. Permissible Diameter Over Carriage (Cross Slide): 120 mm (60 mm with rear support) • Center Height Over Bed: 102 mm • Center Height Over Carriage: 20 mm • Max. Center Distance: 470 mm • Bed Length: 1,000 mm • Bed Height: 168 mm • Main Spindle Drive: AC Motor, 1.5 kW (Continuous operation) • Spindle Type Options: W20 / W25 • Spindle Speed (Infinitely Variable): 100 - 6,000 rpm (min⁻¹) • Spindle Internal Diameter: 20 mm (W20) / 25 mm (W25) • Max. Bar Capacity: 14.5 mm (W20) / 19 mm (W25) • Carriage Travel (Manual) on Bed: 442 mm • Cross Travel (X-axis): 100 mm • X-axis Resolution (Radius): 0.001 mm (digital) • Longitudinal Travel (Z-axis): 90 mm (Optional: 150 mm for orientable upper slide) • Z-axis Resolution: 0.001 mm (digital) • Trapezoidal Screw Spindle: Ø 9 x 2 mm pitch • Max. Tool Shank Cross-Section: 16 x 16 mm (Multifix-System) / 12 x 12 mm (Tripan-System) • Tool Holder Diameter: 20 mm (Multifix-System) / 12 mm (Tripan-System) • Standard Tailstock: Morse 2 internal taper, 30 mm spindle outer diameter, 80 mm stroke • Lever-operated Tailstock (Optional): W20/W25 internal taper, 40 mm spindle outer diameter, 100 mm stroke • Starwheel-operated Tailstock (Optional): W20/W25 internal taper, 40 mm spindle outer diameter, 150 mm stroke • Quick-clamping Lever System (Optional): Max spindle speed 3,000 rpm • Pneumatic Clamping System (Optional): Adjustable axial clamping force, 500 daN at 5 bar, Max spindle speed 6,000 rpm • Spindle Lock: Pneumatically operated spindle lock, locking torque 48 Nm at 5 bar (Max speed 3,000 rpm) • Steady Rests (Optional): Clearance, stationary steady rest, Ø 0.01 to 40 mm • Electrical Connection: 400V, 50/60 Hz, Nominal Current 12A (Max 20A input fuse), +/- 5% allowable voltage fluctuations • Power Consumption: 1.8 kVA • Noise Level under Load at Operator Station: < 60 dBA • Operating Temperature: +15°C to +30°C (+5°C to +40°C for digital measuring devices) • Relative Humidity: 5% to 80% • Digital Measuring Unit Battery: 1x Lithium 3V, Type CR 2032 (Current consumption: 45 µA, Lifespan: 5,000 hours continuous operation) • Floor Loading: 263 kg/m² • Floor Payload Capacity: 113 kg/m² Technical Specification Counter Spindle No Driven Tools No

Condition: used, Year of construction: 2009, functionality: fully functional, Turning machine with carriage and tooling. Nedozg Hk Tepfx Adrswi

Condition: used, TECHNICAL DETAILS Nwjdew Ihtyspfx Adroi - see photos

Condition: used, TECHNICAL DETAILS Nwedpfx Asw Ihttedrsi - center height : 102 [mm] - Max. diameter on bench : 200 [mm] - Distance between centers : 470 [mm] - Type of spindle clamp : W20 - Boring : 20 [mm] - Passage of bar in clamp : 14.5 [mm] WEIGHT & DIMENSIONS - Machine floor space : 1500 x 800 [mm] - Machine height : 1300 [mm] - Machine weight : 500 [kg]

Condition: used, TECHNICAL DETAILS - max. diameter over bed : 270 [mm] - max diameter over slide : 130 [mm] - distance between centers : 440 [mm] - spindle nose : CAMLOCK D1-3' - max bar diameter : 28 [mm] - power : 7.5 [kW] - spindle speed : 0-5000 [rpm] with variator - strokes X x Z : 180 x 400 [mm] - work feeds : 0-5000 [mm/min] with variator - quick feeds : 7500 [mm/min] - supply : tri 380V 50Hz 14kW - size : 1700 x 1226 x 1660 [mm] - weight : 1415 [kg] EQUIPMENT - numerical control FANUC 20-T - quick change turret Multifix 'A' Nodpfx Adsuhcarjrjwi - collets chuck SCHAUBLIN B32 - tail stock with capstan - coolant tank with pump

Condition: used, TECHNICAL DETAILS - Number of axes : 3 - Number of spindles : 2 MAIN SPINDLE - Spindle speeds : 30 - 6000 [rpm] - Spindle power : 5.5 [kW] - Max. bar diameter : 32 [mm] - Max. turning diameter : 115 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle nose : A2-4 TURRET 1 - Number of positions : 8 - Number of motorized positions : 8 - Live tools speed : 5000 [rpm] Nwodpfx Aszgx Abjdroi - Live tools power : 0.75 [kW] - X stroke : 220 [mm] - Z stroke : 300 [mm] - Rapid traverses rates (X/Z) : 6 / 10 [m/min] TURRET 2 - Number of positions : 6 POWER SUPPLY - Supply voltage : 380 [V] - Total installed power : 16 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2830 x 2610 [mm] - Machine height : 1860 [mm] - Machine weight : 1600 [kg] EQUIPMENT - CNC : Fanuc 18-TB - Coolant tank - Parts catcher - Bar loader : IEMCA BOSS 332 E / 32 LL
