Used Scm Star Tiller for sale (2,056)

Condition: ready for operation (used), SCM T 120 C without feed mechanism. Iaodpfoyw Sydox Anwju

Condition: new, Year of construction: 2023, functionality: fully functional, input voltage: 230 V, input current: 16 A, input frequency: 50 Hz, travel distance X-axis: 915 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 176 mm, number of axes: 3, table length: 1,170 mm, table width: 760 mm, rotational speed (max.): 24,000 rpm, Equipment: CE marking, documentation/manual, european tool clamping system, Compact 3-axis SCM Startech CN K CNC machining center for milling, engraving, sign making, and 3D prototyping. Work table of 1,170 x 760 mm, X-Y-Z travel of 915/610/176 mm, and Hiteco 2.4 kW milling head up to 24,000 rpm with ER25 tool holder. Equipped with: - Full safety enclosure - LED lighting - Numerical control with interpolation - HICAM2 interface - Ethernet connection Iasdozcfwrepfx Anweu - Pneumatic suction cup kit - Tool height sensor - 4th interpolating axis for lathe work - Base with wheels and adjustable feet Single-phase 230V power supply. Ideal for carpentry, engraving, machining, and prototype manufacturing.

Condition: used, Year of construction: 2016, TECHNICAL DATA AXES Max. workpiece dimensions X-Y-Z mm 3050 x 800 x 50 Min. workpiece dimensions X-Y-Z mm 300 x 90 x 10 Drilling/slotting working area mm 0 x 800/0 x 800 X axis stroke mm 750 Max. travel speed of X-Y axes m/min 25 DRILLING UNIT Vertical spindles Number 7 (4X-4Y one common) Horizontal spindles (along the Y axis) Number 2 (1+1) Horizontal spindles (along the X axis) Number 1 Fixed grooving saw (direction) X Grooving saw diameter mm 100 Max. grooving saw thickness mm 5 Motor power kW (HP) 1.5 (2) Spindle speed rpm 3350 Grooving saw speed rpm 4300 INSTALLATION Power supply V (Hz) 380 / 400 (50 / 60) Installed power KVA 4.5 Compressed air requirement bar 6 Compressed air consumption Nl/cycle 90 Extraction requirement m3 / h 1200 Extraction air speed m / sec 20 Extraction nozzle diameter mm 80+80 F10L Drilling unit Includes: - 7 independent vertical spindles - Drill chuck D10 mm - Distance between spindles 32 mm - 2 horizontal drilling heads, 1 in X direction with one drill, 1 double drilling head in Y direction (1 + 1 drill chuck D10 mm) - Speed 3350 rpm - 1 integrated sawing unit in X (max. Diameter 100 mm) - Saw blade speed 4300 rpm - Motor power 1.5 kW - Vertical pneumatic travel per spindle 70 mm - Horizontal pneumatic travel of the drilling unit. Positioning of the workpiece and drive of the work unit: A CNC-controlled suction cup clamps the workpiece and positions it sequentially under the work unit during machining. Movement in the X and Y axes takes place on THK guides with transmission to reinforced toothed rails. Movement in the Z axis is pneumatically controlled on ball-bushing guides with adjustable stop positioning. The positioning of the work units is carried out using technology and drives with DC motors. CNC CONTROL The control system was specially developed for use in drilling and milling machines. CN - 7" color screen with touchscreen function - Alphanumeric keyboard - Self-diagnosis and any error messages or malfunctions that may occur, in the operator's language Programming - Programming via the CN - Automatic optimization of drilling operations - Option of plate zero point shift - Option of saving and importing drilling programs via USB dongle - Option of importing drilling programs from CAD-CAM external software Configuration - User interface in the same language as the instruction manual Graphic representation of the unit configuration Vacuum suction cups "B-Power Vacuum suction cups with double vacuum connection, recommended for particularly porous panels (e.g. MDF light). Machine user interface software Xilog Maestro USB Hardware and software requirements: - Operating system: Windows XP Professional (SP2), Windows Vista or Windows 7 - Processor: Intel compatible, 2GHz min; Multicore processor recommended - Memory capacity: 1GB min., recommended 2GB - Free disk space: 5GB - Graphic card: Compatible OpenGL (The code includes a DVD for installation and a USB key) Xilog Maestro Features Programming - Parametric, graphic programming - Assisted programming with graphic and syntax help for drilling operations - Possibility to create and save machining macros Integrated additional functions - Self-diagnosis and possible error messages or malfunctions, in the operator's language - User interface in Iaodpfx Aevvi I Ronwou

Condition: used, Year of construction: 2018, Startech cn MAIN FEATURES FLEXIBLE AND CUSTOMIZED PRODUCTION COMBINED WITH SPEED AND PRECISION DRILLING FROM ABOVE WITH REFERENCE TO THE TOP OF THE PLATE ALLOWS ABSOLUTELY PRECISION MACHINING NUMERICAL CONTROL WITH 7" COLOR SCREEN: SIMPLE AND INTUITIVE TECHNICAL DATA Startech CN AXES Max. workpiece dimensions X-Y-Z mm 3050 x 800 x 50 Min. workpiece dimensions X-Y-Z mm 300 x 90 x 10 Drilling/slotting work area mm 0 x 800/0 x 800 X-axis stroke mm 750 Max. travel speed of the X-Y axes m / min 25 DRILLING UNIT Vertical spindles number 7 (4X-4Y one of them common) Horizontal spindles (along the Y axis) Number 2 (1+1) Horizontal spindles (along the X axis) Number 1 Fixed groove saw (direction) X Diameter of the groove saw mm 100 Max. thickness of the groove saw mm 5 Motor power kW (HP) 1.5 (2) Spindle speed rpm 3350 Speed of the groove saw rpm 4300 INSTALLATION Power supply V (Hz) 380 / 400 (50 / 60) Installed power KVA 4.5 Compressed air demand bar 6 Compressed air consumption Nl/cycle 90 Extraction demand m3 / h 1200 Extraction air speed m / sec 20 Extraction nozzle diameter mm 120 GENERAL CHARACTERISTICS Universal CNC drilling machine with work table with fixed gantry and movable workpiece for performing the following machining operations: - Vertical drilling on the panel surface - Horizontal drilling on all four sides of the workpiece - Groove Milling with integrated groove saw in the "X" direction. Self-supporting structure. Machine frame made of tubular steel to provide a large base for the work table. The structure is positioned on three self-leveling feet. The electrical control cabinet is integrated into the machine frame. "Easy Motion" central Bakelite support table: - an MDF sector for through-hole drilling, automatically pivoting for horizontal drilling - an infeed roller that facilitates panel loading - a rear roller conveyor that facilitates panel sliding - left and right stops - a central aligner with manual adjustment. The left and right stops are required to drill the two opposite sides of the panel horizontally in the "X" direction. Panel positioning along the X axis is achieved by means of suction cups. Unit support. This is a gantry structure made of tubular steel. The main machining unit is installed on the gantry. F10L drilling unit includes: - 7 independent vertical spindles - Drill chuck D10 mm - Distance between spindles 32 mm - 2 horizontal drilling heads, 1 in X direction with a single drill, 1 double drilling head in Y direction (1 + 1 drill chuck D10 mm) - Speed 3350 rpm - 1 integrated sawing unit in X (max. diameter 100 mm) - Saw blade speed 4300 rpm - Motor power 1.5 kW - Vertical pneumatic travel per spindle 70 mm - Horizontal pneumatic travel of the drilling unit Positioning of the workpiece and drive of the machining unit A CNC-controlled suction cup clamps the workpiece and positions it sequentially under the machining unit during machining. The movement in X and Y axis is carried out on THK guides with transmission on reinforced toothed Movement in Z axis is carried out pneumatically on "ball-bushing" guides with positioning on stop adjustable via the positioning of the working units is carried out via technology and drives with -CONTROL The control was specially developed for use Isdpfjvwbp Asx Anweau

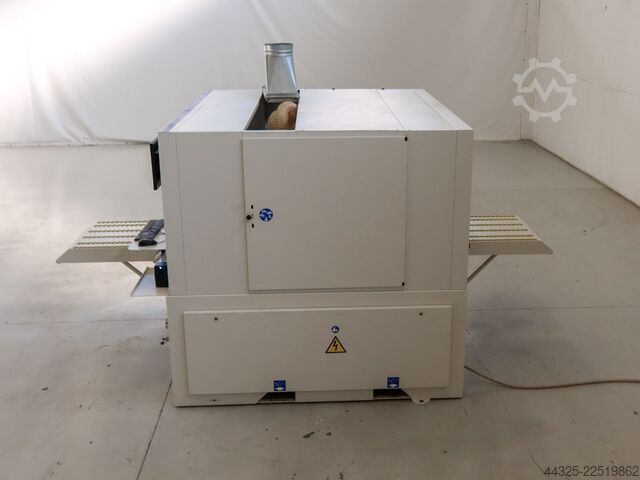

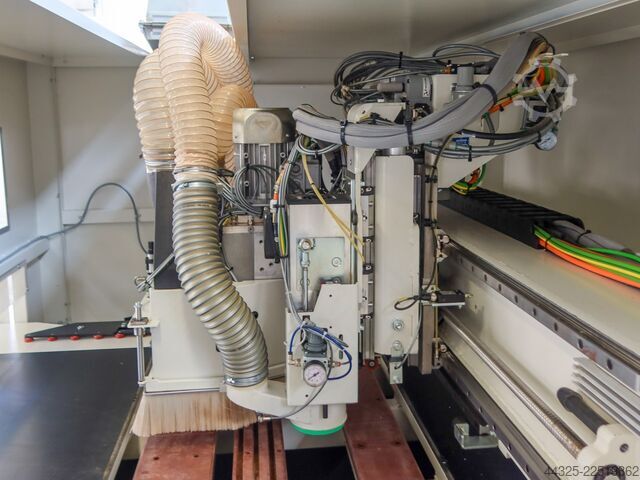

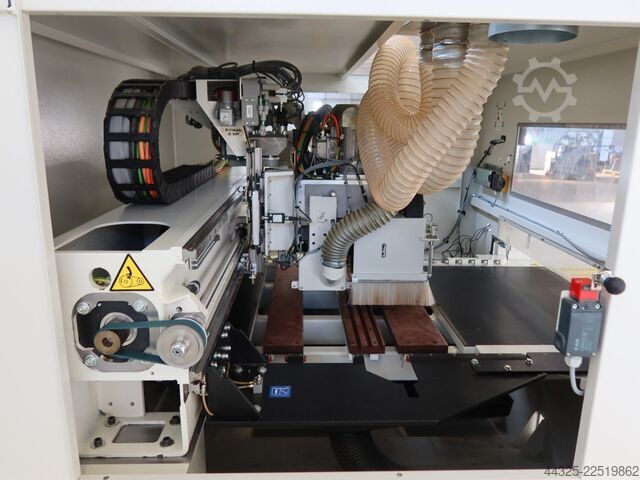

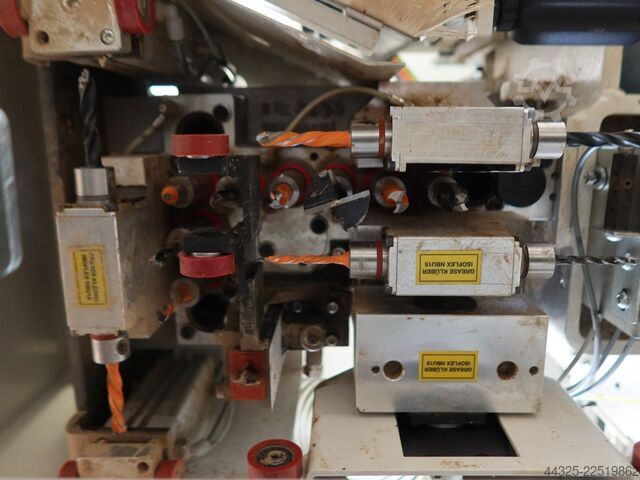

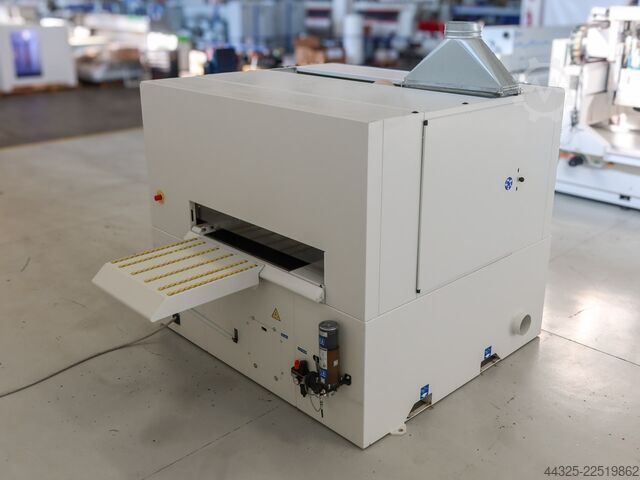

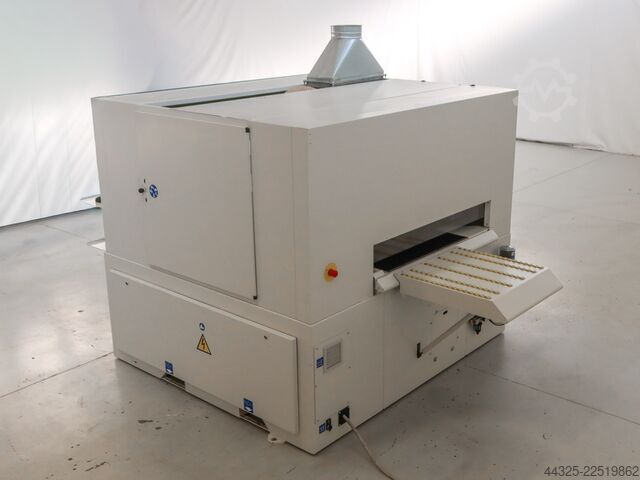

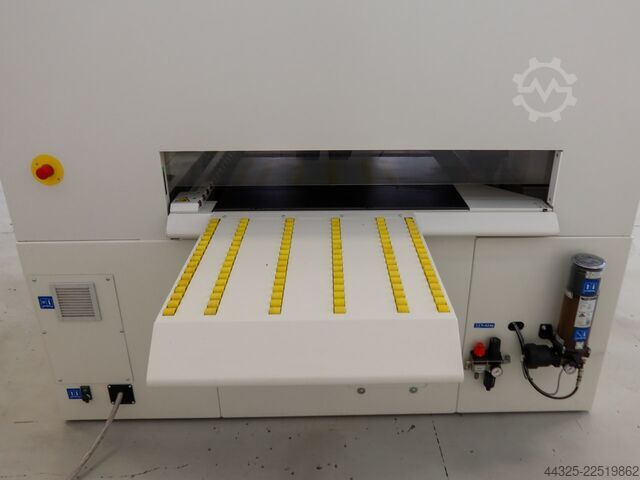

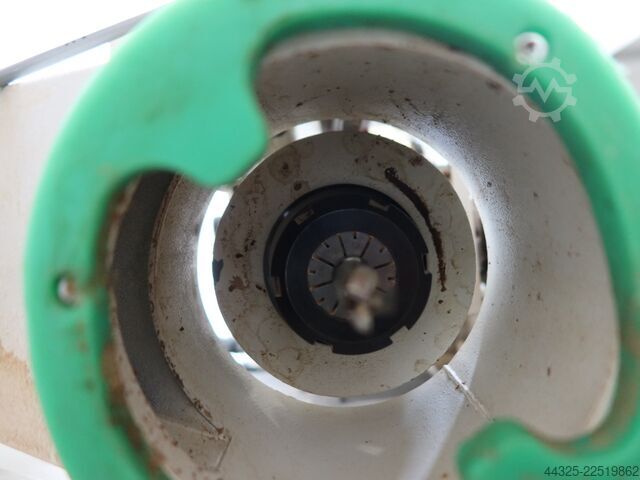

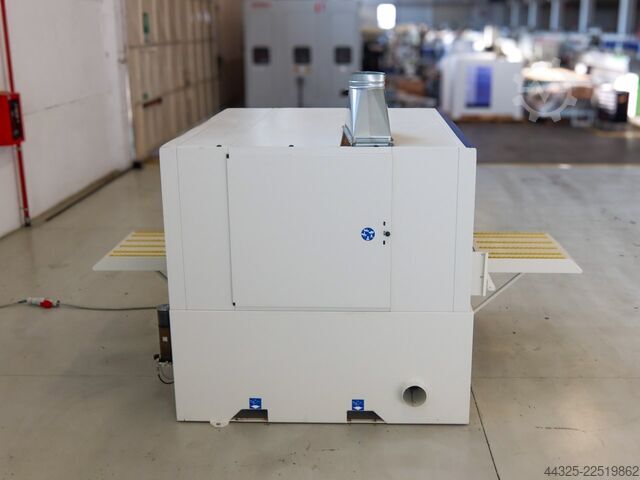

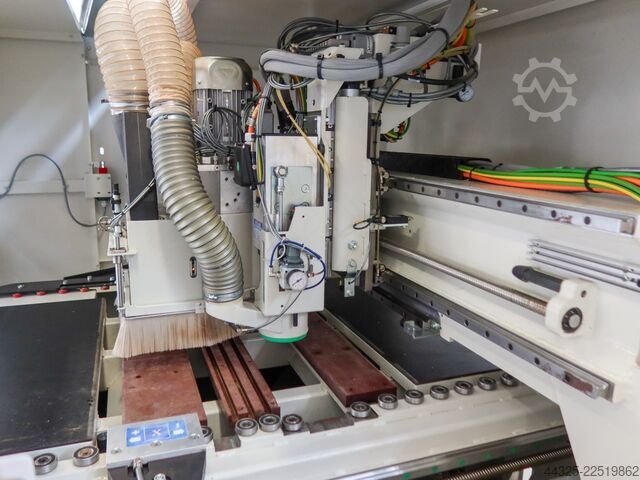

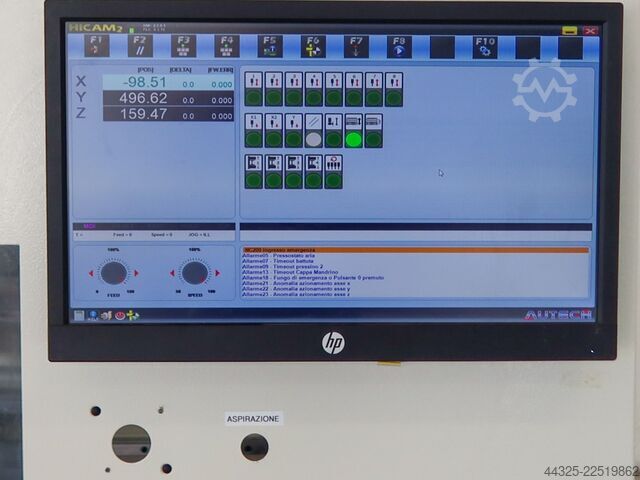

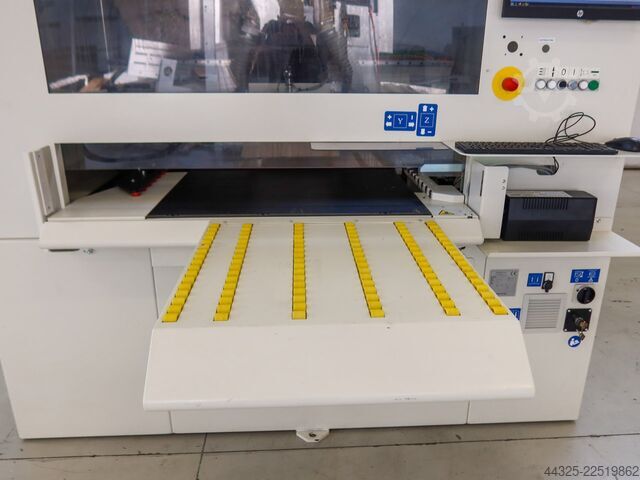

Condition: new, Year of construction: 2024, functionality: fully functional, NEW MACHINE! CNC SCM Startech CN PLUS ADDITIONAL EQUIPMENT on machine: - automatic lubrication - side suports for long workpieces - Aditional USB key for ''Maestro CNC'' software DRILLING UNIT TECH. DATA: - 8x vertical drilling spindles - 6x horizontal drilling spindles (2+2 on ''X'' and 1+1 on ''Y'') - drilling speed 4200 min-1 - sawing unit with 125 mm diameter MOULDER TECH. DATA - Motor power: 5,5 KW - spindle speed: from 1000 - 18000 rpm OTHER DATA: - maks/min workpiece length: 3050 / 200 mm - maks/min width: 900 / 80 mm - maks/min thickness: 60 / 10 mm - movement speed: 40 m/min - exhaust outlet: 1x 150 / 1x 120 / 1x 80 mm Iajdpfx Ansip Dh Ijwju

Condition: new, Year of construction: 2023, machine/vehicle number: MR005937, Universal drilling and grooving CNC machine. Easy to use, compact, and fast in processing. The machine is equipped with the following options: - Panel end sensor - Z-axis pressure increase (recommended for hard materials) - Maestro CNC software - Keyboard type: Qwerty - Fan for electrical cabinet cooling - Automatic lubrication system Technical specifications: - Minimum panel thickness: 10 mm - Maximum panel thickness: 50 mm - Minimum panel length: 300 mm - Maximum panel length: 3000 mm - Minimum panel width: 90 mm - Maximum panel width: 900 mm - Positioning speed: 20 m/min - Number of vertical drilling spindles: 7 pcs Iaedpfx Aewy U A Hjnweu - Number of horizontal drilling spindles (Y-axis): 2 pcs - Number of horizontal drilling spindles (X-axis): 2 pcs - Integrated grooving saw blade: Yes - Diameter of grooving saw blade: 125 mm - Motor power: 3 HP - Serial number: KK00039354

Year of construction: 2015, condition: like new (used), machine/vehicle number: UTZ0901438929, Used SERMAC model Star SCM60C Trailer Mounted Concrete Pump (2015) The production year 2015. Iedpfx Anog Igkisweau Maximum output of 60m³/hour fitted with an FPT-Iveco 4-cylinder water-cooled 108hp diesel engine. Complete with 7" diameter output. Mounted on single axle fast towing a trailer for site use only, 5 manually operated stabiliser legs, towing bracket with the eye, separate water tank with a high-pressure water system for washing down, auto greasing system and emergency toolkit. The pump is in good condition. Sold without transfer/working piping. Price Euro 33.000 Euro + VAT, FCA: Oradea/Romania We sell this “line as it is” Irrtum, Anderungen und Zwischenverkauf vorbehalten / Subject to errors, changes and prior sale / Ne rezervăm dreptul la greșeli, modificări și vânzare We speak English. /Wir sprechen Deutsch./ Beszélünk magyarul. /Nous parlons français/Vorbim romana

Year of construction: 2015, condition: like new (used), machine/vehicle number: UTZ8922, Used SERMAC model Star SCM80C Trailer Mounted Concrete Pump (2015) The production year 2015. Maximum output of 80m³/hour fitted with an FPT-Iveco 6-cylinder water-cooled 175hp diesel engine. Complete with 7" diameter output. Mounted on single axle fast towing a trailer for site use only, 5 manually operated stabiliser legs, towing bracket with the eye, separate water tank with a high-pressure water system for washing down, auto greasing system and emergency toolkit. The pump is in good condition. Sold without transfer/working piping. Price Euro 36.000 Euro + VAT, FCA: Oradea/Romania Iaedpog Igk Asfx Anwou Irrtum, Anderungen und Zwischenverkauf vorbehalten / Subject to errors, changes and prior sale / Ne rezervăm dreptul la greșeli, modificări și vânzare We speak English. /Wir sprechen Deutsch./ Beszélünk magyarul. /Nous parlons français/Vorbim romana

Condition: used, machine/vehicle number: 008238, X axis working area: 3660 mm Y axis working area: 1550 mm Working Table: Flat table Main Electrospindle power: 12 KW Number of controlled axes: 3 axes Iedpfox A E Tfex Anwjau Total number of drilling spindles: 12 Total number of tool changer positions: 15

Condition: used, machine/vehicle number: 008132, Type of edging: Thin edge, Thick edge Gluing System: EVA Hotmelt Premilling Unit: yes Corner Rounding Unit: yes Max feed speed: 18 m/min Maximum panel thickness: 60 mm Operating Units: 7 nr Isdpfx Anjw Idc Rowjau

Condition: used, machine/vehicle number: 008108, Max width workable: 1050 mm Iodpfx Anew Idduowoau Max length workable: 2400 mm Max height workable: 250 mm

Condition: used, Year of construction: 2018, 3650 x 1560mm Matrix Table 4455mm x axis stroke [for routing] 1930mm y axis stroke [for routing] 250mm z axis stroke 150mm Max panel clearance X / Y Axes vectorial speeds 43m/min Z axis speed 15m/min Ijdpjzd Utwjfx Anwoau Power 2000 Routing Unit 9 / 10hp for HSK63F toolholders. Speeds from 12000 to 18000rpm 250m3 / hr vacuum pump Telesolve long distance remote diagnostic system Fitted with following options Interpolating Z axis Centralised dust extraction system Pre-setting for angle driven heads TR10 Fixed 10 position toolchanger [ mounted on side of table ] R8 Rapid 8 position rotary toolchanger [ mounted on operating unit support beam ] 2 x Electronic detecting systems for panel height and tool length 3 x Additional rear stops Automatic centralised lubrication "PC Office" Console for easy movement around machine. Including Windows XP operating system 15" Colour monitor Keyboard CD Rom drive 40 Gbyte hard disk 128MB Ram Serial nr - AA2 / 000268? Year - 2008 CE Compliant Condition - Good

Condition: good (used), Year of construction: 2018, Control Fanuc 31i, Iaodpozd Eulsfx Anwju bar capacity 20mm, maximum cutting diameter 20mm, Stroke of headstock 205mm, maximum drilling diameter 10mm, maximum tapping capacity M8, milling speed 8000rpm, spindle speed 10,000rpm, C axis 0.001 degree, FMB barfeed, number of controlled axis X1, X2, Y1, Y2, Z1,Z2, C1 , C2.

Condition: good (used), Year of construction: 2016, Control Fanuc 31i, Iedpfozd Etnox Anwsau bar capacity 38mm, stroke of headstock 320mm, maximum drilling diameter 23mm, maximum tapping capacity M16, milling speed 6,000rpm, spindle speed 7,000rpm, sub-spindle 7,000rpm, C axis 0.001 degree, FMB barfeed, number of controlled axis X1, X2,X3, Y1,Y2, Z1,Z2,B, C1, C2 .

Condition: good (used), Edge milling machine, edge milling device, chamfering machine, mobile milling machine, weld edge former, weld edge former, weld preparation, weld edge forming machine, deburring device, deburring machine -Edge milling machine: with sliding carriage, maximum travel 500 mm -Depth adjustment: 0 - 6 mm Iaedpfx Aneyn N Ilowsu -Drive: 0.5 kW -Adjustable speed: 1200 - 8000 rpm -Angle: 45° -Accessories: Widia milling head, diamond grinding wheel, vacuum cleaner -Dimensions: 490/870/H1150 mm -Weight: 106 kg

Condition: ready for operation (used), Year of construction: 2006, machine/vehicle number: AA1/015406, functionality: fully functional, operating hours: 14,808 h, working width: 1,300 mm, spindle speed (max.): 24,000 rpm, working height: 200 mm, working length: 3,110 mm, No minimum price – guaranteed sale to the highest bidder! The machine is still in operation and can be inspected while powered on. TECHNICAL DETAILS Working area X-axis: 3,110 mm Working area Y-axis: 1,300 mm Working area Z-axis: 200 mm Maximum travel X-axis: 3,500 mm Maximum travel Y-axis: 1,815 mm Maximum travel Z-axis: 440 mm Table length: 3,050 mm Table width: 13 mm Number of milling spindles: 1 Spindle speed: 600 - 24,000 rpm Number of controlled axes: 5 Horizontal drilling spindles: 6 Vertical drilling spindles: 12 Tool changer positions: 16 MACHINE DETAILS Iajdpfxezdy E Sj Anwju Main motor power: 11 kW Main motor power of the vacuum pump: 5.5 kW Capacity of the vacuum pump: 250 m³/h Dimensions & Weight Dimensions (L x W x H): 9,000 x 2,450 x 2,850 mm Installed dimensions (L x W x H): 4,600 x 6,500 x 3,400 mm Shipping dimensions: 9,000 x 2,450 x 2,850 mm Empty weight: 4,000 kg Shipping packages: 1 unit Operating hours: 14,808 h EQUIPMENT Milling table: Beam table Tool clamping system: HSK-F63 Material clamping system: Pneumatic Drilling tool Saw unit System/Software: Xilog plus Safety feature: Safety mat Vacuum pump: Becker CNC options: Chip conveyor, Hand control CNC documentation: User key/licenses

Condition: good (used), Year of construction: 2017, NUMERICALLY CONTROLLED EDGE BANDER WITH PRE-MILLING (SPINDLES) & CORNER ROUNDING UNIT Brand: SCM Model: K 360 HP-T-ER1 Serial No.: AH/120944 Ref: 123304 Year: 2017 WORKING CAPACITIES: - Panel height to be machined: 8 - 58 mm Thickness 10 to 45 mm when using rounding unit - Panel length for edgebanding: 210 to 2500 mm - Minimum panel width to be machined: 90 to 1100 mm - Edge thickness in coil: 0.4 to 3 mm without rounding max 3 mm with rounding unit - Edge thickness in strips: max 6 mm without rounding max 3 mm with rounding unit - Edge width: panel thickness + 2 mm each side - Feed rate: 11 m/min - Minimum gap between panels: 600 mm - Panel overhang beyond the transfer chain: 30 mm MACHINE CONFIGURATION: - StarTouch control - Prepared for barcode reader - Reel holder table Ø800 mm - Front extension table - Easy size: digital positioning of infeed fence and panel passage height - Anti-adhesive spray unit - Pre-milling unit (RT-V trimmer) 12,000 RPM - Infrared panel preheating at infeed - Glue application unit (VC-VM) with interchangeable glue pot for granules, capacity: 1 kg. Heating time: 12 minutes Pneumatic pre-cut guillotine Digitally positioned pressure station with 3 rollers (1 roller powered and with timer) - Trimming unit (end cutting) tiltable 0-20° 12,000 RPM - Top/bottom flush trimming unit with digital positioning and copying system. 2 mm radius (or chamfer) router 12,000 RPM - Corner rounding unit R2 mm, 12,000 RPM, digital positioning - Top/bottom R1 & R2 mm radius scrapers with digital positioning - Top/bottom straight scrapers - Edge finishing spray device (Nebulizer) OTHER FEATURES: - Pre-milling group motors: 2x2 kW - End trimming motors: 2x 0.19 kW - Lift/lower motor: 0.30 kW - Feed motor: 1.1 kW - Flush trimming group motors (milling): 2x 0.65 kW - CE Marked - Lockable isolator, emergency stop buttons - Power supply: 380 V, three-phase, 50 Hz - Pneumatic supply: 8-10 bar max, dry air - Extraction: 1x Ø100 mm and 5x Ø80 mm Spindles: 780 m³/h Edge trimming: 360 m³/h Scrapers: 2x360 m³/h Max. footprint in working order: 10.80 x 2.40 m Dimensions for transport (LxWxH): 4.85 x 1.20 x 1.70 m Ijdpfx Anjrx S Ipeweau Weight: 1568 kg Machine supplied with mounted tools, manual, spare parts list and diagrams.

Condition: ready for operation (used), Year of construction: 2012, functionality: fully functional, Equipment: CE marking, Model Accord 30 FX Year November 2012 - First time installed in 2013 Machine type 3-axis CNC machining center for solid wood, doors, windows, stairs, and joinery Working feld: X 3680 by Y 1680 mm. Z-axis travel 250 mm BRC multifunction unit for cutting, routing and boring both vertically DUO HT 12 Machining Head Syncron 8 Frontal and rear row of stops H50 for plates Prearrangement for clamps and for pneumatic clamps for plate Automatic positions system for placemant of the support beams and vacuum cups. 16 adjustable suction cup H50 145x145 mm. 8 adjustable suction cup H50 145x55 8 adjustable suction cup H50 180x65 Nr 8 Lifting supporters Motoriserd belt for wastes removal. Main electro spindle power 12 kW Maximum spindle speed 20,000 rpm Tool holder HSK-F63 Tool changer for 12 tools Vertical drilling spindles 10 X-Y rapid speed Up to 90 m/min Vacuum pump capacity 250 m³/h Iaodszbz Htjpfx Anwsu Maximum workpiece height 250 mm Supplementary base for bar Matic TecPad mobile console Pro-Speed Safety system XiLog Maestro soft wear Approximate machine weight 5 000 kg Volt 400 AC 50 Hz This machine still is in daily use to the end of week no. 24 Machine first time installed in 2013 and it is working on its orginal place. Come from Norway also low number of workin hours during the years. Rekman Maskin & Service - service of cnc woodworking machines since 1986

Condition: used, Year of construction: 2014, machine/vehicle number: AH /117836, functionality: fully functional, year of last overhaul: 2025, Equipment: documentation/manual, Ideal machine for edge banding of solid wood panels MACHINING CAPABILITIES: - Panel height (thickness) to be machined: 8 to 60 mm - Router pass: max. 90mm², 0 to 3 mm - Minimum panel length to be machined: Iajdszcpixopfx Anwou 140 mm with an edge thickness >3 mm 200 mm with an edge thickness between 3 and 12 mm - Panel width to be machined: up to 2000 mm - Edge thickness: 0.4 to 3 mm in coil form, up to 12 mm in strip form Panel overhang relative to the chain (part protrusion): min. 30 mm - Edge width: recommended overhang: panel thickness + 4 mm - Feed system (2 feed speeds) 18 m/min for thin edges 12 m/min for strip edges (solid wood) - Distance between parts (depending on feed speed): recommended min. 800 mm MACHINE COMPOSITION: - Unwinding table, useful diameter: Ø780 mm - Electric positioning infeed guide - Chain conveyor belt, work surface height from the ground: 96 cm - Front extension table with rollers (serves as a support up to 2 m) - RT-E sanding unit (edge trimmers or routers) 2 x 4 kW, 9000 rpm - VC gluing unit Infrared preheating of the edge Pre-feeder for EVA granules, indicative consumption 8.5 kg/h "Fastblock" glue pot, pneumatic pre-cutting shear Pressing with 4 rollers, including 1 motorized roller, pressure with electric adjustment - K-SEL end trimming unit Rotation speed: 12000 rpm, motor inclination from 0 to 15° - RFK top/bottom flush trimming unit Rotation speed: 12000 rpm - RI 800 chamfering/flush trimming unit with copy pad Rotation speed: 12000 rpm, spindle inclination from 0 to 25° - GLC compact sanding unit, 1400 rpm Belt: 75 x 2700 mm, inclination from 0 to 5°, adjustable pneumatic pressure - SPN polishing station with textile polishing brush - Motorized operator return, useful width 1 m, with 2 roller tracks, spacing 34 cm Air cushion track and belt conveyor. Arrival height from the ground: 79 cm OTHER CHARACTERISTICS: - General power supply: 400 V, three-phase + N + T, 50 Hz - Installed power: IN 52 A nominal - Pneumatic supply: 8 - 10 bars, dry air, working pressure: 6 bars - Extraction: 6 x Ø50 mm, 1 x Ø80 mm, minimum flow rate 3000 m3/h - CE marking, lockable disconnect switch, emergency stop buttons

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 20 [mm] - Max. machining length : 205 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 8000 [rpm] - Spindle power : 2.2 [kW] - C axis indexing precision : 1 [°] - Number of guide bush holders : 1 GUIDE BUSH HOLDER 1 - Number of positions : 10 - Number of motorized positions : 4 END ATTACHMENT - Number of positions : 7 SECONDARY OPERATION - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] Isdpfxoy Dim Ij Anwoau POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 7 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2200 x 1200 [mm] - Machine height : 1700 [mm] - Machine weight : 2200 [kg] MACHINE HOURS - Number of hours under power : 107555 [h] - Number of working hours : 91025 [h] - Number of spindle hours : 54783 [h] EQUIPMENT - CNC : Fanuc 300is-model A - Rotating guide bush - Parts catcher - Parts conveying strip - Ejection of workpiece - Coolant tank - Bar loader : FMB turbo 3-26 / 3200 A

Condition: used, TECHNICAL DETAILS - Number of axes : 6 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 20 [mm] - Max. machining length : 205 [mm] Iaodpfsy Dimzjx Anweu - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 8000 [rpm] - Spindle power : 2.2 [kW] - C axis indexing precision : 1 [°] - Number of guide bush holders : 1 GUIDE BUSH HOLDER 1 - Number of positions : 6 END ATTACHMENT - Number of positions : 8 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] SECONDARY OPERATION - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 7 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2200 x 1102 [mm] - Machine height : 1700 [mm] - Machine weight : 2200 [kg] MACHINE HOURS - Number of hours under power : 94549 [h] - Number of working hours : 76096 [h] - Number of spindle hours : 57727 [h] EQUIPMENT - CNC : Fanuc 18i- TB - Rotating guide bush - Parts catcher - Parts conveying strip - Ejection of workpiece - Coolant tank * with high-pressure pump - Bar loader : FMB TURBO2-20/3200A - Electric transformer

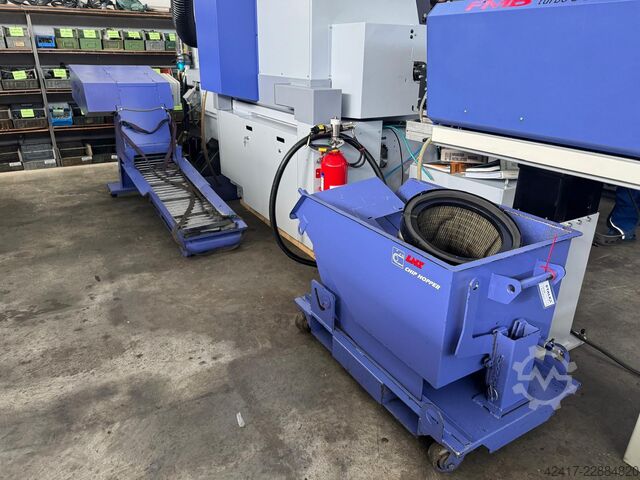

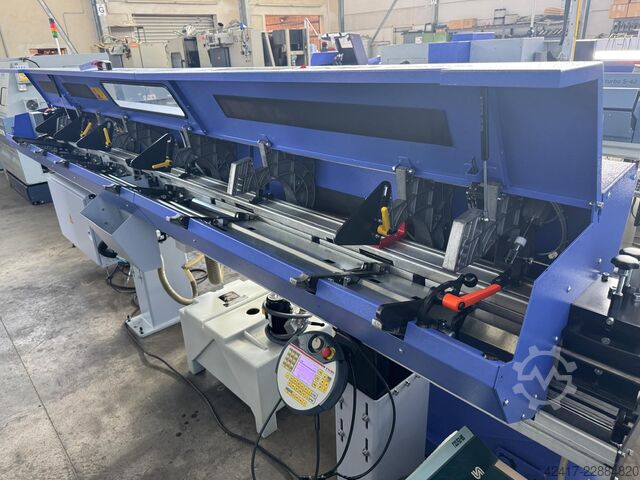

Condition: used, TECHNICAL DETAILS - Number of axes : 8 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 32 [mm] - Travel : 310 [mm] - Spindle speeds : 350-7000 [rpm] - Spindle power : 7.5 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 32 [mm] - Spindle speeds : 350-7000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.001 [°] GUIDE BUSH HOLDER 1 - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 5000 [rpm] GUIDE BUSH HOLDER 2 - Number of positions : 6 END ATTACHMENT - Number of positions : 4 SECONDARY OPERATION - Number of positions : 4 POWER SUPPLY - Supply voltage : 380 [V] - Total installed power : 20 [kW] WEIGHT & DIMENSIONS - Machine floor space : 1700x2515 [mm] - Machine height : 1700 [mm] - Machine weight : 2900 [kg] MACHINE HOURS - Number of working hours : 59144 [h] - Number of spindle hours : 42219 [h] EQUIPMENT - CNC : Fanuc - Rotating guide bush - Parts catcher - Parts conveying strip - Ejection of workpiece - Coolant tank * with high-pressure pump : SFB-200 [bars] Iodpfx Aoy Dimusnweau - Bar loader : FMB 3-32/3200A

Condition: used, Year of construction: 2003, equipped with Tersa cutterblock and electric height adjustment, tables measured with top precision max. 1/10 mm completely set up used top condition cleaned functionally tested partially refurbished Manufacturer: SCM Type: FS 410 Year of manufacture: 2003 Machine no.: 159435 CE type-tested GS dust-tested Number of cutters: 3 Feed rate m/min: 6 + 12 Bridge guard Slotted table lips Low-noise table lips Motorized automatic brake Tersa cutter system Rubber draw roller Iedpfjzd Hdnjx Anwoau Digital display for planing height Electric height adjustment with fine adjustment Extraction hood integrated Motor kW: 5.5 Planing width approx. mm: 410 Planing height approx. mm: 240 Table length approx. mm: 2100 New price approx. €: 7500.00 Extraction connection mm: 100 Space requirement approx. L x W x H mm: 2100x900x1300 Weight approx. kg: 710 Location: 97447 Gerolzhofen, free loading, unpacked Handover in the current condition as inspected, without warranty or guarantee.

Condition: used, Year of construction: 2016, MORBIDELLI AUTHOR M400 MAIN FEATURES 5-AXIS MACHINING UNIT "PRISMA: QUALITY AND PRODUCTIVITY AT THE HIGHEST LEVEL XILOG MAESTRO SOFTWARE: EXTREMELY SIMPLE MATIC PROGRAMMING" WORKTABLE: ONE POSITIONING FOR MULTIPLE MACHINING OPERATIONS TECHNICAL DATA AUTHOR M400 AXES Working area X-axis (inside stop) mm 3,680 Working area Y-axis (max. loadable piece on rear stops) mm 1,680 Workpiece passage Z / number of Z axes mm 170 / 1 Workpiece length with pendulum machining mm 1,650 Travel speed X-Y axes Pro-Speed m/min 85 Z-axis speed m/min 30 INSTALLATION Installed power KVA 62÷82 Compressed air requirement NL/min 400 Extraction air requirement m³/h 4,430 Extraction air speed m/s 25 Extraction nozzle diameter mm 250 GENERAL CHARACTERISTICS CNC-controlled drilling and milling center in gantry design and work table with workpiece supports, for carrying out: - vertical drilling on the panel surface - horizontal drilling on all four sides of the workpiece - groove milling with disc milling cutters - general milling work 3-4-5 axes MACHINE STRUCTURE The basic structure is a monolithic construction made of thick-walled steel. It is stiffened by welded reinforcements across the entire machine bed, making it extremely stable. The table shape used, with a large base, is the secret to ensuring lasting precision and stability. The machine layout allows the user optimal workflow with a minimum of space requirements. The mobile gantry support is made of a solid monoblock. It is positioned in the X direction on prismatic ground guides via recirculating ball slides. On this mobile unit carrier, the work unit is mounted on prismatic, ground guides and recirculating ball slides. All axes are moved on large-section prism linear guides and recirculating ball bearings with a large contact surface, ensuring optimal gliding even at the highest speeds and accelerations. Precise and rapid positioning of the movable gantry (X-axis) is achieved by a pinion and rack with helical teeth. Large-section recirculating ball screws ensure precise positioning of the work unit along the movable gantry (Y and Z axes). MOTORS, DRIVES AND INVERTERS Perfect mechanical dynamics and maximum positioning accuracy are controlled by high-quality drives and brushless motors, designed to achieve speeds of up to 90 m/min while ensuring the best finishing quality. CONTROL The control unit consists of a numerical control for milling and drilling machines with "Xilog Maestro" graphical user interface based on the Windows 7 Office operating system. 17-inch LCD color screen. QWERTY keyboard. Tilting control panel. Machine interface with Xilog Maestro software. Xilog Maestro Features Programming Parametric graphic programming Import of DXF files (2D; SPLINE, POLYLINE 3D geometries), linear or circular interpolation in three axes, linear in space, spiral in the selected plane. Programming with graphic and syntax aids for drilling and milling operations Automatic optimization of drilling operations and tool change cycles Possibility of Plate zero point shift for drilling on inclined or curved plate sides Iaodpfx Aney Dta Ssweu

Condition: used, Year of construction: 2007, Working area: 2780 x 1140 mm (vertical milling) 2500 x 950 mm (horizontal drilling) X-Y travel: 2980 x 1271 mm Z-axis travel: 200 mm Passage height: 180 mm The structure of the base body is a monolithic construction made of thick-walled steel. It is stiffened by welded triangular plates across the entire machine bed, making it extremely stable. The triangular shape used for load-bearing parts, with a large base, is the secret to ensuring lasting precision and stability. The machine layout allows the user optimal workflow despite minimal space requirements. The base body constructed in this way therefore offers the machining unit a balanced and secure base with particularly good load distribution. The mobile unit carrier is made of a solid monoblock. It is positioned in the X direction on prismatically ground guides via recirculating ball slides. On this mobile unit carrier, the working unit is mounted on prismatic, ground guides and the recirculating ball slide. Description of the units and accessories (basic) Drilling unit: Drilling head with 10 + 4 spindles · 6 individually accessible vertical spindles in X · 4 individually accessible vertical spindles in Y · 2 horizontal spindles in X (1 + 1) · 2 horizontal spindles in Y (1 + 1) · Speed: 4,000 rpm · Power: 2.2 kW · Grid: 32 mm · Drill chuck: M 10 with 11 mm fitting · Extraction nozzle: D = 160 mm Vertical milling unit (position 2) · Tool chuck HSK 63F · Speed 1,500 - 24,000 rpm continuously adjustable via inverter · Motor power 4.4 kW (6 HP) from 12,000 rpm (S1) · Right-hand / left-hand rotation · Ceramic bearings · Scope of delivery: 4 tool chucks (right) without collet chuck · Tool changer · Side-mounted tool magazine 7-way (TR7) with full encapsulation to prevent chipping · 7 tool positions for HSK 63F tool holder arranged in a row · maximum tool diameter D=120 mm · maximum weight per holder 4.5 kg · maximum tool weight of all tools 20 kg (TR7) · angular gears can be accommodated Horizontal milling unit (position 1) Horizontal unit with two opposite outputs for milling and grooving. · Speed 9,000 - 18,000 rpm continuously variable via inverter · 1 output for collet 3-20 mm (ER 32) · 1 output for saw/collet 3-12 mm (ER20) (For saw D = 120 mm / bore 50 mm) · Motor power 3 kW (4 HP) · Max. tool diameter front milling: 20 mm · Max. tool length front milling: 110 mm · Max. tool diameter rear milling: 12 mm · Max. tool length rear milling: 80 mm · Max. saw blade diameter: 100 mm · Bore saw blade (ER 32): 50 mm · Mandrel diameter saw blade (ER 20): 12 mm Work table The work table is designed to guarantee the operator maximum freedom of movement. The vacuum quick clamping system ensures maximum flexibility with precise positioning and optimal grip of the workpieces. · 4 supports 900 mm continuously adjustable in X · 8 vacuum suction cups round D = 110 mm continuously adjustable in Y (2 per support) · 2 stops in X (1 x left / 1 x right) · 1 stop in Y per support (total 6) · The retractable reference stops are controlled via CNC. · Scope of delivery: 4 plug-on adapters for suction cups · Pendulum machining standard (2 working areas) Axis movement The drive system in X, Y and Z is carried out via ground ball screws of the highest precision class. The ball drive screw of the X-axis is located exactly in the center Iaedpfx Aox Twdyenwou
