Used Tsugami Tsugami Np-32 Turning Machine for sale (70,744)

Year of construction: 1992, condition: used, You can check under power, after scheduling an appointment. Dismantling, moving and transporting the machine is entirely the customer's responsibility. We can help with loading as needed. Parity: EXW Székesfehérvár. TSUGAMI NP-32 CNC Lathe Machine Machining rangers Machining diameters 8 to 32 mm Maximum machining length 210 mm (one stroke) Maximum hole diameter 20 mm (drill) Maximum thread diameter M14 (tap) Slide travel X1 slide (front slide) 85 mm (80 + 5) X2 slide (rear slide) 115 mm (110 + 5) Z1 slide (headstock) 215 mm Rapid-traverse speed For X1, X2 and Z1 slides 8m/min Main spindle Rotation speed For heavy-duty cutting (standard) 35 to 4,500 rpm (stepless) For high-speed cutting (optional) 60 to 8,000 rpm (stepless) Bore diameter of chuckoperating tube 36 mm Minimum indexable angle (commandable value in degrees) 5/0.00 (C-axis) C-axis rapid-traverse speed -/60rpm Spindle-center height 900 mm Turrets Number of turrets 2 Number of tool-mounting stations 12 (6 stations x 2) Number of rotary-tool-mounting stations 12 (all stations on front and rear turret) Tool sizes Turning tools 16 (square) x 80 mm Drill-holder hole diameter 35 mm Indexing method Random Rotary-tool spindle speed For heavy cutting 224 to 2,240 rpm (stepless) For high-speed cutting 475 to 4,750 rpm (stepless) Machining rangers Machining diameters 8 to 32 mm Maximum machining length 210 mm (one stroke) Maximum hole diameter 20 mm (drill) Maximum thread diameter M14 (tap) Slide travel X1 slide (front slide) 85 mm (80 + 5) X2 slide (rear slide) 115 mm (110 + 5) Z1 slide (headstock) 215 mm Rapid-traverse speed For X1, X2 and Z1 slides 8m/min Main spindle Rotation speed For heavy-duty cutting (standard) 35 to 4,500 rpm (stepless) For high-speed cutting (optional) 60 to 8,000 rpm (stepless) Bore diameter of chuckoperating tube 36 mm Minimum indexable angle (commandable value in degrees) 5/0.00 (C-axis) C-axis rapid-traverse speed -/60rpm Spindle-center height 900 mm Size & weight of machne Machine size ( L x D x H ) 2,900 x 1,650 x 1,615 mm Machine weight 3000 kg Required total electrical capacity 25 KVA Required air volume and pressure 100NL/min. at not less than 4.5 kg/cm² Year of manufactured 1992 Serial number 9502 Sub-spindle Maximum thread diameter M12 (brass) Machining diameters 8 to 32 mm Spindle stroke (Z2-axis) 215 mm Spindle speed 300 to 3,000 rpm Spindle motor 1.5 kW 4P (inverter) Motors For main spindle 5.5/7.5 kW (AC spindle motor) For attachment drive: Front 0.75kW 4P (inverter type) Rear 1.5kW 4P (inverter type) For hydraulic motor 0.75kW 4P For coolant pump 0.25 kW For lubricating-oil pump 4 W Dodpfx Abjidqvcsfeuu Tanks For hydraulic oil 30 liters For coolant 150 liters For lubricating oil 2 liters Size & weight of machne Machine size ( L x D x H ) 2,900 x 1,650 x 1,615 mm Machine weight 3000 kg Required total electrical capacity 25 KVA Required air volume and pressure 100NL/min. at not less than 4.5 kg/cm² Year of manufactured 1992 Serial number 9502 Freight basis: EXW, unpackaged

Condition: good (used), Heidelberg GT 32×46 Hot Stamping Machine Reviewed and ready for production. The machine is ready for hot stamping and die cutting. Machine format: 32x46cm Press force: 60t Weight: 600gsm Operating speed: 4000 sheets/h This model is designed for hot stamping and features a large heating plate. Weight: 2300kg Holder manufactured by Hakro. Dsdpfjy E Exvex Abfjuu Includes frame, fillers, and letterpress locks.

Condition: used, Year of construction: 2003, Technical details: Dedjzcnq Ijpfx Abfeuu weight of the machine ca.: 9,5 t

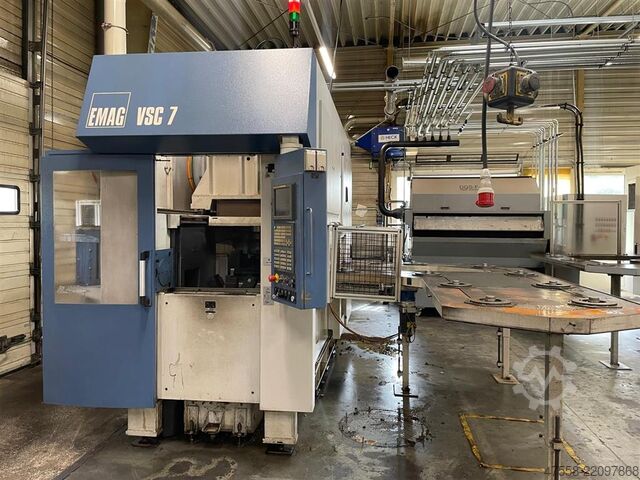

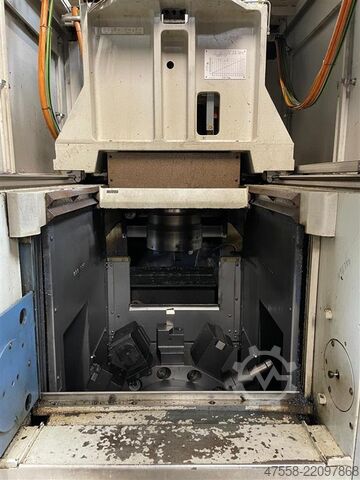

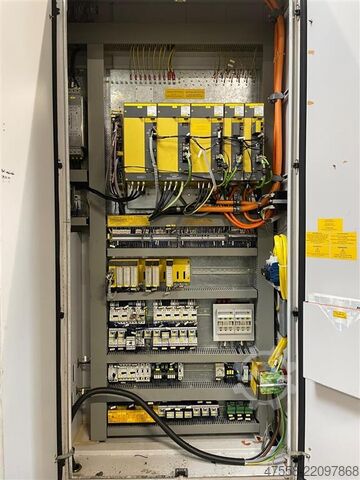

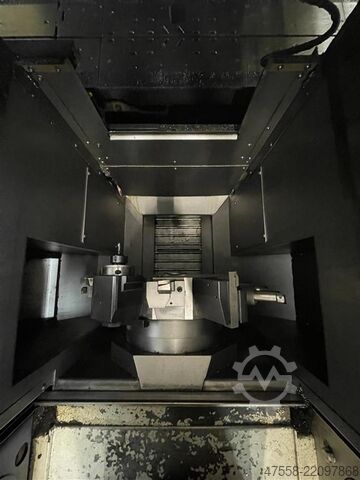

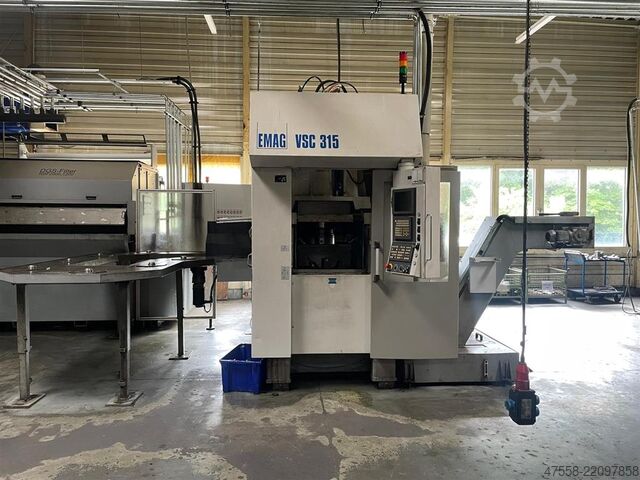

Condition: used, Year of construction: 2008, Technical details: x-travel: 850 mm y-travel: - mm z-travel: 315 mm swing diameter: 420 mm spindle speed:: 3400 U/min feed power: 11 kN tool taper: VDI 50 workpiece height max.: 160 mm workpiece diameter:: max. 340 mm tool changer with: 12 places feed power: 11 kN Total power requirement: 45 kW Weight approx.: 10 t complete plant: 5,3 x 4,19 x 3,5 m dimension machine xH: 3,8 x 1,45 x 3,5 m • Highly productive CNC vertical turning machine • Perfect for high-volume and mass production • Loading time: 4–6 seconds (depending on workpiece and clamping device) Duodpfx Abozcn Tpsfju • Chip-to-chip time: 8–10 seconds (depending on process and workpiece) • Spindle nose: DIN 55 026 – Size 11 • Front spindle bearing diameter: Ø 160 mm *

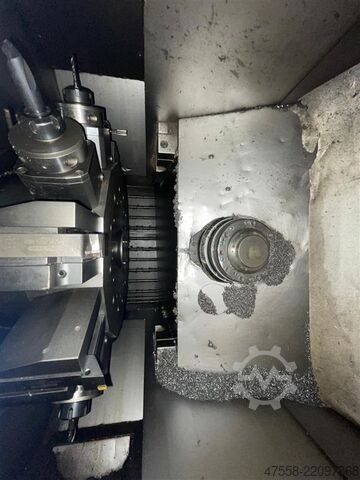

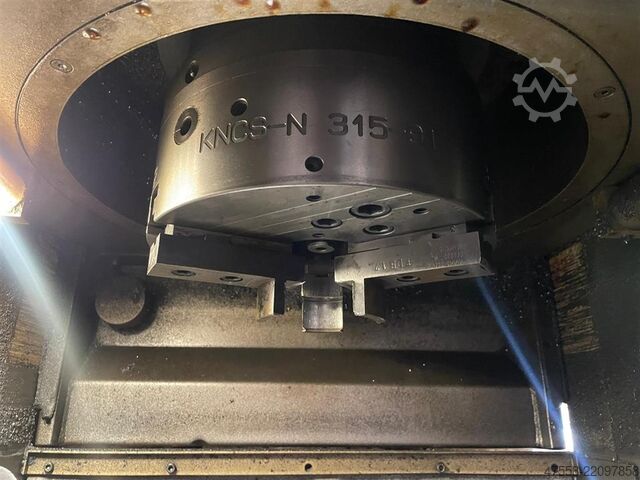

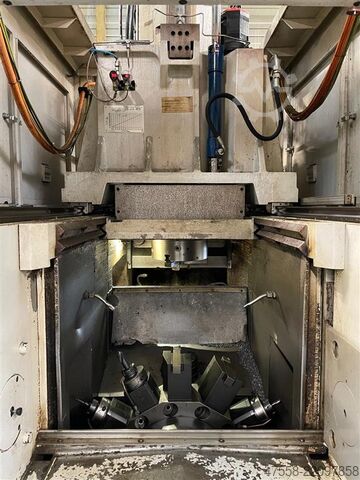

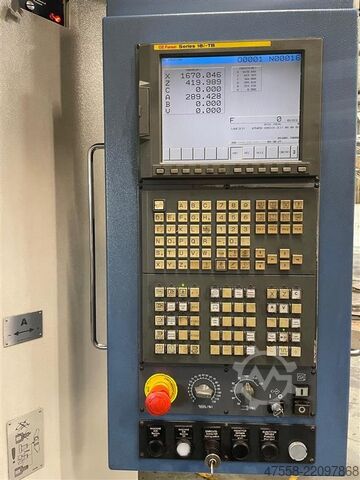

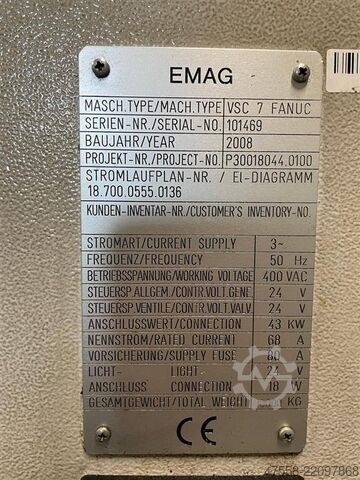

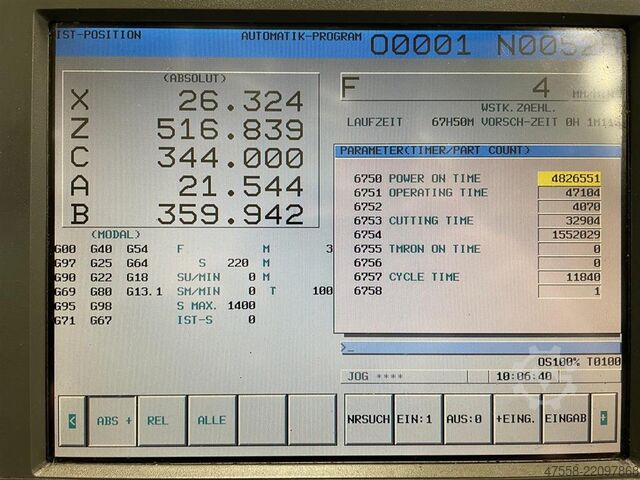

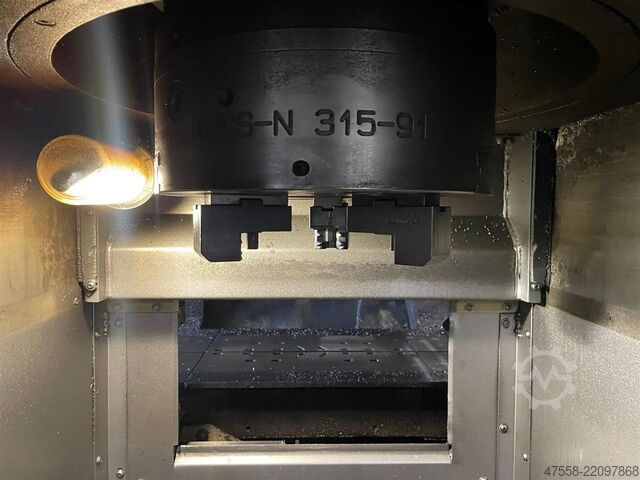

Condition: used, Year of construction: 2007, Technical details: x-travel: 680 mm y-travel: - mm z-travel: 250 mm swing diameter: 340 mm spindle speed:: 3400 - 4300 U/min tool changer with: 12 places spindle diameter in front bearing: 120 mm rapid traverse x + z axis: 45 / 30 m/min Total power requirement: 43 kW Weight approx.: 12 t complete plant: 9,0 x 4,0 x 3,3 m dimension machine xH: 3,8 x 1,5 x 3,3 m • Highly productive CNC vertical turning machine • Perfect for high-volume and series production • Commonly used in the automotive industry Duodszcn Tcopfx Abfju • Includes various accessories and live tooling (powered tools) *

Condition: used, Year of construction: 2012, turning diameter 320 mm turning height 750 mm Control Siemens max. turning speeds 4500 min/-1 drive capacity - main spindle 26,8 / 20,9 kW max. torque 256 / 200 Nm spindle bore 52 mm spindle head KK A6 (DIN 55026) chucking diameter max. 315 mm number of tool places 8 Pos. tool taper Capto C5 max. workpiece diameter 50 mm Dujdpfx Ajzbmzpebfsu max. workpiece weight 0,5 kg x-axis 450 mm z-axis 300 mm rapid traverse x 45 / z 40 m/min total power requirement 68,3 kW weight of the machine ca. 11,0 t dimensions of the machine ca. L 3,7/4,2 x B 1,6 x H 3,0 m In our opinion, the machine is in very good condition condition and can be inspected under power by appointment. Accessories, tools and clamping devices shown are only part of the scope of delivery if this is noted in the additional information. Changes and errors in the technical data and information as well as Subject to prior sale!

Condition: excellent (used), We invite you to contact us for further information and to arrange a product presentation appointment Dedownxhpjpfx Abfsuu

Condition: ready for operation (used), Technical data: Power kW 0.9 Connection 380 V/50 Hz Speed 2,900 rpm Disc dimensions 175/60/51 Weight 117 kg Duedpoza Dwxsfx Abfeu Equipment:  2 ATS tables (spring-mounted table)  2 diamond cup wheels 175x60x51 mm  Column design

Condition: ready for operation (used), Year of construction: 1999, Make: GILDEMEISTER Type of machine: CTX 400 Serie Year of manufacture: 1999 Control system: HEIDENHAIN CNC PILOT Machine's weight: 5.500 kg Cutting diameter: 420 mm Driven tool: ja Dsdpfezawh Rsx Abfeuu Turning length: 635 mm Overall dimensions: 4,0 x 2,0 x 2,0 m Tool turret - slots: 12 Pl. C-axis: 360° (Genauigkeit 0,0001°)

Condition: ready for operation (used), Year of construction: 2000, Make: DAEWOO Duodpfx Abezawa Hofsu Type of machine: Puma 230 Year of manufacture: 2000 Control system: Fanuc 18-T Machine's weight: 4.500 kg Speed range: 4.500 U/min Cutting diameter: 350 mm Turning length: 500 mm Overall dimensions: 3,0 x 1,8 x 1,9 m Tool turret - slots: 12 Pl. Spindle opening: 65 mm

Condition: not inspected (used), functionality: fully functional, spindle bore: 65 mm, turning diameter: 500 mm, power: 10 kW (13.60 HP), manufacturer: Tool Factory Budapest type: EU500/1500 Dsdpfxjqwlmqs Abfjuu turning length: 1500mm turning diameter: "over bed": 500 mm above cross slide: 315 mm revolution: 18 degrees. speed range: 25-1250 rpm main spindle hole: 65mm spindle bore: 63mm tip holder insert sleeve cone: 72 metric lathe tip taper: morse 5. main engine power: 10kw mains voltage 3 phases 380V 50Hz machine length: 3400mm total width of the machine: 1210mm height: 1265 mm machine weight: 3550 kg

Condition: used, Spindle moulder SCM T130 NPS - used - fine-adjustable fence, tenoning and slotting table, right-/left-hand rotation Dsdew Nv Nfjpfx Abfjuu ----- Technical Data ----- Table size: 1,080 x 750 mm, Spindle diameter: 30 mm, Speeds: 3,000/4,500/6,000/7,000/10,000 rpm, Extraction port Ø: 120 mm, Lower extraction port Ø: 120 mm

Condition: excellent (used), functionality: fully functional, spindle bore: 46 mm, turning diameter over bed slide: 350 mm, turning diameter over top slide: 200 mm, center height: 175 mm, turning length: 800 mm, spindle speed (max.): 2,000 rpm, three-jaw chuck diameter: 200 mm, A Nardini lathe is for sale in good used condition, as shown in the photos. Technical specifications: Dsdpfx Ajy Ughkebfouu • Manufacturer: Nardini • Model: MS-175E • Center-to-center distance/turning length: approx. 800 mm • Center height: approx. 175 mm • Turning diameter over bed: approx. 350 mm • Turning diameter over carriage: approx. 200 mm • Max. spindle speed: approx. 2,000 rpm • Spindle bore: approx. Ø46 mm • Röhm four-jaw chuck: approx. Ø 200 mm • Condition: Used, in working order Shipping via freight forwarder available (inquire for ZIP code) International buyers are welcome! You will receive an invoice with VAT shown. Viewing/pickup is possible by appointment in 42855 Remscheid. Sale from location 42855 Remscheid, ex works. Subject to errors in technical data and prior sale.

Condition: excellent (used), Year of construction: 2024, functionality: fully functional, LATHE FOR EDUCATIONAL USE For sale is a Drechselmeister Stratos FU 230 LV (long version) lathe with a center distance of 1,000 mm. The machine is in very good condition – it is a lathe used for educational purposes and has few operating hours. Therefore, it comes with a full warranty. Dujdpfx Abjwud Izsfou Technical data: - Center height 230 mm - Swing diameter 455 mm (with optional external turning attachment 800 mm!) - Center distance approx. 955 mm for the SPECIAL MODEL STRATOS FU-230 LV (can be extended further with an optional extension table!) - Spindle connection M33 x 3.5 (hardened) with ASR (Euro) drain safety groove - Spindle and tailstock taper MK2 - Speeds (2 belt stages): 60 – 1,350 rpm and 180 – 3,750 rpm - Quill travel 100 mm (with scale and trapezoidal thread) - Motor 2 hp (connection 230 V) - Weight SPECIAL MODEL LV 195 kg The machine is located in A-5431 Kuchl and can be inspected at any time during our opening hours. Subject to prior sale! Freight shipping: Austria: € 105.00 incl. VAT. Germany: € 125.00 incl. VAT. South Tyrol: € 150.00 incl. VAT. Related terms: Lathe, turning machine, machine tool, wood lathe, turning, lathe tool, woodturning, machining, machine Reference: 5912

Condition: excellent (used), Year of construction: 2023, functionality: fully functional, LATHE FOR WOOD TURNING For sale is a used lathe, model Drechselmeister Twister FU 200, with a center distance of 715 mm. The machine is in very good condition. Technical data: - Center height 200 mm - Swing diameter 395 mm (700 mm with optional external turning attachment) - Center distance approx. 715 mm (can be extended optionally) - Spindle connection M33 x 3.5 with ASR (Euro) drain safety groove - Spindle and tailstock taper MK2 - Speeds (2 belt stages): 60 – 1,350 rpm and 180 – 3,750 rpm - Quill travel 100 mm (with trapezoidal thread), prepared for ER-25 drill chuck - Motor 1.5 kW / 2 hp (230 V connection) - Brake switch, 2-stage - Weight (standard version) 166 kg Dsdpfx Abewudkiefeuu The machine is located in A-5431 Kuchl and can be inspected at any time during our opening hours. Subject to prior sale! Shipping by freight forwarder: Austria: € 95.00 incl. VAT Germany: € 120.00 incl. VAT South Tyrol: € 140.00 incl. VAT Related terms: Lathe, turning machine, wood lathe, turning, woodturning, turning tools, wood turning, machine Reference A0117

Year of construction: 1984, condition: ready for operation (used), Multi-edge lathe Dusdpfxjmn Tpdj Abfou For 2-4-6 edge turning on turned parts . Fabr.WERA Type: Profilator RSM-150 Bj.1984 Application machine documentation Completely available.

Condition: used, Year of construction: 2005, turning diameter 140 mm swing diameter 250 mm turning height 380 mm Control SIN840 spindle turning speed - stepless 1 - 6.000 U/min power capacity at 40 % load 38,00 kW Spindle head DIN55026 - Size 6 spindle diameter in front bearing 110 mm travel -x axis 300 mm feed X-axis 1 - 30.000 mm/min rapid traverse X-axis 30,00 m/min feed force X axis 9.000 N travel -z axis 700 mm feed Z-Axis 1 - 40.000 mm/min rapid traverse Z-axis 40,00 m/min feed force Z axis 10.000 N no. of tools in turret 1 11 no. of tools in turret 2 11 tool taper VDI 40 total power requirement 70,00 kW weight of the machine ca. 22,00 t dimensions of the machine ca. 5,80 x 8,60 x H3,80 m Vertical turning machine with Siemens SINUMERIK 840D control, chip conveyor, dust exhauster, infeed and outfeed, turning gripper. Dsdpfsv I En Rex Abfsuu

Condition: used, Technical details: grinding spindle - swivable: ja ° spindle revolutions per minute : 2850 U/min work table:: 50 x 134 x 44 mm table movement: X= 265 mm table movement: Y= 165 mm dimensions of grinding wheel: Bohrung Ø 20 mm voltage: 380 V / Hz machine weight approx.: 113 kg dimension machine xH: 0,63 x 0,56 x 0,64 m Grinding machine for twist drill cutting angle 30° / 40° Hole of the grinding disc Ø 20mm Adjustment path Z = 230mm manual Headstock can be swivelled 360° via radial scale Table with clamping support LxW: 270 x 100mm for clearance angle 40° and 90°, 3x clamping devices, prism 14mm, as well as test device with 12mm prism and magnifying glass 90mm adjustable Column rotatable 360° Grinding protection Djdpju Ng N Aefx Abfeuu 2x 220V sockets *

Condition: used, turning speed range - grinding spindle 4500 U/min max diameter of the vice bore 17,5 mm max. radius to grind max. 10 mm max. lateral adjust. of milling cutter 10 max. longitudinal adjust. of milling cutter 40 max. angle for relief grinding 45 Grad weight of the machine ca. 125 kg Operating instructions available Dodpjwlvrgofx Abfsuu including collet set, grinding wheel flange wrench and the following special accessories: - Aluminium oxide grinding wheel - 3 diamond grinding wheels, different versions - 1 additional grinding wheel holder with diamond grinding wheel - Dressing diamond - Grinding dust cover

Condition: used, Year of construction: 2007, turning diameter 600 mm swing diameter 680 mm turning height 600 mm z-axis 500 mm x-axis 560 mm drive of main spindle 65/80 kW main spindle speeds: 2800 workpiece tool changer 12 Plätze feeds z-axis 0,01-30.000 mm/min Djdpfxsv Rrq De Abfjuu feeds x-axis 0,01-45.000 mm/min chuck Rota NCR 630 mm voltage 400 V frequency 50 Hz control Siemens 840 D pl total power requirement 140 A weight of the machine ca. 18 t dimensions of the machine ca. 6,5 x 3,8 x 4,20 m

Condition: used, Year of construction: 1997, turning speeds 3.000 U/min grinding wheel diameter 150 mm Djdpfxoup H D Es Abfeuu table-size 380 x 220 mm T-slots 1x 0 3~220 / 380 V total power requirement 0,37 kW weight of the machine ca. ca. 150 kg dimensions of the machine ca. 0,7 x 0,6 x 1,25 m Turning Tool Grinding Machine GREIF - DHL K-0

Condition: used, Year of construction: 2001, swing diameter max. 450 mm chucking diameter 400 mm control Siemens 840D (Index) Max. rpm 4.200 min/-1 power capacity - main spindel ( 35,5 / 56 ) kW max. Torque ( 340 / 550 ) Nm C-Axis 0,001 ° number of toolpositions 2x 12 pos driven statition 2x 12 pos worktool system VDI 30 max. spindle speed driven tools 6.000 U/min. power capacity - driven tools 9,5 kW max. Torque 40%: 19 Nm Y - Axis +/- 90 mm B-Axis +270° / -90 ° x-axis 730 mm z-axis 340 mm y-axis +/- 90 mm b-axis +270° / -90 ° rapid traverse X: 40 / Z: 30 m/min numbers of pallets 24 pos. size of pallet 410 x 300 mm max. workpiecediameter 300 mm max. workpiece weight incl. Pallet: 25 kg Chain width 75 mm band speed 7,5 m/min total power requirement 56 kW weight of the machine ca. 9,0 t dimensions of the machine ca. 8,5 x 6,0 x 2,7 m CNC - Vertical Lathe Dodoyq Sk Iepfx Abfouu INDEX - V 300 Y/B - incl. 24 pos. palett changing system Schnaithmann - incl. ball screw as spare part - incl. 39x driven tools - incl. 39x tool holders

Condition: good (used), functionality: fully functional, turning diameter over bed slide: 335 mm, turning diameter over top slide: 210 mm, center height: 165 mm, turning length: 635 mm, spindle speed (max.): 1,800 rpm, three-jaw chuck diameter: 200 mm, For sale is a Colchester lathe with many accessories in good, used condition, as shown in the pictures. Technical specifications: • Manufacturer: Colchester • Model: Student-1800 • Center distance/turning length: approx. 635 mm • Center height: approx. 165 mm • Turning diameter over bed: approx. 335 mm • Turning diameter over carriage: approx. 210 mm • Max. spindle speed: approx. 1800 rpm • Spindle bore: approx. Ø40 mm • Three-jaw chuck: approx. Ø 200 mm • The machine is equipped with a Heidenhain measuring system; a digital readout can be easily connected • Many accessories: jaw pairs for the three-jaw chuck, Parat quick-change tool holders, faceplate approx. Ø 300 mm, steady rest, turning centers • Condition: Used, in working order Shipping via freight forwarder available (Please inquire with your ZIP code) International buyers are welcome! You will receive an invoice with VAT shown. Duodpfsy Tbbpox Abfju Viewing/pickup is possible by appointment in 42855 Remscheid. Sale from location 42855 Remscheid, loaded ex works. Subject to errors in technical data and prior sale.

Condition: used, Year of construction: 2009, swing diameter 1400 mm faceplate diameter 1250 mm Control SIEMENS work height max. 1100 mm table load 6 t Dedpfxey S D Tfo Abfsuu total power requirement 80 kW Crossbeam travel: 700mm Crossbeam support Travel from centre of rotation to the right: 700mm Crossbeam support Travel from centre of rotation to the left: 700mm Machine table drive Main drive power: 80kW Number of gearboxes: 2 Step change: 3.84 Speed range of the 1st gear stage: 2-32-139 rpm Speed range of the 2nd gear stage: 9-125-500 rpm Max. Machine table load: 6 tonnes Feed drive Cross beam support Horizontal feed speed: 0.1 - 8 m/min Cross beam support Vertical feed speed: 0.1 - 8 m/min Cross beam support Rapid traverse speed horizontal/vertical: 8 m/min Cross beam adjustment speed: 425 mm/min Tool system Tool system: 180.1 Cutting force on the turning tool: 30 kN The machine enables additional drilling and milling via an integrated milling unit in the tool change system.

Condition: used, Year of construction: 2020, turning diameter max. 3.800 mm diameter of spindle flange 1.900 mm max. swing diameter 3.800 mm control 840 D sl Siemens turning speed range - main spindle max. 100 min/-1 power capacity - main spindel 200 kW max. Torque 67.000 Nm gear box 1:30 tool taper Capto C8 swivellable B: 0 - 270 ° Spindle speed - driven tool pos. max. 6.000 min -1 max. Torque 120 Nm tool taper Capto C8 number of toolpositions 41 pos. max. tool weight 20 kg max. tool length 400 mm max. tool diameter 120 mm 0 125 mm tool taper Capto C8 number of toolpositions 25 pos. workpiece diameter at full load 150 mm max. tool weight 20 kg max. tool length 400 mm x-axis 1: 2.800 mm x-axis 2: 3.200 mm z-axis 1.000 mm rapid traverse X: 32 / Z: 20 m/min feed power X/Z: 22 kN total power requirement 280 kVA weight of the machine ca. 155 t dimensions of the machine ca. 10,4 x 6,3 x 5,7 m Dodsyrhl Djpfx Abfeuu CNC Vertical Turning Machine PITTLER - PV 4000 - Control Expansion / Software SINUMERIK 828D/840D SL ProgramSYNC Software Option - 12-Jaw Compensating Chuck by RÖHM - Retractable Step Guards - Coolant Circulation - Coolant Conditioning - Oil Hose Skimmer - SIEMENS Safety Integrated - Network Interface / Data Transfer DNC Option - Remote Diagnostics for NC Functionality - Teleservice for Integrated PLC of the Sinumerik 840D - Ethernet Connection in the Control Cabinet - Variable Speed ??Range to Reduce Vibration - Air Purifier, Electrostatic Discharge - Probe for In-Process Workpiece Measurement - Walk-in Work Area
