Used Vollmer Chd270 & Nd230 for sale (127)

Condition: excellent (used), Carbide saw grinder with loader VOLLMER model CHD270 with 3 stations loader Vollmer ND230 Blsdpfx Abjzntaqoljk

Condition: excellent (used), Carbide saw grinder VOLLMER model CHD250R2 with 3 stations loader VOLLMER model ND230 Blodpfx Absipqzteljk

Condition: used, Year of construction: 2019, Suitable for the automatic grinding of HM circular saw blades on the face and top in one setting. All known tooth geometries (flat, alternate, trapezoidal teeth, etc.) can be ground automatically and in one pass. Accessories: Total enclosure, Coolant system, Equipment for robot operation with automatic loading door ND 230 loader Measuring device for measuring saw blades Chip breaker grinding attachment Stepless variable grinding speed of the two grinding spindles from 1600 to 5500 rpm. Grinding speed and grinding path stepless adjustable for each machining surface on the tooth. Automatic central lubrication Software package for oscillation grinding at rake and clearance angles Automatic shut-off flap Automatic fire extinguishing system Bledpfx Aboyvgf Djljk Electrostatic oil mist separator N281 Measuring tool Sawblade holder with guide bushing Ø 16 mm Saw holder >ø180 Sawblade holder with guide bushing Ø 16 mm Saw holder >ø320 Grinding wheel mounting flange for chip breaker Centering ring for mounting bolt Ø 16 mm for saw bore Ø 32 mm Centering ring for mounting bolt Ø 16 mm for saw bore Ø 40 mm Centering bolt Ø 10 mm Machine light Sawblade blow-off pistol Data input station DES 400 3 loading trolleys with 30 mm mandrels Oil drip tray Automatic central lubrication. Saw blade diameter: 200 - 840 mm Bore diameter: from 16 mm Sheet thickness: up to 15 mm Tooth pitch: from 6 to 180 mm Cutting length: up to 25 mm Rake angle: from - 35 ° to + 20 ° Clearance angle: 0 ° - 25 ° Angled grinding on the back of the tooth: up to 45 ° Angled grinding on the tooth face: up to 30 ° Angled grinding on the negative tooth face: up to 30 ° Tooth height difference: any Grinding wheel diameter: Max. 200 x 32 mm Dimensions W x D x H: 2770 x 1900 x 2058 mm Weight: 4700 kg Connected load: 8.7 kVA (400 V / 50 Hz) colour: gray RAL 7045 / gray RAL 7047

Year of construction: 2025, condition: used, HSK63-B,F Test Mandrel Suitable for Vollmer machine types: QWD 750 / QWD 760 / QWD 750 H / QWD 760 H / VPulse 500 and all models from the QXD series (200/250/400) Bledpfxswl Alao Ablok

Year of construction: 2005, condition: used, CNC-controlled erosion machine for the processing (erosion, grinding, polishing) of PCD tipped tools up to 400 mm diameter and 400 mm length, according to disc-electrical-erosion processes for use in service and in production. Accessories: Total enclosure Software path management Software P- System for peeling cutters, Software shaft endmills (207/208) Software discoid tools face (221/222/223/224) Software profiled workpieces (233/234/239/240) Software hoggers, profiled hoggers (255/256/257/258/260/261/262/263) Software discoid tools (264/265) Software shaft and jointing cutters (267/268/277/278) Software step tools (271) Software scoring saws (299) Software saws flat tooth (301) Software saws single sided with chamfer (302/303) Software saws alternate tooth (304) Software saws triple chip (309) Software saws flat top tooth (310) Software saws flat trapezoid tooth (311) Software saws alternate tooth with chamfer (312) Software shaft and jointing cutters (7/8) Software shaft and jointing cutters profiled (33/34) Software hoggers, profiled hoggers (53/54/55/56/57/58) Software discoid tools (64/65) Software shaft and jointing cutters (67/68/77/78) Software compensation (90) Software saws flat tooth (101) Software saws single sided with chamfer (102/103) Software saws alternate tooth (104) Software saws triple chip tooth (109) Software saws flat top tooth (110) Software saws triple chip tooth (111) Software saws alternate tooth with chamfer (112) Software for polishing of profiled hoggers (757/758/760/761) Bledpow S I Dgofx Ablsk Filter system with chiller for dielectric fluid Automatic fire extinguishing system DIN 14497 Standard programs for measuring, eroding etc. Program for chamfering of workpiece cutting edges, Automatic Diagnosis program for machine operational status with text output on screen Loader for workpieces, with CNC-controlled pivot for loading and unloading to a magazine, 6 sided erosion wheel changer, Workhead SK 50 with adapter to 12 HSK 63 A, Turntable workpiece magazine for 12 workpieces SK 50, Turntable workpiece magazine for 4 workpieces SK 50, 6 flush sets QXD250 CAD/CAM for external PC workstation including ARES drawing program, Industrial PC external PC workstation with desktop PC, monitor, keyboard, and mouse, 1 HSK63 F adapter for measuring the machine. X axis travel: 730 mm B axis travel: +/- 30 ° Y-axis travel: 840 mm Z axis travel: 500 mm E-axis: 330° A-axis: 360° Workpiece carrier: SK50 workpiece length max.: 400 mm Workpiece diameter max.: 400 mm workpiece weight max.: 15 kg Connected load approx.: 6.7 kW (400 V / 50 Hz Dimensions W x D x H approx.: 2160 x 3435 x 2190 mm Weight approx.: 7800 kg colour: RAL 7047 Telegray 4, color RAL 7045 Telegray 1

Year of construction: 2010, condition: used, Universal machine for eroding and grinding various PCD tools up to 250 mm in diameter and 200 mm in length in production and service. Accessories: Total enclosure, Extraction N183, Cooling and cleaning device for dielectric, Automatic fire extinguishing device, Loader for erosion disc sets with CNC-controlled swivel arm for loading and unloading 1 set of gripper fingers for workpiece automation HSK 63/SK40 Workpiece carrier adaptation A-axis from SK 50 to HSK 63 A, 1 exchange element with flange, 1 x flushing kit, Test bar X axis travel: 440 mm B-axis: +/- 15° Y axis travel: 876 mm Z-axis travel: 420 mm E-axis swivel range: 210° A-axis rotation range: 360° workpiece carrier base: SK 50 workpiece length max.: 200 mm Workpiece diameter max.: 250 mm workpiece weight: 15 kg Connected load approx.: 6.7 kW 400V/50 Hz Weight approx: 7000 kg Dimensions W x D x H =: 1987 x 3141 x 2275 mm Blodpfx Ajycckcsblok colour: RAL 7047 Telegray 4/ Color RAL 7045 Telegray 1

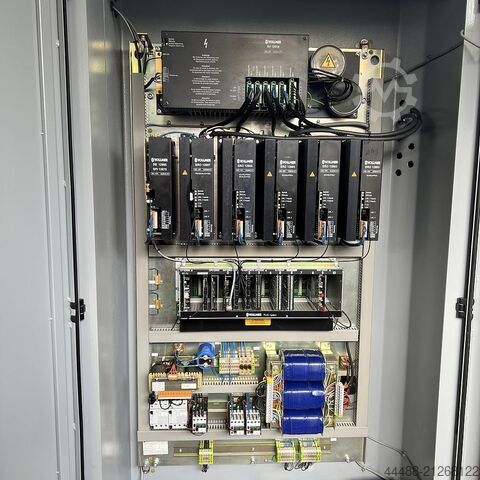

Condition: used, Year of construction: 2002, Suitable for the automatic processing of PCD-tipped milling cutters, shank tools, disc-shaped tools such as Saws, milling cutters etc. using the wire-electro-erosion method. Accessories: Total enclosure, Cooling unit for dielectric, automatic fire extinguishing system, Mist extractor Probe, Machine lamp, automatic central lubrication, Workpiece carrier ISO50, Bledpfx Abjylby Islek Measuring mandrel, Tailstock. Cutter outside diameter: Max. 250 mm Cutting length: max. 260 mm Shank tool diameter: 10 - 250 mm Outside diameter disc-shaped tools: Max. 250 mm Tool weight max.: 20 kg X axis travel: 275 mm Y-axis travel: 300 mm W-axis travel: 200 mm A-axis mounting cone: ISWO 50 E-axis swivel range: 180 ° Required space for the machine: 2535 x 2200 x 2220 mm Weight approx.: 4500 kg Connected load: 4.5 kW (400 V / 50 Hz) colour: gray RAL 7045/7047

Condition: used, Year of construction: 2013, Suitable for the automatic processing of PCD-tipped milling cutters, shank tools, disc-shaped tools such as saws, milling cutters etc. using the wire-electro-erosion process. Accessories: Bedpfjylkvlox Ablelk Total enclosure, Adaptation to A-axis on HSK63-A,E incl. test mandrel Ø 25 mm System HSK63 A,E Integrated loading system and workpiece magazine for automated processing of up to 12 workpieces. Probe, Automatic central lubrication, Coolant system for dielectric fluid, Automatic fire extinguishing system, Mist extractor, Machine lamp. Cutter outside diameter: Max. 320 mm Shank tool diameter: 10-320 mm Outside diameter disc-shaped tools: Max. 320 mm Cutting length: max. 480 mm Tool weight: max. 20 kg X axis travel: 500 mm Y-axis travel: 300 mm W-axis travel: 200 mm A-axis rotation range: 360 ° E-axis swivel range: 180 ° Required space for the machine: 2535 x 2200 x 2280 mm Weight approx.: 4800 kg Connected load: 5,4 kW colour: gray RAL 7035/7043

Year of construction: 2026, condition: new, Suitable for automatic machining of PCD-tipped milling cutters, shank tools, disc-shaped tools, and optionally profile tools using the disc electroerosion process. Accessories: Total enclosure, SK 40 or 50 workpiece carrier according to preference, Cooling unit for dielectric, Automatic fire extinguishing system, Measuring probe, SK 40 or 50 measuring mandrel depending on workpiece carrier, Alphanumeric keyboard for data management, Software package for peripheral machining of end mills and jointing cutters, linear machining in all common axis directions, Software package for compact and radius machining, profile cutters in path-travel and plunge-cutting processes, Software package for profile tools, 4-path program for peripheral electrodes, Software package for circular saws for complete machining of tooth backs and flanks of all common geometries, Automatic central lubrication, 1 short dressing holder, 1 mounting flange for erosion wheel. Machine is brand new!! Originally packed and full warranty from Vollmer! Cutter outer diameter: max. 250 mm Shank tool diameter: from 10 - 100 mm Outside diameter of disc-shaped tools: 380mm cutting length: Max. 20 mm Cutting length: Max. 20 mm Tangential clearance angle: max. 6 ° Radial clearance angle: -15° to + 6° Chamfering: automatic max. 70° X axis travel: 280 mm Z-axis travel: 330 mm Bledpfx Aboy T It Eolok workpiece carrier cone: SK 50 Y axis travel: 280 mm Workpiece carrier cone: SK 50 A-axis rotation range: 360° B-axis swivel range: +/- 30 ° Tool weight max: 20 kg clearance angle: 30° Dimensions L x W x H: = 1905 x 2520 x 2430 mm Connected load: 3.4 kW (400 V / 50 Hz) colour: grey RAL7045 / RAL 7047 Diameter of rotating electrode: Max. 150 mm Rotational electrode speed: 80 - 1500 rpm weight: approx. 3000 kg

Condition: used, Year of construction: 2001, Suitable for automatic processing of PCD-tipped milling cutters, shank tools, disc-shaped tools such as Saws, milling cutters, etc. using the wire electro-erosion process. Accesories: Total enclosure, Mist extractor Probe, Machine lamp, Automatic central lubrication, Coolant system dielectric fluid Fire extinguishing system Measuring mandrel Alphanumeric keyboard cutter outer diameter max: 250 mm cutting length max.: 200 mm shank tool diameter: 10 - 250 mm cutting length: 200 mm Outside diameter of disc-shaped tools max.: 250 mm tool weight max.: 20 kg X-axis travel: 220 mm Y-axis travel: 300 mm W axis travel: 200 mm A-axis rotation range: 60 ° A-axis taper: ISO 40 E-axis swivel range: 120 ° Bsdoyzm Iwjpfx Ablolk number of revolutions: 80 - 2000 rpm. Dimensions L x W x H: 2235x2630x2130mm mass: approx. 4500 kg Connected load approx.: 400V / 50Hz / 4.5KW colour: turquoise RAL 5021/grey RAL 9002

Condition: used, Year of construction: 2007, Suitable for the automatic processing of PCD-tipped milling cutters, shank tools, disc-shaped tools such as Saws, milling cutters etc. using the wire-electro-erosion method. Accessories: Total enclosure, Cooling unit for dielectric, automatic fire extinguishing system, Mist extractor N181 Bedpfx Abowtmg Djlslk Probe, Machine lamp, automatic central lubrication, Workpiece carrier ISO50, Measuring mandrel, Cutter outside diameter: Max. 250 mm Cutting length: max. 260 mm Shank tool diameter: 10 - 250 mm Outside diameter disc-shaped tools: Max. 250 mm Tool weight max.: 20 kg X axis travel: 275 mm Y-axis travel: 300 mm W-axis travel: 200 mm A-axis mounting cone: ISWO 50 E-axis swivel range: 180 ° Required space for the machine: 2535 x 2200 x 2220 mm Weight approx.: 4500 kg Connected load: 4.5 kW (400 V / 50 Hz) colour: gray RAL 7045/7047

Condition: used, Year of construction: 2010, Suitable for automatic grinding of tooth faces, tooth backs, and bases on carbide-tipped circular saw blades in a single setup. All common tooth geometries (flat, alternate, trapezoidal, etc.) can be ground automatically and in a single pass. Accessories: Full enclosure Measuring probe Grinding device with oil cooling Automatic fire extinguishing system Grinding mist extraction system N 183 Alphanumeric keypad Oil drip tray Machine light saw diameter: 80-840 mm Bedewp Eblopfx Abljlk Bore diameter: from 10 mm sheet thickness: < 8 mm Tooth pitch: 6 - 120 mm Cutting length:

Year of construction: 2008, condition: used, Universal machine for eroding and grinding various PCD tools up to 250 mm in diameter and 200 mm in length in production and service. Accessories: Full enclosure Measuring probe for complete measurement of the tools Workpiece carrier adaptation A-axis from SK 50 to HSK 63 A Loader for up to 6 eroding disk sets (tool changer) Alphanumeric keyboard Standard programs for measuring, eroding Cooling and cleaning device for dielectric Automatic fire extinguishing device Extraction N183 1 exchange element 1 flushing set 1 measuring mandrel 1 mounting flange for rotating electrodes X axis travel: 440 mm B-axis: +/- 15° Y axis travel: 876 mm Z-axis travel: 420 mm E-axis swivel range: 210° A-axis rotation range: 360° Bljdpfxszdinko Ablek workpiece carrier base: SK 50 workpiece length max.: 200 mm Workpiece diameter max.: 250 mm workpiece weight: 15 kg Connected load approx.: 6.7 kW 400V/50 Hz Weight approx: 7000 kg Dimensions W x D x H =: 1987 x 3141 x 2275 mm colour: RAL 7047 Telegray 4/ Color RAL 7045 Telegray 1

Condition: used, Year of construction: 1992, Suitable for automatic, double-sided tooth grinding of carbide-tipped circular saw blades. Accessories: Wet grinding attachment, Motorized rake angle adjustment, 2 grinding wheel holders, 1 mounting bolt. Circular saw blade outer diameter: 80 to 1270 mm Circular saw drill diameter: 10 - 220 mm sheet thickness: up to 14 mm Tooth pitch: 6-120 mm Grinding path: max. 16 mm Cross angle : -15° to +40° Tangential free angle: 0 to 5° Grinding speed: 0.5 to 6 mm/s Bedpfx Abjzguvwolelk grinding wheel diameter: 125 mm Connected load approx.: 3,6 kW (400 V / 50 Hz) Weight approx: 1300 kg colour: green RAL 6011

Condition: excellent (used), overall weight: 800 kg, input voltage: 400 V, type of input current: three-phase, input frequency: 50 Hz, CANA E blade sharpening machine in very good working condition with centering cone // grinding wheels transport and delivery possible Blodpjzqtzysfx Ablek

Condition: used, Year of construction: 2014, Suitable for the automatic machining of PCD-tipped milling cutters, shank tools, disc-shaped tools such as saws, milling cutters etc. using the wire-electro-erosion process. Accessories: Total enclosure Integrated loading system and tool magazine Automatic machining of up to 12 HSK 63 tools Program for erosion across the tool center at the cutting edge and for free erosion Hardware and software for DNC service Gripper fingers for workpiece automation SK40/HSK63-A,E/HSK63-B,F Adaptation to the A-axis on HSK63-A,E including 25 mm diameter test mandrel (HSK63 A,E system) Grinding mist extraction N 181 Cooling unit for dielectric fluid Automatic fire extinguishing system Bljdozgufljpfx Abljk Measuring probes Machine lamp Automatic central lubrication Cutter outside diameter: Max. 250 mm Cutting length: Max. 260 mm Shank tool diameter: 10-250 mm Tool weight: Max. 20 kg traverse: X-axis 275 mm Y-axis travel: 300 mm W-axis travel: 200 mm Rotation range A-axis: 360 ° tool holder: ISO 50 E-axis swivel range: 120 ° Dimensions machine: W x D x H = 2535 x 2200 x 2280 mm Weight: about 4500 kg Connected load: 4.5 kW (400 V / 50Hz) colour: telegrey RAL 7045/7047

Condition: used, Year of construction: 1990, Suitable for automatic, double-sided tooth grinding of carbide-tipped circular saw blades. Accessories: Wet grinding attachment, Blodpfx Ajzguxljbljk Motorized rake angle adjustment, 2 grinding wheel holders, 1 mounting bolt. Circular saw blade outer diameter: 80 to 1270 mm Circular saw drill diameter: 10 - 220 mm sheet thickness: up to 14 mm Tooth pitch: 6-120 mm Grinding path: max. 16 mm Cross angle : -15° to +40° Tangential free angle: 0 to 5° Grinding speed: 0.5 to 6 mm/s grinding wheel diameter: 125 mm Connected load approx.: 3,6 kW (400 V / 50 Hz) Weight approx: 1300 kg colour: green RAL 6011

Condition: excellent (used), Year of construction: 2022, functionality: fully functional, VOLLMER CHX840 circular saw blade sharpening machine Machine manufactured in 2022 Automatic sharpening of the face and back of blades from 80 to 840mm Operation with oil and reinforced pump Oil mist extraction Manual extinguishing system Grated floor tray under the machine Chisel sharpening device Multi-faceted tooth geometry program (free programming) Automatic acoustic zero-point detection system Face grinding wheel, back grinding wheel, centering rings, automatic blade support Transportation, delivery and training available Bsdpfx Aozpg Ukoblolk

Condition: excellent (used), Year of construction: 1993, Vollmer CBF 40 H surface grinding machine. Blsdpjzn Hawjfx Abljk

Condition: excellent (used), functionality: fully functional, Vollmer sharpening machine for circular saws. Blade diameter up to 1250 mm. With 3 selectable feed rates. Blsdpfxozn Rbxo Ablsk 2 selectable tooth geometries: straight tooth and skip tooth. Dust extraction system.

Condition: excellent (used), functionality: fully functional, Hydraulic sharpening machine for band saws. Equipped with 3 integrated, switchable feed speeds. Equipped with 4 integrated, switchable tooth profiles. Bsdpfjznua Eox Ablolk Automatic adjustment of the grinding wheel, 250 mm diameter. Dust extraction system. Technically inspected. A video demonstrating the machine in operation can be sent via WhatsApp upon request.

Condition: excellent (used), Year of construction: 1992, functionality: fully functional, machine/vehicle number: 2967, Vollmer VWM40U fully working, installed frequency converter for banding speed adjustment, and foot switch to easy using, if you need more pictures or video please contact me in viber or whatsapp Bedoxp N Nwspfx Ablslk

Condition: reconditioned (used), functionality: fully functional, Hydraulic sharpening machine for band saws. Features 3 switchable feed rates. 4 switchable tooth profiles. Bodpfx Aezncrisblelk Grinding wheel with a diameter of 250 mm. Ready for demonstration. We can gladly send a video showing the machine in operation via WhatsApp.

Condition: reconditioned (used), Year of construction: 2000, functionality: fully functional, Machine for processing tools with PCD inserts using the rotary electro-erosion process. Bjdpfozmzg Nsx Abljlk

Condition: excellent (used), Year of construction: 1994, functionality: fully functional, Well-maintained cabinet-style machine for band saws. Bsdpfozmyhlex Ablelk Electronically controlled. Tooth pitch: 22 or 25 mm. New control system installed in 2014.
