Used Weinig Weinig Pfa 17N for sale (718)

Condition: used, Weinig combiner machine, model PFA17N, grooved bench, 8 shafts (lower 4kW, right 4kW, left 5.5kW, right 4kW, upper 5kW, lower 4kW, universal 4kW, universal 4kW), used. Fodjy S Acxepfx Akhjpk

Year of construction: 1971, condition: used, Shaft Arrangement 1. Lower shaft – 4 kW, 2850 rpm 2. Right side shaft – 3 kW, 2850 rpm 3. Left side shaft – 3 kW, 2850 rpm 4. Right side shaft – 3 kW, 2850 rpm 5. Upper shaft – 5.5 kW, 2850 rpm 6. Lower shaft – 4 kW, 2850 rpm Fedpfx Asigqzrokhopk Dimensions: 4900 mm x 1300 mm x H 1500 mm Weight: approx. 5500 kg

Year of construction: 1974, condition: good (used), Planing width mm 170 Fsdpjg Sa Iwjfx Akhspk Planing height mm 140 Number of spindles 5 Spindle arrangement: bottom/right/left/top/universal Spindle diameter mm 40

Condition: used, Weinig PFA 17 N (Unimat) automatic planing and moulding machine for four-sided planing and profiling of timber, fitted with a universal spindle. Technical data: - Spindles: 7 - Spindle 1: Bottom / 35 mm / 4 kW - Spindle 2: Right / 35 mm / 3 kW - Spindle 3: Left / 35 mm / 5.5 kW - Spindle 4: Right / 35 mm / 7.5 kW Fpsdpezrx Alefx Akhok - Spindle 5: Top / 35 mm / 5.5 kW - Spindle 6: Bottom / 35 mm / 4 kW - Spindle 7: Universal / 35 mm / 4 kW - Working width: 160 mm - Working height: 120 mm - Feed motor: 2.2 kW - Planing table length: 2,000 mm

Condition: used, Technical data: Max planing width: 170 mm Max planing height: 130 mm Spindle diameter: 40 mm Number of spindles: 6 Spindle sequence: bottom 4 kW right 3 kW left 5.5 kW right 5.5 kW top 5.5 kW Fjdpfoyhndrex Akhjpk bottom 4 kW Each spindle driven by a separate motor Number of upper steel feed rollers: 7 Number of upper rubber feed rollers: 2 Stepless feed speed adjustment – 4 kW Feed by chains Lubrication pump for worktable Pressure: 6 atm. Electric raising of the machine body Power supply: 400 V Total power: 33 kW Overall dimensions: Length: 5000 mm Width: 1300 mm Height: 1560 mm

Condition: used, - Working width (mm): 140 - Shafts: 7 1st shaft: bottom Fpsdsrg Exrepfx Akhjk 2nd shaft: right 3rd shaft: left 4th shaft: right 5th wave: top 6th wave: bottom 7th wave: uni-wave

Condition: used, Year of construction: 1969, Used machine Year of manufacture: 1969 Runs perfectly Fpsdpfx Ajxavtqokhjk Max. working width: 170 mm Max. working height: 130 mm 1st shaft: bottom 2nd shaft: right 3rd shaft: left 4th shaft: right 5th shaft: top Availability: short-term Storage location: Röllbach

Year of construction: 1978, condition: good (used), Weinig U 17N 7-head four-sided planer Planing width: 170 mm Planing height: 120 mm Number of spindles: 7 Spindle arrangement: bottom/right/left/right/top/bottom/universal Electric height adjustment Fpodpfx Aksg Sa R Dehok Feed rate: 6.5 to 45 m/min Drive for feed rollers: cardan shafts 11 pull rollers from above

Condition: used, Weinig U17N Spindle arrangement Bottom Right Left Right Top Bottom Fpedjzhkwtspfx Akhsk

Condition: used, Weinig brand moulding machine, Unimat U17N model with 7+1 axes, 170 mm axis length, with ruled table, cardan shaft drive. Fpedpfx Akepfp Elehsk Axle composition: Bottom, right, left, right, top, bottom, left, universal. Axle motor power: 4+4+5.5+5.5+7.5+5.5+5.5+7.5 Kw. Towing motor power 4 Kw raises and lowers 0.75 Kw.

Condition: used, Year of construction: 2009, machine/vehicle number: 113680, functionality: limited functionality, working width: 230 mm, spindle diameter: 40 mm, spindle speed (max.): 6,000 rpm, working height: 120 mm, TECHNICAL DETAILS Working width: 20–230 mm Working height: 8–120 mm Infeed table length: 1,950 mm Feed rate: 6–12 m/min Number of spindles: 5 Spindle diameter: 40 mm Spindle speed: 6,000 rpm Max. tool diameter vertical spindle: 232 mm Max. tool diameter horizontal spindle (except for the first spindle): 200 mm Spindle arrangement and power 1. Spindle, bottom: 5.5 kW 2. Spindle, left: 7.5 kW 3. Spindle, right: 7.5 kW 4. Spindle, top: 11 kW 5. Spindle, bottom: 5.5 kW MACHINE DETAILS Connection voltage: 400 V Connection power: 32 kW Fuse rating: 64 A Fpjdpfxszrmpts Akhek Dimensions & Weight Dimensions (L x W x H): 4,000 x 1,400 x 1,350 mm Weight: 2,500 kg EQUIPMENT 5-spindle version Four-sided machining Infeed table CE marking Note: The 5th spindle is defective.

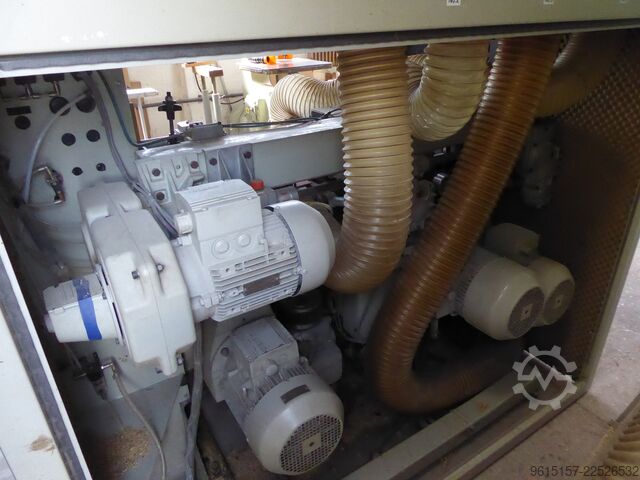

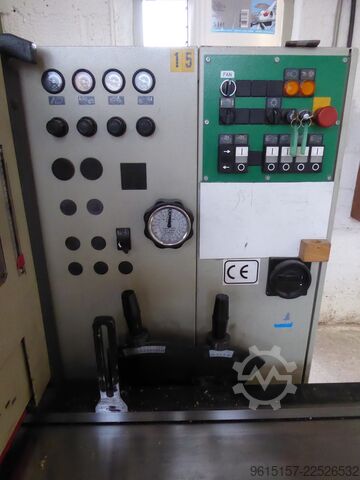

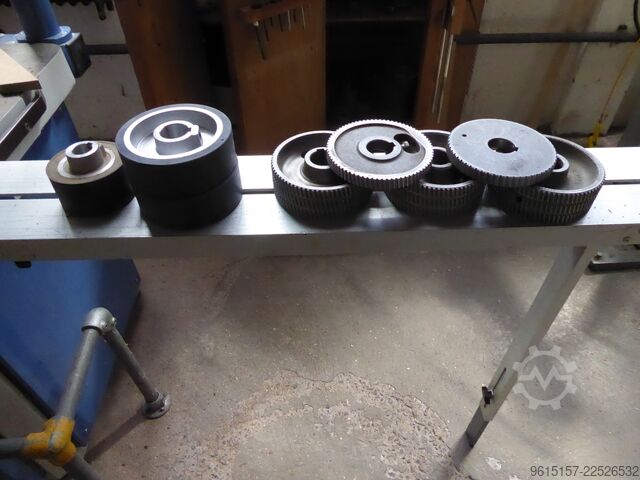

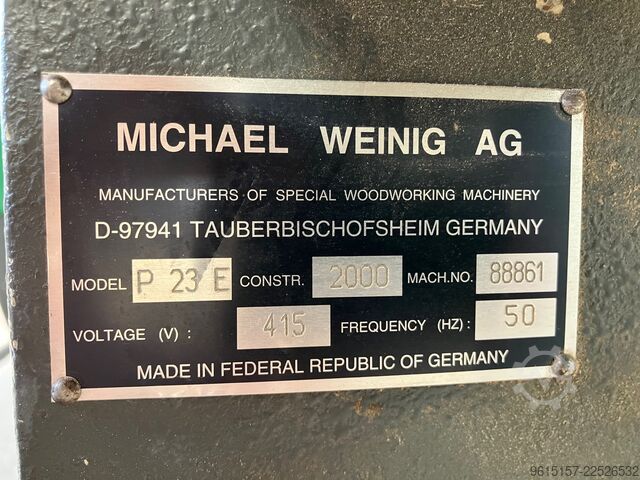

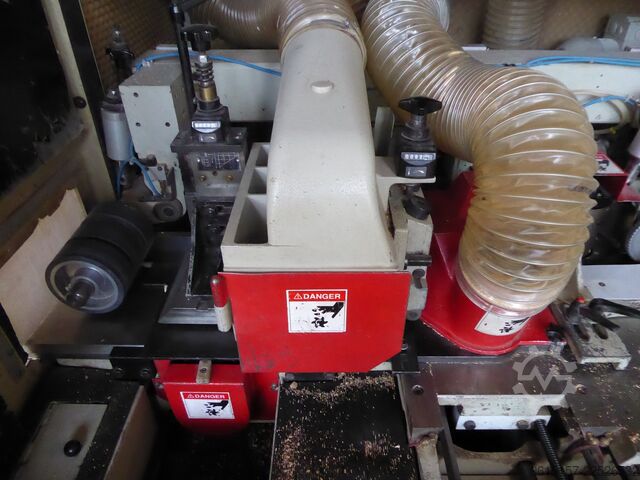

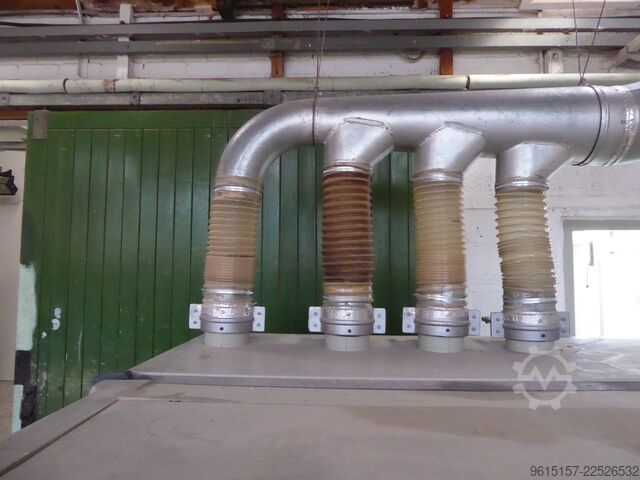

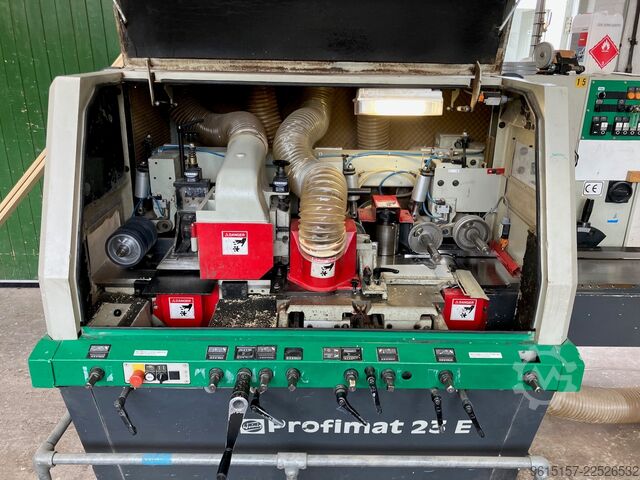

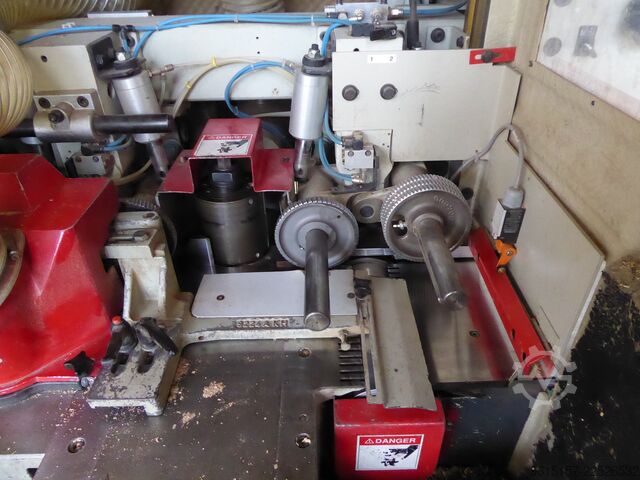

Condition: used, Year of construction: 2000, functionality: fully functional, machine/vehicle number: 88861, working width: 260 mm, working height: 130 mm, total width: 1,830 mm, total height: 1,510 mm, total length: 3,869 mm, overall weight: 2,200 kg, workpiece height (max.): 130 mm, type of input current: AC, workpiece width (max.): 260 mm, input voltage: 415 V, number of spindles: 5, power: 34.2 kW (46.50 HP), input frequency: 50 Hz, input current: 70 A, Equipment: motor brake, Weinig Profimat 23e, owned by us from new, regularly serviced by our in-house maintenance staff and by Weinig when necessary. Fedpfx Aksztrwfohepk Machine comes with all manuals, tools, spare rollers (toothed and rubber), drive belts and tooling also a 250mm diameter to 4No 140mm diameter extraction manifold.

Condition: good (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: 108076, grinding wheel diameter: 40 mm, overall weight: 550 kg, Used Weinig Rondamat 960 Includes various grinding discs Shaft diameter 40mm Fsdpfx Ajztzrxekhjpk

Condition: ready for operation (used), Year of construction: 1998, working width: 230 mm, overall weight: 2,500 kg, spindle speed (max.): 6,000 rpm, This 5-spindles WEINIG DIMTER PROFIMAT 23 E was manufactured in 1998. It features a working width of 230 mm and a working height range of 8-120 mm. The machine operates at a spindle speed of 6000 rpm and has a feed rate of 5-24 m/min. If you are looking to get high-quality wood planning capabilities, consider the WEINIG DIMTER PROFIMAT 23 E machine we have for sale. Contact us for further details. • Condition note: Not rebuilt – without warranty • Working height: 8–120 mm • Number of spindles: 5 (top, right, left, bottom, top) • Feed rate: 5–24 m/min • Total power consumption: approx. 25 kW • Feed table length: approx. 2000 mm Fpodpfxozt Dg So Akhsk

Condition: ready for operation (used), Year of construction: 1997, travel distance X-axis: 3,000 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 142 mm, controller manufacturer: SIEMENS, controller model: WS 400-20, CNC processing center manufactured in 1997. This WEINIG / DIMTER Unicontrol 10 features a maximum workpiece length of 3,600 mm and a maximum workpiece height of 100 mm. It includes a powerful cross-cut saw with a spindle speed of up to 3,000 rpm and a tenoning spindle motor power of 15 kW. If you are looking to get high-quality CNC processing capabilities, consider the WEINIG / DIMTER Unicontrol 10 machine we have for sale. Contact us for further details. Fpsdpfx Akozt Dfbehek • Max. workpiece height: 100 mm • Min. workpiece height: 40 mm • Min. workpiece width: 40 mm • Max. workpiece width: 140 mm • Max. workpiece length with CNC stop: 3,500–3,600 mm • X-axis stroke: 3,000–3,500 mm (version dependent) • Cross-cut saw motor power: 3.7 kW • Cross-cut saw spindle speed: 2,800–3,000 rpm • Cross-cut saw max. tool diameter: 400 mm • Cross-cut saw spindle diameter: 40 mm • Tenoning/slotting spindle quantity: 2 pcs • Tenoning spindle diameter: 50 mm • Tenoning spindle clamping length: 400–640 mm • Tenoning spindle max. tool diameter: 400 mm • Tenoning spindle motor power 1: 11 kW • Tenoning spindle motor power 2: 15 kW • Tenoning spindle speed: 2,900–3,250 rpm • Profiling spindle quantity (vertical): 2–3 pcs • Profiling spindle diameter: 50 mm • Profiling spindle clamping length: 320–400 mm • Profiling spindle max. tool diameter (flight circle): 232 mm • Profiling spindle motor power: 11 kW (each) • Profiling spindle speed: 6,000 rpm • Horizontal profiling unit (top) motor power: 3 kW • Horizontal profiling unit spindle diameter: 40 mm • Horizontal profiling unit max. tool diameter: 130 mm • Horizontal profiling unit speed: 5,850 rpm

Condition: ready for operation (used), Year of construction: 2018, Optimizing Cross-Cut Saw manufactured in 2018. This WEINIG DIMTER Opticut S90 features a saw blade diameter of 500 mm and a maximum cutting height of 120 mm. It accommodates input lengths from 400 to 6,300 mm and widths from 20 to 300 mm. If you are looking to get high-quality cutting capabilities, consider the WEINIG DIMTER Opticut S90 machine we have for sale. Contact us for further details. • Saw blade • Diameter: 500 mm • Bore: 30 mm • Adjustable saw blade speed: 40–100% via frequency converter • Workpiece capacity • Input length (min/max): 400–6,300 mm • Width (min/max): 20–300 mm • Thickness (min/max): 10–120 mm • Maximum cutting height: 120 mm • Minimum cross-section: 20 x 10 mm • Maximum cross-section 1: 215 x 120 mm • Maximum cross-section 2: 300 x 40 mm • Permissible timber curvature: max 2 mm/m or 8 mm over entire length • Table inclination: 10° • Motion and accuracy • Positioning speed (reverse stroke): max approx. 180 m/min Fjdpfozt A Sgox Akhopk • Positioning speed (forward stroke): max approx. 60 m/min • Positioning accuracy: +/- 0.1 mm • Motors and power • Pusher motor power: 5.1 kW • Saw motor power: 7.5 kW • Total electrical load: approx. 15 kW • Control and interface • Control unit: OptiCom Pro with 18.5" touch screen • Screen resolution: 1366 x 768 pixels • Protection class (front): IP65 • Interface: USB port and Ethernet network connection • Data format: CSV (ASCII) for import/export • Utilities and environment • Voltage: 400 V / 50 Hz • Operating pressure: 6–8 bar (min.) • Air consumption: approx. 250 NL/min • Extraction connection: diameter 125 mm • Required extraction performance: speed approx. 30 m/s; volume approx. 1,300 m³/h • Noise level (idling): ≤ 85 dBA

Year of construction: 1998, condition: ready for operation (used), spindle motor power: 11,000 W, spindle speed (max.): 6,000 rpm, This Weinig Unicontrol 10-5 was manufactured in 1998. A robust used window manufacturing machine, it features a working width of 40-220 mm and motor powers up to 15 kW for various machining units. It includes advanced features like a synchronization device, electronic height adjustment, and an automatic turning system for efficient one-man operation. If you are looking to get high-quality milling capabilities, consider the Weinig Unicontrol 10-5 machine we have for sale. Contact us for more information. • Capacities • Working width: 40–220 mm • Working height (longitudinal machining): 40–100 mm • Working height (cross machining): 40–100 mm (counter wood height 80 mm) • Workpiece length (longitudinal): min. 220 mm + 2 x tenon length • Workpiece length (cross): min. 275 mm + 1 x tenon length with 320 mm tool diameter • Feed (cross machining) • Motor power: 0.3 kW • Feed speed: 3–25 m/min • Workpiece clamping: 2 clamping claws • Length stop: with scale and reading magnifier for frame or sash outer dimensions • Counter: pneumatically clocked, 4 positions (not for studio windows), up to wood height max. 80 mm • Double part package: single or double part feeding, with cross separation and retention system • 1st piece (lying on the stop) wood width: 55–90 mm • 2nd piece wood width: 130 mm • Feed (longitudinal machining) • Motor power: 2.2 kW • Feed speed: 4–18 m/min (infinitely variable via frequency converter) • Feed roller spacing: 100/120 mm • Feed roller width: 30/50 mm • Feed roller diameter: 95 mm • Machining units • Crosscut saw • Motor power: 3 kW • Spindle diameter: 40 mm • Spindle speed: 2800 rpm • Tool swing: max. 400 mm • Axial adjustment: pneumatic against 4-fold turret • 1st spindle with tenon and slot • Motor power: 11 kW • Spindle diameter: 50 mm • Spindle speed: 3250 rpm • Tool swing: max. 320 mm • Tool clamping length: 320 mm • Axial adjustment range: 240 mm • Number of tools: 4 x 80 mm • Axial adjustment: hydraulic • 1st profiling spindle • Motor power: 11 kW • Spindle diameter: 50 mm • Spindle speed: 6000 rpm • Tool diameter: max. 232 mm Fodozt A Diepfx Akhspk • Tool zero swing circle: 130–140 mm • Tool clamping length: 320 mm • Axial/radial adjustment range: 240/80 mm • Number of tool positions: 4 x 80 mm • Axial adjustment: hydraulic • 2nd profiling spindle • Motor power: 11 kW • Spindle diameter: 50 mm • Spindle speed: 6000 rpm • Tool diameter: max. 232 mm • Tool zero circle: 130–140 mm • Tool clamping length: 320 mm • Axial/radial adjustment range: 240/80 mm • Number of tool positions: 4 x 80 mm • Axial adjustment: hydraulic • Mechanical spindle brakes • For profiling spindle(s) • For crosscut saw and profiling/sawing units • Profile milling unit (horizontal, top; in front of last profiling spindle) • Radially indexed: 2 positions • Axially indexed: 2 positions • Motor power: 3 kW • Spindle diameter: 40 mm • Spindle speed: 5850 rpm • Tool swing: 130 mm • Tool clamping length: 40 mm • Axial adjustment range: 52 mm • Radial adjustment range: 125 mm • Profile milling unit (vertical, right; at end of machine) • Radially indexed: 2 positions • Axially indexed: 2 positions • Motor power: 3 kW • Spindle diameter: 40 mm • Spindle speed: 5850 rpm • Tool swing: 210 mm • Tool clamping length: 160 mm • Axial adjustment range: 90 mm • Radial adjustment range: 100 mm • Length tenoning and slotting spindle (640 mm tool clamping length, instead of 320 mm spindle) • Motor power: 15 kW • Spindle speed: 2925 rpm • Number of tool positions: 8 x 80 mm

Condition: used, For profiling and routing windows doors individual components and similar items with all-round profiles, including mechanisms for single-person operation Units: Technical data: Fjdpfjztv Eaox Akhjpk - 1. Profiling spindle, motor: 11 kW, spindle diameter: 50 mm, clamping length: 320 mm, stroke: 4×80, hydraulic, synchronisation device - 2. Profiling spindle, motor: 11 kW, spindle diameter: 50 mm, clamping length: 320 mm, stroke: 4×80, hydraulic,

Condition: used, A range of second-hand spare parts or complete units, control systems and switchboards for Weinig Univar (and others) are always in stock. Please contact us. Sample images. 1/2 Marek repair panel [AO2R1] New distribution: Univar NWP incl. order: €6,000 Fjdpfx Akeztv D Nshepk Technical data: - Mechanisation NWP including ordering: €10,000 - [AO6R4]NWP 05/03/24: 17,900 - [AO12R10]NWP 05/03/24: €70,500

Condition: used, Return transport / mechanisation compatible with Weinig Univar for transporting entire window sashes, panels or similar large workpieces. Technical data: - Technical specifications: On request Fjdpfx Ajztv Dvjkhjpk

Condition: used, For profiling and edge-milling windows, doors, individual components and similar items with all-round profiles Units: Fjdpfx Akoztv Dpohjpk Technical data: - 1. Profiling spindle, motor: 11 kW, spindle diameter: 50 mm, clamping length: 320 mm, stroke: 4×80, hydraulic, synchronisation device - 2. Profiling spindle, motor: 11 kW, spindle diameter: 50 mm, clamping length: 320 mm, stroke: 4×80, hydraulic,

Condition: used, Weinig Unicontrol 10 (UC 10) mitre saw system for the manufacture of windows, components and doors. Suitable for frame-by-frame, batch or individual part production, with 2 tenoning and slotting spindles, including an Oertli tool set Units: 1. Cross-cut saw, NC axis, 3 kW, ø 40 mm, 2,800 rpm 2. First tenoning and slotting spindle, NC axis, ø 50 mm, 15 kW, Technical data: Fpjdjztv Dijpfx Akhok - Clamping length: 640 mm (8 x 80) mm

Condition: used, WEINIG UNIVAR 10 automatic rebating machine from a UC-Matic window production line, not in working order. Fjdpfeztv A Sjx Akhspk Technical data: - Year of manufacture: 1997

Condition: used, WEINIG UNITEC 10 tenoning and slotting machine from a UC-Matic window production line, not in working order. Fodpfx Aeztv Axekhepk Technical data: - Year of manufacture: 1997

Condition: used, Weinig UC 10 combined tenoning, slotting and rebating angle machine, for the flexible production of various windows, components and doors without the need to change tools. Production by frame, in batches or as individual components, including the Oertli tool set for timber/aluminium IV 77 & 67 and timber IV 77 & 67. Units: Technical data: - 1. Cross-cut saw: NC-controlled, ø 40 mm, 3 kW - 2. Tenoning and slotting spindle: Clamping length: 640 mm, ø 50 mm, stroke: 8 x 80 mm, 11 kW - 3. Profiling spindle 1: Clamping length: 320 mm, ø 50 mm, stroke: 4 x 80 mm, 11 kW - 5. Profiling spindle 2: Clamping length: 320 mm, ø 50 mm, stroke: 4 x 80 mm, 11 kW Fpedpfx Asztv Arjkhjk - NC axis: Feed for height adjustment
