Offset printing press

MAN Roland 304

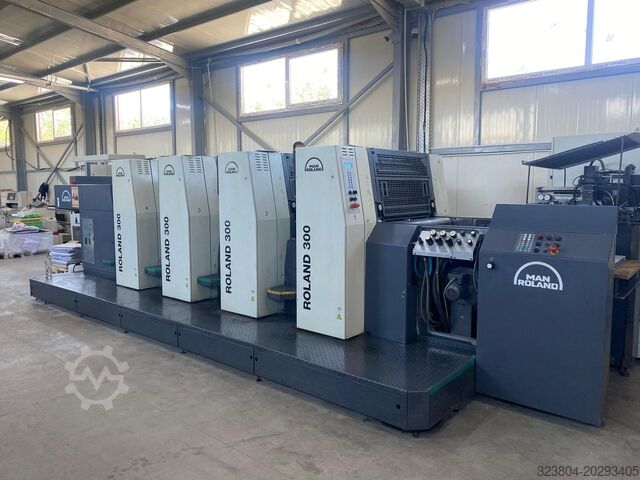

Condition: excellent (used), Year of construction: 2004, Age: 2004 Max.Size: 74 x 53 cm (29 x 20 inch) Colors: 4 Impress.Count: 68 mio Description: Man-Roland 304 Hedpottvc Rofx Al Ssl Year: 2004 Imp count: 68 mil Colours: 4/0 or 2/2 Autosize Quick action plate clamp No diagonal register Technotrans aplha.d 40L Available immediately In production

Condition: used, Year of construction: 2014, functionality: fully functional, Coated web width 1315 mm Max. web width 1330 mm primary unwinder: 1000 mm secondary unwinder: 1200 mm rewinder: 1200 mm speed: 400 m/min Accessories: - Solvent-less mixer Nordmeccanica - Continuous filling World Mixer (with 4 tanks of 200 kg) - 5 rolls Materials: COATED WEB BOPP 12 - 80 μ, PETP 10 - 30 μ, LDPE, LLDPE 30 - 200 μ, OPA 12 - 18 μ, NYLON CAST 30 - 80 μ Hodswp R Htjpfx Al Sol ALU (Foil) 6,3 - 40 μ, PP CAST 60 - 150 μ, PAPER 40 - 150 gr/m2 LAMINATED WEB BOPP 12 - 80 μ, PETP 8 - 30 μ, LDPE, LLDPE 20 - 200 μ, OPA 12 - 18 μ, NYLON CAST 20 - 80 μ ALU (Foil) 6,3 - 40 μ, PP CAST 20 - 150 μ, COEX FILM 25 - 200 μ PAPER 40 - 150 gr/ m2

Condition: ready for operation (used), Year of construction: 2000, Man-Roland 504 F 130 MIOS Air center Densitometer Year: 2000 Hodpfjyc I Iyjx Al Sjl Colours: 4 Max thickness: 1 mm Autoplate Autowash Diagonal register Straight machine Rietschle Air Center Tachnotrans Alpha D Weko Powder AP 250 No damages on gears or cylinders In production

Condition: excellent (used), Year of construction: 1999, functionality: fully functional, Faster than the equivalent sliding-table press, the fixed-table Printmaster is perfect for medium and long production runs, delivering excellent quality results with virtually any material up to 4 mm thick. And because the machine prints incredibly fast, the Printmaster is undoubtedly the best on the market. Among its many sophisticated features is the patented dual gripper system that ensures perfect registration and quiet operation. The Printmaster can also be equipped with various optional systems and accessories that make it even more versatile, faster and easier to use. Integrated PLC control system. Independent LCD touch panel with setting and monitoring of printing parameters: - Job parameter storage system. - settings diagnostics. - Variable stroke lengths of scraper and flood coater. - Adjustable clamp, scraper and flood coater speeds. Motorized off-axis contact adjustment. Hardened, self-balancing stop points combined with "locking" fingers for material control. Maintenance-free toothed belt drive for the scraper carriage. Double gripper bar shuttle system. Folding feed table. Fiber-optic registration control. Prepared for the addition of a feeder. High-strength steel lifting columns. Anodized aluminum work surface. Printing frame insertion. Multi-purpose self-adapting clamps. Pneumatic scraper pressure equalizer. Hjdpfsuptf Aox Al Sjl Pneumatic scraper and flood coater changeover. Pneumatic clamping of printing frame and back bars. Horizontal flooding. Choice of flooding: immediate or delayed. Timer for machine stop to allow peeling action. Adjustable peeling at 6 levels. Adjustable blowing system. Foot pedal.

Condition: as good as new (ex-display), Year of construction: 2019, operating hours: 50 h, functionality: fully functional, machine/vehicle number: 19101105, roller width: 1,100 mm, Equipment: full service history, type plate available, The SDFM-1100 roll-to-roll laminator is a multifunctional laminating machine. It is designed for cold and hot laminating. The paper is laminated on one side with the foil. Then the web is re-rolled onto the roll. For cold laminating, the foil is coated with a water-based glue and dried using a heating roller with a warm air drying system. The winding system sends the paper to the laminating section, where the paper is covered with the foil by heating and roller pressure. The rollers use a heated water circulation system with constant temperature control. The paper roll is held by pins, which are controlled by a pneumatic brake. The paper is unrolled to the leveler, which is equipped with automatic leveling of the paper web before laminating, which ensures even coverage of the web with foil. In the laminator, the non-adhesive film is coated with a water-based adhesive and then dried with a heating cylinder or the film already coated with adhesive is unrolled into the laminating cylinder. The laminating cylinder is heated using induction heaters. Under the laminating cylinder, the paper is joined to the film using temperature and pressure generated by the lower rubber roller, which presses the film with the paper against the laminating cylinder. The laminated web is wound onto a core on a shaft in the receiving section, after which it can be transported to subsequent production processes. Specification SDFM-1100 Maximum roll width 1100 mm Maximum roll diameter 1100 mm Paper weight 80 - 500 g/m2 Film thickness 10-50 microns Working speed 10 - 65 m/min Electrical voltage 380V 50Hz Total power 78 kW Maximum power consumption 30 kW Total weight 8000 kg Hsdpevy Aipjfx Al Ssl Machine dimensions 10130×2130×2960 mm

Condition: good (used), Year of construction: 2002, machine/vehicle number: 0102002, Semi-automatic angle opening Very good condition 3 months functional guarantee Print format: 1000 mm x 1500 mm max. sheet size: 1050 mm x 1550 mm max. screen frame: 1370 mm x 1850 mm Hedpfx Aorllhkol Ssl Squeegee pre-squeegee height adjustment: 40 mm Squeegee angle adjustment stepless: + / - 50 - 90 ° Support bar height adjustment: 0 - 100 mm stepless Maximum material thickness: 100 mm Machine weight: approx. 1500 kg connected load: 400Volt/50HZ - 5KW Air connection: 6 bar options: pneumatic screen frame clamping Squeegee pressure compensation adjustable via pressure regulator Stainless steel pressure plate Blowing air device All data without guarantee

Condition: excellent (used), Year of construction: 2001, Jumbo roll diameter paper max. 1600 mm Jumbo roll width min. 560 mm Jumbo roll width max. 1400 mm Jumbo roll diameter PE, PET max. 1000 mm Hodpfx Alexlkckj Ssl Core chucks diameter 76 mm, 100 mm, 150 mm, and 300 mm Speed depending on material: 200 to 300 m/min. The laminating machine Bielloni Castello Julia 2 SL is able to process single-component polyurethane (PU) adhesives with 100% solids content (solvent-free). The adhesive is applied using a sleeve system. Dispersion adhesives cannot be processed. The system does not include a drying unit. The PU adhesive is applied to the carton web with heated rollers (approx. 70–90 °C). Bonding between carton and film is achieved by pressure and subsequent self-curing. Paper grammage: 120 to 600 g/m², laminated with PET: min. 8 microns to max. 75 microns PE: min. 20 microns to max. 75 microns

Condition: used, Year of construction: 2000, TRESU Butler 1500 Flexographic Printing Press Manufacturer: TRESU (Denmark) Model: Butler 1500 Hsdpoxdi Atjfx Al Ssl Machine No.: 1090419 Year of manufacture: 2000 Maximum printing width: approx. 1500 mm Applications: printing on paper and other flexible packaging materials Typical use: production of paper bags, bakery packaging, fast-food, pastry, and other food products Configuration: flexographic press with multiple printing stations (exact number of colors available on request) Technical condition: fully operational, in production use, regularly maintained Supply voltage: 380V Advantages: Large printing width (1020 mm) suitable for a variety of packaging formats. Rugged construction, typical for TRESU equipment, known for reliability. Ideal for custom packaging printing on paper.

Condition: used, Year of construction: 1997, functionality: fully functional, machine/vehicle number: 6878, working width: 1,020 mm, total width: 2,000 mm, total length: 12,000 mm, total height: 3,000 mm, stack height: 840 mm, Laminating machine FK 102 S in very good used condition Sheet size min 30 x 45 cm Sheet size max 102 x 124 cm Feeder: Billhöfer A-20-P Smoothing calender: GK-4-1080 Sheet separator: Achilles BT 4.1 Stacker: Bremser S102A1 Additional equipment: pneumatic side lay by TPM electronic overlap control by PME automatic film brake by Achilles film cutting device by TPM Hsdpfx Ajxb Dq Tjl Ssl spare roller (lamination counterpressure) new, included The machine can laminate using both water-based and thermal films (heating units required) Dismantling/transport/possible customs duties etc. must be organized by the buyer.

Condition: excellent (used), Year of construction: 2017, Ref: 11039 . 2017 Rollem 36” Jetslit + 30” Rollaway and Cassette AutoCollator Delivery High volume print finishing system to maximizes finishing productivity for large volume producers For greeting cards, photo books, direct mail, postcards, invoices, business cards, game cards and much more. Features: This flexible system takes full press sheets and converts them to finished products in one step, eliminating the need for guillotine cutting, excess manpower and paper movement. 100% accuracy of finished products is a key feature of the Jetslit. Performs multiple print finishing steps with one system Bi-directional slitting, cutting, creasing and perforating in one machine Ideal for high volume production Multiple-up layouts maximize press sheet Decreases excess labour costs Eliminates touch points and paper movement Fully integrates with press via DFA communication system Accepts sheets in-line from press or operates in a stand-alone near-line configuration Process: Hsdpsxyxttjfx Al Sel The system takes full printed sheets with multiple images and converts each sheet in two directions, as shown below: 1. Full sheets are fed into the JetSlit registration guide for perfect alignment. 2. The sheets are completely slit on the extreme edges and timed slit in-between with Rollem's patented strike-slit feature. 3. The sheets are turned 90 degrees and re-registered. 4. Final slits are made, removing the notched portions and leaving the final pieces. Specification: Speed: Up to 6,000 cut product sheets per hour Format: Up to 36’’ (915mm)
