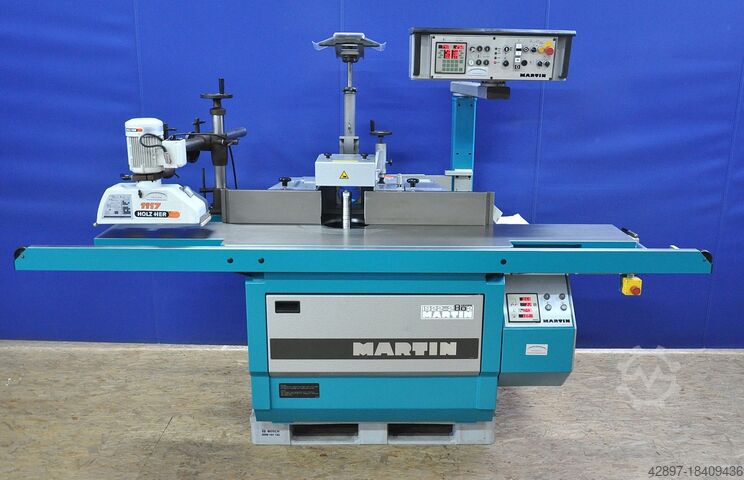

Swivel spindle milling machine

Martin T26 Duocontrol

Robust swivel spindle moulder T 26, tiltable from -45 to +45 degrees, equipped with 2-axis positioning control Duocontrol

Swivel spindle moulder with excellent features
A treat for every Martin enthusiast!

Pole-changing drive motor 5 / 6 kW with automatic motor brake
Forward/reverse operation
Tjdpfx Aevv H T Rsgqjf
Swivel angle electrically adjustable from -45 to +45 degrees
Height adjustment up to 150 mm, electrically adjustable
When adjusting the height, the correction factor for the swivel angle is displayed on the top display and then set at the stop – enabling settings according to drawings
Four speeds: 3,000, 4,500, 6,000 and 9,000 rpm
Spindle diameter: 30 mm, quick-change spindle with torque wrench
Electrically adjustable fence, infeed jaw adjustable by handwheel and SIKO counter
Axes can be operated manually or automatically positioned for height and fence
Fence with lift-away feature (for curved routing work)
Table opening via eccentric table rings, electrically adjustable
Table extension right and left with pull-out workpiece support
Support can be extended by 700 mm
Table length approx. 2,400 mm
Fold-down fence for insert routing
Original Martin aluminium fence jaws with two ribs
Aigner Centrex workpiece pressure device
3-roller feed unit HolzHer 1117, with 8 speeds, forward/reverse, new rollers
Feed socket, switchable from the control panel
Extraction outlets: 2 x 120 mm
Compressed air connection: 6 bar
Emergency stop switch
Some parts of the machine have been newly painted
Approx. 7,400 operating hours
Operating manual
CE mark

Dimensions approx. 3,000 x 1,700 x 1,830 mm (LxWxH). Weight approx. 1,800 kg.

The machine can be demonstrated on site by appointment. We only offer machines that are ready for demonstration in our warehouse – see 'other offers from this supplier'.

The listing was translated automatically. Translation errors are possible.
