Panel saw

MASTERWOOD MasterSaw

Scoring unit , kW
Dimensions (L/W/H) , mm
machine weight ab. , kg
Masterwood MasterSaw
Solid pressure beam saw with full features
-----

Manufacturer's description:
The MasterSaw pressure beam saws feature the following features:
- Air-jetted cutting line
- Height-controlled pressure beam
- Controlled sawblade projection

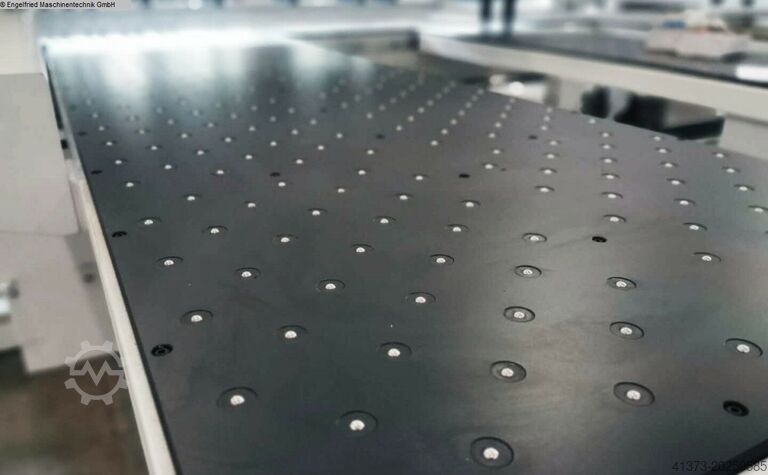

- 3 or 4 air-cushion tables, adjustable middle tables
- Loading and unloading rollers at the end of the tables
- 15 kW main saw motor (MS 430 L: 18.5 kW)
- Scoring unit adjustable horizontally and vertically from the control panel
- Masterlock quick-change system for sawblade changes
- Saw carriage travel: 110 m/min, forward travel: max. 95 m/min
- Pusher travel: return travel: max. 95 m/min
- Machine weight: 6 t or 6.8 t
- 8 or 10 double-finger clamps as standard
- Double-roller side aligner
- Intuitive machine software with graphical user guidance
- Stress-relieving cut
- Post-cutting option (nesting)
- Front and rear cleaning flaps
-----
MasterSaw Series Features:
MasterSaw 320 - Outstanding Value for Money
- Cutting Length 3,200 mm
- 3 Air Cushion Tables, Adjustable Middle Table
- 6 t Machine Weight

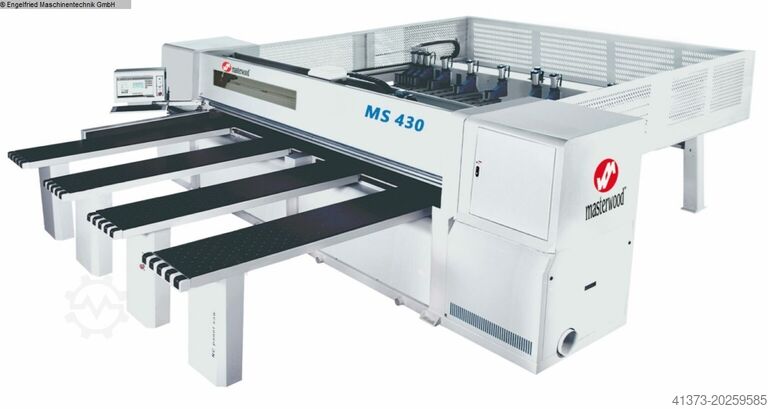

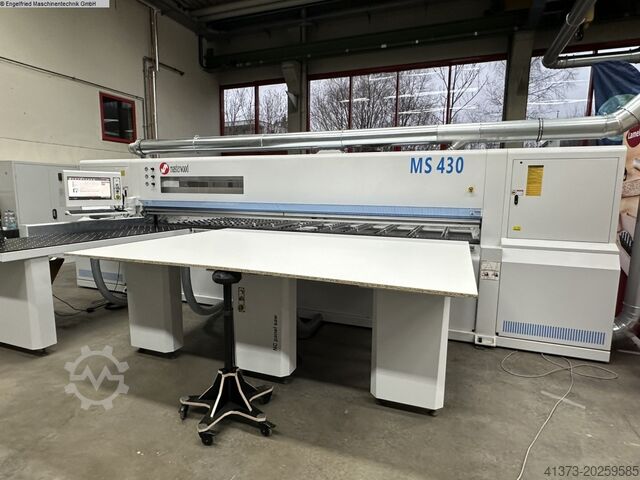

MasterSaw 430 - Industry Standard for the Woodworker
- Cutting Length 4,300 mm
- 4 Air Cushion Tables, Adjustable Middle Table
- 6.8 t Machine Weight

MasterSaw 320/430 Features in Detail:
- Saw Unit with Automatic Adjustment for Optimal Saw Blade Overhang
- Scoring Saw Unit with 200 mm Saw Blade for Tear-Free Cuts at
High Feed Speed
- The saw unit is driven by a servo motor and a rack and pinion drive

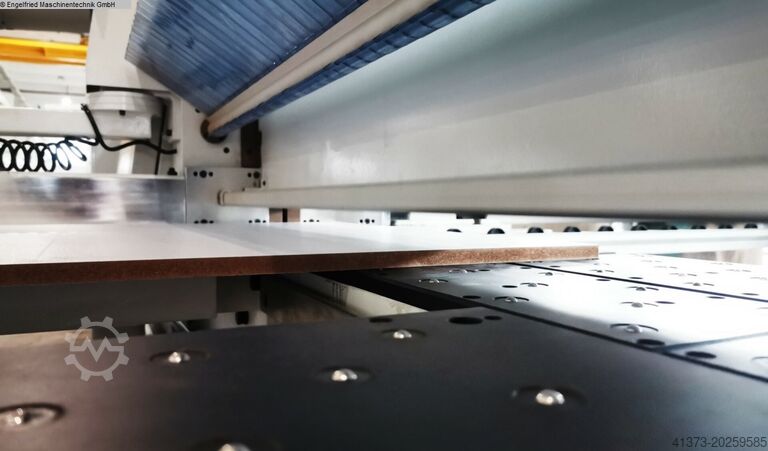

- The pneumatic pressure beam is always positioned parallel to the work table
using a rack and pinion drive
- The opening height of the pressure beam is monitored by the intelligent
control system, ensuring The shortest cutting cycles are achieved.
- Double-roller side aligner positions the panel strips in front of and behind
the cutting line.
- Material pusher with 8 (MS 320) or 10 (MS 430) double-finger clamps.

Technical specifications MasterSaw 320/430:
- Max. panel dimensions MS 320: 3,200 x 3,100 mm
- Max. panel dimensions MS 430: 4,300 x 4,300 mm
- Saw blade diameter: 400 mm
- Cutting thicknesses up to 90 mm
- Saw motor power: 15 kW
- Scoring saw motor power: 1.5 kW
- Feed speeds: up to 95 m/min in sawing mode - up to 110 m/min
in reverse mode
- Smallest finished workpiece: 34 x 45 mm
- Weight: 6 t (MS 320) or 6.8 t (MS 430)
- Dimensions MS 320: 5,556 x 6,646 x 1,890 mm (L x W x H)
- Dimensions MS 430: 6,556 x 7,775 x 1,890 mm (L x W x H)
- CE safety guard
-----
Features of the MasterSaw Series:
MasterSaw 430 L - Lifting table machine with 120 mm cutting height

The solution for high productivity
The MasterSaw 430 L features a lifting table loading system from the rear.
Thanks to its 120 mm cutting height, it is also ideal for series production.

Features and technical data of the MasterSaw 430 L
- 4 t panel stack with a maximum stack thickness of 500 mm
(900 mm in a pit on request)
- Saw blade diameter: 450 mm
- Cutting thicknesses up to 120 mm
- Saw motor power: 18.5 kW
- CE safety guard
-----
Fgedexmk Ebepfx Afpsh

Useful options if required:
- Professional optimization software
Optimization software including import of lists of up to 10,000 parts,
management of panels available in sto...
