Cnc-processing centerMASTERWOOD
Project 385
Machine data
- Machine type:
- Cnc-processing center
- Manufacturer:
- MASTERWOOD
- Model:
- Project 385
- Year of construction:
- 2021
- Condition:
- used
Price & Location
- Location:
- Oberkochen
Details about the offer
- Listing ID:
- A202-59535
- Reference number:
- 1305-6814
- Update:
- 10.10.2025
Description
Number of spindle head vertical 13 St.
Number of spindles head horizontal 6 St.
Number of tools 27 St.
Number of milling agregates 1 St.
Fgsdpsxmk Atjfx Afpoh
working dimensions 3200,1500,200 mm
Motor output 12 kW
control BECKHOFF

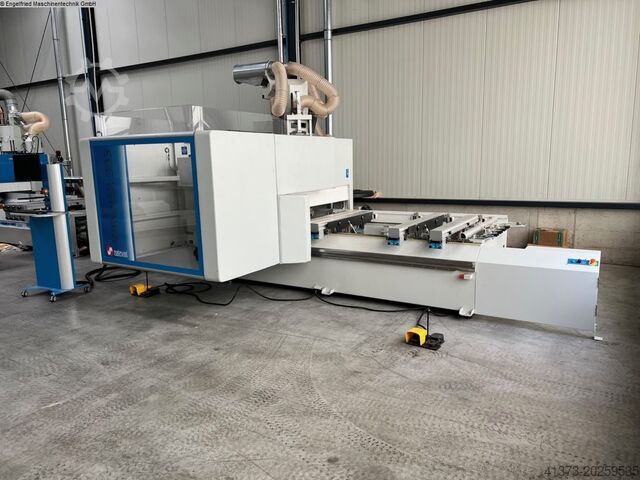

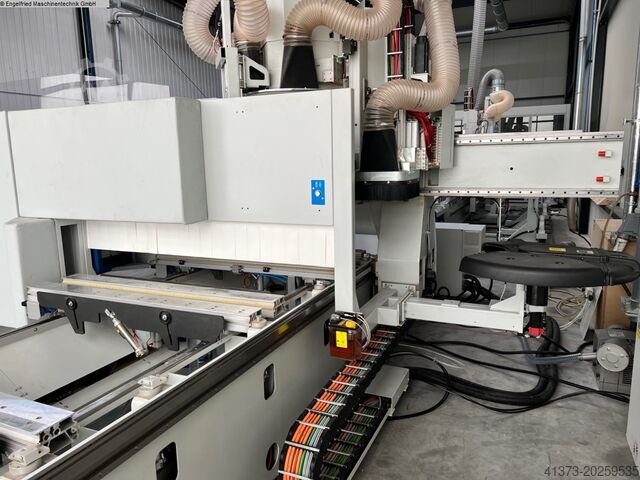

MASTERWOOD Project 385 (Winner)
-----
Exhibition machine built in 2021, available immediately!
5-axis CNC machining center in portal design for use for
Interior fittings, doors, stairs optionally expandable with solid wood clamps
Frame processing and arched windows
Short Summary:
-----
Workspace:
X = 3200mm ; Y = 1500mm; Z = 200mm

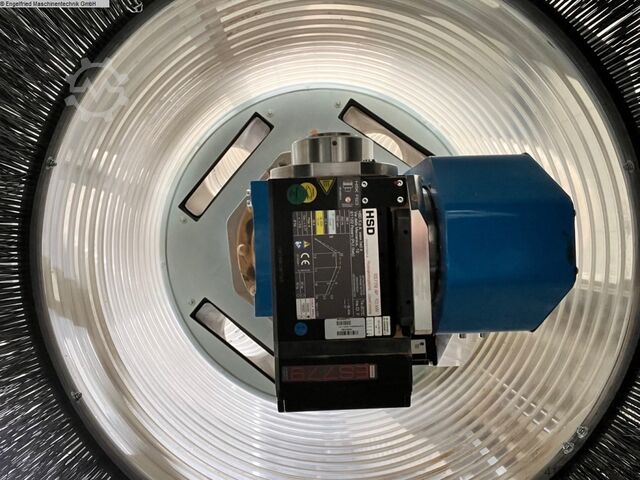

1 piece 5-axis high-performance spindle, 12 kW, with HSK 63 F mount
1 piece of permanently installed drill head with 19 spindles
with 7 individually accessible vertical drilling spindles in the X direction
with 6 individually accessible vertical drilling spindles in Y direction
with 2 double horizontal drilling spindles in X direction
and 1 double horizontal drilling spindle in Y direction
Sawing unit integrated into the drill head
27 tool changing positions:
Carousel tool changer with 22 positions and 102 mm grid spacing
Linear 5-fold tool magazine for large tool diameters

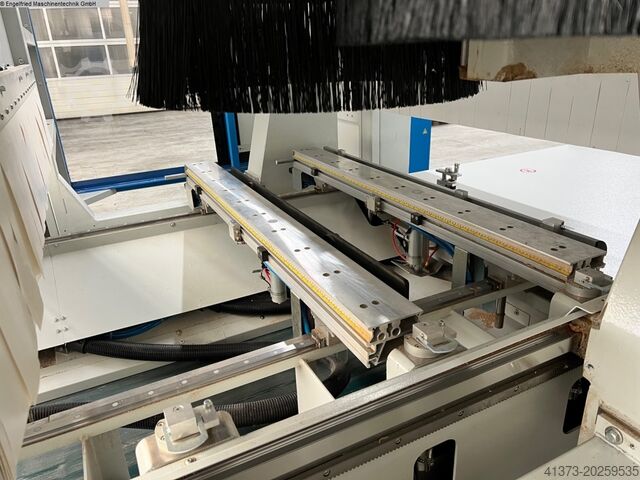

Original SCHMALZ tubeless work table.
Console table with 6 traverses
Workpiece lifting device
Automatic tool length measuring device.
Pack of 12 original Schmalz vacuum cleaners 114 x 140 mm height = 125 mm
1 piece Becker vacuum pump 100m3/h
1 piece chip conveyor belt
Construction software Masterwork:
2D-Wop for standard application panel processing/interior construction, arches,
doors
Master 3D Level 2:
for more complex processing,
Optionally also expandable for 5-axis fully interpolating
Prepared for the use of solid wood tensioners (round arches),
Tensioner offered as an option if needed later
Technology according to the enclosed, detailed description
-----
Total price in this version from the Oberkochen warehouse: on request!
-----
Freight and commissioning on request!
Options for frame production/round arch with additional costs:
-----
Reference ring for holding chip guide elements
on 5-axis electrospindles with HSK 63F mounts: 410.00 euros
Basic kit for clamping arch elements -
6 pneumatic tensioners with two movements for arch elements: 7,090.00 euros
(technical information according to the manufacturer - no guarantee!)
Chip guide elements, price per piece: 460.00 euros
All prices mentioned are net, plus tax.
(technical information according to the manufacturer - no guarantee!)
