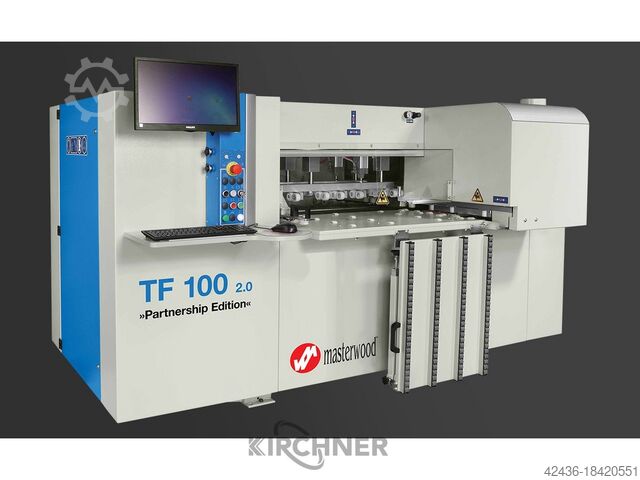

MASTERWOOD machining center project TF 100 2.0

Masterwood Projekt TF 100 2.0

Condition: new, MASTERWOOD CNC machining center type PROJECT TF 100 2.0"PARTNERSHIP EDITION" - MAST0337The Masterwood CNC machining center PROJECT TFis ideal for complex CNC machining in the smallest of spaces,for solid wood, panel materials or antages:- Very little space required- Maximum time savings thanks to extremely fast production times- Fast amortization due to the low purchase price- Quick learning of the technology thanks to the simplest operation- Cleanliness of the workpieces with low suction powerby machining from below- Extremely fast, simple and variable programmingwith the MASTERWORK software (standard)- Extremely quick and easy programming completeCabinets through the use of Palette CAD (option)Technical specifications:Axes:X-axis: Max. Workpiece length: unlimitedMin. Workpiece length: 250mmTravel speed: 0-25 m / min.Y-axis: Max. Workpiece width: 1,000mm for all unitsMin. Workpiece width: 80mmTravel speed: 0-50 m / min.Z-axis: Max. Workpiece thickness: 60mmMin. Workpiece thickness: 10mmTravel speed: 0-20 m / minimum and maximum workpiece sizes aredepending on the weight and also on the ratioLength to width!Aggregates:16 mm drill head:vertical spindles in X-direction: 5 piecesvertical spindles in Y-direction: 5 pieceshorizontal double drilling spindle in X-direction:2 + 2 pieceshorizontal double drilling spindle in Y-direction:1 + 1 pieceDistance drilling spindles: 32mmSpeed ??of drilling spindles: 4,000 or: 1.7 kWGrooving saw: in the X directionSpeed: 4,000 . Saw blade diameter: 125mmMotor: 1.7 kW (the grooving saw is integrated in the drill head)Control:Personal computerProcessor: Intel Core i3-8100 CPU  3.60 GHzRAM: 8 GBHard disk: 300 GBCD-ROM driveColor screenIntegrated video card2 ethernet cardsOperating system: Windows 10 Pro - 64 bitProgram: MASTERWORK MACHINE VERSIONFurther data:Required air pressure: 8 barAir consumption: max. 750 l / tion:Volume: 2,000 m³ / hAir speed: 25 - 30 m / raction nozzle: 1 x 150mmFurther equipment features:- Air tables in the work area- Roller table in the infeed and outfeed- Sensor for plate measurement- Ball screw and linear guides- rack and pinion drive- Import of DXF files(Operating instructions, circuit and pneumatics diagram isin digital form at)"PARTNERSHIP EDITION" consisting of:Milling unit,including MASTERWORK software extensionSpeed: 1,000 to 18,000 or: 4.5 kW with ISO 30 mountIncl. integrated suction control (when drillingonly the drill head becomes, when milling only the milling unitsucked off)6-fold tool changer3 pieces ISO 30 collet chucks including colletTooling, consisting of:HW dowel drill:5 pieces 5mm - GL 70mm - blind hole drill1 piece 5mm - GL 70mm - through drill4 pieces 8mm - GL 57.5mm - blind hole drill2 pieces 10mm - GL 57.5mm - blind hole drill1 piece 10mm - GL 70mm - blind hole drill1 piece 8mm - GL 70mm - blind hole drill1 piece 15mm - GL 70mm - blind hole drill1 piece 35mm - GL 70mm - blind hole drill1 HW grooving saw blade d = 125mm, bore = 20mm, width: 4.0mm, Z = 35 WSA1 DIA milling cutter, right - GL = 103mm, NL = 43mm, D = 18mm, shank: 20x50mm, Z 1 + 11 DIA milling cutter, left - GL = 103mm, NL = 43mm, D = 18mm, shank: 20x50mm, Z 1 + 11 VHW WP finishing cutter, right, D = 10mmFoldable roller conveyor in the infeedFoldable roller conveyor in the outletAutomatic central lubricationEquipment:Complete package for CLAMEX connectors consisting of:- Angular gear with CLAMEX milling cutter including spec... Bodpfx Aovwf Iiebmslp
