MDK 3000 brush washing system

Maurer Gép MDK 3000

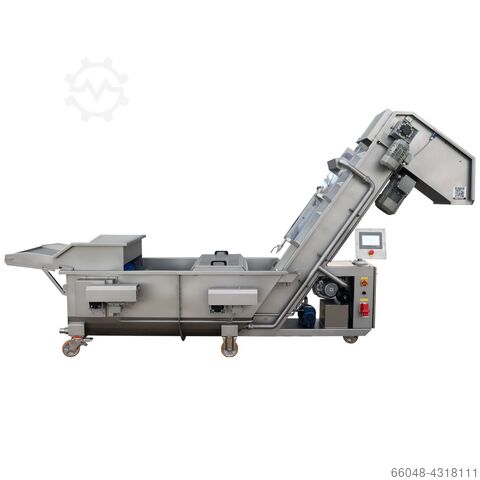

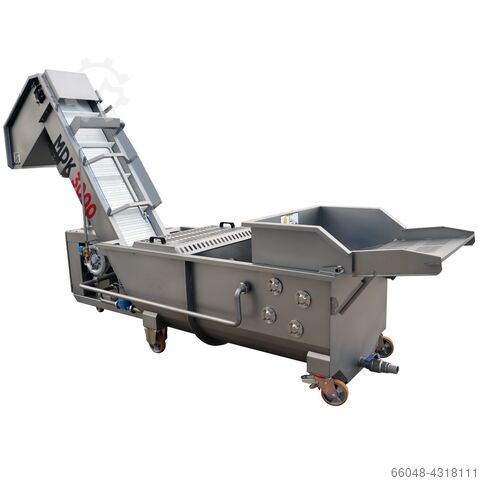

MDK 3000 Brush Washing Machine with Pulp Remover

The unwashed fruits are fed in at the intake. After pre-washing, they are cleaned again by an additional fresh water shower on the conveyor belt. The system is easy to clean and equipped with durable, food-grade polypropylene/acetal modular belts, featuring continuously adjustable belt speed in both directions. It comes with two swivel castors, two fixed castors, or alternatively anti-vibration feet. Minimal maintenance required.

Technical specifications:
- Rated capacity: 3,000 kg/h
- Power requirement: 5 kW, 400 V, 16 A, three-phase
- Material: Stainless steel Wnr. 1.4301, AISI 304

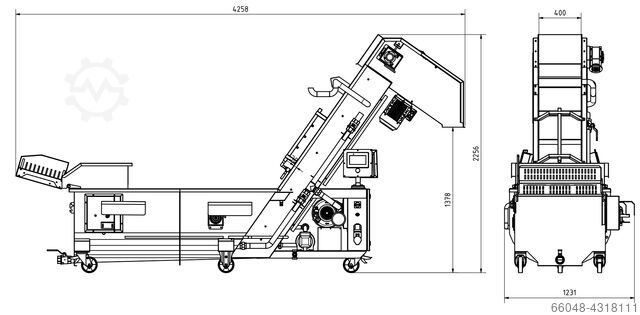

- Dimensions: 4300x1250x2222 mm
- Discharge height: 1,370 mm
- Weight: 420 kg
- Washing tank water capacity: 800 L/shift
- Water consumption: 100–200 L/h (depending on settings)
- Water connection: ¾” quick connector
- IP65 electronics
- Pulp remover equipped with a robust hammer (also suitable for beetroot and quince)
- Grating mill: may be electronically disengaged, enabling use of the washer for stone fruit

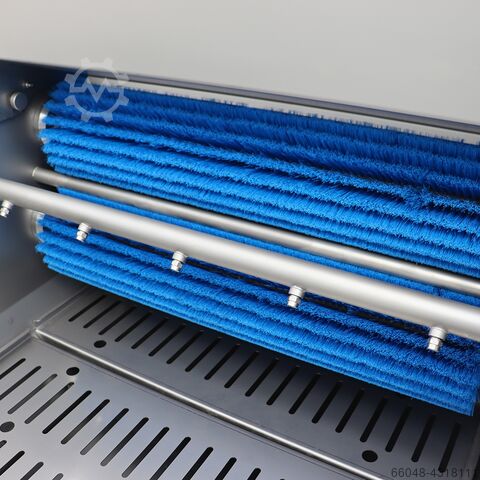

- Fitted with 4 counter-rotating brushes for intensive washing
Ksdpfofd E R Usx Ahujdg
- Rotating paddle pushes fruit towards the conveyor

Options:
- Various sieve inserts for the grating mill for the desired fineness of fruit and vegetables
- Stop ‘n’ Go system – sensitive sensor allowing the fruit washer and all types of belt presses to operate clog-free in sync
- Adaptive electric valve – fresh water spray operates only when the conveyor is running
- Air injection – with nozzles and a fan at the bottom of the tank for intensive washing
- Air knife – removes water from fruit surface, so less water enters the final product
- Recirculation pump with filter – ensures correct flow in the washing tank

The listing was translated automatically. Translation errors are possible.
