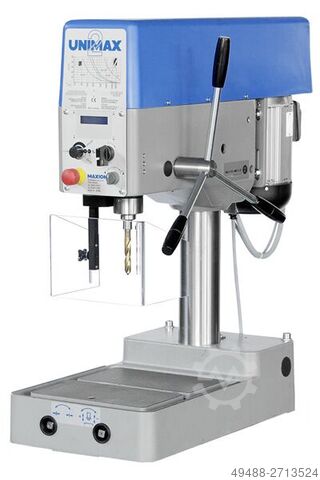

Bench drill

Maxion Unimax 2T

Condition: used, Year of construction: 2006, machine/vehicle number: 185078, Offer 24435 Technical data: - Table surface 1700 x 550 mm - manual travel X / Y 1300 x 500 mm - MAXION drilling machine, type: BT 15 GL - Drilling capacity up to 18 mm - Tapping device up to M 10 - Drill spindle holder MK 2 - Drill spindle stroke with drilling depth fine adjustment 90 mm - Pneumatic feed unit PV 12 - throat depth 670 mm - 4 spindle speeds 320 + 560 + 1000 + 1600 rpm - mot. Stroke of the drilling unit - Table clamping x + y - Minimum quantities Lubrication - Pneumatic connection 6 bar - 400 V connection - Space requirement approx. W 1750 x H 1600 x D 1000 mm - Weight approx. 1200 kg Hfedpeut Uzasfx Ahvsh - various guide cartridges

Condition: used, machine/vehicle number: 2820-0419, x-travel:500 mm y-travel:400 mm z-travel:400 (340) mm table surface area:710 x 430 mm turning speed range:40 - 4000 U/min feed range:02 - 3600 mm/min rapid feed:4,0 m/min milling-head swivable +/-:90° quill stroke:80 mm spindle taper:SK 40 control:Contour 3 total power requirement:5,5 kW weight of the machine ca.:1,9 kg dimensions of the machine ca.:2 x 1,4 x 1,8 m Deckel Model FP3 A Hfodpfx Aheh Ra Nijvoh - Spilndle Head can be swiveled 90 ° (Left of Right) - Universal tilting rotary swivel table (Size - 710 x 430 mm - Deckel Contour 3 CNC control Systems. - Hydralic Tool clamping system SK40 with Pull studs DIN 2080 or DIN 69872 - Portable Electronic Handwheel for All Axis Control Central Lubricant system, Chip tray with Splash cabin will provide complete protection, clean and safe working Area.

Condition: used, functionality: fully functional, Milling machine Deckel FP 4 M 3-axis digital readout Heidenhain Work area: 500 x 400 x 400 mm Hedpfx Aey Awz Rshvsfh Drive power: 4 kW Fixed table 800 x 460 mm Chip tray Spindle taper SK 40 Speed range n 50-2500 rpm Feed rates 8-630 mm/min Rapid traverse 1.3 m/min Space requirement approx. 2 x 2 x 2 m Weight approx. 1650 kg

Condition: reconditioned (used), Year of construction: 1975, functionality: fully functional, 3-axis digital readout FAGOR Year of manufacture: 1975 Travel: X 500 Y 200 Z 400 Speed range: 40 – 2000 rpm With the following accessories: Hjdpfeyw H Eujx Ahvofh Universal table 660 x 380 mm clamping surface Vertical milling head Extendable quill Milling cutter guard enclosure Machine lamp Various tool holders SK 40 Chip tray Coolant system 4 pcs. machine feet Operating manual THE MACHINE IS IN VERY GOOD CONDITION !!!

Condition: new, Universal tool milling machine according to DIN 8615. The torsion-resistant machine stand made of MEEHANITE® quality casting and the high-precision, hardened and ground guides in all axes guarantee high precision and durability. With the 3-axis digital display, all values can be called up directly and with the user-friendly control panel on the jib arm (OPTION), it can be positioned individually. Clamping area of the fixed angle table: 900 x 500 mm Max. Workpiece weight: 360 kg Horizontal and vertical tool holder: ISO 40 Main spindle motor power / 100% ED: 3.75 kW Power feed motors X/Y/Z-axis: 1.0 / 1.0 / 1.5 kW Total connected load: 7.4 kVA Speed range: 40 - 3800 1/min Speed steps: 18 Manual drill sleeve stroke: 120 mm Swivel range: +/- 90 Travel X (automatic/manual): 600 mm Travel Y (automatic/manual): 460 mm Z travel (automatic/manual): 380 mm Feed range, infinitely variable X/Y/Z: 10 - 650 mm/min Rapid traverse: 1000 mm/min Dimensions LxWxH, approx.: 1850 x 1650 x 1900 mm Weight, approx.: 1780 kg Equipment: - 3-axis digital display (e.g. FAGOR® Innova), with various comfort functions, on user-friendly swivel arm (OPTION) - DC servo motors for all X/Y/Z axes, e.g. from DELTA® - Spindle concentricity max. 0.005 mm, incl. test report to DIN 8615 (SKF®/NSK® roller bearings) - Spring-loaded safety handwheels in all axes, e.g. from GANTHER® - Torsion-free machine bed made of MEEHANITE® quality casting - High-precision, hardened and ground guideways in all axes with TURCITE®-B coating - Backlash-free HIWIN® precision ball screws in all axes - Electrical overload protection in all axes - Multi-adjustable spindle protection device secured via micro limit switch - Automatic interval central lubrication - Drilling quill - Swivel-mounted control panel on extension arm (approx. 1,600 mm) (OPTION) - Hydraulic tool clamping - SIEMENS®, BALLUFF® electrical equipment - Coolant device - Horizontal device - LED machine light - Spacious chip collection tray - Test report according to DIN 8615 - Operating tool Hfjdpsuxt N Iefx Ahveh - Operating instructions, spare parts list, incl. electrical circuit diagrams etc. in German - CE
