MACHINING CENTER

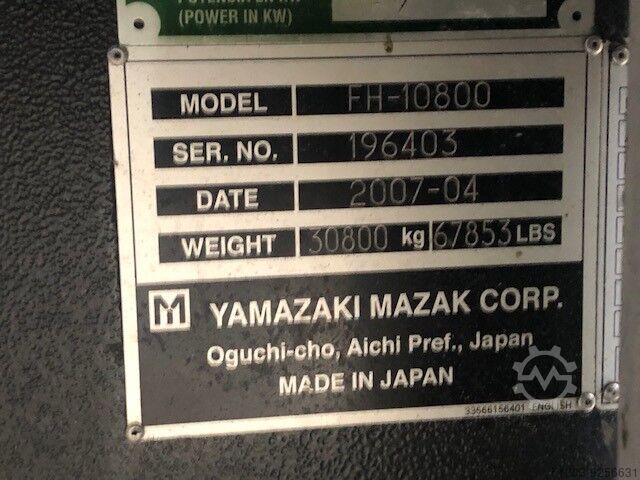

MAZAK FH 10800 FUSION 640 M

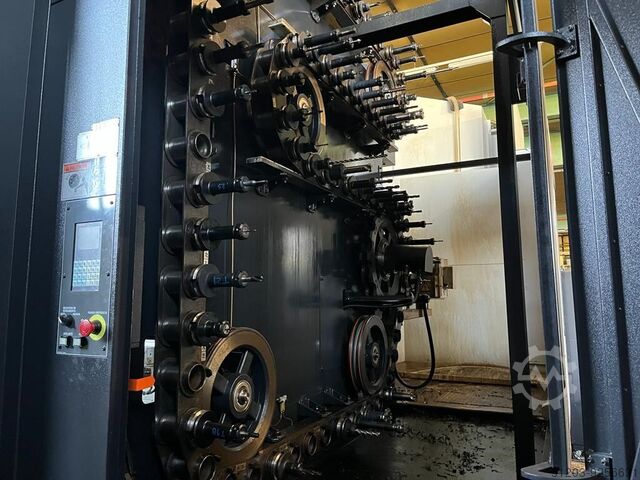

Condition: used, TECHNICAL DETAILS - Number of axes : 5 MILLING SPINDLE - Tool holder type : SK50 - Spindle power : 60 [kW] - Spindle speeds : 50-8000 [rpm] - Gearbox - Speed ranges : 2 LINEAR AXES - Travels on X/Y/Z axes : 1250 / 1200 / 1400 [mm] - Rapid traverses rates (X/Y/Z) : 50 [m/min] A ROTARY AXIS - Travel : [°] - Indexing precision : 0.001 [°] B ROTARY AXIS - Travel : (+/-) 360 [°] - Indexing precision : 0.001 [°] - Cutting feed rate : 10 [rpm] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur Iedjuhb D Aepfx Ad Djtp - Tool magazine capacity : 50 - Tool exchange time : 6.3 [sec] TABLE - Table dimensions : 1100 [mm] - Maximum weight upon table : 2000 [kg] - Maximum part dimensions (diameter x height) : 1810 x 1400 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 50 [kW] WEIGHT & DIMENSIONS - Machine floor space : 7400 X 5400 [mm] - Machine height : 4800 [mm] MACHINE HOURS - Number of hours under power : 14238 [h] EQUIPMENT - CNC : Siemens 840 D SL - Interface : Ethernet / RS232 / USB / PCMCIA - Interactive programming : Shopmill - Electronic handwheel - Linear scales - Rigid tapping - 3 colors status lamp - Coolant tank : 2450 [l] * with high-pressure pump : 50 [bars] * with cooling unit for coolant * with magnetic filter * With washing gun - Coolant through spindle - Micro-lubrification coolant - Chips conveyor - Oil mist extractor - Spindle cooling unit - Tool probe : Renishaw - Workpiece probe : Renishaw - Tool breakage detection - Electric transformer - Tool-holders

Condition: good (used), Year of construction: 2000, travel distance X-axis: 4,300 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 1,460 mm, table width: 2,130 mm, table load: 40,000 kg, table length: 5,000 mm, Duplex milling are two machines located one opposite the other which can work seperately or as single machine, workpiece can be machined with 2 simultaneous spindles. Production increase of up to 50% in relation to conventional solutions, i.e. individual milling machines Improvements in part precision, by managing to do the machining of the part in one single setup, in most of the cases One sole operator can control the DUPLEX milling machines Reduced space and investment requirement comparing with two single machines Fast investment amortisation due to the high productivity Duplex solution admits different configurations: single working area, pendulum working areas Itedpewrcydsfx Ad Dep For machining excavator arms / boom like, CAT, Caterpillar, Komatsu, Hitachi, Hyundai, Doosan, Case, Bobcat, JCB, Kobelco, Liebherr, Kubota, Takeuchi, Volvo X-Axis: 4300mm Y-Axis: 1200mm Z-Axis: 1460mm Table Length: 5000mm Table Width: 2130mm Table load: 40000 Power on spindle: 22/30kW Spindle speeds: 60 - 3000Rpm Spindle Taper: 50ISO/Bt/Mk Feed rate X-Axis: 10000mm/min. Feed rate Y-Axis: 10000mm/min. Feed rate Z-Axis: 10000mm/min. Millinghead auto-index:2.5 x 2.5° Length: 10060mm Width: 9100mm Height: 3990mm Weight: 40000kg

Condition: excellent (used), Year of construction: 2019, Mazatrol Smooth G Travel paths X-axis: 1,050 mm Y-axis: 900 mm Z-axis: 980 mm Pallet changer – Palletech 6 pallets Pallet size: 630 x 630 mm Setup station NC rotary table 360,000 positions Iodpfxowlg Hzo Ad Djtp Milling spindle Drive power 30 kW Max. spindle speed 8,000 rpm Tool magazine 160 tool positions BT-40 Other options Chip conveyor 70 bar high-pressure pump Separate tank with filter
