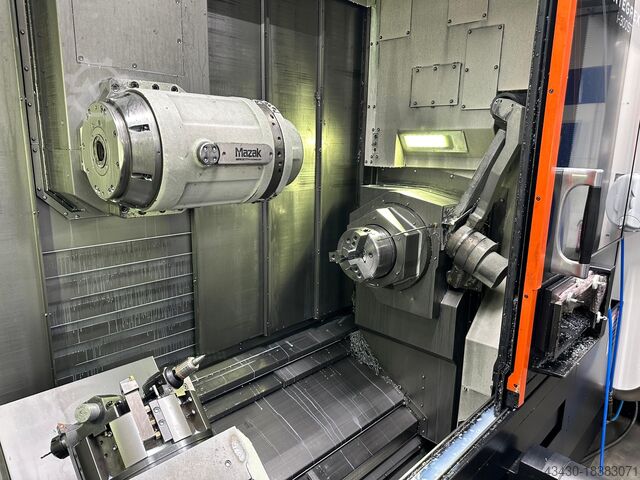

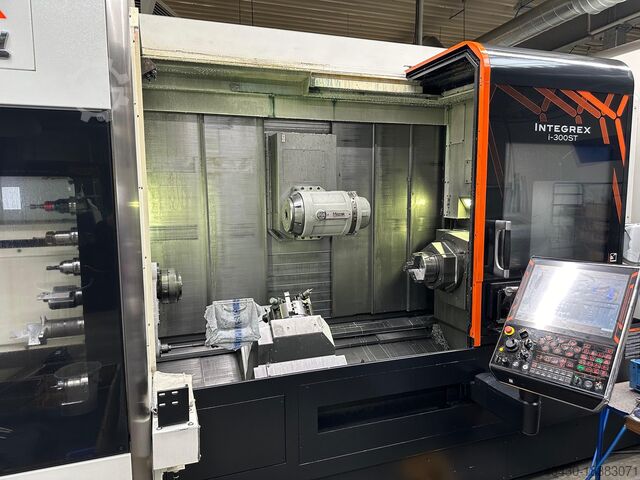

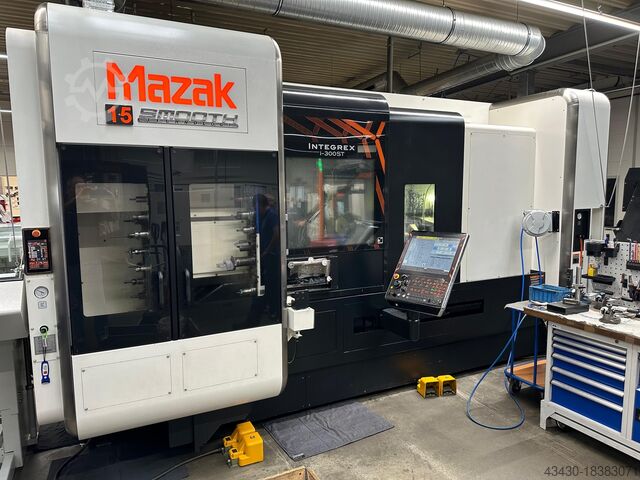

CNC turn-mill center

Mazak INTEGREX i-300ST

Condition: used, Year of construction: 2017, turning diameter: 658 mm, controller manufacturer: MAZATROL, controller model: SMOOTH X, number of spindles: 2, CONTROLS .. CNC controls MAZATROL SMOOTH X BASIC FUNCTIONS .. number of spindles: 2 .. number of turrets: 1 Predexu Ufzspfx Ac Hof WORKING RANGE TURNING .. turning diameter (max): 658 mm .. bar diameter (max): 80 mm .. worpiece length max.: 1519 mm MAIN SPINDLE .. spindle revolutions (max): 4000 /min .. drive power: 30 kW .. c-axis: yes COUNTER SPINDLE .. spindle revolutions (max): 4000 /min .. drive power: 26 kW .. c-axis: yes X/Z SLIDE .. Z-axis travel: 1585 mm .. X-axis travel: 615 mm .. Y-axis travel: 250 mm .. rotating range B-axis up to: 210 ° .. rapid traverse Z: 50000 mm/min .. rapid traverse X: 50000 mm/min .. rapid traverse Y: 40000 mm/min X/Z SLIDE .. rotating range B-axis up to: 0.0001 ° .. - rotation speeds (max): 12000 /min .. - drive power: 24 kW TOOL MAGAZINE .. number of positions: 72 .. tool diameter max.: 90 mm .. - with free neighbour positions: 125 mm .. tool length max.: 400 mm .. tool weight max.: 12 kg DIMENSIONS / WEIGHTS .. space requirements -left/right-: 4910 mm .. space requirements -front/back-: 2800 mm .. total height: 2720 mm .. total weight approx.: 16900 kg ATTACHMENTS (TURNING) .. hydraulic system: yes .. European CE standards: yes

Condition: good (used), Year of construction: 2000, operating hours: 10,000 h, functionality: fully functional, turning length: 1,105 mm, turning diameter: 610 mm, spindle speed (max.): 3,500 rpm, spindle bore: 70 mm, travel distance X-axis: 580 mm, travel distance Y-axis: 210 mm, travel distance Z-axis: 1,137 mm, mount diameter: 63 mm, rotational speed (max.): 6,000 rpm, type of input current: AC, Equipment: rotational speed infinitely variable, The machine is in good condition. Major maintenance work in recent years: 30.04.2020: Milling spindle overhauled CHF 35,000 16.07.2021: Software update (Wenk AG) CHF 1,600 20.06.2022: Central lubrication pump replaced CHF 400 (All prices are in CHF) Known issues: - Error message during startup - Coolant from internal cooling leaks out at the rear of the milling spindle - Overload message when the machine is cold and running at 100% rapid traverse - Over 150 different tool holders included - Spare magazine sleeves for tool magazine - Spare limit switches for tool changer position monitoring - 2 x 3-jaw chuck diameter 250 mm (mounted for inspection) - 1 x 3-jaw chuck diameter 250 mm - 1 x 3-jaw chuck diameter 300 mm - 1 x 4-jaw chuck diameter 400 mm - 2 sets of hard jaws for external clamping, short version - 1 set of hard jaws for external clamping, long version - Various sets of used soft jaws Pjdpfoxp Hmaex Ac Herf - Spare filters for the high-pressure system (Kowap) (5 units in stock; approx. 2 units available by delivery – 1 filter approx. CHF 20-25) - Coolant cleaning system or oil separator (custom built) - Storage cabinet customized to fit the tool magazine for KM63 holders, numbered for 80 positions - Specific clamping equipment suited for the KM63 holders, allowing direct indexable insert clamping - Iscar disc milling cutter suitable for a D160 mm holder, 4 mm width - Gear milling cutter suitable for a holder (custom built – for soft jaws, pitch = 1.5 mm) - Cleaning/deburring brush suitable for a holder We are also happy to provide leasing and financing offers for the machine. A viewing appointment can be arranged upon request.

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, machine/vehicle number: 22049, CNC horizontal machining center MAZAK HC NEXUS 5000-II + PALLETECH (6 Paletten) Mfg. year 2007 Mazatrol Matrix control movements: X-axis: 730 mm Y-axis: 730 mm Z-axis: 740 mm Distance spindle nose to spindle center 70-810 mm Distance spindle center to pallet surface 100-830 mm Pallet size 500 x 500 mm Max. workpiece dimensions Ø800 x 1000 mm Max. pallet load 700 kg Main spindle 30 kW Max. spindle speed 18.000 rpm BT-40 Tool magazine for 120 tools Prodjpm Igzspfx Ac Hef NC indexing table, 1° indexing Tool length measuring – Laser Renishaw NC4 Swarf conveyor, Tecnoforme Coolant through spindle Coolant tank 300 microns rotofilter 18 bar high pressure pump Pulse generator Palletech system with pallets and loading station CE-mark

Condition: excellent (used), Year of construction: 2021, Turning length: 1,500 mm Max. turning diameter: 670 mm Prjdpfsx Nm Uajx Ac Hof Max. main spindle speed: 5,000 rpm Max. sub spindle speed: 5,000 rpm Milling unit tool holder: CAPTO C6 Includes HAINBUCH chuck with quick-change system Includes bar feeder Includes KNOLL chip conveyor / band filter Includes various tools Includes complete documentation

Condition: good (used), Year of construction: 2009, 750mm Swing, 540mm max. machining diameter, 1020mm max turning length, 5000rpm main spindle, Psdsw Npz Iopfx Ac Horf 5000rpm Sub spindle, 65mm bar capacity, 12 station lower turret, 12000rpm milling 18.5kW, 22kW spindle motors, FANUC 3iTB control, 3 Jaw Power Chucks, tool setter, Swarf Conveyor, Coolant

Condition: excellent (used), Year of construction: 2019, Mazatrol Smooth G Travel paths X-axis: 1,050 mm Y-axis: 900 mm Z-axis: 980 mm Pallet changer – Palletech 6 pallets Pallet size: 630 x 630 mm Setup station NC rotary table 360,000 positions Milling spindle Drive power 30 kW Psdpfjwlg Hzex Ac Herf Max. spindle speed 8,000 rpm Tool magazine 160 tool positions BT-40 Other options Chip conveyor 70 bar high-pressure pump Separate tank with filter

Condition: excellent (used), Year of construction: 2005, Control Mazatrol 640 MT Pro Max. Turning Diameter 660 mm Max. Turning Length 1,045 mm Travel Paths X1 axis: 580 mm X2 axis: 150 mm Y axis: 160 mm Z1 axis: 1,045 mm Z2 axis: 1,010 mm Prjdpfoxmu Dbsx Ac Hef W axis: 1,050 mm B axis: -30 to 210° Rapid Traverse X/Y/Z/W 50/40/50/30 m/min Main Spindle Drive power: 22 kW Max. spindle speed: 4,600 rpm C axis Sub Spindle Drive power: 18.5 kW Max. spindle speed: 5,000 rpm C axis Milling Spindle Drive power: 18.5 kW Max. spindle speed: 12,000 rpm B axis: 0.0001° Capto C6 Tool Magazine / ATC 40 tool stations Max. tool diameter: 90/125 mm Max. tool length: 300 mm Max. tool weight: 10 kg Lower Turret Drum turret 9 tooling stations Special Equipment Chip conveyor Tooleye 15 bar high-pressure pump Thread cutting synchronized with milling spindle 5-axis simultaneous machining Preparation for multiple and flash tool holders Interface for bar feeder Conveyor belt for finished parts Preparation for Renishaw system 3-jaw chuck for main and sub spindle

Condition: good (used), Year of construction: 2007, functionality: fully functional, Mazatrol Matrix control system Max. turning diameter: 660 mm Max. turning length: 1,495 mm Main spindle: Max. spindle speed: 4,600 rpm Through-bore: 65 mm Counter spindle: Max. spindle speed: 5,000 rpm Milling spindle: Max. spindle speed: 12,000 rpm Capto C6 tool system Tool magazine with 120 tool positions Lower turret with 9 tool stations, including 6 driven stations Max. speed of driven tools: 6,000 rpm Psdpfx Aov Stntjc Hjrf Through-spindle cooling up to 70 bar Mayfran ConSep 2000 chip conveyor High-pressure pump: 70 bar Air-conditioned control cabinet Synchronized thread cutting Cylindrical interpolation Full C-axis counter spindle CE mark

Condition: like new (used), Year of construction: 2024, operating hours: 150 h, Smooth Ai Control Max. turning diameter: 600 mm Max. turning length: 850 mm Travel paths: X-axis: 535 mm Y-axis: 210 mm Z-axis: 900 mm B-axis: -30° to 210° (0.0001° increments) Main spindle motor: 11 kW Max. main spindle speed: 6,000 rpm Max. bar capacity: 52 mm Max. counter spindle speed: 6,000 rpm Milling spindle motor: 12 kW Capto C6 Max. milling spindle speed: 12,000 rpm B-axis, 0.0001° resolution Tool magazine for 38 Capto C6 tools IKZ interface 70 bar Knoll KF150/950 compact filter system 70 bar high pressure pump Mayfran MT10 chip conveyor 5-axis machining package for Smooth Ai Cylinder interpolation 5-axis simultaneous machining on the counter spindle Synchronized tapping G84.2 and G84.3 Thread chasing function Mazak API Pjdexvqm Rspfx Ac Herf Full C-axis on counter spindle (0.0001°), C1 + C2 synchronization Linear scale for X-axis Linear scale for Y-axis Mazak Monitoring B, Renishaw RMP60 probe 3-jaw chuck main spindle, Kitagawa BB206 3-jaw chuck counter spindle, Kitagawa B206
