Vertical machining center

Mazak

Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, travel distance X-axis: 1,660 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 510 mm, controller model: M+ Mazatrol, table load: 1,000 kg, TECHNICAL DETAILS Travel in the X-axis: 1,660 mm Travel in the Y-axis: 510 mm Travel in the Z-axis: 510 mm Table dimensions: 2,000 × 510 mm Table load capacity: max. 1,000 kg Bsdpfxoz Ahw He Ahmewu Spindle speed: 7,000 rpm Tool holder: SK 40 Tool magazine: 48 tools MACHINE DETAILS Control system: M+ Mazatrol Machine weight approx.: 7,500 kg Space requirement approx.: 5 m² EQUIPMENT Chip conveyor: MAYFRAN 4th axis: Tilting rotary table: Rotamatik RM 100

Condition: used, Year of construction: 2000, x-travel 1120 mm y-travel 510 mm Bwedpoztfu Dofx Ahmsu z-travel 510 mm control Mazatrol 640 M

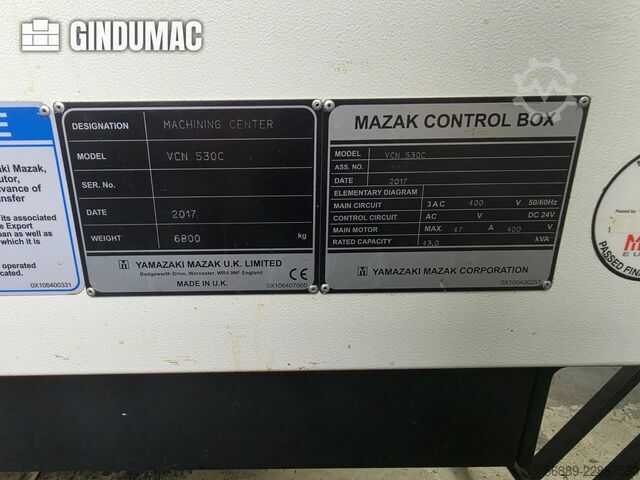

Condition: ready for operation (used), Year of construction: 2017, operating hours: 11,917 h, travel distance X-axis: 1,050 mm, travel distance Y-axis: 530 mm, travel distance Z-axis: 510 mm, controller manufacturer: MAZATROL, controller model: SmoothG, table load: 1,200 kg, overall weight: 6,800 kg, spindle speed (max.): 12,000 rpm, spindle motor power: 18,500 W, number of slots in tool magazine: 30, tool weight: 8,000 g, number of axes: 4, This 4-axis Mazak VCN-530C was manufactured in 2017. It features an impressive X-axis travel of 1,050 mm, Y-axis travel of 530 mm, and Z-axis travel of 510 mm. The machine includes a robust worktable size of 1,300 x 550 mm and a maximum table load of 1,200 kg. If you are looking to get high-quality machining capabilities, consider the Mazak VCN-530C vertical machining centre we have for sale. Contact us for further details. • Operating counter (cutting only): 11,917 h • Axis travels (standard VCN 530C): • Distance table surface to spindle nose: 150–660 mm • Distance column to spindle centre: 586 mm • Work envelope / capacities: • Max workpiece length: 1,300 mm • Max workpiece width: 550 mm • Max workpiece height: 570 mm • Max workpiece weight: 1,200 kg • Worktable: • Table size: 1,300 × 550 mm Bwjdpfx Asz Itghohmsu • T-slots: 5; width 18 mm; pitch 100 mm • Note: Table-load rating does not represent rotary table load capacity • Spindle: • Motor power: 18.5 / 11 / 7.5 kW (duty dependent) • Tooling / ATC: • Max tool length: 350 mm • Max tool diameter: 80 mm (125 mm with adjacent pockets empty) • Tool-to-tool change: 1.3 s • Feed rates: • Rapid X/Y/Z: 42 m/min • Cutting feed: 1–42,000 mm/min • Utilities / dimensions: • Coolant tank capacity: 250 L • Floor space (approx.): 2,880 × 3,102 mm • Machine height (approx.): 2,807 mm • Included machine features (PD081 production package): • Workpiece air blast • High-pressure through-spindle coolant • Coolant flushing of machine covers • Synchronous tapping • CNC memory: 8 MB maximum program size • G00 Slope Constant rapid-movement optimisation Additional equipment • Fourth axis: • Tsudakoma NC rotary table, model RNE-200L (Japan), with 250 mm faceplate • Fourth-axis preparation on machine • Chip management: • Left-side Crowther hinged-belt chip conveyor • Preparation for a left-side chip conveyor • Probing: • Renishaw OMP60 workpiece probe • Preparation for OMP60 on machine • Extraction: • Filtermist FX6002 oil mist extraction unit • Other: • Workholding system • Pneumatically powered coolant wash gun Technical Specification Taper Size SK 40

Condition: ready for operation (used), Year of construction: 2020, travel distance X-axis: 1,050 mm, travel distance Y-axis: 530 mm, travel distance Z-axis: 510 mm, controller manufacturer: MAZATROL, controller model: SmoothG, total height: 2,807 mm, table load: 1,200 kg, overall weight: 6,800 kg, spindle speed (max.): 12,000 rpm, spindle motor power: 18,500 W, number of slots in tool magazine: 30, tool weight: 8,000 g, number of axes: 4, This 4-axis Mazak VCN-530C was manufactured in 2020. It features an impressive X-axis travel of 1,050 mm, Y-axis travel of 530 mm, and Z-axis travel of 510 mm. The machine includes a robust table size of 1,300 x 550 mm and a maximum table load of 1,200 kg. If you are looking to get high-quality machining capabilities, consider the Mazak VCN-530C vertical machining centre we have for sale. Contact us for further details. Working area and travels • Table-to-spindle nose: 150–660 mm • Column surface to spindle centre: 586 mmTable • Dimensions: 1,300 × 550 mm • T-slots: 5 × 18 mm; pitch 100 mmSpindle • Drive: Electrically selected two-range • Spindle bearing bore: 70 mm • Acceleration time: 2.0 s • Motor power: 18.5 kW (5 min) / 11 kW (40% ED) / 7.5 kW (S1)Feed rates • Rapid traverse X/Y/Z: 42 m/min • Cutting feed X/Y/Z: 1–42,000 mm/minAutomatic tool changer • Max tool diameter: 80 mm (adjacent tools) / 125 mm (adjacent pockets empty) • Max tool length: 350 mm (from gauge line) • Tool selection: MAZATROL random memory, shortest-path • Tool-to-tool time: 1.3 sCoolant and chip management • Through-spindle high-pressure coolant: approx. 15 kgf/cm² (~14.7 bar) • Coolant tank: 250 L • Coolant flushing for covers • Manual washdown gun • Workpiece air blast • Preparation for mist extractionControl functions and probing preparation • Synchronous tapping • Maximum program size: 8 MB • G00 Slope Constant (rapid movement optimisation) • Preparation for Renishaw OMP60 workpiece probeMachine dimensions • Floor space: 2,880 × 3,102 mm Additional equipment Bodpfx Ajz Iqy Eshmswu • Kitagawa NC rotary table, MR250 series (Type: MR250RAE13) • Date of manufacture: Oct 2020 • Weight: 85 kg • Mechanical mounting for MR250 included • CROWTHER left-side hinged-belt chip conveyor • Additional working-area lighting • Three-colour LED signal tower • Polish manuals and safety labels Technical Specification Taper Size SK 40

Condition: used, Year of construction: 1992, functionality: fully functional, machine/vehicle number: 101353-U, turning diameter over cross slide: 370 mm, turning length: 305 mm, turning diameter: 230 mm, spindle bore: 52 mm, spindle speed (max.): 5,000 rpm, spindle speed (min.): 35 rpm, travel distance X-axis: 160 mm, travel distance Z-axis: 360 mm, spindle motor power: 11,000 W, rapid traverse X-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, rotational speed (min.): 35 rpm, rotational speed (max.): 5,000 rpm, total height: 1,900 mm, total length: 2,500 mm, total width: 1,500 mm, feed length X-axis: 160 mm, feed length Z-axis: 360 mm, quill travel distance: 275 mm, quill diameter: 55 mm, quill stroke: 75 mm, swing diameter over cross slide: 370 mm, feed rate X-axis: 30 m/min, feed rate Z-axis: 30 m/min, turning diameter over bed slide: 435 mm, turning diameter over top slide: 370 mm, type of input current: three-phase, torque: 96 Nm, overall weight: 2,800 kg, swing diameter over bed slide: 435 mm, bar passage: 42 mm, chuck outer diameter: 144 mm, swing diameter over top slide: 370 mm, center width: 500 mm, center height over cross slide: 185 mm, spindle nose: A2-5", center height: 218 mm, center height in crank: 218 mm, bar diameter (max.): 42 mm, collet bore: 42 mm, travel distance cross slide: 160 mm, Equipment: rotational speed infinitely variable, Mazak Super Quick Turn 10M (SQT-10M) CNC Lathe For sale is a Mazak Super Quick Turn 10M (SQT-10M) CNC lathe from our own machine inventory. The machine comes from an active production environment and is suitable for precise CNC turning operations. The M-version with powered tools offers additional milling and drilling functions. The existing C-axis enables targeted positioning of the main spindle for additional machining operations. An inspection and testing of the machine is possible after prior appointment at our location in 93073 Neutraubling. Machine data: - Manufacturer: Yamazaki / Mazak - Type: Super Quick Turn 10M - Model: SQT-10M Bwodpfx Ahoz Iqv Homsu - Year of manufacture: 01/1992 - Serial number: 101353-U - Machine weight: approx. 2,800 kg - CNC lathe - Tool turret - Powered tools / Milling function - C-axis function - Coolant system - Enclosed work area Condition: The machine comes from an active production environment. The optical condition is in accordance with its age. Signs of use on the paintwork and cladding are present and clearly visible in the pictures. An inspection and testing of the machine on site is possible after making an appointment. In addition, a high-quality HAINBUCH SPANNTOP nova 42 KK5 chuck can be purchased (optional – not included in the purchase price). - Manufacturer: HAINBUCH - Model: SPANNTOP nova 42 KK5 - Order No.: 2702/0003 - Current new price of comparable HAINBUCH chuck systems: approx. €3,000 net - Chuck jaws / collets are not included Location: 93073 Neutraubling, Germany Availability: Available on short notice / upon agreement Price: Price on request / negotiable Sale from location. Includes free loading onto the buyer's transport vehicle.

Condition: ready for operation (used), Year of construction: 2020, travel distance X-axis: 350 mm, travel distance Y-axis: 550 mm, travel distance Z-axis: 510 mm, controller manufacturer: MAZATROL, controller model: SmoothG, total height: 2,840 mm, total width: 1,900 mm, overall weight: 7,100 kg, spindle speed (max.): 18,000 rpm, number of slots in tool magazine: 30, tool weight: 8,000 g, product length (max.): 3,060 mm, number of axes: 5, This 5-axis Mazak VARIAXIS J-500/5X was manufactured in 2020. It features a maximum spindle speed of 18,000 rpm and a rapid traverse rate of 30,000 mm/min. The machine includes a tool magazine capacity of 30 tools and a robust table size of 500 x 400 mm. If you are looking to get high-quality machining capabilities, consider the Mazak VARIAXIS J-500/5X vertical machining centre we have for sale. Contact us for further details. • CNC control: MAZATROL SmoothX with 19-inch colour touchscreenWorking capacity and travels • A-axis tilt: -120° to +30° • C-axis rotation: ±360° • A/C indexing increment: 0.0001° • Rapid traverse X/Y/Z: 30,000 mm/min • Max cutting feed X/Y/Z: 30,000 mm/min • A-axis index time: 0.6 s per 90° • C-axis index time: 0.55 s per 90° / 1.05 s per 180°Table and clearances • Tilting/rotary table (A/C axes) • Table size: 500 × 400 mm • Table with T-slots (as per final configuration) • Spindle nose to table surface (table horizontal): 50–560 mm • Spindle nose to table centre (table vertical): 40–550 mmSpindle • Spindle chiller with 16 L cooling oil tank • Programmable spindle orientation in 1° incrementsTool magazine and ATC • ATC with recovery function; digital magazine display and external operating panel • Tool selection: fixed addresses with automatic shortest-path selection • Pull stud: Yamazaki ANSI • Max tool length: 300 mm • Max tool diameter with adjacent tools: 90 mm • Max tool diameter with adjacent pockets empty: 130 mm • Chip-to-chip time: 6.20 sMeasuring and probing • Renishaw RMP600 radio workpiece probe • MAZA-CHECK system • Automatic tool length measurement and tool breakage detection • G37 automatic tool length measurement • Absolute positioning systemCoolant and chip management • Through-tool high-pressure coolant: approx. 15 kgf/cm² (≈14.7 bar), approx. 35 L/min • Coolant tank: 300 L • Coolant washdown system and manual washdown gun • Cooling for X/Y/Z ball screws • Workpiece air blastControl and software • MAZATROL SmoothX CNC • EIA/ISO programming package Bwodpfjz Iqgrox Ahmeu • Simultaneous 5-axis control • Additional 5-axis machining package for SmoothX • 3D coordinate rotation • Smooth synchronous tapping • G00 Slope Constant (rapid optimization) • Smooth restart • Tilted machining plane • Inverse Time Feed • Extended work offsets: 300 pairs • Variable macros: 600 variables • High-speed machining and smoothing • Geometric compensation for rotary axes • Interfaces: USB, LAN, SD cardConstruction, safety, and other features • Electronic handwheel • Three-colour signal tower • Automatic machine power on/off and warm-up • Roller linear guideways • Full enclosure with top cover; interlocked operator door • Work area lighting • Intelligent Safety Shield (ISS) • CE marking Additional equipment • CROWTHER right-side hinged-belt chip conveyor (for steel machining) • GX500 mist extraction unit with extraction preparation • European-market power transformer • Machine installation kit • Polish manuals and safety labels Technical Specification Taper Size SK 40 Through-spindle Coolant Yes

Condition: ready for operation (used), Year of construction: 2018, operating hours: 14,396 h, travel distance X-axis: 350 mm, travel distance Y-axis: 550 mm, travel distance Z-axis: 510 mm, controller manufacturer: MAZATROL, controller model: SmoothX, workpiece height (max.): 350 mm, total height: 2,840 mm, total width: 1,900 mm, table load: 200 kg, overall weight: 7,100 kg, spindle speed (max.): 12,000 rpm, number of slots in tool magazine: 30, tool weight: 8,000 g, product length (max.): 3,060 mm, number of axes: 5, This 5-axis Mazak VARIAXIS J-500/5X was manufactured in 2018. It features a maximum workpiece diameter of 500 mm and a maximum table load of 200 kg. The machine is equipped with a 19-inch colour touchscreen and a maximum spindle speed of 12,000 rpm. If you are looking to get high-quality simultaneous 5-axis machining capabilities, consider the Mazak VARIAXIS J-500/5X vertical machining centre we have for sale. Contact us for further details. • Cutting time (“cutting only”): 14,396 h 54 min • Working capacity and travels • Max workpiece diameter: 500 mm; height: 350 mm • A-axis tilt: -120° to +30°; C-axis rotation: ±360° • A/C indexing increment: 0.0001° • Rapid traverse X/Y/Z: 30,000 mm/min • Max cutting feed X/Y/Z: 30,000 mm/min • A-axis indexing time: 0.6 s per 90° • C-axis indexing time: 0.55 s per 90° / 1.05 s per 180° • Guideways: Roller linear guideways • Table and clearances • Tilting/rotary table with A and C axes • Table size: 500 × 400 mm • T-slot table (as specified in final configuration) • Spindle nose to table surface, table horizontal: 50–560 mm • Spindle nose to table, table vertical: 40–550 mm • Spindle • Spindle chiller; spindle cooling oil tank: 16 L • Programmable spindle orientation in 1° increments • Tool changer and magazine • ATC with recovery function; digital magazine display; external magazine operating panel • Tool selection: fixed magazine addresses with automatic shortest-path selection • Max tool length: 300 mm • Max tool diameter with adjacent tools: 90 mm; with adjacent pockets empty: 130 mm • Chip-to-chip time: 6.20 s • Measuring and probing • Automatic tool length measurement and tool breakage detection • G37 automatic tool length measurement function • Absolute positioning system • MAZA-CHECK system • Preparation for RMP600 workpiece probe • Coolant and thermal management • Through-tool high-pressure coolant (~15 kgf/cm² ≈ 14.7 bar), flow ~35 L/min • Coolant tank: 300 L • Coolant washdown system • Cooling for X/Y/Z-axis ball screws • Control and software Bwodpfjz Ipzuox Ahmsu • MAZATROL conversational and EIA/ISO programming; simultaneous 5-axis control in EIA/ISO • G00 Slope Constant; Smooth restart; Tilted machining plane; Inverse Time Feed • Extended work offsets: 300 pairs; Variable macros: 600 variables • Polar coordinate programming; Tornado machining cycle • High-speed machining and smoothing; Geometric compensation for rotary axes • Seamless Corner Control; Variable Acceleration Control • Interfaces: USB, LAN, SD memory card • Safety, enclosure, compliance • Full working-area enclosure with top cover • Interlocked operator door; working-area lighting • Intelligent Safety Shield (ISS) • CE marking • Automation/operation aids • Automatic machine power on/off and warm-up Additional equipment • Right-side hinged-belt chip conveyor for steel machining • European-market power transformer • Machine installation kit • Polish manuals and safety labels Technical Specification Taper Size SK 40 Through-spindle Coolant Yes

Condition: good (used), Year of construction: 2004, functionality: fully functional, turning length: 511 mm, turning diameter: 380 mm, travel distance X-axis: 230 mm, travel distance Z-axis: 575 mm, rotational speed (max.): 5,000 rpm, bar passage: 65 mm, MAZAK QUICK TURN NEXUS 200 MS Year of manufacture: 2004 Control system: Mazatrol 640T Nexus Machine type: CNC turning machine Configuration: Main and counter spindle, C-axis, driven tools Working area: Max. swing diameter: 675 mm Max. turning diameter: 380 mm Max. turning length: 511 mm Max. bar diameter: 65 mm Main spindle: Speed range: 35 – 5,000 rpm Drive power: 26 kW Continuous power: 22 kW Max. torque: 350 Nm Spindle bore: 76 mm Spindle nose: A2-6 C-axis resolution: 0.001° Counter spindle: Speed range: 35 – 6,000 rpm Drive power: 10 kW Continuous power: 7.5 kW Max. torque: 75 Nm C-axis resolution: 0.001° Tool turret: Tool positions: 12 Driven tools: available Speed of driven tools: 25 – 4,500 rpm Drive power: 5.5 kW Max. torque: 35 Nm Travel distances: Bwjdpfez Ipvxox Ahmju X-axis: 230 mm Z-axis: 575 mm Rapid traverse X-axis: 30 m/min Rapid traverse Z-axis: 33 m/min Machine data: Total connected load: approx. 46.2 kVA Machine weight: approx. 5,100 kg Dimensions L x W x H: approx. 2,800 x 1,800 x 1,850 mm

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, machine/vehicle number: 138616, turning length: 1,000 mm, turning diameter: 580 mm, spindle speed (max.): 5,000 rpm, controller model: Mazatrol Fusion 640 MT, milling spindle speed (max.): 12,000 rpm, TECHNICAL DETAILS Max. turning diameter: approx. 580 mm Max. machining diameter: approx. 520 mm Max. turning length: approx. 1,000 mm Main spindle speed: up to 5,000 rpm Milling spindle speed: up to 12,000 rpm Bwedpfx Asz Inaishmju MACHINE DETAILS CNC control: Mazatrol Fusion 640 MT EQUIPMENT Main spindle Milling spindle with B-axis Y-axis C-axis Chip conveyor Documentation, if available Coolant system Tool changer: automatic

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, MAZAK QUICK TURN NEXUS 100-II Max. machining diameter: 280 mm Max. machining length: 300 mm Max. spindle speed: 6,000 rpm Max. bar diameter: 42 mm Bwsdpezv D H Rjfx Ahmsu The machine is equipped with: - CNC control system: Mazatrol Matrix - KITAGAWA 3-jaw chuck BB-06, diameter 169 mm - Tool Eye - Interface for bar feeder - Automatic parts catcher - NC tailstock - Reinforced coolant pump - Chip conveyor, discharge to the side - 1 set of tool holders for a 12-position turret
