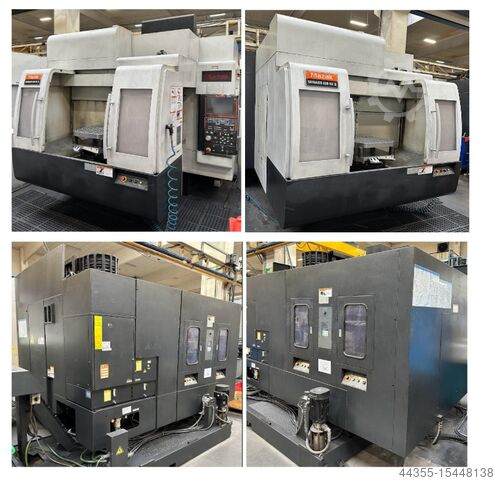

Vertical machining centerMazak
Variaxis 630-5X II
Machine data
- Machine type:
- Vertical machining center
- Manufacturer:
- Mazak
- Model:
- Variaxis 630-5X II
- Year of construction:
- 2012
- Condition:
- excellent (used)
- Functionality:
- fully functional
Price & Location
- Location:
- Spenge, Germany
Details about the offer
- Listing ID:
- A205-67685
- Update:
- 19.11.2025
Description
Design: Vertical Machining Center
Model: Variaxis 630II
Control: Mazatrol MATRIX
Year of Manufacture: 2012
Additional Equipment
- Tool magazine for 120 tools
- Signal lamp – machining completion: yellow
- Synchronized tapping
- Rapid traverse with constant tilt angle during movement
- 3D coordinate transformation
- Multiple pallet system (6 pallets integrated in the system)
- 70 bar preparation, incl. interface for high-pressure unit Mayfran Consep 2000 II with chip conveyor
Accessories/Features
- Manuals
- Operator door with interlock switch
- Work area enclosure for a clean machining environment
- Upper cover for chip throw protection
- Work area lighting
- Coolant supply – cooling for ball screw spindle
- Complete coolant system
Fedpfxjxxzygj Agmsft
- Spindle coolant unit
- Measurement system: tool length measurement and tool breakage detection
Max. workpiece diameter: 730 mm
Max. workpiece height: 500 mm
Travel X-axis: 630 mm
Travel Y-axis: 765 mm
Travel Z-axis: 510 mm
Swivel range A-axis: from -120° to +30° (CNC controlled)
Swivel range C-axis: +/-360° (CNC controlled)
Max. distance spindle nose–table top (table horizontal): 740 mm
Min. distance spindle nose–table top (table horizontal): 230 mm
Max. distance spindle nose–table center (vertical): 690 mm
Min. distance spindle nose–table center (vertical): 180 mm
Max. table load: 500 kg
Main Spindle
Spindle taper: SK40
Max. speed: 12,000 rpm
Min. speed: 35 rpm
Rated power (15 min. duty): 26.4 kW
Rated power (30 min. duty): 22.0 kW
Rated power (100% continuous): 15.0 kW
Feeds
Rapid traverse (X-/Y-/Z-axis): 52 m/min
Rapid traverse (A-/C-axis): 18,000°/min
Feed rates (X-/Y-/Z-axis): 52 m/min
Feed rates (A-/C-axis): 9,000°/min
Number of simultaneous axes: 5 axes
Indexing time (A-axis): 1.1 sec / 90°
Indexing time (C-axis): 1.1 sec / 90°

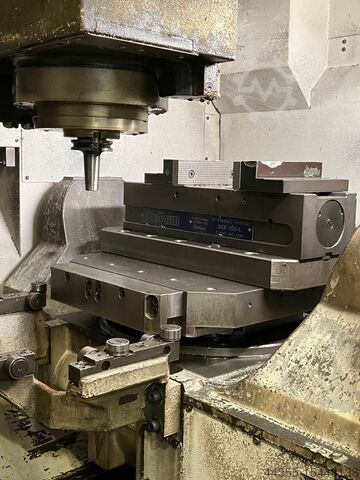

Table
Table diameter: 630 mm
Table width: 500 mm
Number of T-slots: 5
T-slot spacing: 100 mm
Table height: 950 mm
Tool Changer
Number of tool stations: 30
Tool selection method: random, shortest-path
Tool shank: SK40
Max. tool diameter (adjacent stations occupied): 80 mm
Max. tool diameter (adjacent stations free): 125 mm
Max. tool length: 360 mm
Tool change time (chip-to-chip): 3.6 s
Dimensions
Length x width: 4125 mm x 2495 mm
Height: 3235 mm
Weight: 13,500 kg
The listing was translated automatically. Translation errors are possible.
