2005 Mazak VCN 510C

Mazak VCN 510C

Condition: ready for operation (used), Year of construction: 2003, General Data Machine weight 6000 kg Main Drive Number of axis 3 Spindle Speed 12000 RPM Tool taper SK 40 Movement X-Axis Movement 1050 mm Z-Axis Movement 500 mm Y-Axis Movement 500 mm This 3-axis Mazak VCN 510C was manufactured in 2003. It features a spindle speed of 12,000 rpm with an SK40 taper and a tool magazine with 30 positions. The table size is approximately 1300 × 550 mm, and it includes a cooling system with 15 bar internal pressure. Consider the opportunity to buy this Mazak VCN 510C vertical machining centre. Contact us for more information. Application Types Fedpfx Asx Enlrjh Ispr Milling

Condition: good (used), Year of construction: 2010, Heidenhain 530 Control, Traverses X Y Z: 1050 X 510 X 510mm, Table 1300 X 550mm, Distance From Spindle Nose To Table 150 ~ 660mm, Maximum Workpiece Weight 1200kg, Spindle Speed 0 – 12000rpm, Spindle Taper DIN40, Spindle Motor 11kW, Fpjdsucdvqopfx Ah Ier 30 Station ATC, Swarf Conveyor, Coolant, Low Volt Light ,

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, travel distance X-axis: 1,050 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 510 mm, controller model: Mazatrol Matrix, spindle speed (max.): 12,000 rpm, TECHNICAL DETAILS Travel X-axis: 1,050 mm Travel Y-axis: 510 mm Travel Z-axis: 510 mm Rapid traverse X-axis: 36 m/min Rapid traverse Y-axis: 36 m/min Rapid traverse Z-axis: 36 m/min Table size: 1,300 x 550 mm Main spindle speed: 12,000 rpm Number of tool stations: 30 Spindle taper: SK 40 MACHINE DETAILS Fpedpfexywhvox Ah Ier Control: Mazatrol Matrix Motor power: 11 kW EQUIPMENT Through-spindle coolant 5 bar Electronic handwheel Chip conveyor

Condition: used, Year of construction: 2006, x-travel 1050 mm y-travel 510 mm z-travel 510 mm control Fusion 640 M Nexus spindle taper DIN 69871/SK40 Feed speed 8000 mm/min. turning speed range 35 - 12.000 U/min rapid travel x/y/z 36 m/min distance spindle /table max. 660 mm distance spindle /table min. 150 mm no. of tools in the magazine 30 Stück tool taper CAT 40 Tool diameter 80 mm wotkpiece diameter with 2 vacant positions max. 125 mm max. tool weight 8 kg max. tool length 350 mm table length 1300 mm table width 550 mm number of T-slots 3 T-slot - width 18 mm T-slot - distance 100 mm max. table load 1200 kg table height over floor 850 mm coolant tank 250 l coolant pump 4,5 bar internal coolant system feed 15 bar coolant capacity 271 l/min required air pressure 700 l/min spindle drive 18,5 connected load frequency 400 V connected load 36,6 kVA frequency 50 Hz Needed pneumatic pressure 5 (bei 200 l/min) bar weight of the machine ca. 6,9 t dimensions of the machine ca. 2,90 x 2,84 x 2,81 m Fpjdpfx Aexp Rywjh Isr Including special accessories: -Cooling through the spindle (15 bar) -Chip conveyor, hinged belt on the left side -Torque-dependent drilling cycle (Mazatrol) -Automatic determination of drilling depth increments after torque detection. (preferably in combination with HSS tool) -Interface set Contents: - Interface for keyboard - Interface for mouse - Interface for printer Retrofitting not possible Machine color gray / black -CNC Performance Option Package Package contents: - Shared variables (600 pairs) - MAZAK Tornado thread tapping (EIA/ISO) - Synchronous thread cutting - EIA/ISO input function - EIA/ISO special function Spiral interpolation (G02.1, G03.1), 3D tool correction (G40-G42) Scaling (G50, G51) etc. - EIA/ISO, Constant feed (G93) When using this function, the feed rate remains constant for straight and curved combinations on the contour. - EIA/ISO tool length measurement (G37) - EIA/ISO, programme unit stop function Programme sequence is automatically stopped at a specified programme unit. - MAZACC-2D (Mazatrol & EIA/ISO) Precision control function for precise vector interpolation and optimal acceleration and deceleration at edges and radii. This enables improved two-dimensional shape accuracy. - Additional workpiece coordinate system (G54.1 P1 - 48) 48 pairs - Spiral machining function (G33) for boring head machining (e.g. with d'Andrea tool) - Used machine without warranty - - All dimensions, weight and performance data are non-binding

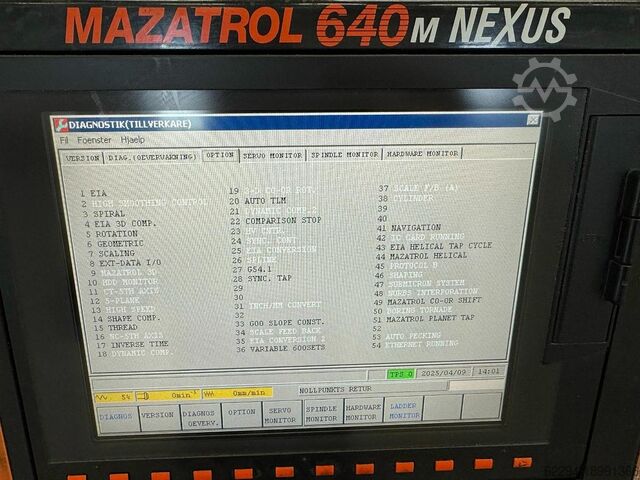

Condition: used, Year of construction: 2005, Mazak VC Nexus 510C Mazatrol 640M Nexus Year of manufacture: 2005 Table: 1300 x 550 mm X: 1050 mm Y: 510 mm Z: 510 mm Fpedpfx Ahswdwkhe Ijr 12,000 RPM/18.5 kW spindle: ISO-40 ATC: 30 positions tool measure, CTS 15 bar Performance CNC optional package

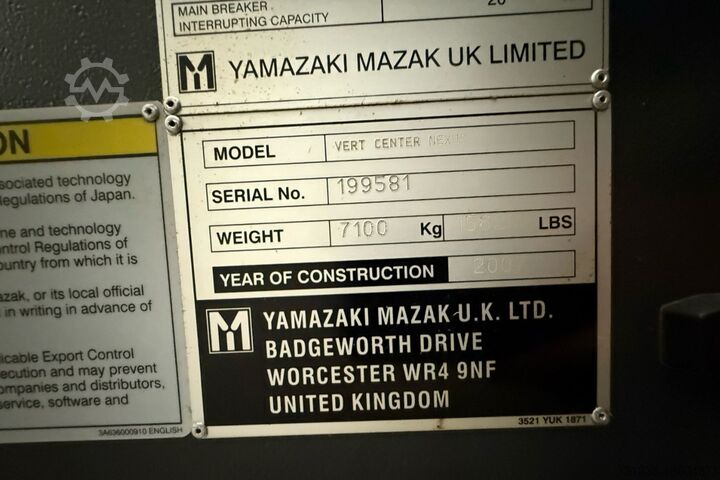

Condition: excellent (used), Year of construction: 2007, operating hours: 2,770 h, machine/vehicle number: 199581, Mazak Vertical Centre Nexus 510C-II (2007) 4th axis Serial number: 199581 Low working hours: 2770 Matrix Nexus control Kitagawa 4th axis Fpjdpfx Ahev D E Iij Ijr EIA/Mazatrol Control Mazatrol tool length measuring system Through coolant CAT40 tooling 12,000 rpm main spindle Full set of manuals This item is physically in stock and can be seen in full working order, at our showroom. Delivery and installation can be arranged at extra costs.

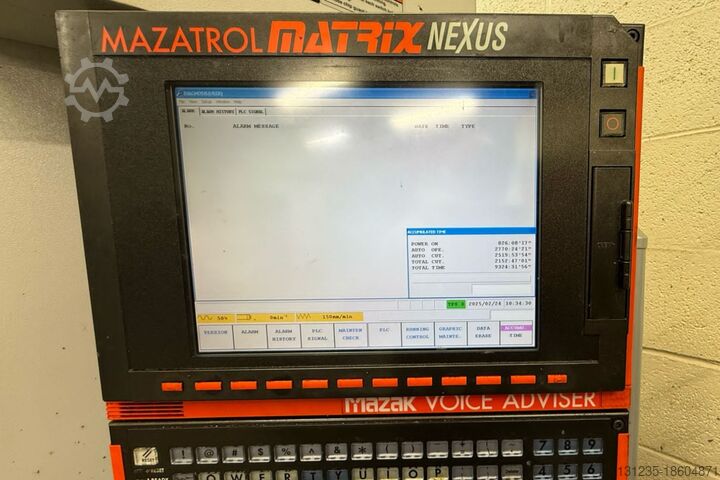

Condition: ready for operation (used), Year of construction: 2007, operating hours: 34,200 h, General Data Machine weight 7100 kg Control Unit Brand MAZATROL Model MATRIX NEXUS Main Drive Number of axis 4 Movement X-Axis Movement 1050 mm Y-Axis Movement 510 mm Z-Axis Movement 510 mm Table Table load 1200 kg Tools Fjdjx D Eguspfx Ah Ispr Number of index 30 This 4-axis Mazak NEXUS VCN 510C-II was manufactured in 2007. It features a Mazatrol Matrix NEXUS CNC control, X-axis travel of 1050 mm, Y-axis travel of 510 mm, Z-axis travel of 510 mm, and a 4th axis KITAGAWA rotary table. The machine has a table size of 1300 × 550 mm and can handle a maximum load of 1200 kg. Consider the opportunity to buy this Mazak NEXUS VCN 510C-II vertical machining centre. Contact us for more information. Application Types Milling
