Vertical machining center

Mazak VTC-200B

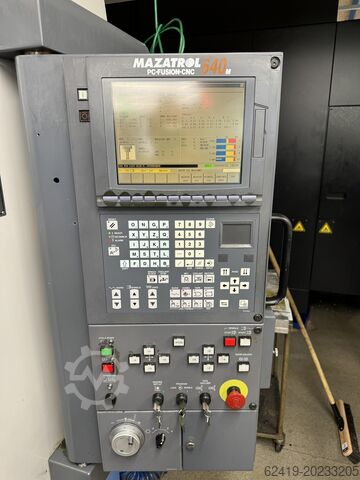

Condition: excellent (used), Year of construction: 2005, Control system: MAZATROL PC FUSION CNC 640M Accessories: - Indexing head as shown - 3D probe - Various tool holders General machine options: - Air blast device at the spindle For chip removal and cooling of workpieces with compressed air - Modified front door Loading and unloading with crane possible via front door Coolant supply: - Reinforced coolant system KOWAP 18 bar - Coolant gun Factory automation options: - Automatic power off - 3 status lamps to indicate processing status Measuring system: - MARPOSS probe type T25G (wireless transmission) incl. operation under MAZATROL: zero-offset shifting Clamping table / Pallet: - Prepared for KFTAGAWA NC rotary table RS250, without servomotor Chip conveyor MAYFRAN: - Hinged belt chip conveyor, side discharge on the right Control system options: - Torque-dependent drilling cycle (Mazatrol) - Helical boring cycle - Additional M-functions (2 pcs) - Network card for wired network - 64MB Type II PCMCIA card (PC-Flash Card) for machine data storage (backup) - CNC performance options package Worktable: Table size (clamping surface): 510 x 1,460 mm Maximum table load: 800 kg Travels: X-axis travel: 1,120 mm Y-axis: 510 mm Z-axis: 510 mm Rapid traverse speed X-axis: 36 m/min Y-axis: 36 m/min Z-axis: 36 m/min Feed rate: 1 – 8,000 mm/min Distance spindle nose to table: 180 – 690 mm Distance column front to spindle center: 530 mm Dedpjxlp Tbefx Acwecn Working spindle: Speed range (stepless): 40 – 12,000 rpm Taper: SK40 DIN 69871A Note: with Mazak pull stud Number of tool stations: 24 tools Coolant system Tank capacity: 250 l Machine weight: 7,850 kg

Condition: used, Year of construction: 2000, Serial no. 144416, control unit, type Mazatrol 640M, clamping table 1,500 x 500 mm, travel ranges X/Y/Z 1,120 x 510 x 510 mm, table load max. 800 kg, spindle speed max. 12,000 RPM, 24-position tool changer, 2 high-pressure vices +++ ATTENTION: stored at Stiglitz company in 73614 Schorndorf - to be picked up there! +++ Dcsdpfxjwp E Hbj Acwen

Condition: good (used), Year of construction: 2009, travel distance X-axis: 1,120 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 510 mm, rapid traverse X-axis: 36,000 m/min, rapid traverse Y-axis: 36,000 m/min, rapid traverse Z-axis: 36,000 m/min, table width: 510 mm, table length: 1,460 mm, table load: 800 kg, Renishaw measuring probe MP-12 IKZ 15 Bar Interface set Performabnce software package Monitoring B prepared not included X - Travel: 1120mm Y - Travel: 510mm Z - Travel: 510mm Table Length: 1460mm Table Width: 510mm Table load: 800 Feed rate X-Axis: 36000mm/min. Feed rate Y-Axis: 36000mm/min. Feed rate Z-Axis: 36000mm/min. Dsdpsw Rm Diofx Acwjcn Spindle Taper: 40ISO/Bt/Mk Power on spindle: 18.5kW Speeds / ranges: 12000Rpm ATC / revolver: 30 Coolant through spindle / Bar:Yes Number of controlled axis: 3 Chip conveyor: Yes Coolantsystem: Yes Length: 3300mm Width: 2850mm Height: 2800mm Weight: 6100kg

Condition: ready for operation (used), Year of construction: 2000, Main Drive Number of axis 3 Media Chip conveyor Yes Additional Equipment chip conveyor is included Main Drive Number of axis 3 Media Chip conveyor Yes Additional Equipment chip conveyor is included Dodow Hhyljpfx Acwjcn This 3-axis Mazak VTC-200B was manufactured in 2000 and features a rapid traverse of 36 m/min and both internal and external cooling systems. In 2019, it received a new spindle motor and spindle, along with recirculating ball screws in the X and Y axes. Consider the opportunity to buy this Mazak VTV-200B vertical machining centre. Contact us for more information. Application Types Milling

Condition: good (used), Year of construction: 2002, functionality: fully functional, Control MAZATROL PC FUSION CNC 640M Travel X/Y/Z 1,120/510/510 mm Table size 510 x 1,460 mm max. spindle speed 10,000 rpm SK-40 tool cone Tool changer with 30 stations chip conveyor Dodpfx Aotp I Tlocwscn toolsetter

Condition: used, Year of construction: 2004, Serial no. 170473, control unit, type Mazatrol 640M, clamping table 1,500 x 500 mm, travel ranges X/Y/Z 1,120 x 510 x 510 mm, table load max. 800 kg, spindle speed max. 12,000 RPM, 24-position tool changer +++ ATTENTION: stored at Stiglitz company in 73614 Schorndorf - to be picked up there! +++ Dcsdpfowp E Dtex Acwen

Condition: used, Year of construction: 2006, Ser.-No. 181504, Control, Type Mazatrol 640M, Clamping table 1,500 x 500 mm, Travel distances X/Y/Z 1,120 x 510 x 510 mm, Table load max. 800 kg, Spindle speed max. 12,000 rpm, 24-position tool changer, 3 high-pressure vices Dcsdowp Ey Iopfx Acwon +++ ATTENTION: stored at company Stiglitz in 73614 Schorndorf - to be collected there! +++
