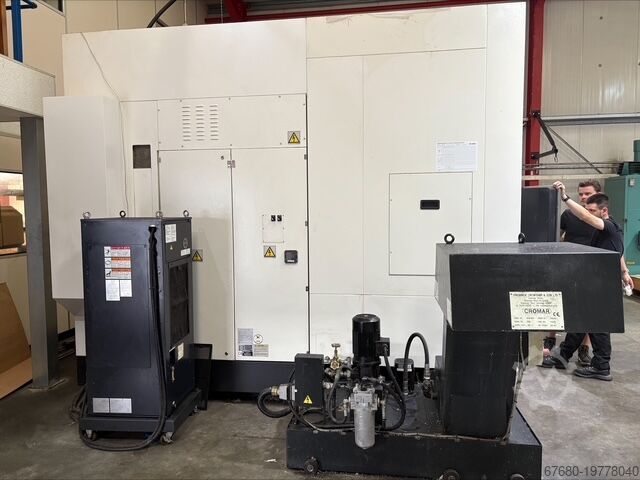

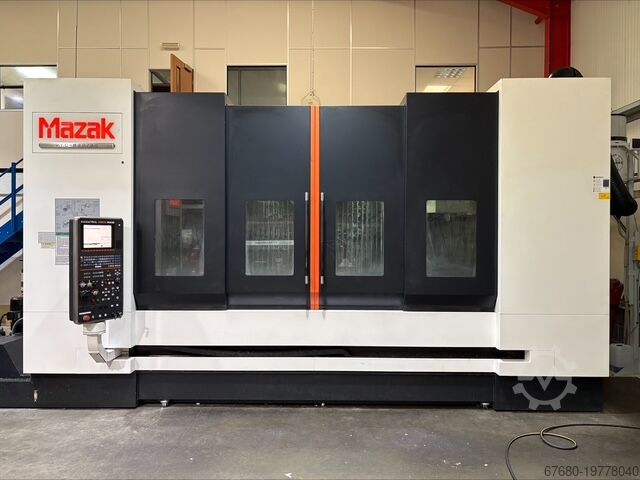

Vertical machining center

Mazak VTC-820/30

Condition: used, Year of construction: 2018, functionality: fully functional, travel distance X-axis: 3,000 mm, travel distance Y-axis: 820 mm, travel distance Z-axis: 720 mm, controller model: Mazatrol SmoothG, table width: 820 mm, table length: 3,500 mm, overall weight: 16,500 kg, spindle speed (max.): 12,000 rpm, spindle motor power: 22,000 W, number of slots in tool magazine: 48, input voltage: 400 V, type of input current: AC, Equipment: chip conveyor, CNC Vertical Machining Center MAZAK VTC-820/30 (Year of manufacture 2018 / Commissioned 2019) Nsdpfx Asyipy Rofcjwc The MAZAK VTC-820/30 is a high-performance CNC vertical machining center designed for precise and efficient machining of large workpieces. With generous travel distances of 3,000 mm on the X-axis, 820 mm on the Y-axis, and 720 mm on the Z-axis, this machine is especially suitable for long and complex components in mechanical engineering, mold making, and general metalworking. The robust worktable, measuring approximately 3,500 × 820 mm, allows for the accommodation of large-dimensioned workpieces. The powerful main spindle, with speeds up to 12,000 rpm and a drive power of around 22 kW, ensures high metal removal rates and accuracy. The CAT 40 (ISO 40) spindle taper provides broad tool compatibility. The machine is equipped with a state-of-the-art MAZATROL SmoothG control system, offering intuitive operation, fast programming, and high process reliability. The 48-position tool changer enables flexible and efficient production processes, even for complex manufacturing tasks. To ensure optimal production conditions, the machining center features through-spindle coolant supply, a chip conveyor, and a lubricant preparation system. With a machine weight of approximately 16,500 kg, the VTC-820/30 offers outstanding stability and vibration damping, which has a positive effect on surface quality and dimensional accuracy. Overall, this is a modern and versatile vertical machining center that delivers high precision, performance, and reliability for industrial manufacturing applications. With us, you are in the best hands – professional, reliable, and passionate about machinery! PS CNC Service Germany GmbH & Co. KG All information without guarantee.

Condition: good (used), Year of construction: 2020, 5-Axis CNC Machining Center - Universal - Manufacturer: MAZAK Machine Model: Variaxis J-500 Control Unit: Mazatrol SmoothG Year of Manufacture: 2020 Number of Controlled Axes: 5 Nwsdpfx Afsyabu Iscoc TECHNICAL DATA Travel - X-Axis (mm): 350 - Y-Axis (mm): 550 - Z-Axis (mm): 510 - Swivel Range A-Axis (degrees): -120 / +30 - C-Axis (rotary axis, rotary and tilt table): (degrees): 360 Feed Rate X/Y/Z (mm/min): 8,000 Rapid Traverse - X-Axis (mm/min): 30,000 - A-/C-Axis: 10,800 degrees/min. Spindle - Max. Spindle Speed (rpm): 12,000 - Drive Power (ED) 100 / 40 (kW): 7.5 / 11.0 Tool Magazine - Tool Holder: BT40/CAT40 - Pull Stud: Yamazaki ANSI Type - Number of Tool Positions: 30 - Tool Diameter (mm): 90 - Tool Length (mm): 300 Machine Table: Swivel rotary table Pallet System - Pallet Changer: 2-position - Clamping Table Dimensions (mm): 500 x 400 Swivel Rotary Table - Rotary Table Diameter (mm): 500 x 400 - Max. Workpiece Weight (kg): 200 FEATURES + Through-spindle coolant 70 bar + Hinged belt chip conveyor + Oil mist extractor + Tool length measurement and breakage control + Additional interior lighting + Signal tower (3-color) Subject to change and errors in technical details and specifications.

Condition: used, Technical details: Nwodpoydvfcsfx Afcoc operating hours: 2151 h milling spindle operating time: 2 h turning spindle switch on : 709 h swing diameter: 1000 mm turning diameter: 900 mm workpiece height max.: 800 mm control: Mazatrol Smoothg x-axis: 470 mm z-axis: 876 mm c-axis: 20 m/min tool holder / places: 12 revolution per minute: Revolver 4000 U/min workpiece weight: 3000 kg rapid power traverse in X-and Z direction: 24 m/min weight of the machine ca.: 14 t dimension machine xH: 3989 x 2375 x 3400 mm

Condition: used, Year of construction: 2016, The Mazak VTC 800 series is a line of powerful, large-format 5-axis turning centers for large workpieces, known for their high precision and rigidity, ideal for aerospace, energy and heavy machinery, with functions such as integrated spindles, fast tool change, and for efficient complete processing. Accessories/Options: Tool magazine for 30 tools Tool length measurement, tool breakage detection Factory-installed preparation for chip conveyor (left) Magazine (HSK) for 155 tools Air blower at the workpiece Signal light (end of machining: yellow) Additional: Work area lighting Coolant gun Air blower through the spindle 70 bar preparation, including interface for high-pressure system Nodpex Idwiefx Afcewc Automatic opening/closing of the operator door Mazak Monitoring System B RMP 60 (only/H/V) Collision monitoring by Brankamp 2 Renishaw TS27R tool presetting devices NC rotary table Holding device for vertical use of the NC rotary table Table center partition for pendulum machining 3D model of the work area in STEP format 5-axis milling technology Knoll compact filter KF400/2300 (filtration capacity 400 l/min, tank volume 2300 l/min) 1) High-pressure cooling 70 bar, 7 pressure stages Chip conveyor, hinged belt design Additional M-codes: 1 set = 2 M-codes Preparation for dual extraction system (mechanical nozzle) 0.198 mm Transformer for the European market 1 set of manuals in electronic form on CD 1 set of adjustment tools Foundation set (anchor bolts + plates) MAZAK standard paint Work area lighting Additional items: AirFresh FMN V12 extraction system (installed on both sides and coupled with a door sensor) Holding device for vertical operation of the rotary table 2 x Renishaw TS27R integrated tool presetting devices Spare parts: Y-axis motor, tool magazine Linear axis shifter motor Rotary axis shifter motor Cylinder for swivel unit width: 3500 mm length: 820 mm X-axis travel range: 3000 mm Y-axis travel range: 800 mm Traversal range Z-axis: 720 mm min. distance spindle nose to table top: 140 mm max. distance from spindle nose to table top: 860 mm max. table load: 2500 kgf B-axis: ± 110 degrees Working spindle taper: HSK63 Max speed: 18,000 RPM Min. Drehzahl: 35 min-1 Rated power: ( 100 % continuous operation) 33,0 kW Emergency travel speed X-Y & Z axis: 50 m/min Working table width: 3500 mm Worktable length: 820 mm Width of T-slots: 18 mm Number of T-slots: 7 Distance of T-slots: 100 mm Table height from the floor: 870 mm Tool changer number of tool places (Standard): 30 Number of tool stations (optional): 48 Tool selection method: shortest path tool shank: Steep cone 40 With occupied side positions: 80 mm With available spaces: 130 mm max. tool weight: 8kgf Total weight of all magazine tools: 150 kgf max. tool length: 350 mm Tool change time: (Span-to-Span) 4.7 s Connected load: 400 V / 50/60 Hz Air pressure: 5 – 9 bar Air volume: 260 l/min Tank capacity: 500 l Dimensions (Height x Length x Width): 3376 x 5480 x 4051 mm Weight approx: 16300 kg colour: Gray / Black

Condition: ready for operation (used), Year of construction: 2012, controller manufacturer: SIEMENS, controller model: 840 D, number of axes: 4, This 4-axis Mazak VTC 800/30SR was manufactured in 2012. It features a high-pressure coolant system at 15 bar, a 48-tool magazine, and dual auto tool length measurement units. Equipped with Siemens software, a Visiport, and an RMP60 probe, it's ideal for precise vertical machining tasks. If you are looking to get high-quality milling capabilities, consider the Mazak VTC 800/30SR machine we have for sale. Contact us for more information. • High-pressure coolant (15 bar) • Auto tool length measurement x 2 units • Visiport • 19" screen • Siemens software P • Signal tower • Additional work light • RMP60 probe • Bracket for NCRT for vertical use • Table centre partition • 48-tool magazine Nwsdpfx Afsx D I A Socec Additional equipment • Consep 2000 (chip conveyor/coolant system) for 15 bar, left-hand discharge

Condition: excellent (used), Year of construction: 2015, Maximum turning diameter: approx. 380 mm Maximum swing over bed: approx. 675 mm Maximum turning length: approx. 500–540 mm Bar capacity (main spindle): approx. 76 mm (3″) MAIN SPINDLE Maximum spindle speed: 4,000 rpm Spindle motor power: 26 kW Spindle bore: approx. 77–88 mm Chuck: 8″ power chuck SUB SPINDLE Maximum spindle speed: 6,000 rpm Nsdpfx Asyg It Dofcewc Spindle motor power: approx. 11 kW Chuck: 6″ or 8″ power chuck Part transfer function AXES X-axis travel: approx. 230 mm Z-axis travel: approx. 575 mm C-axis on main spindle (full contouring and interpolation) TURRET / TOOLING Number of tool stations: 12 positions Live tooling capability (drilling and milling) Tool measurement system (Tool Eye) CNC control: Mazatrol Matrix Nexus EIA/ISO programming Conversational Mazatrol programming 19″ color LCD screen (touch screen) COOLING & CHIP HANDLING High pressure coolant through spindle: 15 bar External flood coolant via spindle nozzles Hinged belt chip conveyor with side discharge Complete coolant system with pumps and filters AUTOMATION Automatic bar feeder included Automatic chuck open/close Chuck status feedback via sensors Automatic part transfer between spindles OTHER FEATURES Pitch error compensation (X, Z) 3D tool compensation Helical interpolation Polar coordinate programming Thread cutting (G33) Workpiece coordinate rotation User macro functions Tool breakage detection MACHINE DIMENSIONS & WEIGHT (approx.) Machine weight: 5,000 – 5,500 kg Machine footprint: approx. 2,600 × 2,000 × 1,900 mm

Condition: excellent (used), Year of construction: 2022, Turning diameter 376mm, turning length 760mm, bar capacity 76mm, Y axis -/+ 52.5mm, C axis 0.001 degrees on both spindles, 12 station turret, 22KW Motor, Main spindle 4000rpm, sub-spindle 4500rpm, Nwodpfjyll Txjx Afcjc 3 jaw chucks, swarf conveyor, tool setter,

Condition: ready for operation (used), Year of construction: 2023, number of axes: 9, This 9-axis NAKAMURA-TOME WY150 was manufactured in 2023, featuring a turn-mill centre with a comprehensive toolholder setup including 6 external, 4 internal, 3 radial rotating, and 12 axial rotating holders, plus a collet chuck and a 3-jaw chuck. Consider the opportunity to buy this NAKAMURA-TOME WY150 turn-mill centre. Contact us for more information. Additional equipment • 6 external toolholders • 4 internal toolholders • 3 radial rotating (driven) toolholders Nwsdoyb Sakspfx Afcec • 12 axial rotating (driven) toolholders • 1 collet chuck • 1 three-jaw chuck

Condition: used, Year of construction: 2005, operating hours: 60,683 h, functionality: fully functional, turning length: 1,524 mm, turning diameter: 820 mm, spindle speed (min.): 3,300 rpm, spindle bore: 104 mm, travel distance X-axis: 870 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 1,598 mm, rapid traverse X-axis: 40 m/min, rapid traverse Y-axis: 40 m/min, rapid traverse Z-axis: 40 m/min, Equipment: rotational speed infinitely variable, MAZAK CNC Turning Machine MODEL: INTEGREX e-500 HS /U1500 with Mazatrol 640M PRO Control for sale. The machine is in good condition and can be inspected under power on site. The machine maintenance can be documented. In 2025, the X and Y axes were replaced. The milling spindle and gearbox were replaced in 2024. Njdpfx Afex Syldocowc Technical Data - Max. swing diameter: 820 mm - Max. turning diameter: 820 mm - Max. turning length: 1524 mm Main spindle: - Speed range: 0-3300 rpm - Drive power: 30 kW / 22 kW - Max. torque: 588 Nm - Spindle nose: A2-11" - Spindle bore: 104 mm - Indexing: 0.0001 Sub spindle: - Speed: 0-3300 rpm - Drive power: 30 kW / 22 kW - Max. torque: 588 Nm - Spindle nose: A2-11" - Indexing: 0.0001 Milling spindle: - Drive power: 37 kW - Max. torque: 260 Nm - Speed range: 0-10,000 rpm - Tool holder: SK50 Tool magazine: - Number of tool pockets: 120 Travel: - X: 870 mm - Z: 1598 mm - Z2: 2458 mm - Y: 500 mm - B axis: -30 to 210°, 0.0001° Feed rate: - X/Y/Z: 40 mm/min Machine data: - Connected load: 104 kVA - Operating voltage: 400V / 50 Hz - Required footprint (L x W): 7 x 3.5 m Special accessories: - 120-position tool magazine - High-pressure coolant 70 bar - Renishaw - Laser measurement system for rotating tools - Interface set - Air/water through-spindle cooling - Overload monitoring system - Mayfran Consep 2000 chip conveyor - SMW quick-change chuck

Condition: good (used), Year of construction: 2022, functionality: fully functional, Fanuc control, two turrets, turret 1 with Y-axis, spindle bore 65 mm, sub-spindle, Tool-Eye, parts catcher, conveyor belt, short bar loader. Nwodeylig Nopfx Afcoc
