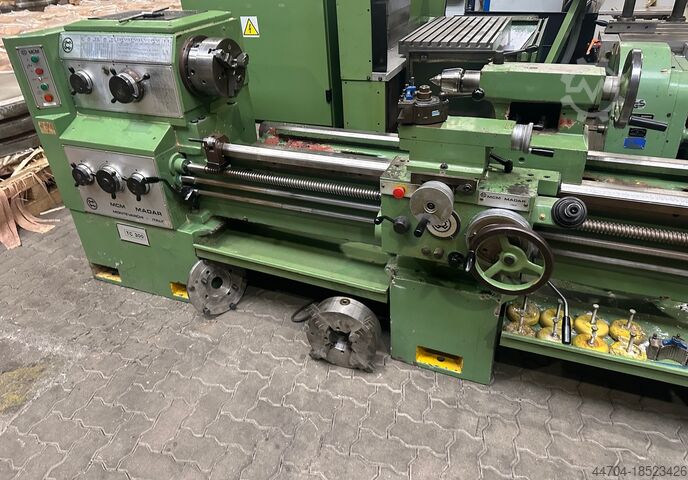

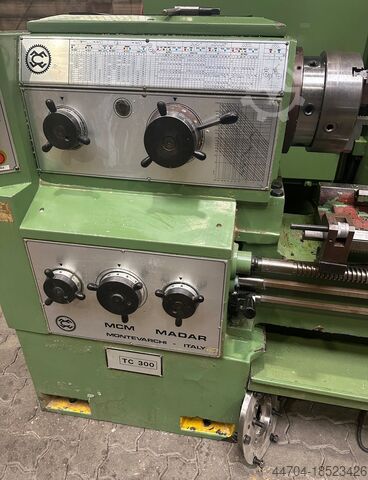

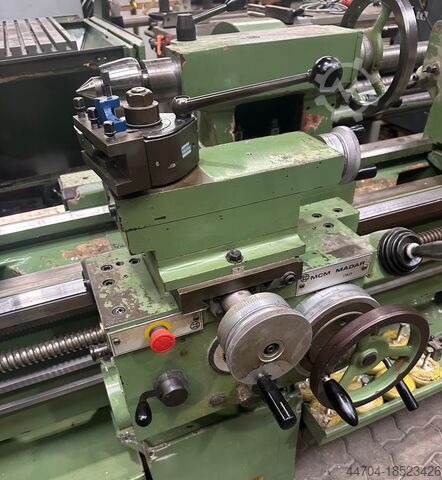

Lead and feed screw lathe

MCM Madar TC 300 x 2000

Condition: used, Year of construction: 1975, Technical details: turning diameter over bed: 500 mm turning diameter over support: 260 mm turning length: 950 mm center height measured in bed: 220 mm centre distance: 1000 mm revolution per minute: 11,2 - 2240 / 24 step U/min spindle bore of work spindle: 62 mm tailstock quill adjustment:: 210 mm longitudinal feeds:: 0,045 - 1,6 mm/U - 32 step cross feed: 0,02 - 0,71 mm/U - 32 step total power requirement: 11 kW weight of the machine ca.: k.A. t Podpfx Agjv A Sqhoqord dimension machine xH: 3,3 x 1,2 x 1,6 m The machine is in a very good condition (very quiet spindle run) in Leipzig. Top slide rotatable 360° 3-jaw lathe chuck Ø 315mm with jaws (inside/outside) for speed 2000 rpm. Thread cutting: metric, modular thread, inch Chip protection wall Chuck protection (mechanical) MULTIFIX steel holder with Ø 40mm drill steel holder Chip collection tray Coolant supply with pump Protective device for lead screw Machine base UVV is pre-equipped ( UVV=Accident Prevention Regulations) *

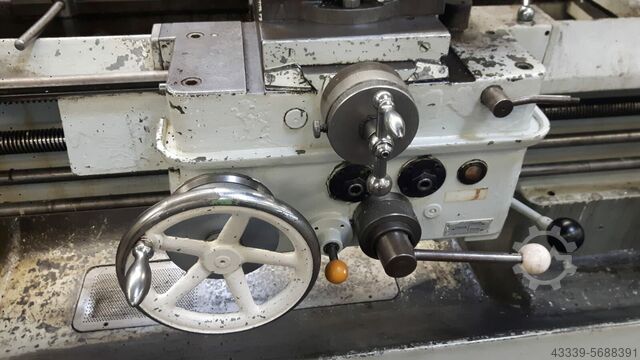

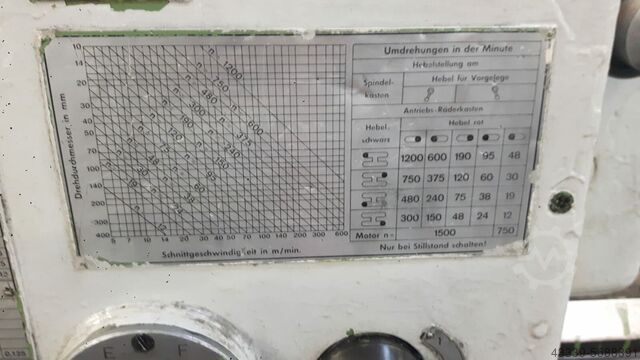

Condition: ready for operation (used), Year of construction: 1970, LZ-Lathe KERN Type:DS 20 AL Year 1970 with 3 jaws lathe chuck Forkardt 250mm, tool quick winder holder Prodpfxegqxcio Agqsd Multifix size C with holders coolant device. turning diameter overbed:500mm turning diameter overplane : 250mm centre distance : 1000mm spindle speed: 12 -1200U/min Machine can be demonstrated under current Good guides .

Condition: used, greates pass round over bed 480 mm Podpfxstqqx As Agqjrd swing diameter over bed slide 300 mm turning length 1500 mm centre height 240 mm centre distance 1500 mm spindle bore 42 mm spindle turning speed range 14 - 1400 U/min total power requirement kW weight of the machine ca. 2,4 t dimensions of machine L x W x H 3,00 x 1,05 x 1,40 m Accessories: 3-jaw chuck 250 mmø, MULTIFIX-head, running center

Condition: new, Year of construction: 2024, Special price: €45,000 (instead of €52,500) excl. VAT. Available immediately! Included Premium Features: - Heidenhain ND5023 3-Axis Position Readout - 5-Position Longitudinal Stop for the Saddle - SRW-Amestra Multifix C Quick-Change Toolholder with 4 Inserts - LED Workstation Lighting - Set of Spinelli Leveling Pads Standard Features: - Double Mechanical Clutch - Electromagnetic Brake - Rapid Traverses - Air Device on the Tailstock to Facilitate Movement Along the Bed - Cast Iron Bed, Legs, Headstock, Tailstock, and Slide - Bed Guides are Induction-Hardened and Ground - Headstock with Induction-Hardened and Ground Gears - Spindle Mounted on High-Precision Bearings - Friction-Free Slide Sliding - Electrical System in an Airtight Cabinet with Siemens and/or Schneider Components - Spindle Reduction Sleeve - 2 Dead Centers - Chuck Guard with Microswitch Turret Plexiglas guard, rear guard along the entire length of the machine, lead screw and feed rod guards, emergency stop button - Chip tank on wheels - Cooling system with electric pump - Central lubrication of the guideways with automatic pump - Follow and fixed steady rest - Service tools and wrenches, test certificate, electrical diagram, operation and maintenance manual - Machine built according to EC standards Optional equipment: - 3-/4-jaw chuck Technical specifications - Center height: 260 mm - Swing over bed: 520 mm - Swing over carriage: 300 mm - Swing without bridge: 690 mm - Distance between centers: 1500 mm - Bed width: 400 mm - Spindle bore: 105 mm - Spindle nose: 11" Camlock - Spindle speeds: 12 - Spindle speeds: 16 - 1200 rpm - Main motor power (S1 - 100%): 7.5 kW (optional 9.2 kW) Podjpq R Rdjpfx Agqsrd - Longitudinal feed: (93) 0.028 - 6.43 / (65) 0.063 - 2.52 mm/rev - Cross feed: (93) 0.012 - 2.73 / (65) 0.027 - 1.07 mm/rev - Metric threads: (54) 0.5 - 224 / (22) 1 - 14 mm - Whitworth: (54) 1/8 - 72 / (25) 2 - 28 tpi - Modular threads: (54) 0.5 - 112 / (18) 0.5 - 7 mm - Diametrical pitch: (54) 1/4 - 64 / (24) 4 - 56 dp - Cross slide travel: 340 mm - Top slide travel: 150 mm - Tailstock quill diameter: 85 mm - Tailstock quill stroke: 200 mm - Tailstock quill mount: MK5 - Total weight: 3200 kg

Condition: good (used), Lathe Brand Roewe Type RSN 71 B Center distance 4000 mm Center height 360 mm over offset 470 mm 16 speeds 10-1000 rpm Podpfx Agewb Dr Heqjrd Length 6000 mm Width 1450 mm Height 1600 mm

Condition: used, Demonstration machine Hans Schreiner - metal lathe, 3-jaw chuck 315mm, 4-jaw faceplate 320mm, clamping disc 430mm, drive plate 250mm, steady rest, ride-on rest, magnetic brake, switchable automatically and with foot operation, Pjdpfx Aovrvvaegqord coolant system, halogen lamp, splash guard, chip tray can be pulled out to the front, fixed punch, roller punch MK5 removable bed, hardened and ground bed and gear wheels without oil filling incl. Multifix Set B and 3-axis digital display Technical data: Centre height 300 mm Centre width 2000 mm max. turning diameter 600 mm spindle mount Camlock 8 hollow spindle 80 mm tailstock taper MK5 spindle speed 24 to 1600 rpm Speeds 15 Main motor output 7.5 kW Max. diameter over cross slide 350 mm Max. turning diameter in the bridge 680 mm Longitudinal feed 0.07 - 4 mm/revolution Cross feed 0.02 - 1.35 mm/revolution Metric thread 0.5 - 28 mm pitch Inch thread 56 - 1 threads/inch Module thread module 0.5 - 3.5 Thread diametric pitch 56 - 8 Quill diameter/travel 65/120 mm Weight 2200 kg
