Lead/traction spindle lathe

Roewe RSN 71 B

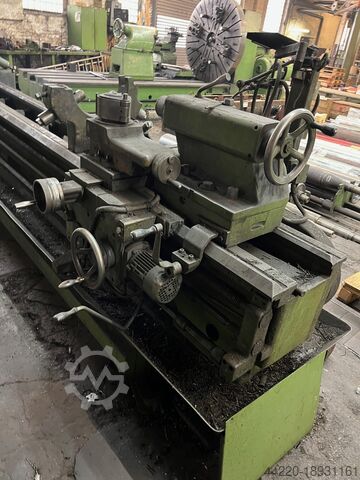

Condition: used, greates pass round over bed 480 mm swing diameter over bed slide 300 mm turning length 1500 mm centre height 240 mm centre distance 1500 mm spindle bore 42 mm spindle turning speed range 14 - 1400 U/min total power requirement kW Gtedpfx Ajtqqx Asa Iet weight of the machine ca. 2,4 t dimensions of machine L x W x H 3,00 x 1,05 x 1,40 m Accessories: 3-jaw chuck 250 mmø, MULTIFIX-head, running center

Condition: used, Demonstration machine Hans Schreiner - metal lathe, 3-jaw chuck 315mm, 4-jaw faceplate 320mm, clamping disc 430mm, drive plate 250mm, steady rest, ride-on rest, magnetic brake, switchable automatically and with foot operation, coolant system, halogen lamp, splash guard, chip tray can be pulled out to the front, fixed punch, roller punch MK5 removable bed, hardened and ground bed and gear wheels without oil filling incl. Multifix Set B and 3-axis digital display Technical data: Centre height 300 mm Centre width 2000 mm max. turning diameter 600 mm spindle mount Camlock 8 hollow spindle 80 mm tailstock taper MK5 spindle speed 24 to 1600 rpm Speeds 15 Main motor output 7.5 kW Max. diameter over cross slide 350 mm Max. turning diameter in the bridge 680 mm Longitudinal feed 0.07 - 4 mm/revolution Gtjdpjvrvvaefx Aa Ist Cross feed 0.02 - 1.35 mm/revolution Metric thread 0.5 - 28 mm pitch Inch thread 56 - 1 threads/inch Module thread module 0.5 - 3.5 Thread diametric pitch 56 - 8 Quill diameter/travel 65/120 mm Weight 2200 kg
