5-axis horizontal machining centre

MCM CLOCK 700

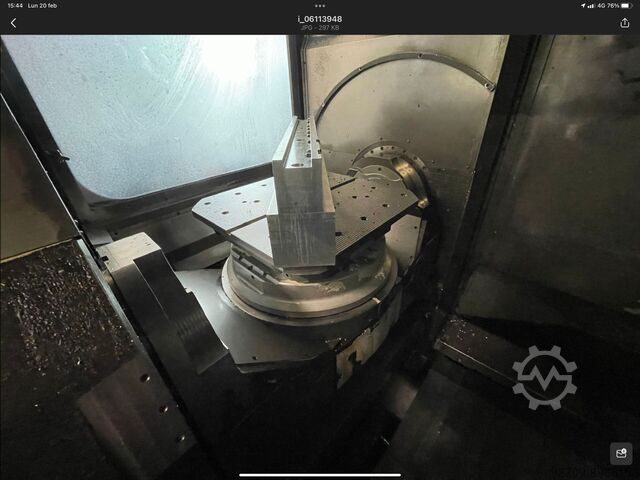

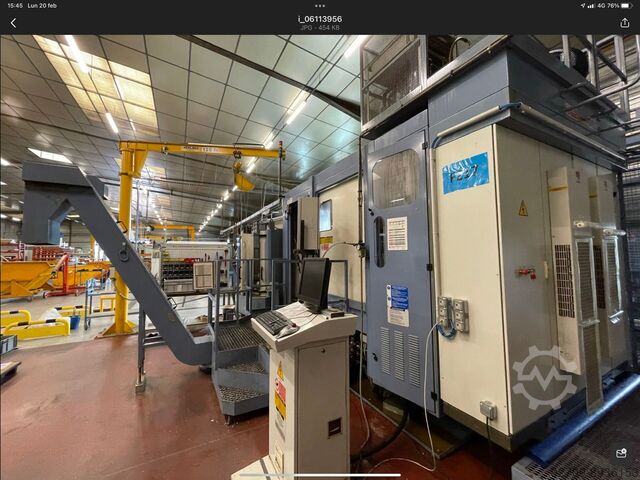

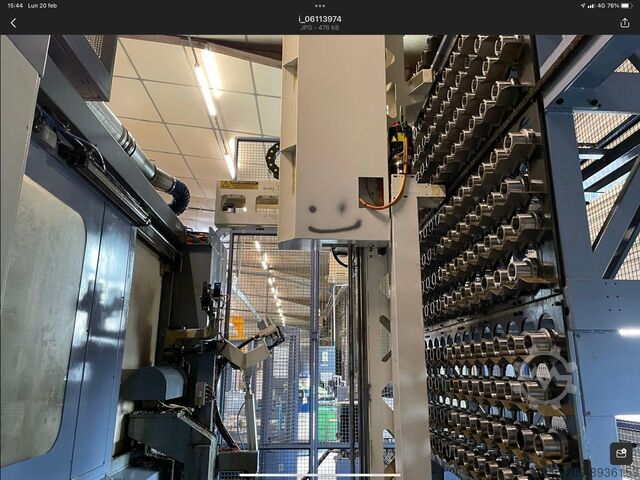

Condition: ready for operation (used), Year of construction: 2011, operating hours: 51,000 h, functionality: fully functional, travel distance X-axis: 700 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 700 mm, controller model: FANUC 16i, spindle speed (max.): 12,000 rpm, TECHNICAL DETAILS Travel range X-axis: 700 mm Travel range Y-axis: 650 mm Travel range Z-axis: 700 mm Spindle speed: 12,000 rpm Tool interface: HSK A63 Number of tool magazine positions: 295 Rotary table: stepless, 360,000 indexing positions Rotary table speed: 65 rpm Pallet system: 7-position multi-pallet system Pallet size: 500 x 500 mm Maximum pallet load: 550 kg Maximum workpiece diameter: 800 mm MACHINE DETAILS CNC control: FANUC 16i Coolant tank: 750 l Coolant filtration system: self-cleaning Loading/unloading stations: 1 Operating hours: 51,000 h EQUIPMENT Cooling unit for temperature control of the spindle unit Spindle prepared for coolant supply through the tool flange Climate-controlled control cabinet with air conditioning unit Full enclosure of the work and machine area Work area lighting Scraper-type chip conveyor with rear discharge Conveyor screws for chip removal Closed upper machine cover, prepared for connection to a central extraction system C301 Workpiece cleaning C303 Tool taper cleaning C410 Tool Monitor MCM C305 Oil separator C333 Automatic coolant refill C308 High-pressure coolant system, 65 bar C403 Tool presence monitoring via laser Kodpfezxztaox Akwsdt C412 Balluff read/write system with JTERM-01 C408 Marposs wireless measuring probe MIDA T36 jFMX MCM monitoring system including Network Part Program

Condition: used, TECHNICAL DETAILS - Number of axes : 8 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 25.4 [mm] - Max. machining length : 200 [mm] - Spindle speeds : 10000 [rpm] - C axis indexing precision : 0.1 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 10000 [rpm] Kodpjuhaycefx Akwodt - Spindle power : 3.7 [kW] - C axis indexing precision : 0.1 [°] - Number of guide bush holders : 2 GUIDE BUSH HOLDER 1 - Number of positions : 5 GUIDE BUSH HOLDER 2 - Number of positions : 5 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] SECONDARY OPERATION - Number of positions : 7 - Number of motorized positions : 3 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 14 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2270 x 1650 [mm] - Machine height : 2200 [mm] - Machine weight : 3500 [kg] MACHINE HOURS - Number of hours under power : 46571 [h] EQUIPMENT - CNC : Fanuc - Rotating tool motor on : S2 - Rotating guide bush - Parts catcher - Ejection of workpiece - Chips conveyor : KNOLL - Coolant tank * with high-pressure pump : 100 [bars] - Bar loader : TORNOS ROBOBAR SSF - Oil mist extractor : Elbaron - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

Condition: used, Year of construction: 2014, Colour: White Empty weight: 4.500 kg - Machine available from: 2026-03-30 - Year: 2014 - Documentation available: Yes - CE certificate present: Yes - Serial number: AA1/017825 - Number of milling spindles [pcs.]: 1 - └ Milling spindle 1: - - Number of controlled axes [pcs.]: 5 - Type milling table: Beam table - Tool holder: HSK-F63 - Drilling unit present: Yes - Tool changer positions [pcs.]: 12 - System/software: SCM Maestro - Safety feature: Enclosed fence, Safety light curtain - Vacuum pump present: Yes - └ Number [pcs.]: 1 - └ Brand: Becker - └ Type: VTLF 2.250/0-791 - └ Year of manufacture: 2014 Kdedex Hwhxjpfx Akwot - └ Main motor power [kW]: 5.5 - └ Capacity [m³/h]: 244 - └ Vacuum pressure [bar]: 200 - CNC options: Manual control - CNC documentation available: USB stick - Working range X [mm]: 5200 - Working range Y [mm]: 1550 - Z-axis working range [mm]: 160 - Installed length [mm]: 9000 - Installed width [mm]: 5000 - Installed height [mm]: 3100 - Transport weight [kg]: 4500kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: ready for operation (used), Year of construction: 2008, - USED - 5-AXIS BRIDGE-TYPE VERTICAL MACHINING CENTRE     X-AXIS TRAVEL: 1750 mm Y-AXIS TRAVEL: 1400 mm Z-AXIS TRAVEL: 600 mm RAPID FEEDS X-Y-Z: 35 m/min SPINDLE: 18000 rpm; 18,5-25 kW; HSK A63 TABLE SIZE: 1000 x 1200 mm MAX ADMITTED LOAD: 5000 Kg TOOL MAGAZINE: A CATENA ; 30 POS HEAD: A/B AXIS AUTOMATIC CONTROL UNIT: HEIDENHAIN iTNC 530 Kdedpowl R Ddofx Akwot WEIGHT: 18000 Kg OVERALL DIMENSIONS: 6000 x 4000 x 3850 mm ACCESSORIES: SWARF CONVEYOR ; PORTABLE HANDWHEEL ; LASER TOOL SETTER

Condition: ready for operation (used), Year of construction: 2001, - USED - 5-AXIS VERTICAL MACHINING CENTRE WITH ROTARY AND TILTING TABLE X-AXIS TRAVEL: 500 mm Y-AXIS TRAVEL: 400 mm Z-AXIS TRAVEL: 400 mm SPINDLE: 9000 rpm; 13 kW; SK40 DIN 69871 B-AXIS: -10° +95 ° C-AXIS: 360 ° TABLE SIZE: 700 x 500 mm MAX ADMITTED LOAD: 200 Kg TOOL MAGAZINE: CHAIN-TYPE ; 16 POS CONTROL UNIT: HEIDENHAIN TNC 430 WEIGHT: 3000 Kg Kdsdpfxswl R Dqo Akwst OVERALL DIMENSIONS: 2000 x 1520 x 2140 mm ACCESSORIES: SWARF CONVEYOR NOTE: MANUAL 5th AXIS

Condition: excellent (used), Year of construction: 2010, Cylindrical grinding machine Fab. Robbi Group Typ. Omicron 600 RT5 Year 2010 Technical data Make Robbi Group, IT Type OMICRON 600 RT5 Year of manufacture 2010 table Center width 600 mm Sanding length max. 600 mm Swivel range + 9° / - 5° Kedpfxowhm Rfe Akwjdt Center height above table 160 mm Workpiece weight between centers 120 kg Workpiece weight for fly grinding 40 kg Tailstock Quill stroke 25 mm Quill diam. 43 mm Internal mounting cone CM 4 Workpiece headstock Rotation speed 0 - 600 Internal mounting cone CM 4 Spindle passage 26 mm Grinding wheel Diameter 450 mm Width min 20 / max 50 mm Bore 127 mm Equipment - Manual or automatic cycle - Automatic dressing compensation - Simplified presetting of grinding wheel and workpiece All information without guarantee. A demonstration under power is possible at any time in our exhibition hall.

Condition: used, Year of construction: 2006, Technical details: swing diameter: 200 mm weight of the machine ca.: 15 t Ksdpfxjquy Iuo Akwjdt Distance between tips: 832,5 mm turning length: 380 mm with chip conveyor and belt filter press, infeed and outfeed belt 2 x 12-position revolvers *

Condition: used, TECHNICAL DETAILS - Number of axes : 10 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 25.4 [mm] - Max. machining length : 200 [mm] - Spindle speeds : 10000 [rpm] - C axis indexing precision : 0.1 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.1 [°] - Number of guide bush holders : 2 GUIDE BUSH HOLDER 1 - Number of positions : 5 GUIDE BUSH HOLDER 2 - Number of positions : 5 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] END ATTACHMENT Kdjdouha Uaspfx Akwjt - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 6000 [rpm] SECONDARY OPERATION - Number of positions : 7 - Number of motorized positions : 3 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 14 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2270 x 1650 [mm] - Machine height : 2200 [mm] - Machine weight : 3500 [kg] MACHINE HOURS - Number of working hours : 62722 [h] EQUIPMENT - CNC : Fanuc - Rotating tool motor on : S2,S3,S5,S6 - Rotating guide bush - Parts catcher - Ejection of workpiece - Chips conveyor - Coolant tank * with high-pressure pump - Bar loader : ROBOBAR SBF 532 - Oil mist extractor - Cooling unit

Condition: ready for operation (used), Year of construction: 1999, - USED - 5-AXIS VERTICAL MACHINING CENTRE    X-AXIS TRAVEL: 1000 mm Y-AXIS TRAVEL: 600 mm Z-AXIS TRAVEL: 500 mm DISTANCE SPINDLE NOSE-TABLE: 682 mm RAPID FEEDS X-Y-Z: 40 - 40 - 30 m/min SPINDLE: 32000 rpm; HSK E50 B-AXIS: ± 25 ° C-AXIS: +180° -177 ° TABLE SIZE: 1400 x 815 mm Kjdpfjwmxnyox Akwsdt MAX ADMITTED LOAD: 2000 Kg TOOL MAGAZINE: CHAIN-TYPE ; 20 POS HEAD: A/B AXIS AUTOMATIC CONTROL UNIT: FIDIA WEIGHT: 12000 Kg OVERALL DIMENSIONS: 2900 x 2800 x 3400 mm ACCESSORIES: FUME EXHAUSTER

Condition: reconditioned (used), Year of construction: 2010, operating hours: 31,600 h, functionality: fully functional, machine/vehicle number: 3078, Travel range Z = 400 mm Y = 200 mm X = 410 mm Power / thrust force Kdjdoyf Angspfx Akwjt Z-Y 2.5 kW / 550 daN (linear motor option = 7.2 kW / 350 daN) X 4.8 kW / > 550 daN X-Y-Z Travel speed 40 m/min (linear motor option = 50 m/min) X-Y-Z-W Acceleration 8 m/s2 / 0.8 g (linear motor option = 10.4 m/s2 / 1.1 g) X-Y-Z-W Resolution 0.0001 mm MAIN SPINDLE + C1 Power 7.5 kW Torque / peak 22 / 28 Nm Measuring system direct Resolution 0.0001° Accuracy 0.001° Bar passage Ø 32 mm Turning spindle speed 72,000°/min Turning clamping force 4,900 N at 6 bar AXIS B (TILT AXIS OF TOOL HOLDER SPINDLE) Power 4.3 kW Torque / peak 119 / 226 Nm Angular travel -25° / +115° Measuring system direct Resolution 0.0001° Accuracy 0.001° Rotational speed 36,000°/min Supporting torque 200 Nm TOOL HOLDER SPINDLE Power 5 kW Torque 6 to 800 min-1 Max. speed 30,000 min-1 Clamping force of the tool holder 2,000 N Blocking torque mechanical blocking via straight-tooth gearing Tool shank taper HSK 40 (A or E) Tool clamping power 1000 daN TOOL CHANGER Number of stations 30 (for HSK 40) CNC control Fanuc 30i/31i type Y-axis (transverse axis) Travel 200 mm Power 4.8 kW Feed power 240 daN Resolution 0.0001 mm Max. rapid traverse G0 50 m/min Max. feedrate G1 20 m/min Measuring system glass scale Z-axis (longitudinal axis) Travel 400 mm Power 7.2 kW Feed power 360 daN Resolution 0.0001 mm Max. rapid traverse G0 50 m/min Max. feedrate G1 20 m/min Measuring system glass scale Includes coolant unit 8 kW and integration of an emergency stop system. Inventory no. 2220114, machine comprising: CONTROL Fanuc 30i/31i, with 14’’ screen LINEAR MOTOR FEED OPTION for Y and Z axes TURNING-MILLING FUNCTION with integration of an indexing system (8 positions) on the tool holder spindle, transformation of the tool magazine for HSK40-A tool holders, increase of the spindle speed to 5500 min-1 4-POSITION PART RECOVERY UNIT “PRM” FOR MACHINING THE 6TH FACE: In idle state, the unit is located protected under the main C1 spindle. The recovery unit moves on the W-axis, which is parallel to the C-axis. Max. speed W-axis: 40 m/min. Travel on W-axis: 310 mm. With 2 vices – power at 5 bar: 3500 N 1 tailstock INCREASED SPINDLE PASSAGE increase from 1 to 50 mm (main spindle) TOOL MEASUREMENT DEVICE “RENISHAW” T27 Measurement of the length of the turning tool. Routine detection by M-code. Automatic tool breakage monitoring. TOOL MAGAZINE EXTENSION Increase in the number of tools from 30 to 60 stations COOLANT THROUGH THE SPINDLE 100 bar, 25 L/min, 400 L tank ADAPTATION AND PREPARATION OF HP THROUGH THE MILLING SPINDLE Mechanical and electrical integration of the turning clutch. PART UNLOADING CONVEYOR Output to the left of the machine PAPER BAND FILTER SYSTEM CLAMPING SYSTEM FOR F-48 CLAMPS ADAPTATION FOR W-20 CLAMPS PREPARATION FOR INTEGRATION OF A BAR FEEDER Subject to errors and omissions, the technical specifications are provided without commitment.
