Double column press 500 T

ME-Pressen 500 T Portal-Richtpresse

Hydraulic 500 T Gantry Straightening Press
with tool clamping device and parallel support for the bending blade
a) Idle and pressing speed up to 17 mm/sec
b) Opening speed up to 44 mm/sec
c) Table size 2000 x 850 mm
d) Open height 1500 mm
e) Overall size approx. LWH 1500 x 3000 x 4300 mm
f) Oil temperature indicator on the tank
g) Lubrication via grease nipple

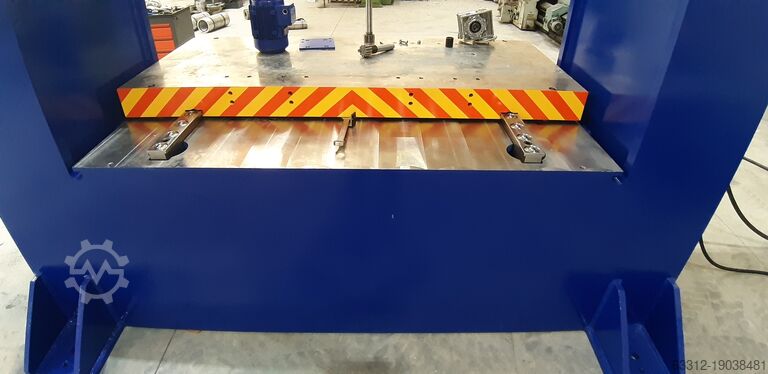

h) Table with grid design
i) Remote control
j) Pressure adjustment from 80 T to 500 T via rotary dial
k) Table moves hydraulically outward 700 mm for loading
l) Cylinder moves left and right via racks
m) Machine body powder-coated or double-coated
n) T-slots according to customer requirements
o) Cylinder induction-hardened
Cedpfx Agswgakvemerh
p) Assembly, commissioning, and instruction are charged separately.

Press type: GANTRY PRESS
Thermally neutral 80 – 120 °C
Number of operating sides: 3

Forces
Max. press force: 5,000 kN
Max. free tear-off force: 800 kN
Pressure build-up time: Closed tool, steel on steel: Max. 3 seconds

Dimensions
Max. opening width: 1,500 mm
Stroke and min. opening: 1,300 mm/200 mm
Table height above floor: approx. 850 mm
Height above floor (overhead height): approx. 4,300 mm
Hall height: min. 5,000 mm

Deflection
Determined at max. closing force with 70% occupancy: < = 1.2 mm/m

Weight
Total weight of the press without operating materials and table top: approx. 25 t

Speeds
Quick closing with 17 mm sec.
Pressing speed at F max.
