MEBA chip conveyor

MEBA

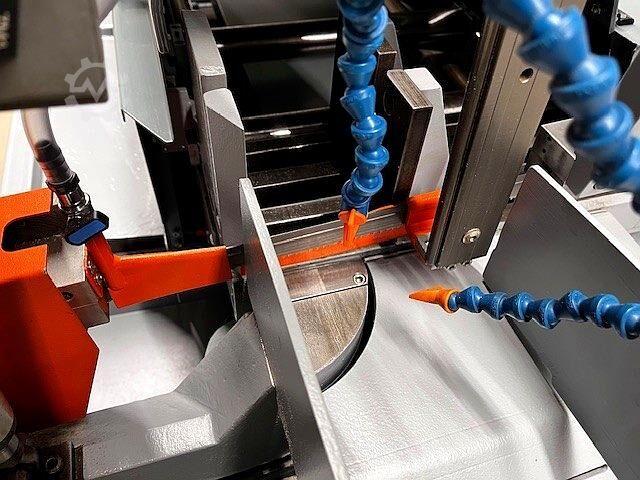

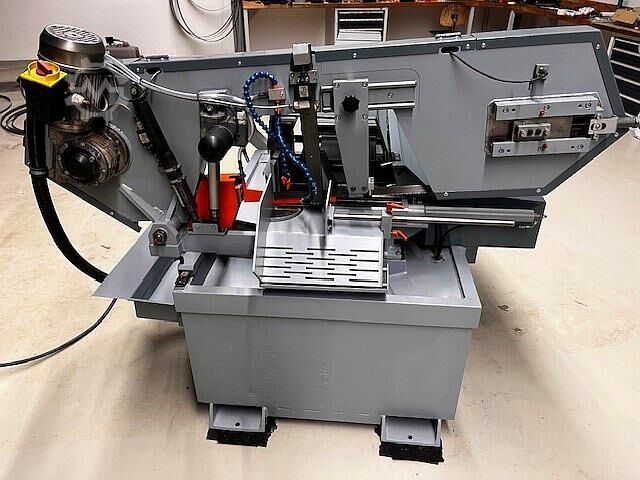

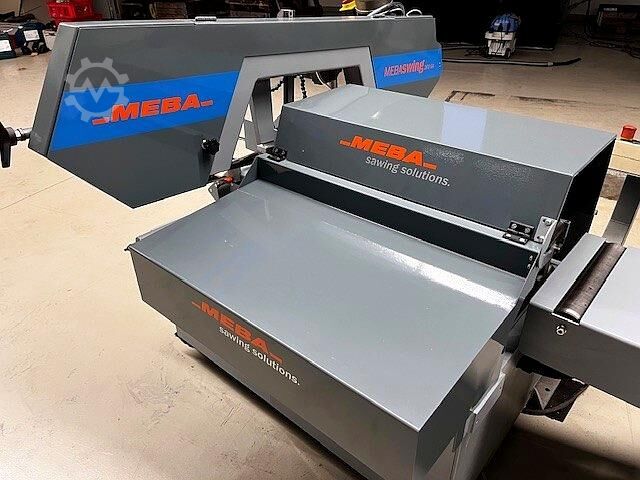

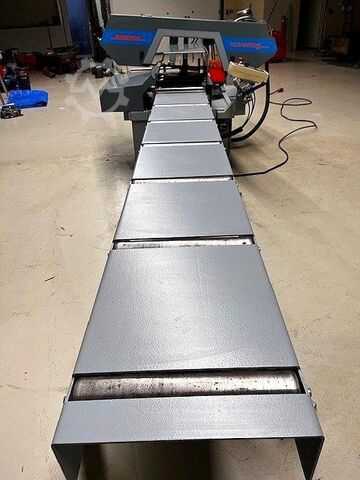

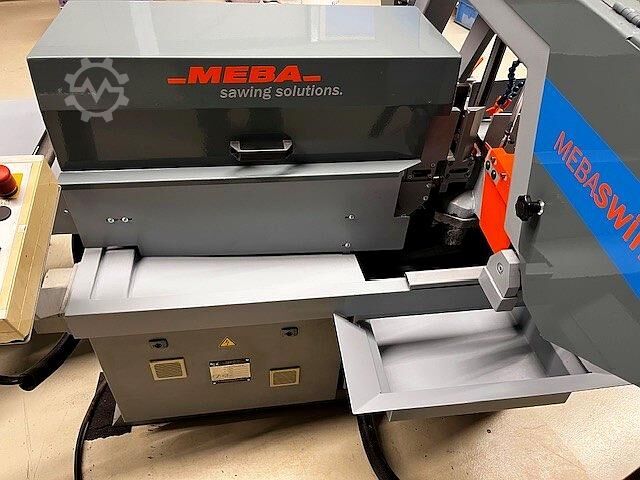

Condition: ready for operation (used), Year of construction: 2014, functionality: fully functional, machine/vehicle number: 66055, controller manufacturer: MEBA, workpiece diameter (max.): 260 mm, The saw has been technically overhauled and newly painted! The following components have been renewed: - Bearings of the idler pulley - Bearings of the drive pulley - Drive shaft from the gearbox - Bearings for pre- and post-centering of the saw band - Hardened flat guides for the saw band - Flat brushes for coarse cleaning of the saw band - Idler brush for cleaning the saw band - Pressure switch for the hydraulics - Hoses incl. shut-off valve for the cooling water - Saw band from Wikus, type Marathon M42, incl. 3 new spare bands TECHNICAL DETAILS Sawing diameter: 5 - 260 mm Mitre cut: stepless from 40° to 90° MACHINE DETAILS Roller conveyor length: 3000 mm Pedpfxjyf Hato Agropl Power supply: 380 V Current: 16 A EQUIPMENT Hydraulic clamping pressure regulation for thin-walled components Original control system from Meba Single cut operation for fast sawing cycles

Condition: good (used), Mitre Band Saw MEBA DG 320 - Cutting capacity: 325 mm - Rectangular material: 500x300 mm - Mitre 45° – Round: 300 mm - Mitre 45° – Rectangular material: 300x300 mm - Mitre range – infinitely adjustable: 30–135° - Hydraulic material clamping Pedpfsycwcasx Agrjpl - Hydraulically adjustable sawing pressure - Infinitely variable band saw speed - Saw blade dimensions: 4200x34x1.1 mm - Coolant system - Automatic shut-off - Emergency stop - Documentation Dimensions: LxWxH 1.8x1.6x1.6 meters / Weight 1500 kg Subject to errors and omissions.

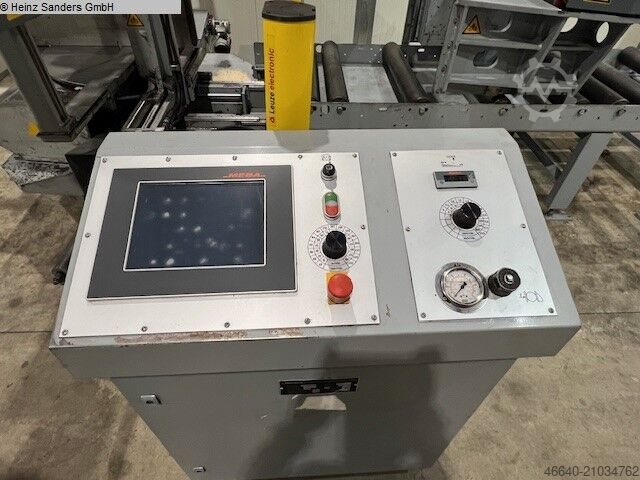

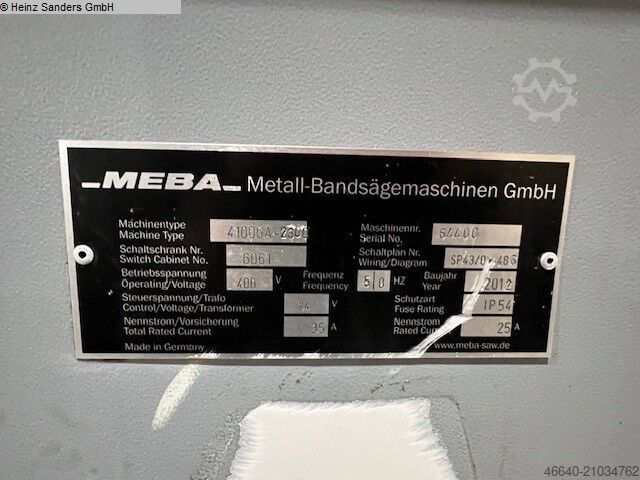

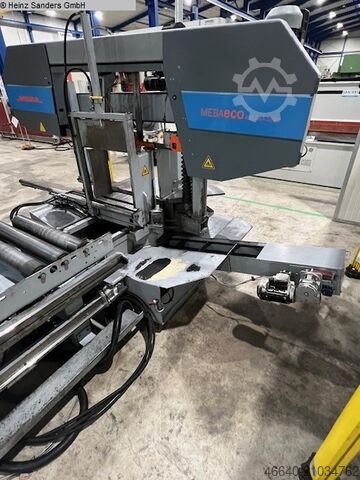

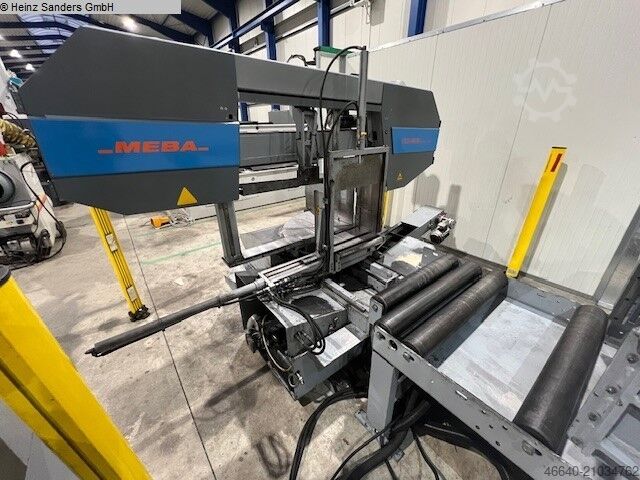

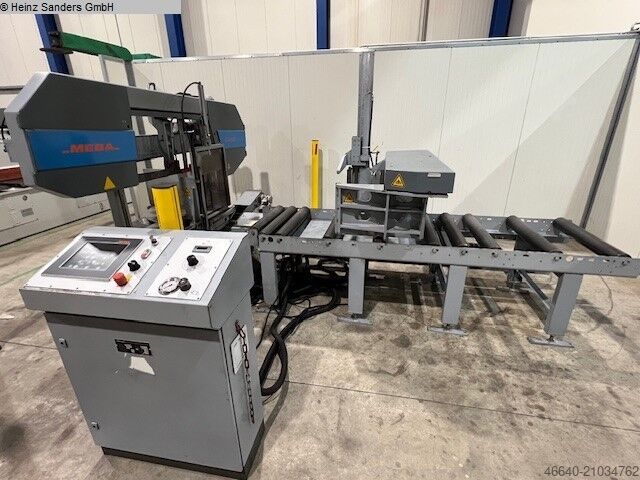

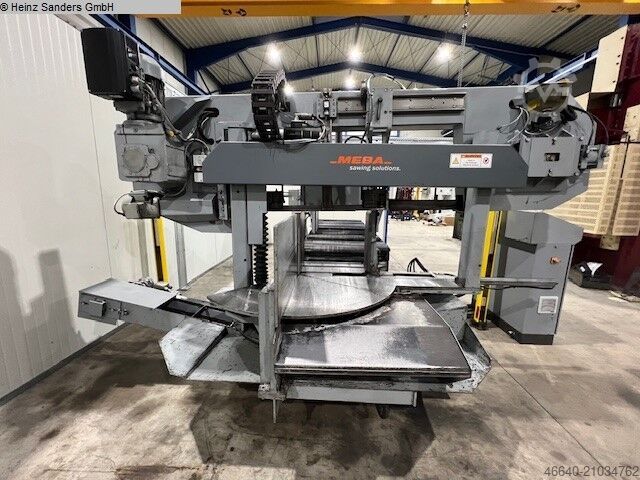

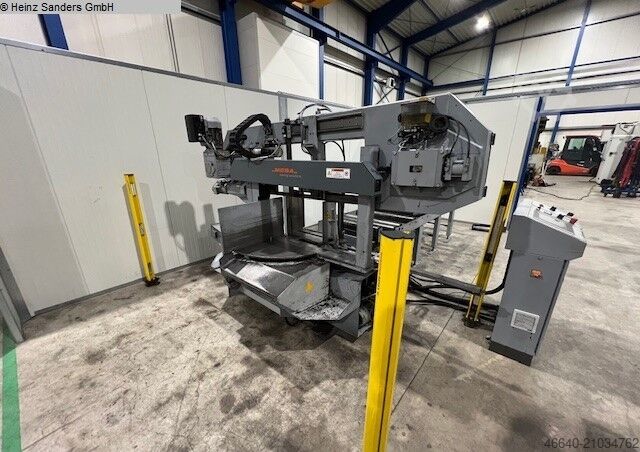

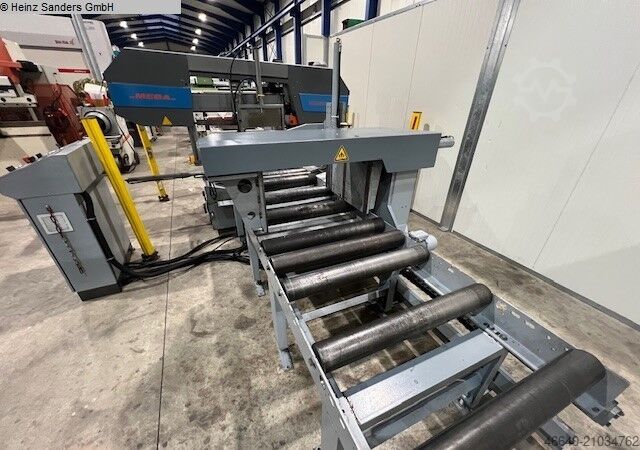

Condition: used, Year of construction: 2012, cutting diameter 410 mm saw band length 5800 x 41 x 1,3 mm table height 750 mm 430 mm 410 mm 700 x 410 mm 410 mm cutting speed 500 x 410 mm down speed 320 mm dimensions of saw-band 320 x 410 mm workpiece weight 15 - 150 m/min 5,5 kW work height max. 3200 kg connected load 4500 x 2800 x 2000 mm Equipment: - Automatic cutting pressure and feed rate monitoring - Frequency-controlled AC drive 15-150 m/min, 5.5 kW - Hydraulic full-stroke material clamping - Automatic movement of the clamping vices - Automatic saw frame height adjustment - Minimum speed and saw blade monitoring - Electric miter tilting via servo motor - Visualized program input with CNC control - Integrated MEBA gripper infeed system from 5-2300 mm per stroke with integrated roller conveyor roller conveyor *Special equipment: - Laser light for cutting line display/ scribing saws - Driven chip brush - Micro dosing system - Clamping pressure regulation - Material bundle clamping - Job menu - Material database - Zero stop - Scraper belt conveyor for optimum chip removal, 2000 mm length Ppodpfeyb S Emjx Agrel - Cutting process control

Condition: new, incl. Hydraulic lifting of the saw frame with check valve Micro dosing unit Available with or without laser light for cut line indication Metal band saw for straight and mitre cuts, continuously adjustable from 30° - 45° - 90° - 45° - 30° according to scale Swivel axis remains unchanged at any angle setting, therefore precise length measurement at 90° and in the mitre range. Cutting speed: 35 and 75 m/min, pole-switchable Cutting capacity 30° left Ø 130 or 120x120 45° left Ø 200 or 180x180 90° Ø 260 or 300x260 45° right Ø 200 or 180x180 30° right Ø 130 or 120x120 Alternatively available in "HS" semi-automatic version: - Hydraulic lifting of the saw frame - Hydraulic material clamping/short stroke - Rapid approach lowering to material top edge The following options are recommended: Micro-spray system Laser light Comparable with Behringer, Kaltenbach, Kasto, Jaespa, etc. Ppsdod Tb N Aopfx Agrol

Condition: new, Comparable to Behringer, Kaltenbach, Kasto, Jaespa, etc. Semi-automatic saw operation with workpiece clamping – sawing – lifting to preset height after completing the cut. Infinitely adjustable hydraulic cutting pressure and feed rate monitoring at the saw band tension. This allows optimal settings for every sawing task, i.e., constant pressure for solid material and constant feed for thin-walled profiles. Especially suited for universal use with various cross-sections, materials, and frequently changing mitre cuts. The machine control system complies with CE standard 89/289. Technical data: Cutting capacity in mm round/flat 90° 325 / 500 x 300 45° 300 / 300 x 300 30° 200 / 200 x 200 45° 300 / 300 x 300 Rapid lowering of the saw frame to the material edge by push button Manual mitre adjustment from 45°–90° – 30°, continuously adjustable with scale The mitre swivel point is the intersection between the saw blade and the fixed vice jaw, meaning there is no change in length measurement when changing the angle Hydraulic full-stroke workpiece clamping – CETOP hydraulic system At any saw frame angle, the material is clamped parallel at 90° Complete coolant system with electric immersion pump Centralised machine operation Saw band drive with end stop Moveable band guide arm, adjustable to material width Saw blade return pulleys with carbide guides Integrated chip cleaning brush Saw band tension with torque wrench Finish: Silver-grey / Blue-grey (RAL 7001 / RAL 7031) Remnant piece length: 60 mm Cutting speed: AC frequency-controlled drive from 15–150 m/min, infinitely adjustable at the control panel Drive: Saw band 3.0 kW; 400 V, 50 Hz Hydraulics 1.1 kW Coolant pump 0.1 kW Saw frame feed: Infinitely variable up to 300 mm/min, hydraulically controlled Saw band tension: Mechanical with torque wrench Saw band dimensions: 4200 x 34 x 1.1 mm Ppedpfx Ajt D Azcogrol Working height: 750 mm (without base elements) Weight: 850 kg Dimensions (LxWxH): 1450 x 2350 x 1350 mm

Condition: new, Comparable with Behringer, Kaltenbach, Kasto, Jaespa, etc. 2-column guided bandsaw, semi-automatic model with stepless mitre adjustment on both sides, 30° - 45° - 90° - 135°. With patented mitre system (ERP No. 0491120). Particularly suitable for universal applications with various cross-sections, materials, and frequent mitre changes. The pivot point remains unchanged at any angle setting, allowing precise length measurement at 90° and in the mitre range. MEBA Eco-Saw-Innovation 2000 The universally applicable mitre bandsaw MEBA 335 DG is ergonomically advanced and offers an optimal price-performance ratio. Easy, centralised operation. The machine controls comply with CE standard 89/289. Technical Data: Cutting range: round/flat 90° 335/500x335 mm 45° right 330/305x335 mm 30° right 180/170x335 mm 45° left 305/305x335 mm Cutting speed: AC frequency-controlled drive 15-150 m/min, steplessly adjustable via operator panel Drive - Saw band: 3 kW; 400 V, 50 Hz - Hydraulic: 0.55 kW - Coolant pump: 0.11 kW Saw frame feed: Stepless up to 300 mm/min, hydraulically controlled Saw band tension: Mechanical with torque wrench Saw band dimensions: 4400 x 34 x 1.1 mm Working height: 750 mm (without base elements) Weight: 1320 kg Bfpzm8E9K3 Dimensions (LxWxH): 1450 x 2350 x 1900 mm Technical modifications reserved. Standard equipment of the MEBA 335 DG-500 Semi-automatic sawing cycle with workpiece clamping - sawing - frame returns to preset height after completed cut MEBA High-Performance Package: Stepless hydraulic cutting pressure and feed monitoring at the blade back. This ensures optimal conditions for any sawing task, i.e., constant pressure for solid material and constant feed for thin-walled sections. Manual mitre adjustment with digital readout, accuracy to 0.1° Rapid lowering of the saw frame to the material edge via pushbutton Patented double mitre system (ERP No. 0491120) Unique double mitre bandsaw where mitres on both sides can be quickly and economically set by swiveling the saw frame and material support. Automatic movement of the clamping vices and digital mitre setting. The material vice automatically moves in the cutting direction to suit the desired mitre, ensuring the workpiece is always clamped square and close to the saw blade. The pivot point for mitre is at the intersection of the saw blade and fixed vice, so length measurements remain accurate regardless of angle. Hydraulic full-stroke workpiece clamping. Quick-clamping for material. At every saw frame angle, the material is clamped parallel at 90°. Rigid two-column linear guided saw frame Saw blade inclined 3° to the material support surface. Centralised machine control Saw frame clearance height adjustment Adjustable moveable blade guide arm for material width Carbide blade guide for band deflection wheels Synchronised chip cleaning brush Saw band tension with torque wrench Operating manual and spare parts list CETOP hydraulic system Ppedpfxot Dpw Rs Agrol Coolant system (approx. 100 ltr.).

Condition: new, Comparable with Behringer, Kaltenbach, Kasto, Jaespa, etc. Semi-automatic sawing cycle with workpiece clamping, sawing, and frame lifting to pre-set height after completion of the cut. Stepless hydraulic monitoring of cutting pressure and feed at the saw band feed. This ensures optimal conditions for every sawing task, i.e., constant pressure with solid material and constant feed with thin-walled profiles. Especially suitable for universal applications with varying cross-sections, materials, and frequent miter cuts. Machine control in compliance with CE standard 89/289. Technical Data: Round/Flat 90° 325/500 x 300 45° 300/300 x 300 30° 200/200 x 200 Rapid downfeed of the saw frame to material edge via push button Manual miter adjustment from 90° to 30°, stepless via scale The miter rotation point is at the intersection between saw band and fixed vice jaw, thus no change in length measurement with changing angle positions Hydraulic full-stroke workpiece clamping - CETOP hydraulic system At every saw frame angle, the material is clamped parallel at 90° Complete coolant system with electric immersion pump Centralized machine controls Saw band drive with end-stop Movable band guide arm, adjustable to material width Saw band deflection wheels – carbide guides Powered chip cleaning brush Saw band tensioning with torque wrench Paint finish: silver grey/blue grey (RAL 7001/RAL 7031) Remnant piece length: 25mm Cutting speed: AC frequency-controlled drive 15-150 m/min, steplessly adjustable at the control panel Drive: Saw band 3.0kW; 400V, 50Hz Hydraulics 1.1kW Ppodpehppabsfx Agrjl Coolant pump 0.1kW Saw frame feed: Stepless up to 300mm/min, hydraulically controlled Saw band tensioning: Mechanical with torque wrench Saw band dimensions: 4200x34x1.1mm Working height: 750mm (without installation elements) Weight: 850kg Dimensions (LxWxH): 1300x2050x1400mm The following options are available: Laser guide Micro-spray device Clamping pressure regulator Support table on the infeed side

Condition: new, Available from stock! Comparable to Behringer, Kaltenbach, Kasto, Jaespa, etc. Semi-automatic bandsaw with dual-sided mitre adjustment from 90° to 30°, stepless via scale with 0.5° accuracy. Includes the optional micro-spraying system! Hydraulic lifting/lowering of the saw frame Semi-automatic sawing cycle Hydraulic material clamping / short-stroke cylinder Rapid downfeed to material top edge 30° left Ø 130 or 120x120 Pedpfxjwcwggo Agropl 45° left Ø 200 or 180x180 90° Ø 260 or 300x260 45° right Ø 200 or 180x180 30° right Ø 130 or 120x120 Remnant length 25 mm

Condition: new, Comparable to Behringer, Kaltenbach, Kasto, Jaespa, etc. Cutting range 90° Round: 260 mm Flat: 300 x 260 mm Smallest diameter: 5 mm NC-controlled, automatic material feed with hydraulic full-stroke material clamping Easy operation via NC control with plain text display Material advance function without reclamping for short section cuts Robust, linear-guided feed gripper with servo positioning for maximum precision Automatic adjustment of blade guides to material width Recommended options: Powered chip brush synchronized with blade speed Pedpfxsh Tnd Ao Agrepl Separate control panel 7" CE panel, network-compatible, up to 1000 data sets storable, history memory for various functions and data, etc.

Condition: new, Comparable to Behringer, Kaltenbach, Kasto, Jaespa, etc. Ppsdsh S Nxzepfx Agrsl 2-column guided automatic metal band saw with stepless mitre adjustment from 90° - 45° - 30°. Especially suited for universal applications involving various cross-sections, materials, and frequent mitre changes. Pivot point remains unchanged for all angle settings, allowing precise length measurement at 90° and in the mitre range. Technical data: Cutting capacity: 90° round 335mm, flat 500x335mm 45° right 330mm, flat 320x335mm 30° right 200mm, flat 200x335mm Cut-off length: Single stroke up to 600mm, multiple stroke up to 6000mm Cutting speed: AC frequency-controlled drive, steplessly adjustable 15-150 m/min from control panel With the following additional equipment: Freestanding control panel The following options are recommended: Micro-spray device Laser line indicator Clamping pressure regulator 7" CE panel Installation elements
