Portal milling machine

Mecanumeric

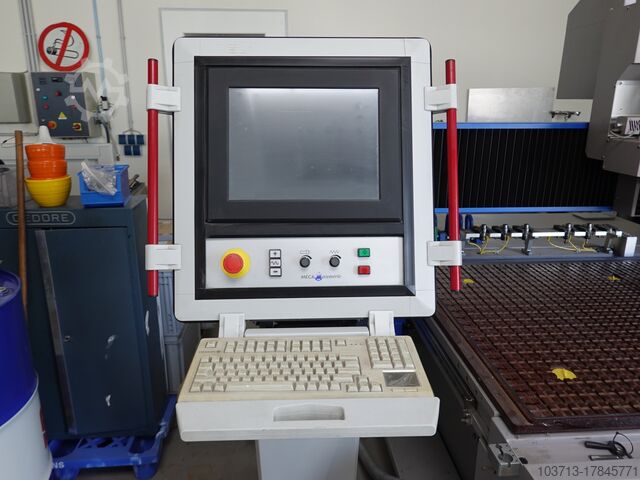

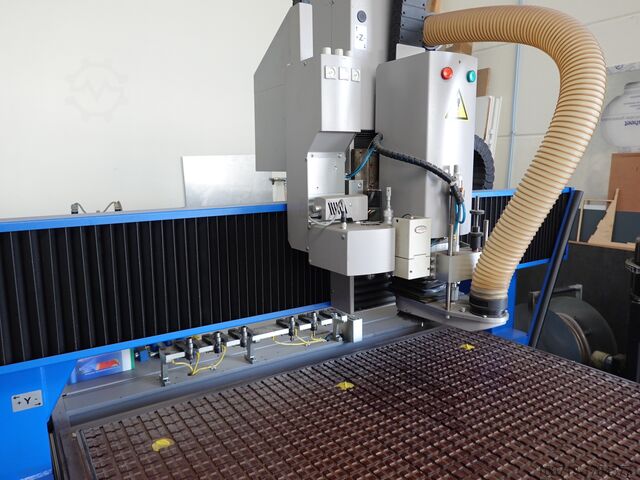

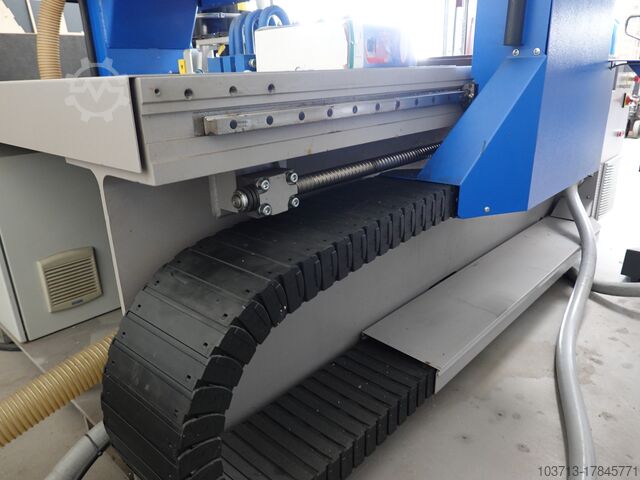

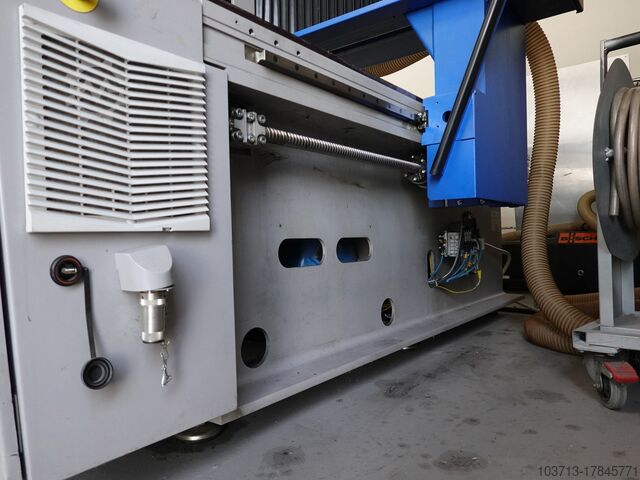

Condition: used, Year of construction: 2010, travel distance X-axis: 3,020 mm, travel distance Y-axis: 1,520 mm, • Monoblock structure in welded steel with a mobile gantry in steel. • Processing speed up to 18 m/min. • Worktable: fixed table made of high-thickness aluminum profiles. • Hardened linear guides and preloaded ball-bearing carriages. • Transmission via precision ball screws on all 3 axes. • CN7000 numerical control with touch screen and brushless servo drives. • Available in 5 sizes for maximum flexibility. • Z 350 option for 3D applications. • Quality and performance suitable for good productivity. Ksdpexxii Aefx Ah Aslw • Well-known ease of use. • Compliant with European safety regulations. • Numerous options: brushless servomotors, micro-lubrication, automatic tool changer, vacuum table (with turbine or vacuum pump), high-frequency spindles, contact engraving spindles, fourth axis.

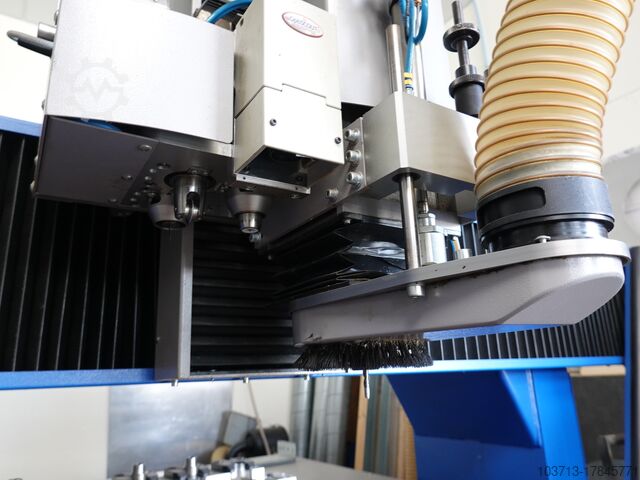

Condition: good (used), Year of construction: 2015, CNC milling machine, milling and engraving machine, MECANUMERIC, MECA EASY 1510 – used: Price ex works: €23,500 (net)! Manufacturer: MECANUMERIC Type: MECA EASY 1510 Year of manufacture: 2015, former DEMO MACHINE Three-axis milling machine in a flat-bed gantry design. Working travels X, Y, Z axes: 1,050 / 1,550 / 200 mm. Table frame and gantry: Designed as a solid, stress-free, fully welded steel structure, powder-coated. Heavy table substructure for mounting the vacuum table VAC-CAISSON, designed as a cassette, with air passage holes in a 10 mm grid. Feed rate: 300 mm/sec (18 m/min) in rapid traverse and feed mode! Guidance on rails, slide shoes with upstream ball screw. Transmission: Precision ball screws Ball screw on all axes Maintenance-free, brushless servo drive motors (750 W on X and Y, 300 W on Z) Repeat accuracy: +/- 0.025 mm Mechanical resolution: 0.0006 mm Numerical control: Mecanumeric CN 7000 ISO-G-Code Machine operation via a 10" touch screen display Complete documentation and CE declaration of conformity in accordance with the basic safety and health requirements of Vacuum table 1,020 x 1,500 mm Support/work table designed as a closed aluminum plate, on which vacuum passage holes are arranged in a 10 mm grid. The table is divided into 2 main areas, which can be switched on manually. Vacuum generation by one (1) two-stage high-performance vacuum side-channel compressor. Motor power 4.5 KW, suction capacity 320 m/hour, filter and silencer included. Due to the overall size and potential heat development, the pumps are housed outside the machine body. The electrical control and safety devices for the pump and valves are integrated in the machine control cabinet or on the control panel. Milling spindle HF40-ATC24 ENC Conversion Module APSG-A Klodpfx Ahezbybis Asw Vacuum generation by one (1) two-stage high-performance vacuum side-channel compressor. Motor power 4.5 KW, suction capacity 320 m/hour, filter and silencer included. Due to the overall size and potential heat development, the pumps are housed outside the machine body. The electrical control and safety devices for the pump and valves are integrated in the machine control cabinet or on the control panel. High-frequency motor milling spindle 4KW Power: 4KW Speed range: up to 24,000 rpm. Fast tool change with pneumatic ejection, ISO30 taper. Tool holder: Clamping diameter up to 2-16 mm. Cooling with compressed air 6 bar 20 m/h Converters and switching elements are included in this position. Safety enclosure for the machine Front with door and safety lock - Position PROTCHOC omitted - Preparation of the electrical control and switching elements as well as the output socket for a high-performance industrial vacuum cleaner. Changer CH 6 S Condition: good Available: immediately Location: Delmenhorst
