Milling Machines - A montante mobile

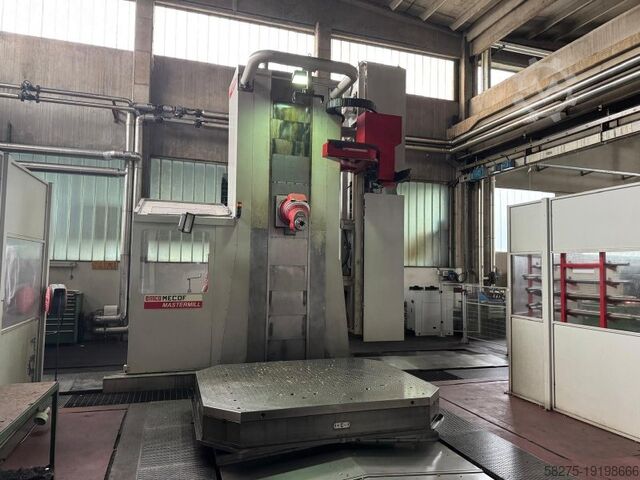

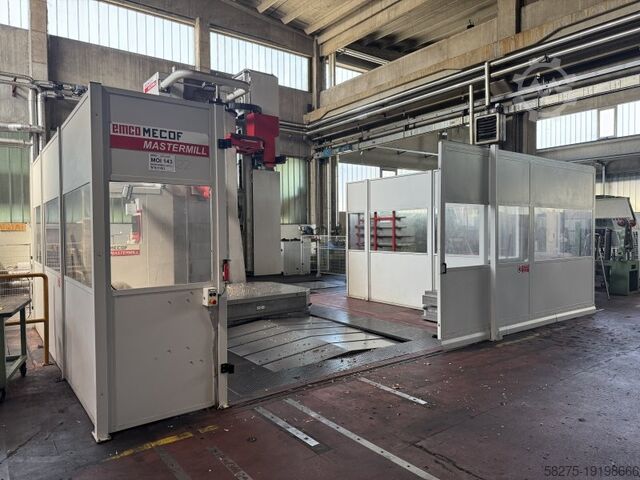

MECOF MASTERMILL HPC3

Year of construction: 2016, condition: ready for operation (used), - USED - TRAVELLING COLUMN MILLING MACHINE LONGITUDINAL TRAVEL: 6000 mm TRANSVERSAL TRAVEL: 1500 mm VERTICAL TRAVEL: 2500 mm RAPID FEEDS L-T-V: 35 m/min SPINDLE: 337- 5000 rpm; 42 kW; 1180 Nm WORKTABLE: 300 x 2500 x 7000 mm HEAD: ISO 50 ; MILLESIMAL POSITIONING ; A/B AXIS AUTOMATIC TOOL MAGAZINE: PICK-UP ; 12 POS CONTROL UNIT: HEIDENHAIN TNC 640 HIGH PRESSURE COOLANT: 20 Bar Tjdpfex Ru Azex Aklea NOTE: AUTOMATIC HEAD CHANGE; COMPRESSED AIR INSIDE THE TOOL; RTCP; AUTOCAL SOFTWARE FOR AUTOMATIC CALIBRATION

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 1,300 mm, travel distance Z-axis: 1,600 mm, Travel ranges: Longitudinal (X): 4000 mm Vertical (Z): 1600 mm Lateral (Y): 1300 mm Rotary table: Diameter: 1600 mm Maximum speed: 250 min⁻¹ Drive power (100% duty cycle): 53 kW Maximum transport load (positioning): 8000 kg Maximum transport load (rotation): 3000 - 8000 kg Work table: Length: 4000 mm Width: 1240 mm Height of work table: 760 mm Automatically indexing milling head: Tool interface: ISO 50, DIN 69871 AD Automatic tool clamping: Clamping force 20000 N Spindle speed range: Spindle speed: 20 - 5000 min⁻¹ Full power from 340 min⁻¹ Torque at 32 kW/S1: 900 Nm Main drive: Drive power: 43 kW Maximum rapid traverse rate: X-axis 45000 mm/min Y- and Z-axis 35000 mm/min Maximum feed force: X, Y and Z-axis 16000 N Automatic tool changer Magazine positions in M version: Tsdpfx Akozi S E Ujlea Maximum tool positions: SK 50 40 positions Maximum tool positions: Capto C8 20 positions Machine weight: approx. 32,100 kg Equipment: - Work table 4000 x 1240 x 760 mm with integrated rotary table Ø 1600 mm - Swiveling control panel with telescopic arm with HEIDENHAIN TNC 640 HSCI (6 axes + spindle) control, including 19" flat screen, metallic keyboard with integrated mouse and USB interface on the control panel. Processor speed 0.5 ms including HEIDENHAIN smarT.NC. - Interpolative turning with HEIDENHAIN TNC 640 HSCI consisting of CAM system, HEIDENHAIN postprocessor, software adaptation for C-axis (spindle). - Portable electronic hand-held unit HEIDENHAIN HR 520 with 5 m cable. - Automatically indexing milling head / 2 levels with 2.5° x 2.5° division and a tool clamping force of 20,000 N (H200), 32 kW / 900 Nm, tool interface ISO 50 - DIN 69871 AD. Mounting flange with Hirth gearing for adapting turning tool holders, grinding spindles or additional milling heads and a protective ring to cover the Hirth gearing; not required if H205 is selected. - Spindle drive 43 kW at 100% duty cycle via water-cooled HEIDENHAIN inline motor with direct power transmission. The motor is integrated into the milling slide. - Turning tool holder with Capto C8 interface (manual tool clamping) for turning operations incl. Hirth gearing and SK 50 interface according to DIN 69871 AD for adaptation to SORALUCE milling heads. (Semi-automatic changing with additional manual fastening by 8 x M8 screws); not required with fully automatic changing of the turning tool holder. - Pneumatically adjustable pick-up station (travel 500 mm) in the tool changer area for the turning tool holder and protective ring for semi-automatic changing. - Work table with integrated NC rotary table Ø 1,600 mm, for turning operations and for positioning operations with hydraulic clamping. - Rack and pinion drive in the X-axis via two servomotors controlled in a master-slave process.

Condition: excellent (used), Year of construction: 2014, x-travel 2500 mm y-travel 3000 mm z-travel 1250 mm Control HEIDENHAIN iTNC530 spindle turning speed - stepless 22000 U/min c-axis +-300° milling-head swivable +/- +-110° tool taper HSK 63 A tool change unit 50 Pos. Tedpfx Akszak Hgslea total power requirement 130 kW weight of the machine ca. 53,5 t dimensions of the machine ca. 7,6 x 7,3 x 5,7 m This ZIMMERMANN FZ33c is available immediately and in good condition. - NEW spindle received 6 months ago Description: Technical specifications of the machine and working ranges X-axis 2500 mm Y-axis 3000 mm Z-axis 1250 mm A-axis ± 110 ° C-axis ± 300 ° Includes vibration sensor Includes bearing temperature sensor Includes rotary joint for internal tool magazine feed (IKZ) 5-axis path control: Heidenhain iTNC 530/handwheel HR520, 15” TFT colour display Extraction system LTA Industrial Air Cleaning Machine room canopy 50-position tool changer, chain magazine, behind the machine Chip conveyor, ejection 60° to the left, front-facing No probe available!!! Blum Laser tool measurement ‘Control NT-Micro’ Clamping table Length x width x height 2500 x 3250 x 400 mm Table load 8000 kg/m² (max. 16000 kg) T-slots, arranged longitudinally 18H12 T-slot spacing 250 mm Dimensions, weights Footprint (excluding peripheral equipment) approx. 7600 x 7300 x 5650 mm Total weight approx. 53500 kg Electrical connection data Voltage (three-phase) 400 V Frequency 50 Hz Compressed air connection (to be provided by customer) Required air pressure 6 bar Average air consumption approx. 15 m³/h (depending on machine configuration) Linear axis drives Feed rate X, Y, Z axes 60 m/min Axis acceleration X, Y, Z axes up to 5 m/s² Rotary axis drives – VH30 Feed rate A- and C-axis 360 °/s Axis acceleration A- and C-axis 700 °/s² Resolution A- and C-axis 0.0001 Accuracies of linear axes – in accordance with VDI / DGQ 3441 Positioning accuracy X-axis P= 0.026 mm Y-axis P= 0.028 mm Z-axis P= 0.020 mm Repeatability X-axis Ps= 0.015 mm Y-axis Ps= 0.016 mm Z-axis Ps= 0.010 mm Resolution of measuring systems (interpol) A-, C-axis 0.0001° Accuracy of rotary axes – VH30 Positioning accuracy A- and C-axis P= 12" = 0.0033° Repeatability A- and C-axis Ps= 8" = 0.0022° VH30 milling head 2-axis milling head: VH30, Siemens Weiss milling spindle Spindle power S1 (100% duty cycle) 60 kW, Spindle speed 22,000 rpm, 95 Nm, HSK-A63 External dimensions of fork head L x W approx. 500 x 600 mm Nominal torque of rotary axes Control loop A: min. 1,200 Nm C: min. 1,047 Nm Clamped A and C axes: 3,000 Nm (Continuous grease lubrication with automatic relubrication system) Swivel axis – spindle nose 326 mm Tool holder HSK 63 A Tool clamping Spring clamp Tool unclamping Hydraulic Permissible tool weight 4.5 kg (manufacturer’s specification) Coolant supply External and internal Coolant/lubricant supply (emulsion) at the front of the milling spindle with belt filter system Volume 1500 l Pump 1: 40 l/min at 20 bar Pump 2: 20 l/min at 40 bar, Air blow at the front of the milling spindle

Condition: excellent (used), Year of construction: 2020, travel distance X-axis: 8,000 mm, travel distance Y-axis: 1,300 mm, travel distance Z-axis: 2,500 mm, rapid traverse X-axis: 35,000 m/min, rapid traverse Y-axis: 40,000 m/min, rapid traverse Z-axis: 40,000 m/min, total width: 5,800 mm, total height: 4,500 mm, total length: 13,500 mm, table length: 10,000 mm, table width: 1,250 mm, Travelling Column High performance, precision and machining power Linear guiding of RAM combined with Hydrostatic Guiding HDS ACD2 Milling head with 5000 Rpm and 1400 Nm torq Aitek ATC chain 60 position with L=400 and 250 diameter x 35 Kg Filtration with IKZ 15 Bar Chip conveyor Tjdpfxeyr Dmdo Aklsa BLUM 3D Measuring probe Wide bed linear guided in X-Travel W=930 mm Rotary table driver prepared in E-Cabinet X-Axis: 8000mm Y-Axis: 1300mm Z-Axis: 2500mm Table Length: 10000mm Table Width: 1250mm Power on spindle: 40kW Spindle speeds: 5000Rpm Spindle Taper: 40ISO/Bt/Mk Feed rate X-Axis: 35000mm/min. Feed rate Y-Axis: 40000mm/min. Feed rate Z-Axis: 40000mm/min. Millinghead auto-index:0.001 x 0.001 Gr° Working hours: 3800H Length: 13500mm Width: 5800mm Height: 4500mm Weight: 45000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: as good as new (ex-display), Year of construction: 2023, operating hours: 1,700 h, functionality: fully functional, machine/vehicle number: MP7/5/P, travel distance X-axis: 730 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 400 mm, feed length X-axis: 585 mm, feed length Y-axis: 250 mm, feed length Z-axis: 400 mm, feed rate X-axis: 50 m/min, feed rate Y-axis: 50 m/min, feed rate Z-axis: 50 m/min, spindle speed (min.): 1 rpm, spindle speed (max.): 42,000 rpm, rapid traverse X-axis: 80 m/min, rapid traverse Y-axis: 80 m/min, rapid traverse Z-axis: 80 m/min, type of input current: three-phase, table load: 60 kg, workpiece weight (max.): 60 kg, overall weight: 8,000 kg, MP7-5 Axis with integrated pallet changer 5-axis with rotary/swivel axis Travel range X/Y/Z 585x250x400 mm Travel range B +/- 105 degrees Travel range C continuous Workpiece weight 60 kg Distance machine table to spindle nose 450 mm Machine dimensions (W x D x H) 2845 x 2370 x 3000 mm Machine weight 8000 kg Spindle speed 42,000 rpm Equipment: Control: Heidenhain TNC640 Main spindle: HVC140 HSK-E40 with rotary union for internal media supply - Max. speed 42,000 rpm - Milling power S1/S6 10 kW / 13 kW - For internal coolant supply, air and emulsion Oil mist extraction for oil/emulsion Dust extraction: L-CUT Machine-integrated workpiece changer for 36x EROWA ITS50 or 18x EROWA ITS115 Hand-held control unit with electronic handwheel and enabling switch Measuring probe system: Renishaw OMP400 Aerosol DRY LUBRICATION (ADL) - Precise dosage of media externally and through the tool Rotary table chuck: EROWA PowerChuck P on 5-axis Blum laser: LC50 Media distributor: MHT Tool changer 90 positions, HSK E40 Warranty: 12 months Transport Tjdpjxlctbjfx Aklea Initial commissioning on site Training

Condition: used, Year of construction: 2013, Technical details: faceplate diameter: 800 mm power requirement: 110 kW weight of the machine ca.: 37.000 / total 52.000 t transport measurements machine: 5,07 x 2,98 x 3,90 m clamping diameter: 800 mm : Ø 800 x 720 mm Tool bore: Capto C6 Tedpjuyp Enofx Akloa tools in tool magazin: 2 x 80 With C-Axis *

Condition: used, Year of construction: 2013, functionality: fully functional, travel distance X-axis: 17,000 mm, travel distance Y-axis: 4,800 mm, travel distance Z-axis: 1,500 mm, table length: 16,000 mm, table width: 3,000 mm, spindle speed (max.): 3,000 rpm, rapid traverse X-axis: 12 m/min, rapid traverse Y-axis: 8 m/min, rapid traverse Z-axis: 8 m/min, distance between stands: 3,800 mm, type of input current: three-phase, position of the milling head: vertikal / Winkelkopf, rotational speed (max.): 3,000 rpm, distance table to spindle center: 2,300 mm, overall weight: 90,000 kg, spindle nose: ISO 60 / ISO 50 Adapter, spindle motor power: 60,000 W, Equipment: rotational speed infinitely variable, ➡️ WALDRICH COBURG CNC GANTRY MILLING MACHINE ⬅️ Heavy Duty Machining | Siemens 840D Retrofit | Ready for Production High-quality CNC gantry milling machine manufactured by Waldrich Coburg available for sale in very good condition. ✔ Machine under power ✔ Inspection & test run possible ✔ Siemens 840D retrofit (2013) ✔ New electrical system & cabinets ✔ New motors & drives ✔ Heidenhain glass scales on all axes ✔ Ideal for large part machining & heavy-duty applications Technical Data X travel: 17,000 mm Y travel: 4,800 mm Z travel: 1,500 mm Floor plates: 16,000 x 3,000 mm Distance between columns: 3,800 mm Distance table to spindle face: 2,300 mm Spindle power: 60 kW Spindle speed: 0.4 – 3,000 rpm Tool taper: ISO 60 / ISO 50 adapter Machine weight: approx. 90,000 kg Equipment Siemens 840D CNC control 2-step gearbox Right angle head WFU 250 with automatic indexing Right angle head WFU 500 with automatic indexing Rapid tapping Tool trolley with tool holders Steel way covers on X/Y axes 2 chip conveyors Perfect for: Heavy machining Machine building Energy industry Shipbuilding Steel & rolling mill industry Subcontract manufacturing Tsdpfx Aksy Rrb Ielja 📍 Location: USA 🌍 Worldwide shipping can be arranged 📞 Please contact us for more information, videos, or inspection appointments.

Condition: like new (used), Year of construction: 2017, Year: 2017 Control: Heidenhain iTNC 640 HSCI Location: Germany, under power Travels X Longitudinal: 14100 mm Y Vertical: 5000 mm Z Ram: 1550 mm Headstock Spindle power: 51/36 (40%/100%) KW Spindle Torque: 1500 NM Spindle speed: 5000 rpm Spindle Taper: ISO 50 Ram size: 420 x 420 mm C- axis integrated: 0.001° - continuous Desh gearbox Heads and Head changer Todpoy D Tzpefx Aklsa Automatic pickup station for: 3 places Head 1: Uhami 30 continuous A and C axis 180°+, 180°- Head 2: Uhami 30 continuous A and C axis 180°+, 180°- (New in 2022) Head 3: horizontal spindle extension: 400 mm Head 4: horizontal spindle extension: 800 mm Head 5: ISO 40 vertical head to be mounted on horizontal spindle extension Tables Table 1 Size: 3000 x 3000 mm V- Travel: 2400 mm Table load capacity: 50 Tonnes Table 2 Size: 2500 x 2000 mm V- Travel: 2400 mm Table load capacity: 30 Tonnes Additional information: Floor plates: 2 pcs. 4000 mm x 2000 mm, 2 pcs. 5000 mm x 2000 mm Working Area separation Tool changer Robot type Spindle through coolant Chip conveyor 3D probe Movable operator platform Wireless Handwheel CE marking Approx. 14000 programming hours Continous heads, continous tables

Condition: like new (used), Year of construction: 2018, operating hours: 5,498 h, functionality: fully functional, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,300 mm, travel distance Z-axis: 3,500 mm, feed rate X-axis: 40 m/min, feed rate Y-axis: 40 m/min, feed rate Z-axis: 40 m/min, table length: 2,500 mm, table width: 3,500 mm, spindle speed (max.): 12,000 rpm, table height: 300 mm, table load: 130,000 kg, workpiece weight (max.): 130,000 kg, spindle nose: HSK A100, MOVING GANTRY MILLING MACHINE FPT MOD. DINOX 350 IAT 5 axes Numerical control: Heidenhain TNC 640 X axis: 2,500 mm Z axis (Vertical): 1,300 mm Y axis: 3,500 mm Rapid traverse: 40,000 mm/min Universal head with continuous positioning HSK A100 electrospindle interface Maximum speed: 12,000 rpm A axis: + / - 185° C axis: + / - 270° Table: 3,500 x 2,500 mm, height 300 mm Load capacity: 15t/m^2 Tool changer: 64 positions Total power: 85.13 kW Weight: 51,370 kg Complete with: - Laser probe and software for tool integrity check and tool length and radius measurement - Workpiece probing and alignment sensor - External/internal tool coolant with 1,500 l tank, p=40 bar Todpfx Akswzv Tcelea - Workpiece washing gun with tool coolant, dedicated pump - Internal tool cooling with compressed air, High Speed - Chip conveyor USED MACHINE YEAR 2018

Condition: used, Year of construction: 2018, travel distance X-axis: 2,300 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,000 mm, table length: 2,300 mm, table width: 1,600 mm, spindle speed (max.): 10,000 rpm, spindle nose: SK 50, Used CNC portal milling machine KRAFT VM-2018B with Heidenhain TNC 620 Tjdpfx Akswkg T Sjlja Year of manufacture: 2018 Storage location: Germany Delivery time: short term Payment: 100% before loading Warranty: none Machine description The KRAFT VM-2018B is a precise and powerful CNC portal milling machine with HEIDENHAIN TNC 620 control, ideal for heavy-duty and high-precision machining processes. Thanks to its robust design and high-quality components, it is ideal for demanding milling tasks in tool and mold making as well as in series production. Highlights & features Monoblock cast iron bed and cross beam for maximum rigidity and precision FEM-optimized machine design BF gearbox with 26 kW motor for high torque (662 Nm) Feed roller linear guides P-class (very low coefficient of friction 0.003-0.006) C3 ball screws with double nut - high load capacity & accuracy Spindle: SK50, 10. 000 rpm, direct drive Heidenhain TNC 620 control Spindle cooling & IKZ 20 bar Coolant system, oil separator, air conditioning for control cabinet Full enclosure, TÜV-approved, CE-compliant Technical data Travel (X/Y/Z): 2,300 / 2,000 / 1,000 mm Table size: 2,300 × 1,600 mm T-slots: 8 × 22 × 180 mm Max. Table load: 8 t Distance spindle nose - table: 180-1,180 mm Rapid traverse X/Y: 20,000 mm/min Rapid traverse Z: 15,000 mm/min Feed range: 1-10,000 mm/min Positioning accuracy (VDI/DGQ3441): 0.020
