MEP COBRA 352 SX EVO metal sawing
MEP COBRA 352 SX EVO Aluminiumkreissäge

Condition

New

Location

Böblingen

MEP COBRA 352 SX EVO metal sawing MEP COBRA 352 SX EVO Aluminiumkreissäge

Show map

Machine data

Machine type:: MEP COBRA 352 SX EVO metal sawing

Manufacturer:: MEP

Model:: COBRA 352 SX EVO Aluminiumkreissäge

Condition:: new

Price & Location

Location:: Otto-Lilienthal-Straße 36, 71034 Böblingen, Deutschland

Call

Details about the offer

Listing ID:: A230-2522

Update:: 26.03.2025

Description

MEP COBRA 352 SX evo [Semi-automatic]

Article number CB352SX
motor power 1,5/2,2 kW
belt opening 180 mm
belt dimensions 350x32x3,4
Weight 285 Kg
Speed 1700/3400 1/min.
Cutting surface 0° 120 / 105 / 180x70
Cutting surface 45° right 120 / 100 / 135x60
Cutting surface 45° left
Cutting surface 60° right
Hsdpschkv Iofx Adrsfp
Cutting surface 60° left

Description
Semi-automatic circular saw for sawing of solid and hollow aluminum materials and light alloys with electro-welded carbide tooth wheel.

Basic equipment:
-Machine for miter cuts from 45° right to 45° left.
-Alignment along the vertical gives the possibility of sawing operations with head inclined between 0° and 45° left.
-* MEP represents the latest generation of controls designed for semi-automatic machines with single axis microprocessors.
-CHARACTERISTICS: At the start of the cycle: - Vise closes and motor starts - Saw head lowers for cut - Motor stops - Saw head raises - Vise opens.
-New - Display with 16 characters x 2 lines for displaying the following technical parameters: + number of executed cuts + cutting time + ammeter + display of over 100 diagnostic messages and warnings.
-New - Display and entry of the alarm and error messages with the possibility of displaying the incidents that have occurred.

Electrical equipment:
-New - Low voltage control panel: membrane polyester keypad with thermoformed and highlighted push buttons and actuation control signal.
-Saw blade stroke programmable directly from the control panel, to adapt to the cutting material.
-Ball bearing mounted rotary table to ensure easy and accurate rotation.
-Clamping system consisting of two face vices that can be freely arranged along the longitudinal axis of the parts.
-Adjustable mechanical stops for quick positioning of the head in the angular positions at 0° and 45° right and left.
-Swarf extractor with preparation for OPTIONAL extraction system.
-Automatic saw blade lubrication system, operating only at the start of the cut.
-Machine is supplied without saw blade.
-Preparation for the installation of the minimal lubrication kit of the saw blade (OPTIONAL), besides the conventional standard lubrication with emulsion oil.
-Tool and instruction manual with spare parts list.

For further technical data, please refer to the attached PDF document. Catalog 2nd page !

The listing was translated automatically. Translation errors are possible.

Documents

2302522-01.pdf
2302522-02.pdf

Seller

Registered since: 2002

156 listings online

Call

Send inquiry

Telephone & Fax

+49 7033 ... show

These listings may also fit your interest.

Listing

Sawing system TMA 60 with pusher Plantec TMA 60 mit Pusher

Bopfingen

8,017 km

Sawing system TMA 60 with pusher
Plantec TMA 60 mit Pusher

Call

Condition: new, Year of construction: 2024, pressure: 8 bar, Miter setting horizontally 15°- 90°15° infinitely variable saw motor 5.50 KW (400 volts) saw blade 600 mm traversing range rear stop 180 mm working height 940 to 1000 mm adjustable via feet 2 x suction nozzles (above in the hood and below) net weight 600 kg WxDxH 135x140x150 cm RAL 9007 gray aluminum rotary plate polished nickel steel Saw head with recirculating ball guides designed with high accuracy and long service life and high rigidity. Sawing material can be preloaded with low pressure when the hood is open. Hydropneumatic sheet feed Chip flow towards the extraction hood. Furnishing • Precision underfloor circular saw • Miter adjustment 0º/ 45º/ 90º/ -45º / -60º continuously • incl. 2 pneumatic vices (vertical) • Infinitely adjustable saw blade feed • Two-hand safety control • Adjustable material stop (rear) • Suction device-swarf extraction system Othgf • Mist spray device for air-oil cooling • Air gun with spiral hose • incl. maintenance unit with pressure reducer • Ergonomically arranged control panel Hfsdpfxogwt S Te Adrsp • maximum cutting height 230 mm Hxdcvds7y • Saw blade 600mm • Saw blade not included! Our NC pusher system ensures that your machining parts are positioned at the desired machining position on our UK 600 HA 90°. A gripper clamps the material, the NC control positions the material automatically. The tension and the sawing process are then triggered. The positions are previously programmed into the program control. Once the machine tool has completed your machining, it automatically moves to the next sawing position. Depending on the processing part, several parts can also be clamped on top of each other/next to each other and positioned at the same time. It is always possible for you to inspect the desired system in our production/demonstration hall. Please do not hesitate to contact us.

See details

Listing

Cold Circular Sawing - Automatic MEP TIGER 352 NC 5.0

Remseck am Neckar

7,950 km

Cold Circular Sawing - Automatic
MEPTIGER 352 NC 5.0

Call

Condition: new, saw blade diameter 350 mm capacity 90 degrees: round 115 mm capacity 90 degrees: square 95 mm 180 x 95 mm Working height 925 mm saw blade turning speeds 15 - 90 U/min total power requirement 3,0 kW weight of the machine ca. 0,68 t dimensions of the machine ca. 0,8 x 1,0 x 1,85 m Hsdpsfg Rlcefx Adrsfp Electro-pneumatic, vertical, linear-guided automatic saw for use of HSS saw blades to make series cuts from 60° left to 45° right steel. The machine also works in semi-automatic cycle. CNC machine with multiprocessor and two with MEP control, latest generation controlled axes that make it possible to achieve 1000 with the same material thickness different cutting programs, each with a different cutting length and number of pieces program.

See details

Listing

Broderstorf

7,777 km

Band saw
MEP452 SXI EVO

Call

Condition: used, Year of construction: 2009, functionality: fully functional, For sale is a used, fully functional semi-automatic miter band saw. 0° 330 mm 320 mm 450 x 320 mm Hfsdpewigavefx Adrop + 45° 320 mm 300 mm 300 x 300 mm + 60° 210 mm 200 mm 200 x 200 mm - 45° 320 mm 300 mm 300 x 300 mm - 60° 210 mm 200 mm 200 x 200 mm Max. vise opening 455 mm Blade size 4500 x 34 x 1.1 mm Saw blade motor power 4.0 kW - three-phase Blade speed 15 - 100 m/min Accessories: 4.5 m roller conveyor, various saw blades

See details

Listing

Niederlangen

7,585 km

Cold Circular Saw
KASTOKASTOgks DA

Call

Listing

Aluminium Circular Saw MEP - Halbautomat COBRA 352 SX EVO

Ahaus

7,617 km

Aluminium Circular Saw
MEP - HalbautomatCOBRA 352 SX EVO

Call

Condition: new, saw blade diameter 350 x 32 mm capacity 90 degrees: round 120 mm capacity 90 degrees: square 105 x 105 mm capacity 90 degrees: flat 180 x 70 mm capacity 45 degrees: round 120 / 110 mm capacity 45 degrees: square 100x100 / 95x95 mm capacity 45 degrees: flat 135 x 60 mm turning speeds 1700 / 3400 U/min Control MEP NC total power requirement 1.5 / 2.2 kW weight of the machine ca. 290 kg Hfjdpjxaa Hnjfx Adrsp range L-W-H 1240 x 1360 x 1800 mm Features: - Semi-automatic high-performance circular saw * For cuts from 45° right to 45° left * In aluminum and light metal alloys - MEP microprocessor control * Simple user interface with display and mechanical buttons * Start and end positions of the saw head can be saved - Manually opened safety cover - Mechanical stops at -45°, +0°, and +45° * Enable quick positioning of the saw head - Pneumatic vise with quick-release clamp * Pneumatic clamping system allows adjustment of the clamping pressure * Depending on the hardness of the material to be cut * A pneumatic vertical vise is available as an option - Heavy-duty cast iron construction ensures . vibration-free operation and maximum precision - The saw head can also be tilted up to 45° - 2 sawing speeds - Base frame with lockable door - Pneumatic cooling and lubrication - Machine base frame Included in delivery: - Adjustable length stop 600 mm - Tool kit - Mounting adapter for feed roller conveyor including 1 support roller - Tool kit - Detailed operating instructions, maintenance manual, etc. - Machine is delivered without a saw blade!

See details

Listing

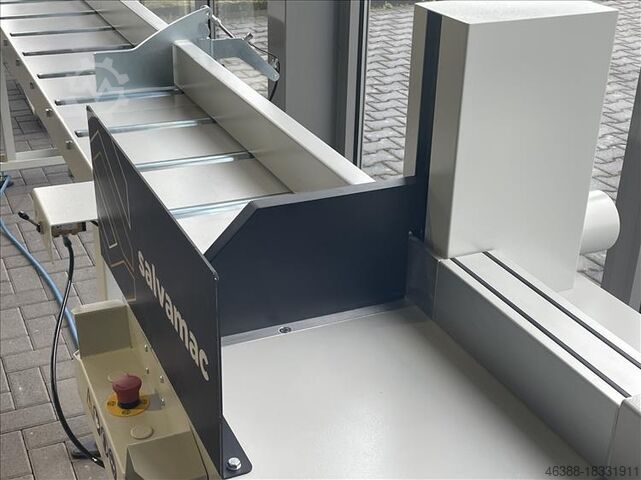

Semi-automatic miter saw SALVAMAC LEGEND 500 Cutting height max. 125mm salvamac Halbautomatische LEGEND 500
