MEP PH 261-1 HB

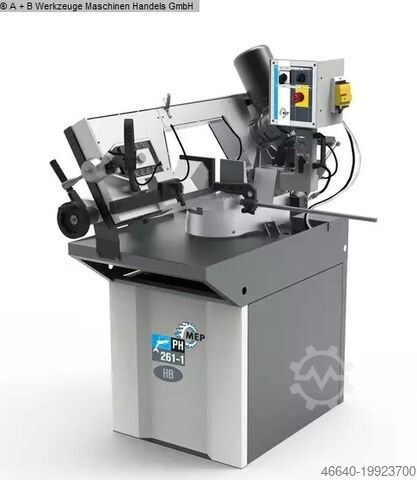

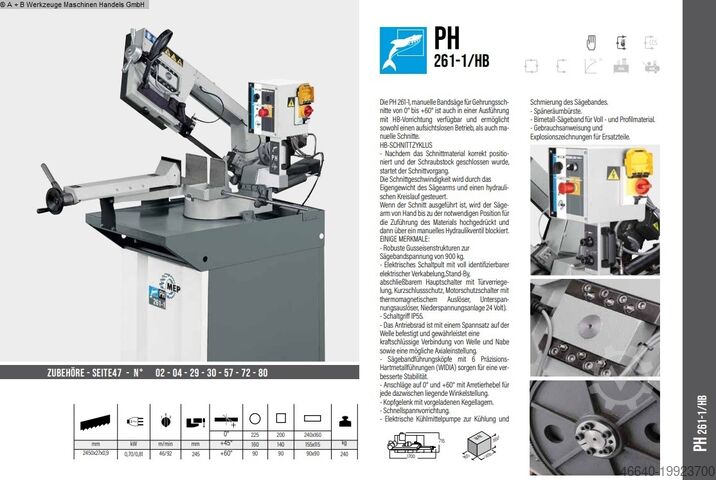

Condition: used, For sale: MEP PH 261-1HB band saw for metal. The machine is used, in good condition and fully operational. Inspection and testing on site is possible. The MEP PH 261-1HB is a professional manual gravity band saw for metal, designed for cutting tubes, profiles, and solid materials. The HB system enables automatic descent cutting without operator intervention. Specifications: Model: MEP PH 261-1HB Mitre cutting range: 0° to +60° Nwodpfx Aoy R Sgwecfeh Cutting capacities: 0° – Ø225 mm, 200 x 200 mm, 240 x 160 mm +45° – Ø160 mm, 140 x 140 mm, 155 x 115 mm +60° – Ø90 mm, 90 x 90 mm Maximum vise opening: 245 mm Blade dimensions: 2450 x 27 x 0.9 mm Blade speed: 46 / 92 m/min Motor power: 0.94 / 1.1 kW Working table height: 950 mm Machine weight: approx. 240 kg Cast iron construction for reduced vibration and increased cutting precision Quick mitre adjustment Suitable for cutting steel, stainless steel, aluminium, and other metals For more information: MEP PH 261-1HB Professional Italian machine for workshops, production, and metalworking companies. If you have any further questions, we will be happy to assist you.

Condition: new, cutting diameter 225 mm capacity 90 degrees: flat 245 x 150 mm capacity 90 degrees: square 200 x 200 mm capacity 45 degrees: flat 160 x 140 mm capacity 45 degrees: round 160 mm capacity 45 degrees: square 140 x 140 mm capacity 60 degrees: flat 110 x 80 mm capacity 60 degrees: square 90 x 90 mm capacity 60 degrees: round 90 mm vice 245 mm turning speed range: 46/92 m/min saw band length 2450 x 27 x 0,9 mm total power requirement 1,5/1,8 kW Nsdexaa Dyopfx Acfjwh weight of the machine ca. 240 kg dimensions of the machine ca. 1.530 x 900 x 1.720 mm Equipment: - compact / robust manual band saw - with one-sided miter device up to 60° left - hydraulic lowering of the saw bow * stepless feed adjustment * limit switch at the end of the cut - 2x saw band speeds - saw band guide made of hard metal plates - manual vice with quick lock - machine base with - coolant device - manual saw band tension (star grip at the front) - 1x angle stop - 1x metal saw band - operating instructions
