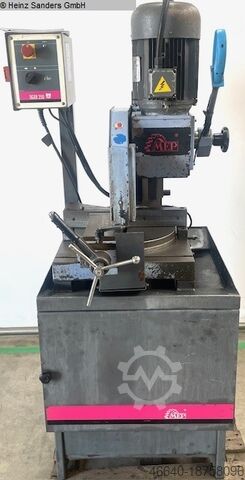

Cold Circular Saw

MEP TIGER 350

Condition: used, Max. saw blade diameter: 350 mm Semi-automatic saw feed 2 sawing speeds Submitted for cutting of stainless steel Fgedez Hx Etopfx Afush Coolant lubrication

Condition: used, Year of construction: 1995, saw blade diameter 350 mm dimensions of saw-blade 350 x 32 x 2,5 mm cutting diameter 115 mm stroke 100 mm capacity 90 degrees: square 95 mm capacity 90 degrees: flat 180 x 95 mm capacity 45 degrees: round rechts & links 110 mm capacity 45 degrees: square rechts & links 95 mm capacity 45 degrees: flat rechts & links 125 x 95 mm capacity 60 degrees: round 90 mm capacity 60 degrees: square 80 mm capacity 60 degrees: flat 90 x 95 mm cutting speed 15 - 90 m/min total power requirement 2,6 kW Fgsdpfx Aevxlpvjfuoh weight of the machine ca. 375 kg dimensions of the machine ca. 1000 x 950 x 1800 mm Features: - With miter adjustment 60° left / 45° right - Coolant device - 2 speeds - Machine base - Operating instructions

Condition: used, Year of construction: 1990, saw blade diameter 350 mm dimensions of saw-blade 350 x 32 x 2,5 mm cutting diameter 115 mm capacity 90 degrees: square 95 mm capacity 90 degrees: flat 180 x 95 mm capacity 45 degrees: round rechts & links 110 mm capacity 45 degrees: square rechts & links 95 mm capacity 45 degrees: flat rechts & links 125 x 95 mm capacity 60 degrees: round 90 mm capacity 60 degrees: square 80 mm capacity 60 degrees: flat 90 x 95 mm cutting speed 15 - 90 m/min Fsdjwvl E Rspfx Afuogh total power requirement 2,5 kW weight of the machine ca. 400 kg dimensions of the machine ca. 1000 x 950 x 1800 mm Features: - With miter adjustment 60° left / 45° right - Machine base

Condition: used, Gehrungs cold-cut circular saw machine MEP Type Tiger 350 CNC FE Factory No. 00011818 Year of manufacture 1995 Cutting range at 90° round: Ø 115 mm Cutting range at 90° rectangle: 180 x 95 mm Cutting range at 45° round: Ø 110 mm Cutting range at 45° rectangle: 125 x 95 mm Cutting range at 30° round: Ø 90 mm Cutting range at 30° rectangle: 90 x 95 mm Cutting range round: Ø 120 mm Rectangle: 180 x 100 mm Vise opening: max. 185 mm Saw blade diameter: 350 mm Miter cut: 60° left to 45° right Saw blade speed: 15 / 30 / 45 and 90 rpm Motor power: 1.8 and 2.6 kW Mains connection: 400 Volt, 50 Hz Compressed air requirement: 6 bar - CNC control for up to 80 different cut lengths with corresponding quantities ???? - CNC control, cut length and quantity programmable - hydro-pneumatic saw head lowering - pneumatic material clamping - pneumatic material support - jaw feed with servo drive and ball screw - feed stroke programmable up to 9999 mm Fgodpfx Aozrpl Dsfuoh - 2 gear stages and 2 motor speeds - coolant system in the machine stand Space requirement L x W x H: 2000 x 1100 x 2030 mm Weight: 650 kg Good condition

Condition: used, Year of construction: 2001, saw blade diameter 350 mm Fgodpfx Asyvvpmsfush 190 mm speeds 15 / 30 / 45 / 90 U/min power requirement 1,8 / 2,6 kW kW

Condition: ready for operation (used), functionality: fully functional, saw blade diameter: 350 mm, overall weight: 480 kg, rotational speed (min.): 15 rpm, rotational speed (max.): 90 rpm, input voltage: 380 V, 3-phase 400V, 2-speed motor is running smoothly! Geared head with 4 speeds. 15, 30, 45, and 90 RPM. Quick clamping mechanism. Brand new, original MEP clamping jaws. Emergency stop. Coolant pump located in the machine base. Mitre cuts are possible. Square cutting capacity: 95x95mm. Maximum saw blade diameter: 350mm. Includes 2 x 350mm saw blades. Made in Italy. Weight: 480 kg. Contact us for shipping options! Fgjdpfxjzawmye Afueh €2,000.00
