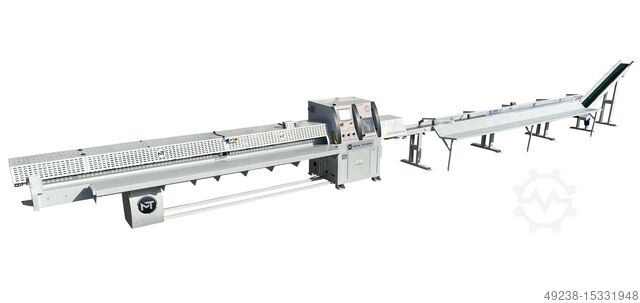

Metal Technika OWD 1600 Optimizer

Metal Technika OWD 1600

Condition: ready for operation (used), Year of construction: 2018, functionality: fully functional, saw blade diameter: 450 mm, cutting height (max.): 100 mm, cutting width (max.): 200 mm, type of input current: three-phase, year of last overhaul: 2025, For sale: Metal Technika OWD-1600 Optimizing Saw / Cross-cut Saw, year of manufacture 2018. The machine is fully operational, ready for immediate use – ideal for fast cutting of components in serial production. A major advantage of this machine is its ability to set a cutting schedule for up to 8 positions: you simply set the dimension and the quantity, and the machine automatically performs cutting and proceeds to the next positions without the need for tool changes. Technical Data: Model: Metal Technika OWD-1600 Year of manufacture: 2018 Maximum material width: 200 mm Maximum material height: 100 mm Maximum board length: 3200 mm Feed speed: approx. 30 m/min Saw blade diameter: min. 400 mm / max. 500 mm Motor speed: 2800 rpm Spindle speed: approx. 6000 rpm Power supply: 3x 400V Power: 7 kW Gsdpeyv Ewmofx Afuebu Medium: air 6–7 bar Weight: approx. 1500 kg Performance: The machine operates efficiently – for example: - Batch of 8 boards, 12 mm thick each - Board length: 2800 mm - Cutting into 3 elements (approx. 700 mm) - Cycle time: about 10 seconds The machine can be inspected and tested on site. Location: Elbląg / Warmińsko-Mazurskie, Poland For further questions, please contact me.

Year of construction: 2022, operating hours: 2,500 h, condition: excellent (used), functionality: fully functional, machine/vehicle number: OWD/492/2022, Equipment: CE marking, For sale is a used Metal Technika OWD-1600 4m optimizer with very low operating hours, approximately 2500 hours. The machine is connected and ready for trials and tests. Net price. TECHNICAL SPECIFICATIONS Godjzdf Tpepfx Afuobu Performance From 3,200 to 8,250 m/8 hours. Electronics: Controller with a color touchscreen display "MITSHUBISHI". Functions - Full optimization of 30 dimensions in two quality classes, - Creation of cutting programs for different customers, - Cutting at the marked location using a fluorescent pencil, - Trimming the margin (beginning and end of the input material) - Cutting in batches (several pieces at once) - Meters counters: total, change, operator, monthly, - Cutting accuracy ±0.3 mm. Engine: 7.5 KW (saw Ø500 – 140 teeth) Width of input material 12 - 250 mm max. width/height (250 / 50 mm) Height of input material 12 - 120 mm max. height/width (120 / 120 mm) Length of input material up to 4,200 mm. Lubrication: Oil-based central lubrication system. Output automation Connection for a conveyor belt and a sorting table.
