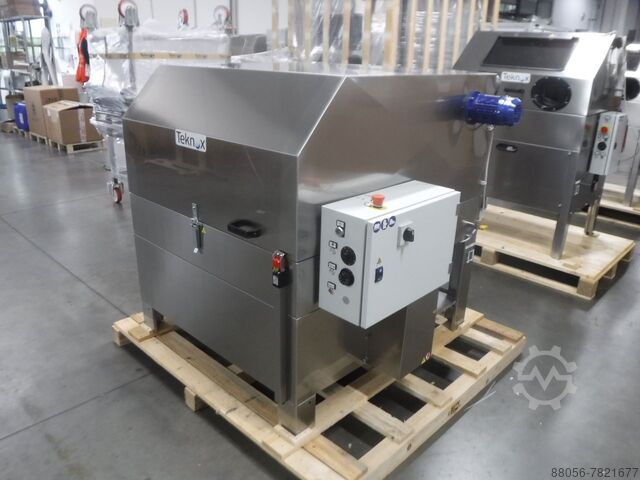

Cleaning plant P 120

Metalclean-P- 120 Metalclean-P- 120

Condition: as good as new (ex-display), Year of construction: 2026, HD washbasin - HD brush washbasin The washbasin has an adjustable 60 bar high pressure pump with which cleaning takes place in a closed work area. The cleaning takes place with an aqueous degreaser (10kg included in delivery) and at approx. 45 ° C. Viewing window including lighting Medium filtration through a candle filter Comfort operation by means of a foot switch including turntable Hodpfx Aiohl If No Tow Technical specifications: Working area: 1,200 x 700 mm Usable height: 400 mm Payload: 50 kg Operating pressure: adjustable up to max. 60 bar Pump output: 14 lt / min Washing temperature: adjustable up to max. 45 ° C Tank capacity: 170 lt Heating capacity: 4,000 W. Total output: 8.0 kW Voltage: 400 V ac 1 P + N + PE; Frequency: 50 Hz Machine weight: approx. 180 kg Overall dimensions with the lid open: 1,480 x 991 x 2,080 mm

Condition: excellent (used), Year of construction: 2005, travel distance X-axis: 450 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 350 mm, spindle speed (max.): 2,500 rpm, quill stroke: 100 mm, For sale is an Emco tool milling machine, model FB-4. Hsdoyvra Iepfx Ai Tjw The machine was previously used exclusively for inter-company training purposes. Currently, two identical Emco FB-4 machines are still in stock. Tool Milling Machine V/H Manufacturer: Emco Model: FB-4 Year of manufacture: 2005 Control: Heidenhain ND-750 display Technical parameters: ----- • Travel X-Y-Z: 450 x 300 x 350 mm • Clamping surface: 800 x 400 mm • Tool holder: SK-40 • Tool clamping: hydraulic • Quill stroke: 100 mm • Milling head swivels ± 90° • Spindle speed: 50 – 2,500 rpm • Speed selection: 18 steps • Electric central lubrication • Machine lamp • Coolant system • Splash guard cabin (foldable) • Weight: 1,550 kg • Dimensions LxWxH in mm: ..1,485 x 1,500 x 1,700 mm Accessories: ----- • 4x machine leveling feet • Operating manual • Counter bearing for horizontal machining • Shaft for horizontal machining • Table enclosure (currently removed) • 10x SK-40 tool holders

Condition: new, Worktable ----- 1320 x 320 mm Spindle intake vertical ----- ISO 40 Spindle take-up horizontal ----- ISO 40 Spindle speed vertical ----- 45 - 1660 rpm (11) Spindle speed horizontal ----- 40 - 1300 rpm (12) Displacement X ----- 1000 mm Displacement Y ----- 260 mm Traverse Z ----- 450 mm Distance vertical spindle - table ----- 220~670 mm Unloading ----- 200~760 mm Milling head rotatable ----- 360° Table feed X axis ----- 20~360 mm/min Table feed Y axis ----- 20~360 mm/min Iron feed Z axis ----- 400 mm/min T-slot ----- 14 mm Motor power ----- 3 KW / 400V Weight ----- 2100 KG INCLUDING * 3-axis digital readout SINO * Luxury control panel * LED lighting * Cooling system * Central lubrication * Milling cutter 32 mm * CE hood * ISO40 collet holder including collets Hodpfx Asrzuctoi Tew * Various tools

Condition: new, Motor power ----- 3.75 kW X-axis travel ----- 1300 mm Y-axis travel ----- 320 mm Z-axis travel ----- 450 mm Spindle speed range, horizontal milling spindle ----- 58 ~ 1800 rpm Spindle speed range, vertical milling spindle ----- 58 ~ 3000 rpm Vertical spindle taper ----- ISO 40 Horizontal spindle taper ----- ISO 50 Table ----- 1650 x 360 mm Weight ----- 2200 kg Hedpfx Aisv Uzn Ho Tsw INCLUDED * 3-axis digital readout, SINO brand * Automatic feed for worktable X, Y, Z * Automatic spindle feed * LED lighting * Cooling system * Deluxe control panel * Tilting milling head, left/right 0 - 45 degrees * Rotating worktable * Pneumatic clamping system

Condition: used, Year of construction: 2003, x-travel:930 mm y-travel:400 mm z-travel:406 mm Hjdpfs Ad Shpox Ai Tow turning speeds:9-6750 1/min table::1370 x 254 quill stroke:127 mm quill feed:(3) 0,04; 0,08; 0,15 mm/U bore capacity in steel:32 mm feed range:19 - 890 (x) mm/min spindle cone:SK 40 column arm:200 - 680 mm total power requirement:4 kVA weight of the machine ca.:1,15 t dimensions of the machine ca.:1,5 x 1,45 x 2,2 m 3-axis RSF-electronic Z503 digital display, swivelling vertical head +/- 90°, all 3 axes with Feeds, spindle quill (60 mm), switchable spindle brake, coolant system, bore-feed 0.03; 0.12; 0.06 mm/rev. machine light, angled table, extensive accessories (counter bearing, milling spindles with distance rings, tool holders etc.)
