BMBS 300 x 320 CNC-G metal belt

Metallkraft BMBS 300 x 320 CNC-G

BMBS 300 x 320 CNC-G
Fully automatic, CNC-controlled swing frame metal band saw for miter cuts up to +60°.

Description
Cedpfjcgz Suox Abwjhc
-Fully automatic, CNC-controlled swing frame metal band saw for miter cuts up to +60°.
-Hydraulically controlled system for both vices and the working steps of the saw arm
-Ball bearing mounted turntable
-Frequency converter as standard for stepless adjustment of -saw band speed from 20 - 100 m/min
-BRP - Saw band monitoring

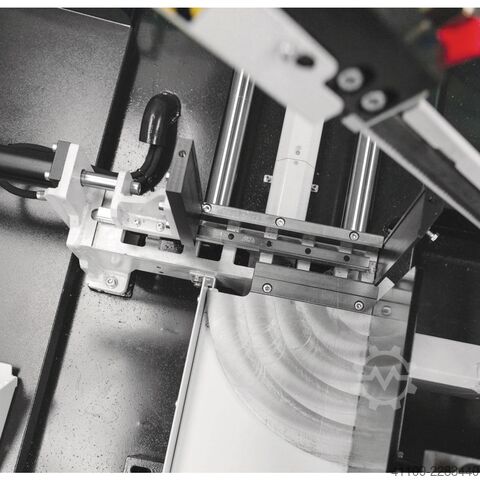

-The jaws of the two vices are equipped with long-stroke hydraulic cylinders as standard, thus eliminating the need for presetting to the material cross-section to be sawn
-Quality Made in Europe

Technical data
Electrical connection 3 x 400 V / 50 Hz
Motor power 2,4 kW
Speed levels 2
saw band speed 20 - 100 m/min
Saw band dimensions 3660 x 27 x 0,9 mm
dimensions (L x W/D x H) approx. 2240 x 2710 x 2050 mm
Table height material feed 800 mm
weight approx. 800 kg
Residual workpiece length min. CNC operation 115+20 mm
cutting range 0° round profile 300 mm
cutting range 0° round full 180 mm
Cutting range 0° square material lying 320 x 300 mm
Cutting range -45° round profile 300 mm
Cutting range -45° round full 110 mm
Cutting range -45° square material lying 290 x 300 mm
Cutting range -60° round profile 200 mm
Cutting range -60° round full 80 mm
Cutting range -60° square material lying 190 x 190 mm
Cutting range bundle round profile 320 x 160 mm

The listing was translated automatically. Translation errors are possible.
