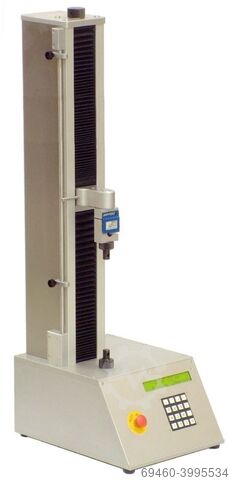

Tensile Tester ( DIN EN ISO 7500-1)

MFC Sensortechnik GmbH T500 (5kN)

Year of construction: 2024, condition: new, Universal testing machine H 5 TMNI ( L ) 250mm Extended Iisdoiq Hxvjpfx Apcsa mechanical construction: according to DIN EN ISO 7500-1 and ASTM E4 2 backlash-free ball screws, brushless drive motor, Fmax = 5 kN, rigidity 9.4 kN/mm 1 work area up to nominal load: Working area width: 420 mm max. test stroke without test tools, adapter and KMZ: 1270 mm max. test area height (between lower fixed and moving crosshead) without test tools, adapter and KMZ: 1325mm Travel speeds: Test speed 0.001 - 1200 mm/min up to nominal load Return speed 1200 mm/min Force measurement: Measuring range depending on the force sensor used 0.4 - 100 % of the nominal load class 1 (optionally class 0.5) in accordance with DIN EN ISO 7500-1 and ASTM E4. Resolution of the force measurement depending on the integration time between: +/-160,000 and +/-900,000 digits. The machine is supplied with a factory test certificate. If a factory or DAkkS calibration is carried out at the installation site at the customer's request, this must be charged separately. Crosshead travel measurement: Incremental rectangular input with encoder monitoring, storage of traverse position Resolution of the crosshead travel measurement:

Year of construction: 2023, operating hours: 5 h, condition: as good as new (ex-display), functionality: fully functional, Universal testing machine H5TMCI 250mm Extended mechanical structure: 2 backlash-free recirculating ball screws, drive via AC servo motor, Fmax = 5 kN, stiffness 10 kN/mm 1 working area up to nominal load: working chamber width: 420 mm (optional extensions: +190mm / +330mm / +620mm) max. test stroke without test tools, adapters and KMZ: 1025 mm (optional extensions: +250mm / +500mm) Optional: conversion to floor model, required additional assembly: substructure table Travel speeds: Test speed 0.001 - 2000 mm/min at full load Return speed 2000 mm/min Force measurement: Iiodpfx Ajmdpafepcsa Measuring range: in the range 0.4 - 100 % of the nominal load class 1 (optionally class 0.5) (+/- 1 % of the displayed value according to DIN EN ISO 7500-1) Resolution of force measurement: +/-180,000 digits at 20ms integration time The machine is delivered with a factory test certificate. If, at the customer's request, a factory or DKD calibration is to be carried out at the installation site, this expense must be invoiced separately. Crosshead travel measurement: Incremental rectangular input with encoder monitoring, storage of crosshead position. Resolution of the crosshead travel measurement:
