Boring Machine (Metal)

MICROCUT HBM-4

General Data
Measurements width 4715 mm
Measurements depth 7750 mm
Measurements height 3700 mm
Machine weight 22500 kg

Control Unit
Brand FANUC
Model 31iMB

Main Drive
Spindle speed range 35–3000 rpm
Spindle motor power 15/18.5 kW
Tool taper ISO 50
Wire diameter 150 mm

Movement
X-Axis Movement 2200
Chodpfx Absxf N S Djwec
Y-Axis Movement 1600
Z-Axis Movement 1600
W-Axis Movement 550 mm
B-Axis Movement 0.001°

Table
Outer length 1250 mm
Outer width 1500 mm
Table load 5000 kg

Additional Equipment
Tool Changer Type: Arm type / Tool Positions: 60 / Max Tool Diameter: Ø125 mm / Max Tool Length: 300 mm / Max Tool Weight: 25 kg / Tool Change Time: 9 seconds
Standard Accessories: Fanuc 0i CNC control, spindle oil cooler, chip conveyor, high-pressure cooling system (30 bar), hydraulic system and central lubrication, electronic handwheel, workspace lighting, spindle vibration monitoring
Optional Features: 0.001° table indexing, 3D Fanuc option for universal milling head

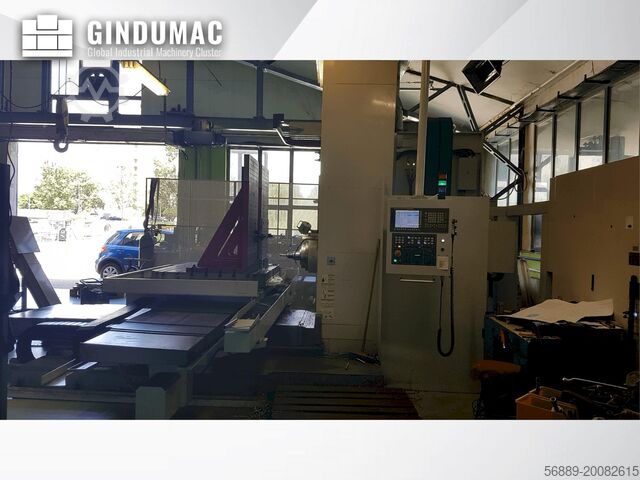

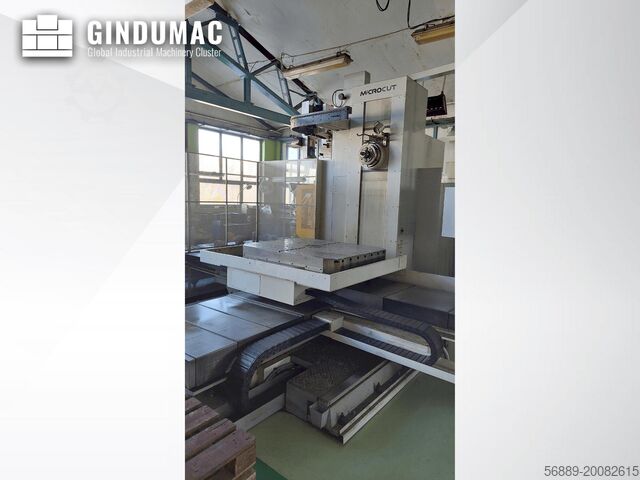

This 5-axis MICROCUT HBM-4 boring machine was manufactured in 2018. It features a robust Meehanite cast iron structure, high spindle speeds with low vibration, and a Fanuc 31iMB control for precision. The spindle supports a 150 mm diameter and operates at speeds up to 3000 rpm. The table can handle loads up to 5000 kg, with a working area of 1250 x 1500 mm. If you are looking to get high-quality boring capabilities, consider the MICROCUT HBM-4 machine we have for sale. Contact us for more information.

Application Types
Milling
