Flame cutting system

MicroStep MasterCut Eco (A) Plus 30001.15

MicroStep CNC Plasma Cutting System MasterCut Eco (A) Plus 3001.15 with the following features:

- Kjellberg HiFocus 161i neo with automatic gas console and Contour Cut Speed technology
- High-performance TEKA Eco75 filtration system with 7.5 kW and spark pre-separator
- Prepared for future retrofitting with an oxy-fuel torch

Complete scope of the system:
* MicroStep CNC guiding machine MasterCut Eco (A) Plus 3001.15 (3,000 x 1,500 mm)
* MicroStep CNC control iMSNC with integrated network card
* LCD operator panel mounted on the gantry
* Laser pointer with automatic offset transfer
* iMSNC Module I Expert System
* iMSNC Module I Assistant for loading CNC programs
* iMSNC Module I Automatic Calibration of mechanical sensing
* iMSNC Module I Assistant for service and maintenance operations
* "AsperWin Basic" programming system for direct programming at the machine control
* "AsperWin Select" macro library module
* "AsperWin NC-Sim" NC simulator module
* "Plasma Marking" module (for centering punch) via plasma source
* "THC" Module I Automatic height control via arc voltage
* CNC cutting table with sectional extraction I 3,000 x 1,500 mm
* USB 3.0 interface for storage device
* MicroStep RemoteDiagnostics remote maintenance module
* HiFocus 161i neo plasma source from Kjellberg with automatic gas control and Contour Cut Speed technology
* Module for controlling the HiFocus 161i neo automatic gas console
* CNC interface for HiFocus 161i neo I connection to CNC control

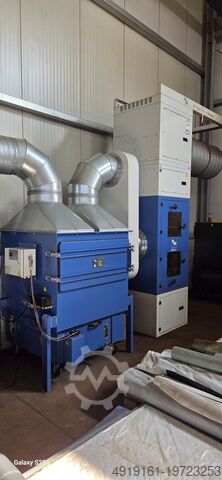

* TEKA filter unit ECO75 – 7.5 kW with control unit
* TEKA spark pre-separator TK-FVS 7000 – 12000
* Remote control for the filtration system
Fgedpow H R Uzsfx Aa Nei
* KAESER Aircenter 8 compressed air compressor
* System prepared for future retrofitting with an oxy-fuel torch

The system can be inspected on site by prior arrangement.

Disassembly and transport are the responsibility of the buyer.

The listing was translated automatically. Translation errors are possible.
