Universal Milling Machine

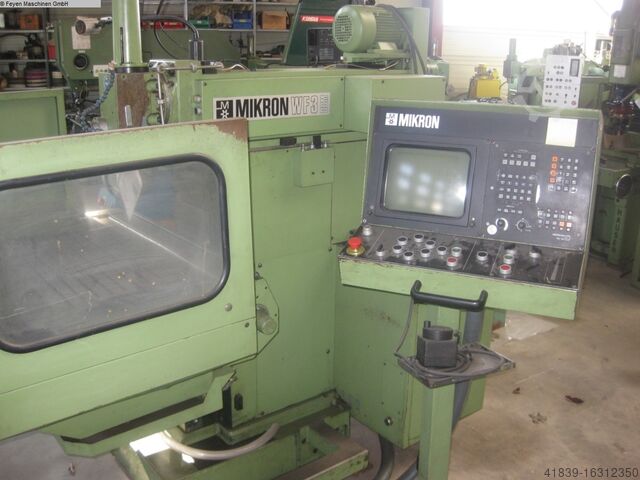

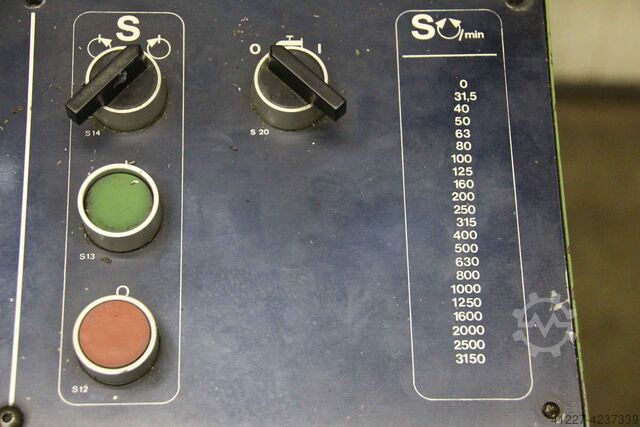

MIKRON WF 3 DCM

Condition: used, machine/vehicle number: 152.00.80.20, Universal machining center, CNC tool milling machine, milling machine, universal milling machine, tool milling machine, drilling and milling machine -function tested -Clamping table: 800 x 445 mm -Travel: X/Y/Z 500/500/385 mm -Spindle holder: SK40 -quill stroke: 90 mm Kodpfefbma Nox Akwjdt -Speeds from: 31.5 to 3150 rpm -Coolant device -Dimensions: 1475/1770/H2000 mm -Weight: 1966 kg

Condition: used, TECHNICAL DETAILS - max. power : 40 [t] - max. workpiece diameter : 40 [mm] Kjdpfx Asuhb Uhjkwodt - spindle diameter : 80 [mm] - spindle length : 120 [mm] - max. tool diameter : 250 [mm] - dimensions : 2400 x 2100 x 2200 [mm] - weight : 7100 [kg] EQUIPMENT - control CNC (base Siemens) - tail stock device - coolant tank with pump - 2 boring wheel 80, diameter : 260 [mm]

Condition: used, Year of construction: 2001, functionality: fully functional, Press force 85 t, Bending length 2050 mm, Distance between uprights 1750 mm, Control DELEM, Stroke 215 mm, Throat depth 410 mm, Total power 13 kW, Weight 8,750 kg, Machine dimensions 3190 x 2100 x 2375 mm Kdodpfx Akew Imq Rjwet

Condition: used, Technical details: x-travel: 600 mm y-travel: 300 mm z-travel: 360 mm range of revolution per miute: max horiz. 40- 2000 U/min spindle taper: vert. / horiz. SK 40/ SK40 Kjdpfx Akou U E T Iswodt range of revolution per miute: max zul. 40 - 2000 U/min feed:: 2-3600 mm/min quill travel: 80 mm Table dimensions: 810 x 420 mm total power requirement: 3 KVA machine weight approx.: 1300 kg dimension machine xH: 1,8 x 1,35 x 1,95 m Milling machine with shaping head joint length 32-80mm with 10 x double strokes, 24-285 strokes/min Heidenhain 3-axis displays *

Condition: reconditioned (used), Year of construction: 1976, Universal tool milling machine Make: DECKEL Model: FP 1 Year of manufacture: 1976 - overhauled, repainted, Kdjdomhfrrepfx Akwst RAL7035 light gray / RAL7012 basalt gray / RAL5008 gray-blue Mach. No.: 52860/08 Milling head number: 7296/80 Guarantee: 12 months single shift from delivery on the mechanics overhauled by us. The electrics and electronics are excluded from this, as they have only been subjected to a functional test. For machines located outside of our northern Bavarian sales area, the travel costs must be borne by the customer. geometric acceptance with test report Accessories: - 3-axis digital display FAGOR Innova 30i-M, new - Fixed table 600 x 210 (T-slot: 12 mm) - Vertical milling head SK 40 with tightening thread S 20 x 2 - Coolant system - Operating instructions Used as seen The machine corresponds technically to the state of the year of manufacture.

Condition: new, distance between shaft and table: 470total power requirements: 2,2 kwweight approx.: 1,2messurements (LxWxH): Länge2400 mm Breite/Tiefe2160 mm Höhe2300 mm Gewicht 1200 kgspindle rotation speed: 60 4200 min¯¹ Kdodpfjd H Hhzex Akwot

Condition: used, Year of construction: 1981, x-travel 800 mm y-travel 500 mm z-travel 460 mm table surface area 1000 x 500 mm spindle taper SK 40 control HEIDENHAIN TNC 150 spindle turning speed range 31,5 - 3150 U/min feeds longditudinal/cross/vertical 1 - 3000 mm/min rapid traverse longitudinal and cross 6 m/min rapid traverse vertical 4 m/min quill stroke 110 mm distance spindle nose and table max. 559 mm table load capacity max. 500 kg total power requirement 14 kW weight of the machine ca. 3,1 t dimensions of machine L x W x H 2,15 x 1,8 x 2,15 m Kedpfx Akotqqplowsdt Accessories: vertical head with hydr. tool clamping and quill retraction, solid table, coolant

Condition: good (used), Year of construction: 2007, Manufacturer: Volz BMT Year of manufacture: 2007 Control: conventional with digital readout (DRO) Country of origin: Taiwan Kdedpfex Uw S Hsx Akwjt Swing diameter: 660 mm Max. turning length: 2000 mm Spindle bore: 85 mm Spindle mount: D1-8 Spindle motor: 7.5 kW Spindle speed: 17–1200 rpm with steady rest with digital readout (DRO) with thread cutting function

Condition: used, CNC 5-Axis HMC – Horizontal Machining Center, Milling Center, Manufacturing Center Manufacturer: LICON Model: Liflex 1266 PC B1 Year of construction: 2016, Commissioned: 2017 Equipped with SIEMENS 840D SL (Solution Line) CNC path control, with 5 simultaneously controlled axes Travel paths X: 1200 mm, Y: 660 mm, Z: 650 mm A-axis as swivel bridge +/– 135° (270°) B-axis 360° continuous Axis acceleration X + Y-axis 6 m/s² Axis acceleration Z-axis 9 m/s² Feed force X + Y-axis 7500 N Feed force Z-axis 10000 N Positioning tolerance (X/Y/Z) 0.008 mm A-axis swivel speed 180° rotation in 4 sec. Interference diameter on the swivel bridge max. 1400 mm Transport load on the swivel bridge max. 700 kg Tool holder HSK 63 Spindle speed max. 12,000 rpm, stepless Spindle power 37kW at 40% duty cycle Spindle torque at 40% duty cycle 85 Nm Maximum spindle torque 100 Nm Ksdpfx Akot Ac Efjwjdt Tool change time (chip-to-chip) approx. 3.7 sec. Tool diameter with adjacent slots occupied Ø 140 mm Tool diameter with adjacent slots free Ø 250 mm Maximum tool length 400 mm Maximum tool weight 20 kg Power supply 400 Volt, 50 Hz Connected load 80 kVA Compressed air connection 5-8 bar - LIFLEX MSP 80/63/85/12,000 motor spindle (output 37kW/40% duty cycle) with liquid cooling and recooling unit - 2-axis rotary tilting table LICON as B- and C-axis, with hydraulic axis clamping - Zero-point clamping system on the swivel axis turntable - Dual pallet changer, without pallets (these need to be newly sourced) - Media transfer of 5 single-action pressure lines for oil or air, for workpiece clamping on the pallets Hydraulic functions from 30-150 bar, with pressure monitoring (controllable via M-functions) - Tool changer with 30 tool positions, disc turret type - Machine designed for dry machining with minimal quantity lubrication (MQL) system - MQL-TSC, internal MQL lubrication supply through the spindle - Scraper belt chip conveyor, discharge height 1150 mm - Licon ECO-Mode (energy-efficient aggregate operation) - Direct linear measurement system on all axes - Operating hours (control voltage on) ≈ 7,500 h Space required for operation L x W x H 9,000 x 5,000 x 3,800 mm Space required for transport L x W x H 6,100 x 4,400 x 3,600 mm Base machine weight approx. 21 tons Total weight: approx. 24 tons Very good condition

Year of construction: 1991, condition: good (used), Hermle UWF 802 M machining center with Hermle HS control system. The machine is in good working order and ready for demonstration. Kedpfjdubmkjx Akwjdt
