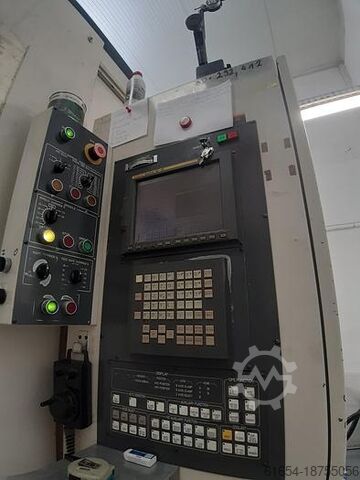

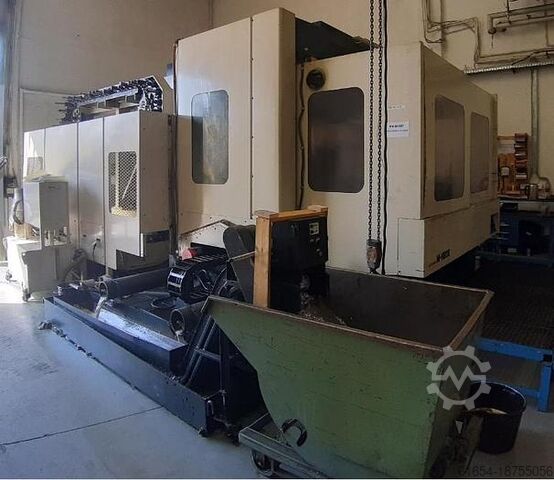

USED HORIZONTAL MACHINING CENTER MANUF. MITSUBISHI, MODEL M-H80E

MITSUBISHI M-H80E

Condition: good (used), Year of construction: 2010, Machine is in good condition. Parts shown by hand not come. Iedpfx Adjx N Atfjzetl

Condition: used, Year of construction: 1990, spindle diameter 150 mm x-travel 4000 mm y-travel 3000 mm z-travel 1000 mm w-travel 1500 mm Table area 2000x2000 mm Table load 30 t Feed 3-3500 mm/min Rapid movement 5000 mm/min transmission ratio 2 spindle power 37 kW voltage 380 V frequency 50 Hz Control Heidenhain type ITNC mm The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale; Our terms and conditions of sale Ijdpoyqtf Tofx Adzotl apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, travel distance X-axis: 13,000 mm, travel distance Y-axis: 5,000 mm, travel distance Z-axis: 1,200 mm, spindle speed (max.): 2,500 rpm, position of the milling head: Testa ad assi ortogonali indexati - TTL2 25 360, spindle diameter: 180 mm, travel distance W-axis: 1,000 mm, table load: 100,000 kg, rapid traverse X-axis: 20 m/min, rapid traverse Y-axis: 20 m/min, rapid traverse Z-axis: 20 m/min, table length: 3,000 mm, table width: 3,500 mm, quill travel distance: 2,500 mm, quill diameter: 180 mm, spindle stroke: 1,000 mm, workpiece weight (max.): 100,000 kg, torque: 9,050 Nm, CNC BORING MACHINE PAMA mod. SPEEDRAM 2000 Hydrostatic CNC Control: Siemens Sinumerik 840D Axis X: 13,000 mm Axis Y: 5,000 mm Axis Z: 1,200 mm Axis W: 1,000 mm Total axial travel (Z+W): 2,200 mm Working feed on all axes: 8,000 mm/min Rapid traverse on all axes: 20,000 mm/min Spindle: Boring spindle diameter: 180 mm Spindle carrier ram dimensions: 400 x 440 mm Spindle speed (3 ranges) max: 2,500 rpm Spindle power (S1): 91 kW Spindle nominal torque (S1): 9,050 Nm Spindle internal taper: ISO 50 DIN 69871 AD-Type Big Plus Orthogonal axis indexed head – TTL2 25 360 Tool taper: ISO 50 DIN 69871/2 AD-Type Big Plus Max spindle power: 25 kW Max spindle speed: 2,500 rpm Speed ratio: 1:1 Spindle indexing: +/- 100°, 200 positions per 1° Head indexing: +/-180°, 360 positions per 1° Max spindle nominal torque: 1,000 Nm TH 100 rotary-travelling table: Table dimensions: 3,000 x 3,500 mm Table load capacity: 100 Ton Central T-slot size: 36h7 mm Lateral T-slot size: 36h12 mm T-slot pitch: 320 mm Longitudinal travel V-axis: 2,500 mm Feed/rapid traverse V-axis: 10,000 mm/min Chain-type tool magazine with 80 tools (capacity CU 145 R80) Machine weight approx. 160/165 Ton Complete with: - Hinged belt chip conveyor - No. 02 side chip conveyors for rotary table - Fixed closed accessory magazine with 2+1 positions - Fixed tool rack (ISO50, 6 positions) Iedpsyxg Hbjfx Adzetl - Internal and external tool coolant system, 30 bar - Wireless workpiece probe (Renishaw) USED MACHINE YEAR: 2009

Condition: excellent (used), Year of construction: 2014, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,800 mm, spindle diameter: 130 mm, overall weight: 32,450 kg, year of last overhaul: 2014, The machine is in very good technical condition, equipped with a Heidenhain iTNC 530 CNC control system. Specifications: Spindle diameter: 130 mm X-axis travel: 3000 mm Y-axis travel: 1800 mm Taper in spindle: ISO 50 Spindle extension: 1120 mm Horizontal spindle head extension: 450 mm Total installed motor power: 50 KVA Dimensions (L x W x H): 10100 x 4380 x 5250 mm Ijdsx Hfk Ispfx Adzetl Weight: 32,450 kg

Condition: good (used), Year of construction: 2007, • Maximum possible drilling depth: 1200 mm • Maximum hole diameter: 32 mm • Minimum drilling diameter: 6 mm • Longitudinal travel (X-axis) table: 1800 mm Iedpjxyf E Njfx Adzjtl • Cross travel (Z-axis) column: 1700 mm • Cross travel (W-axis) drilling head: 1150 mm • Vertical travel (Y-axis) drilling head: 1200 mm • Clamping surface NC table: 1500 x 1000 mm • Maximum table load: 10 t • Rotary axis (B-axis) rotary table: 360° • Rotary axis (A-axis) drilling head: -25°/+15° • Feed rate: 1-15 m/min (Y-axis: 1-10 m/min) • Rapid traverse speed in all axes: 15 m/min (Y-axis: 10 m/min) • Maximum spindle speed: 6000 rpm • Minimum spindle speed: 60 rpm • Tool holder: SK 40 • Tool clamping: OTT • Rated power main drive (100% ED, S1/40% ED, S6): 9/13 kW • Coolant tank capacity: 1000 l • Maximum coolant pressure: 100 bar • Low-pressure external and high-pressure internal coolant supply • Power supply: 3x 400 V; 50 Hz • Required installation space (L x W x H): 6550 x 5350 x 4130 mm • Machine weight: 12,000 kg Deep Hole Drilling Machine Equipment • CNC control: HEIDENHAIN iTNC 530 • Interpolated rotary table with minimal backlash, dimensions 1500 x 1000 mm • Swiveling drilling head +15°/-25° • Shank drilling head • Handwheel HR520 • Fixed supports (2 units) • Tool magazine: ELB tools: 12 pcs (max. diameter: 32 mm / max. length: 1550 mm) Standard tools: 12 pcs (max. diameter: 140 mm / max. length: 400 mm) • Direct measurement and positioning system in X, Y, and Z axes • Collision monitoring system for supports and drill sleeves • Oil cooler • Coolant flow control system • Adjustable coolant nozzles • Cooling unit for electrical cabinet • Enclosed upper cover (roof) • Drip tray for machine and tank facility (tray height 30 mm) • Extraction system • Infrared touch probe • Drilling depth extension 1200 mm (retrofit) • Chip conveyor

Condition: good (used), functionality: fully functional, Year of construction: 2007, operating hours: 1,153 h, DYNO-MILL KD 6 Agitator Bead Mill (2007) For sale is a DYNO-MILL KD 6 horizontal agitator bead mill, manufactured by Willy A. Bachofen AG (WAB). This machine is a premium Swiss-made unit designed for the continuous dispersion and wet-grinding of pumpable products, ranging from low to high viscosity. This unit was manufactured in 2007 and decommissioned in fully functional, running condition with no known faults. It is distinguished by its exceptionally low usage history, having logged only 1’153 operating hours. It comes equipped with a high-wear-resistant Silicon Carbide (SiSiC) inner cylinder and hardened stainless steel discs. It is sold as a complete bundle, including a peristaltic pump, a tool kit, the original electric cabinet and yttrium-stabilized zirconium balls (used). Itedpjx Tdyzsfx Adzel Highlights • Low Usage: Only 1'153 operating hours—internal mechanics are in excellent condition. • High-End configuration: Fitted with a ceramic Silicon Carbide (SiSiC) inner cylinder (6mm wall thickness) and hardened stainless steel discs for durability and contamination control. Sintered Silicon Carbide (SSiC) prevents product overheating significantly better than Zirconium or Steel liners. • Ready to Run: Sold as a complete package including the Electric Cabinet and a Peristaltic Product Pump. • Features the industry-standard WAB dynamic gap separator and pressure-balanced mechanical seal. • Voltage: Fitted with a modern Danfoss VLT frequency converter featuring wide-range input (380-480V, 50/60Hz), making the machine immediately compatible with both European (400V) and US (480V) power grids without modification Technical Specifications • Manufacturer: Willy A. Bachofen AG (WAB), Switzerland • Model: KD 6 • Grinding Chamber Volume: 6.0 Liters (Net volume ~5.7 Liters) • Throughput: approx. 50 – 200 kg/h (dependent on product/viscosity) • Main Drive: 11 kW Motor (440V / 60Hz rated) • Separation System: Dynamic gap separator (Tungsten Carbide rotor/stator) with adjustable gap width (0.15–1.0 mm) • Shaft Seal: Double mechanical seal (DGD) with integrated pressure rinsing circuit • Cooling: Forced water cooling jacket for the grinding cylinder • Weight: 695 kg
 Scope of Delivery • Mill: DYNO-MILL KD 6 base unit • Grinding System: Silicon Carbide (SiSiC) Inner Cylinder & Hardened Stainless Steel Discs • Feed Pump: Peristaltic Pump included • Controls: Original Electric Cabinet included • Grinding Media: Ceramic Beads, Zirconia Partially Stabilized with Yttria, four sizes, each approx. 25Kg (0.4 - 0.6 mm / 0.8 - 1.0 mm / 1.2 - 1.4 mm / 1.6 - 1.8mm) • Documentation: Operating instructions and wiring diagrams Condition • Mechanical: Excellent, running condition with no known faults at the time of decommissioning. • Cosmetic: The machine is clean but shows minor cosmetic wear (see pictures for visual details) • Last application: Food Typical Applications • Ideal for fine particle size reduction in industries such as: • Paints, Inks, and Coatings • Agrochemicals and Chemicals • Life Sciences and Microbiology • Food and cosmetics We ship worldwide. If you are interested or have any questions, please get in touch! Can be inspected in Liestal, Switzerland.

Condition: used, Year of construction: 2001, Technical details: x-travel: 2000 mm y-travel: 1600 mm z-travel: 1140 mm b-axis: 0.0001° x 360° ° number of pallets: 4 table surface area: 1000 x 1450 mm max. table load: 6.000 kg turning speed range: 4 - 10000 U/min power capacity at 100 % load: 40 kW kW tool taper: HSK100 DIN69893A machine weight ab.: 63.000 kg Itsdsxc E H Espfx Adzel space required L x W X H: 12320 x 11000 x 4700 mm incl. 50 x HSK100 tool tapers *

Condition: used, Year of construction: 2006, spindle diameter 225 mm x-travel 8000 mm y-travel 5600 mm z-travel 2100 mm w-axis 1400 mm spindle turning speed - stepless 0-650 U/min spindle taper ISO 60 feed stepless 5 - 3000 mm/min rapid traverse 5 m/min weight of the machine ca. 150 t dimensions of the machine ca. 12 x 5 x 8 m Isdpeyqtgkjfx Adzstl total power requirement 120 kW Ram type horizontal boring machine was reconditioned and modernized in 2006, original yom was 1972. Control Siemens 840 C. Machine will come with tools and a vertical milling head. The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: used, Year of construction: 1995, functionality: fully functional, Technical data Control system Siemens Sinumerik 840 Dsl Main dimensions and travels Face plate diameter 3,600 mm Rotation diameter (max.) 4,200 mm Workpiece height (max.) 4,800 mm Total height of the machine 8,700 mm Maximum workpiece weight 80,000 kg. Table base Y Horizontal table displacement 2,000 mm Cross beam Vertical adjustment of the cross beam in 100 mm steps 2,800 mm Crossbeam support (right) Horizontal adjustment of support - 1,800 to + 2,200 mm Vertical adjustment of the chisel slide 1,500 mm Cross-section of the chisel slide 240x240 mm Tool positions 20 pcs. Without vertical support (left) Lateral support (right) Vertical adjustment of support 2,800 mm Horizontal displacement of the chisel slide 1,000 mm Cross-section of the chisel slide 240x240 mm Turning diameter max./min. 4500/2500 mm Tool changer Main drive: Power of the main motor 105 kW Speed range of the faceplate 0.4-90 rpm Maximum torque on the faceplate Isdpfx Adsu R Imlszetl Drilling and routing drive Vertical support: Power of the drive motor 22.5 kW Maximum torque 900 Nm Side support drilling and milling drive: Power of the drive motor 22.5 kW Maximum torque 900 Nm Connection values of the machine Machine connection voltage 380 Volt / 50Hz Control voltage 220V AC / 24V DC Total connected load 150 kVA Required back-up fuse 400 A Equipment and accessories: Operator platform Chip conveyor Cooling lubricant system Tool changer Tool measuring probe RENISHAW

Condition: used, Year of construction: 1987, functionality: fully functional, turning height: 3,000 mm, workpiece weight (max.): 50,000 kg, turning diameter: 4,000 mm, Technical data Siemens Sinumerik 840 DSL control system Main dimensions and travels Face plate diameter 3,500 mm Rotation diameter (max.) 4,000 mm Workpiece height (max.) 3,000 mm Total height of the machine 7,250 mm Maximum workpiece weight 50,000 kg Table base Y Horizontal table displacement 2,000 mm Cross beam Vertical adjustment of the crossbeam Itodpfju R D Tnox Adzol in 50 steps 1,500 mm Crossbeam support (right) Horizontal adjustment of support -25 + 2170 mm Vertical displacement of the chisel slide 1,800 mm Cross-section of the chisel slide 250x210 mm Tool positions Cross beam support (left) Horizontal adjustment of support -25 + 2170 mm Vertical displacement of the chisel slide 1,800 mm Cross-section of the chisel slide 250x210 mm Tool changer without side support (right) Main drive: Power of the main motor 100 kW Speed range of the faceplate 1-100 rpm. Maximum torque on the face plate 100 kNm Drilling and milling drive vertical support: Power of the drive motor 22.5 kW Maximum torque 900 Nm Without drilling and milling drive side support Total weight Connection values of the machine Machine connection voltage 380 Volt / 50Hz Control voltage 220V AC / 24V DC Total connected load 150 kVA Required back-up fuse 400 A Equipment and accessories: Operator platform Chip conveyor Cooling lubricant system Tool changer Tool measuring probe RENISHAW
