Machining Center - Horizontal

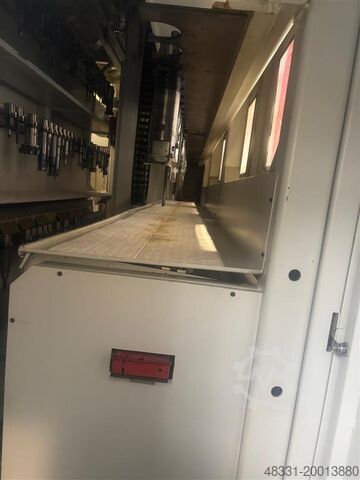

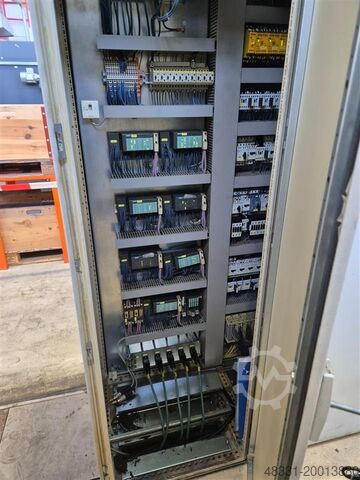

SCHARMANN SOLON 5/T1000

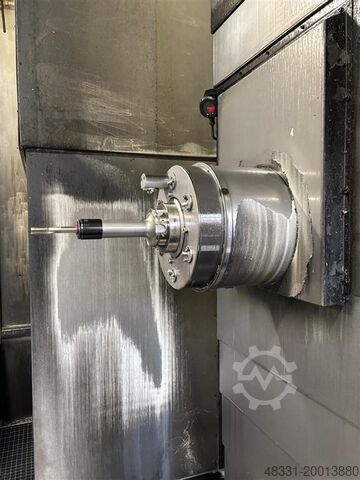

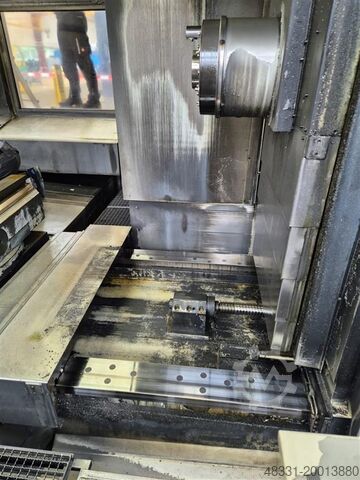

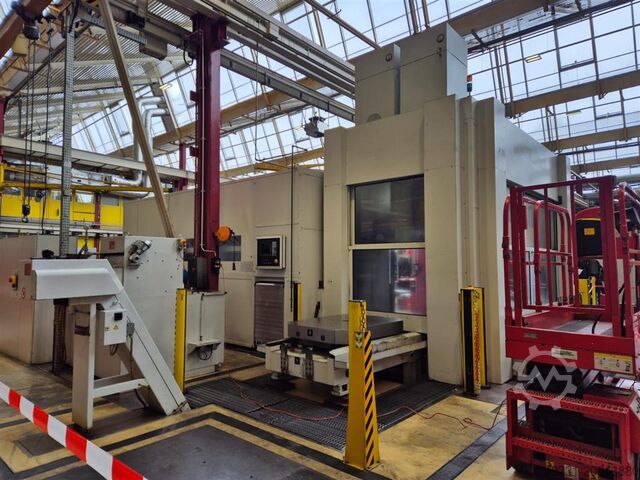

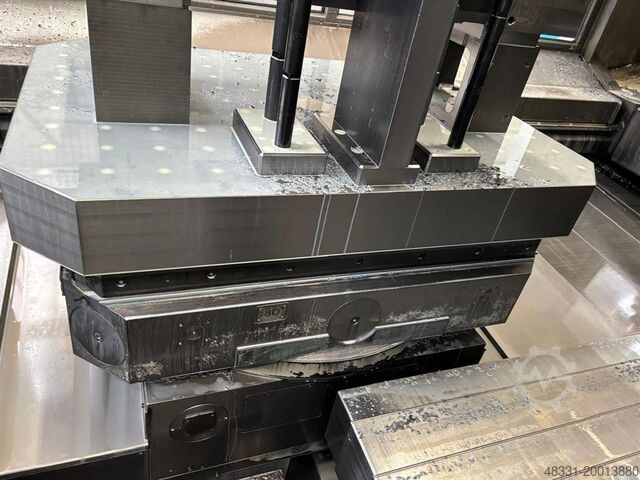

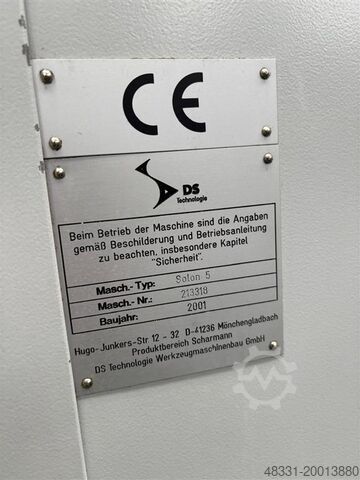

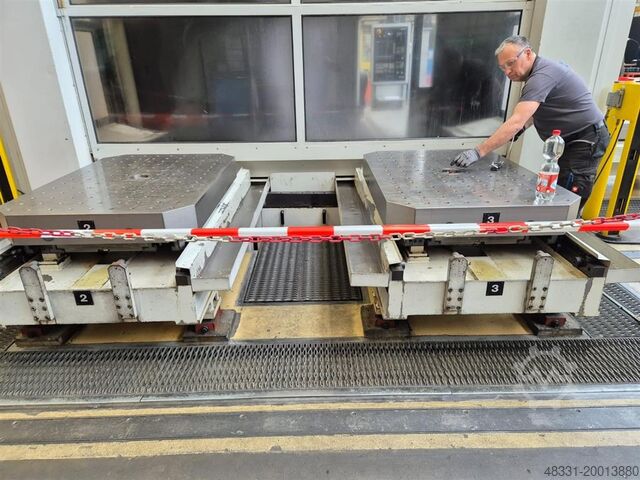

Condition: ready for operation (used), Year of construction: 2001, operating hours: 50,292 h, functionality: fully functional, machine/vehicle number: 213318, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,600 mm, travel distance Z-axis: 1,140 mm, rotational speed (max.): 10,000 rpm, TECHNICAL DETAILS x-axis: 2,000 mm y-axis: 1,600 mm z-axis: 1,140 mm b-axis: 0.0001° × 360° Table Number of pallets: 4 Clamping area: 1,000 x 1,450 mm Table load: max. 6,000 kg Kledpfx Aasw T Ry Hezju Spindle Speed range: 4 – 10,000 rpm Drive power 100% duty cycle: 40 kW Tool holder: HSK100 DIN 69893A MACHINE DETAILS Connected load: 107 kVA Machine weight: 63,000 kg Required space L x W x H: 12,320 x 11,000 x 4,700 mm EQUIPMENT - including 50 pcs. HSK100 holders

Condition: ready for operation (used), Year of construction: 2008, operating hours: 56,089 h, Swing diameter over bed/cross slide: 820mm/550mm, distance between centers: 2666mm, max. turning diameter: 610mm, max. workpiece length: 2500mm, travel X/Z: 410mm/2560mm, travel Y: -80mm/100mm, max. workpiece weight without/with tailstock: 500kg/1500kg, tool positions: 12, rapid traverse X/Z/Y: 24m/30m/12m/min, feed force X/Z/Y: 17kN/20kN/17kN. Machine dimensions X/Y/Z: approx. 5500mm/2250mm/2550mm, weight: approx. 15000kg, operating hours: approx. 56089. Documentation available. An on-site inspection is possible. Expected to be available from mid-2026. Kledpfx Aaew Dfhuszju

Condition: used, Year of construction: 1981, machine/vehicle number: 78.977, Equipment: documentation/manual, Year of manufacture: 1981 / Year of retrofit: 1996/1997 Control: Siemens 840 C Siemens control for X/Y/Z/W/U/B/V axes Spindle diameter: 200 mm Main motor Siemens: 68 kW Spindle speeds: I gear: 3 - 202 rpm II gear: 180 - 808 rpm X travel: 12,000 mm Y travel: 4,500 mm Z travel: 2,400 mm (supporting sleeve □ 520 mm/travel 1200 mm + W axis 1200 mm) Mount: SK60 (SK50) Facing slide: yes Milling head: 2 units Kodpfx Aasqc Umgezjlu Prepared for CNC rotary table (4th axis) Without rotary table and clamping field (available separately) Full documentation Net weight: approx. 140 tons Video available!

Condition: good (used), Year of construction: 2005, travel distance X-axis: 12,000 mm, travel distance Y-axis: 3,500 mm, Technical Specification - X-axis (longitudinal travel - table): 12,000 mm - Programmable feed rate: 0.5 – 6,000 mm/min - Rapid traverse: 20,000 mm/min - Motor speed: 3,000 rpm - Y-axis (vertical travel / column): 3,500 mm - Programmable feed rate: 0.5 – 6,000 mm/min - Rapid traverse: 20,000 mm/min - Motor speed: 3,000 rpm - Rated torque (motor): 42 Nm Z - W-axis (spindle head): - Boring spindle diameter: 150 mm - Axial stroke of boring spindle (Z): 1,200 mm - Rapid traverse Z-axis: 20,000 mm/min - Internal taper of boring spindle: DIN 69871, ISO 50 - Spindle diameter: 254 mm - Spindle front bearing inner diameter: 200 mm - RAM dimensions: 400 x 400 mm - Axial stroke of boring spindle (W): 1,000 mm - Rapid traverse W-axis: 15,000 mm/min - Total axial stroke (Z+W): 2,200 mm - Rated torque spindle motor W and Z-axis: 42 Nm - Number of spindle gearbox speeds: 2 Klodjyuxd Nopfx Aazou - Spindle speed range: 6 – 3,500 rpm - Spindle motor power: 60 kW Clamping plate sections: - Dimensions: 2 units @ 1,500 x 4,500 mm, 1 unit 2,000 x 4,500 mm - Load capacity: 15,000 kg/m² Workpiece table (axes V1 - B1 / V2 - B2): - Table dimensions: 2,000 x 3,000 mm - T-slot size: 28 mm - T-slot pitch: 180 mm - Table top height from floor: 650 mm - Load capacity: 40 t Tool rack magazine ATC 13-150 R 147 - Maximum magazine capacity: 147 tools - Maximum tool weight: 35 kg - Maximum tool length: 700 mm - Tool taper: DIN 69871 - Tool change time: 28 sec Milling head with indexed vertical axes, model TTL 2 18 360 - Tool holder: ISO 50, DIN 69871 EQUIPMENT: - CNC control: Heidenhain iTNC 530 - Electronic handwheel - Chip conveyor (manufactured: 2023) - CE marking - Documentation

Condition: good (used), Year of construction: 2010, Machine is in good condition. Parts shown by hand not come. Ksdpfox N Atfsx Aazolu

Condition: excellent (used), Year of construction: 2013, operating hours: 64,269 h, functionality: fully functional, travel distance X-axis: 2,200 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 1,000 mm, table length: 2,300 mm, table width: 1,600 mm, spindle speed (max.): 20,000 rpm, overall weight: 30,000 kg, For sale is a well-maintained Parpas Diamond Linear. – C-axis (milling head): (degrees) +/- 370 – A-axis (milling head): (degrees) +/- 105 Distance between columns: (mm) 2,700 Distance between table surface and spindle nose with milling head mounted, max.: (mm) 1,220 – X and Y axis rapid traverse: (m/min) 60 – Z axis rapid traverse: (m/min) 40 Spindle: 5-axis orthogonal milling head – Internal coolant supply (ICS): (bar) 20 – Maximum spindle speed: (rpm) 20,000 – Drive power S1 / S6: (kW) 29 / 37 – Torque S1 / S6: (Nm) 92 / 115 Tool magazine – Tool holder: HSK 63 A – Tool positions: 42 – Tool diameter: (mm) 80 – Tool length: (mm) 350 – Tool weight: (kg) 6 Machine table – Table size L x W: (mm) 2,300 x 1,600 – T-slot spacing: (mm) 200 – T-slot dimensions: (mm) 22 – Max. workpiece weight: (kg/m²) 6,000 FEATURES & EQUIPMENT Kodpjxxvp Njfx Aazjlu + Heidenhain iTNC 530 control + Portal (gantry) design: U-shaped "monoblock" construction with one crossbeam and stationary workpiece + Milling head (A- and C-axis), A-axis with torque motor and hydraulic clamping, A-axis positioned perpendicular to the C-axis + No foundation required + Glass scales in X, Y, and Z linear axes + C-axis with Heidenhain angle measurement system, resolution 0.001 degrees + Heidenhain HR 520 electronic handwheel + 2 chip conveyors (one at the front and rear of the table) + Internal coolant supply (ICS) 20 bar + Paper filter unit + Sliding roof with opening for loading and unloading

Condition: good (used), Year of construction: 1997, Ref. -No.: 10620 Manufacturer: SKODA Type: W 200 T Year of construction: 1997 Type of control: CNC-Steuerung Control: SIEMENS SINUMERIK 840 Storage location: Halberstadt Country of origin: Germany X-Travel: 16000 mm Y-Travel: 5150 mm Z-Travel: 1600 mm Klsdpfjyagidex Aazsu W-Axis: 2100 mm V-axis: 2000 mm B-Axis: 0 - 360 ° Spindle Diameter: 200 mm Table Load: 80.000 kg Tool Taper: SK 60 / SK 50 Turning Speeds: 1000 RPM Rotary table diameter: 3500 x 3000 mm Further information: Including angle head Machine can be inspected under power.

Condition: excellent (used), Year of construction: 2014, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,800 mm, spindle diameter: 130 mm, overall weight: 32,450 kg, year of last overhaul: 2014, The machine is in very good technical condition, equipped with a Heidenhain iTNC 530 CNC control system. Specifications: Ksdpfx Aox Hfk Ieazelu Spindle diameter: 130 mm X-axis travel: 3000 mm Y-axis travel: 1800 mm Taper in spindle: ISO 50 Spindle extension: 1120 mm Horizontal spindle head extension: 450 mm Total installed motor power: 50 KVA Dimensions (L x W x H): 10100 x 4380 x 5250 mm Weight: 32,450 kg

Condition: excellent (used), Year of construction: 2007, • Maximum possible drilling depth: 1200 mm • Maximum hole diameter: 32 mm • Minimum drilling diameter: 6 mm • Longitudinal travel (X-axis) table: 1800 mm • Cross travel (Z-axis) column: 1700 mm • Cross travel (W-axis) drilling head: 1150 mm • Vertical travel (Y-axis) drilling head: 1200 mm • Clamping surface NC table: 1500 x 1000 mm • Maximum table load: 10 t • Rotary axis (B-axis) rotary table: 360° • Rotary axis (A-axis) drilling head: -25°/+15° • Feed rate: 1-15 m/min (Y-axis: 1-10 m/min) • Rapid traverse speed in all axes: 15 m/min (Y-axis: 10 m/min) • Maximum spindle speed: 6000 rpm • Minimum spindle speed: 60 rpm • Tool holder: SK 40 • Tool clamping: OTT • Rated power main drive (100% ED, S1/40% ED, S6): 9/13 kW • Coolant tank capacity: 1000 l • Maximum coolant pressure: 100 bar • Low-pressure external and high-pressure internal coolant supply • Power supply: 3x 400 V; 50 Hz • Required installation space (L x W x H): 6550 x 5350 x 4130 mm • Machine weight: 12,000 kg Deep Hole Drilling Machine Equipment • CNC control: HEIDENHAIN iTNC 530 • Interpolated rotary table with minimal backlash, dimensions 1500 x 1000 mm • Swiveling drilling head +15°/-25° • Shank drilling head • Handwheel HR520 • Fixed supports (2 units) • Tool magazine: ELB tools: 12 pcs (max. diameter: 32 mm / max. length: 1550 mm) Standard tools: 12 pcs (max. diameter: 140 mm / max. length: 400 mm) • Direct measurement and positioning system in X, Y, and Z axes • Collision monitoring system for supports and drill sleeves • Oil cooler • Coolant flow control system • Adjustable coolant nozzles Kedpfsxyf E Nsx Aazslu • Cooling unit for electrical cabinet • Enclosed upper cover (roof) • Drip tray for machine and tank facility (tray height 30 mm) • Extraction system • Infrared touch probe • Drilling depth extension 1200 mm (retrofit) • Chip conveyor

Condition: used, Year of construction: 1999, Pallet size 800 x 800 mm X/Y/Z - 1250/1000/850 mm Spindle taper BT 50 Klsdpfxov Rntuj Aazsu Spindle speeds 5000 rpm Tool changer w/80 stations Control: Fanuc 18 i-M Equipped with: 2 pcs. pallets
