Wire Erosion Machine

MITSUBISHI MV 2400R

Condition: like new (used), Year of construction: 2018, operating hours: 2,700 h, functionality: fully functional, machine/vehicle number: MR24D1056, workpiece weight (max.): 1,500 kg, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 310 mm, wire diameter (max.): 0.3 mm, workpiece height (max.): 295 mm, workpiece width (max.): 1,050 mm, workpiece length (max.): 800 mm, empty load weight: 3,500 kg, tank capacity: 860 l, Equipment: documentation/manual, For sale: Mitsubishi MV2400R precision wire EDM machine (2018), in excellent technical condition, continuously operated, fully functional, and ready for immediate use – very low operating hours (only 2,700 hours). Technical Specifications: - Year of manufacture: 2018 - Manufacturer: Mitsubishi Electric - Model: MV2400R - Control system: Mitsubishi M700 Series - Axis travel (X/Y/Z): 600 / 400 / 310 mm - Max. workpiece dimensions: 1050 × 800 × 295 mm - Max. workpiece weight: 1,500 kg - Worktable size: 840 × 700 mm - Wire diameter: 0.1 – 0.3 mm (0.25 mm currently in use) - Positioning accuracy: ±1 µm - Power supply & cooling: complete and fully functional - Machine dimensions (L×W×H): 2687 × 3030 × 2150 mm - Weight: approx. 3,500 kg Equipment and Accessories: - Original upper and lower wire guides - Automatic Wire Threading (AWT) - Filter tank with ion-exchange resin - Complete set of clamping and locating devices (in carrying case) - Wire alignment device - Original operation manuals and documentation Additional accessories purchased for over €10,000: - Wire guides for 30° angle cutting (upper and lower) - Processor battery - Precision workpiece clamping vise - 0-600 PSI pressure gauge (2 pcs) - MV power contact (259320) (2 pcs) - CF card with software Codpfx Asxu Hvlefrogn - 0.25 mm EDM wire – 3 new spools - 2 sets of new filters - Machine transport and handling system Condition: The machine is well-maintained, regularly serviced, and ready for immediate operation. Complete filtration and cooling systems included. We offer assistance with transport, installation, and commissioning of the machine, as well as operator training – we are EXPERIENCED. Price negotiable. VAT invoice available. Export (0% VAT) possible.

Condition: excellent (used), Year of construction: 2016, functionality: fully functional, CNC Control: Professional 5 (FANUC) X travel (mm): 550 Y travel (mm): 1,000 Z travel (mm): 500 B axis (mm): 150 C axis (degrees): 360,000 Number of pallets: - Table dimensions (mm): ø500 Table load capacity (kg): 350 Cutting feedrate X, Y, Z (mm/min): 32,000, 40,000, 40,000 Rapid traverse max. X, Y, Z (m/min): 48, 50, 50 Spindle speed (rpm): 14,000 Spindle power (kW): 18.5 / 15 Taper type: HSK63 Torque (Nm): Magazine type: Chain Magazine capacity (positions): 317 Max. tool diameter (mm): 90 Cgsdpfx Afsxmgcporsn Max. tool diameter with adjacent slots empty (mm): 140 Max. tool length (mm): 300 Max. tool weight (kg): 8 Coolant tank capacity (l): - Through spindle coolant (bar): yes Equipment: Rotary table with digital measuring system Work light Through spindle coolant Electronic handwheel Dimensions: Length (mm): 2,771 Width (mm): 3,948 Height (mm): 3,264 Weight (kg): 12,400

Condition: used, Year of construction: 2015, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 310 mm, Travel: X 600 / Y 400 / Z 310; Water bath machine; Automatic wire threading; Chiller. Cjdpfxex Hgg Do Afregn

Condition: excellent (used), Year of construction: 2017, operating hours: 8,500 h, functionality: fully functional, workpiece weight (max.): 1,500 kg, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 310 mm, total height: 2,150 mm, total length: 2,687 mm, total width: 3,030 mm, workpiece height (max.): 305 mm, workpiece width (max.): 1,050 mm, workpiece length (max.): 820 mm, type of input current: AC, table width: 840 mm, overall weight: 3,500 kg, table length: 640 mm, positioning accuracy: 0.003 mm, ### Price heavily reduced ### This machine is very well maintained and in very good condition. The machine is still in production. You can view and test this machine with power on. Price is ex works, without dismantling. Manufacturer: Mitsubishi Electronic Year of manufacture: 2017 MODEL: MV 2400R MV-R Series – Power for Precision Production hours: approx. 8,000 hours Application type: EDM / wire cutting Machine type: Wire EDM machine Cgjdevq Rh Ujpfx Afren Technical specifications - Mitsubishi MV 2400R X-axis movement: 600 mm Y-axis movement: 400 mm Z-axis movement: 310 mm Travel (X / Y / Z) in mm: 600 / 400 / 310 Travel (U / V) in mm: 150 / 150 (+/- 75) Max. workpiece dimensions (W x D x H) in mm: 1050 x 820 x 305 Max. workpiece weight in kg: 1500 Table dimensions (W x D) in mm: 840 x 640 Overall dimensions (W x D x H) in mm: 2687 x 3030 x 2150 Machine weight in kg: 3500 Price greatly reduced.

Condition: excellent (used), Year of construction: 2003, PET bottle blowing machine Manufacturer: KRONES Cgedpfsvddkvex Afrjn Model: CONTIFORM K781 Efficiency: 12,000 bph Includes 1.5 L and 0.5 L bottle molds Power: 150 kW Air requirement: 10 bar - 1500 m3/h, 30 bar - 1000 m3/h Set dimensions (blow mold + preform feeder): 1100 x 340 cm, h: 450 cm Blow mold dimensions: 500 x 340 cm, h: 250 cm Feeder dimensions: 600 x 250 cm, h: 450 cm Air requirement: 10 bar - 1500 m3/h, 30 bar - 1000 m3/h Year of production: 2003 Technical documentation of machine operation Very good condition

Condition: good (used), Year of construction: 2013, functionality: fully functional, machine/vehicle number: 03DR2150, workpiece weight (max.): 1,500 kg, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 310 mm, total height: 2,150 mm, total length: 2,687 mm, total width: 3,030 mm, overall weight: 3,500 kg, Equipment: cooling unit, Wire-Cut EDM Machine The machine comes from productive operation and is in fully functional, used condition. All relevant assemblies are complete; the generator cabinet, control system, wire feed, and AT system (Automatic Threader) are all present and complete. Running times according to control system: Processing time: approx. 29,062 h NC on-time: approx. 43,836 h Ready-/TFT downtime: approx. 8,966 h Maintenance records (excerpt): Filter change: last performed at 176 h / 200 h Resin change: 21 h / 1000 h Oil refill: 742 h / 1000 h Conductivity sensor: 742 h / 1000 h Current supply rotation: 57 h / 80 h The machine is complete but shows typical signs of use after more than 10 years in operation Accessories are extensive and well organized Servicing always confirmed as per control system Automatic threading system included Accessories / Equipment: Original Mitsubishi nozzle & roller/bearing kit: various guide rollers upper and lower diamond guides nozzle set (upper/lower nozzle) drying stones / assembly tools NSK/Japan replacement bearings spare tension rollers Manufacturer’s wooden box Mitsubishi Electric Spare and consumables: resin container (packed) filter elements quick adhesive components A/B pH test strips process chemicals (for EDM) logbook / maintenance records Documentation / manuals: complete folders: Operator’s Manual MV Part 1 & 2 training materials “Advance Series” operating instructions (German) Cedpfsx Hadvsx Afrjgn maintenance and AT maintenance sheets Travels (X / Y / Z): 600 × 400 × 310 mm Working table / workspace: table size: 840 × 640 mm (square table) max. workpiece dimensions: 1050 × 800 × 295 mm max. workpiece weight: 1,500 kg Wire data: wire diameter: 0.1–0.3 mm max. wire feed: 23 m/min tension: 0.5–25 N automatic threading (AT), including fine-threading Taper cutting: opto-linear T/C device, ±75 mm (X/Y), max. taper angle 15° at 260 mm workpiece height Generator / Control system: transistor-controlled pulse generator 15" LCD touch control 6-axis simultaneous control integrated 2D and 3D CAM (Parasolid viewer) NC memory up to 1 GB USB interfaces (2×) Dielectric system tank capacity: 860 l filter flow rate: 50 l/min paper filters (2 pcs) resin container 10 l (ion exchanger)

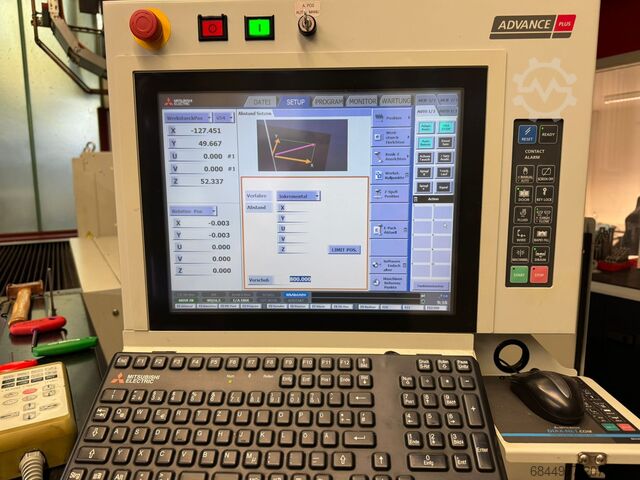

Year of construction: 2013, condition: ready for operation (used), General Data Machine weight 3500 kg Control Unit Brand MITSUBISHI Main Drive Number of axis 3 Movement X-Axis Movement 600 mm Y-Axis Movement 400 nmm Z-Axis Movement 310 mm Workpiece Workpiece X 820 mm Workpiece Y 305 mm Workpiece Z 1050 mm Workpiece weight 1500 kg Additional Equipment Wire diameter: 0.1 – 0.3 mm This 3-axis Mitsubishi Electric MV2400R wire EDM machine was manufactured in 2013. It features a PC-based control unit with a 15" LCD touchscreen, supporting 2D/3D CAM and graphics verification. Capable of handling workpieces up to 1050 x 820 x 305 mm and 1500 kg, it offers a machining travel of 600 x 400 x 310 mm. If you are looking to get high-quality EDM capabilities, consider the Mitsubishi Electric MV2400R machine we have for sale. Contact us for more information. Application Types Cjdpox D Iv Sofx Afrsgn EDM

Condition: excellent (used), Year of construction: 2017, Technical datas:   Cjdpfx Afexazx Sjrsgn X-Axis Travel (mm): X-Axis Travel (mm): X-Axis Travel (mm): Worktank length: Worktank width: Worktank height: Max. workpiece length: Max. workpiece width: Max. workpiece height: Max. workpiece weight: Taper angle/height: Automatic Wire Feeding: Length x width x height: Weight (kg): Worked power hours: The technical data and illustrations are not binding. They are not warranted characteristics and are subject to change.

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, The machine is in good technical condition. X-axis travel: 900 mm Y-axis travel: 500 mm Z-axis travel: 450 mm 4 axes Control: Fanuc FS31i Spindle speed: 20-20,000 rpm Csdpfx Aex Dazysfrjgn Table: - External length: 1,000 mm - External width: 500 mm - Maximum table load: 1,000 kg New electric spindle installed 4 years ago. Tool magazine for 30 tools, incl. tool holders. The machine operated in single-shift operation. Inspection under power possible by prior arrangement.

Year of construction: 2019, operating hours: 18,138 h, condition: ready for operation (used), overall weight: 25,340 kg, This SUMITOMO SHI DEMAG El-Exis SP 350/820-1600 was manufactured in 2019. A robust electrical injection moulding machine with a screw diameter of 50 mm, clamping force of 3,500 kN, and tiebar spacing of 820 mm. It has operated for 18,138 hours with 12,875,090 cycles. If you are looking to get high quality moulding capabilities consider the SUMITOMO SHI DEMAG El-Exis SP 350/820-1600 machine we have for tact us for more information. Additional information • Screw Diameter: 50 mm • Maximum Dosing Volume: 530 cc • Cycles: 12875090 • Tiebar Spacing: 820 mm Csdpex D Nxzofx Afrjgn • Clamping Force: 3500 kN
