Vertical machining center

MAKINO D500

Condition: ready for operation (used), Year of construction: 2012, operating hours: 21,109 h, functionality: fully functional, travel distance X-axis: 550 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 500 mm, controller manufacturer: Fanuc, spindle speed (max.): 20,000 rpm, number of slots in tool magazine: 80, TECHNICAL DETAILS Travel X-axis travel: 550 mm Y-axis travel: 1,000 mm Z-axis travel: 500 mm Axes A-axis: +300° / -120° C-axis: 360° C-axis resolution: 0.0001° Clamping Table Table dimension: Ø 500 mm Table dimension with zero-point system: 356 mm x 356 mm Max. table load: 350 kg T-slots: 18H8 x 4 Workpiece size: 650 x 500 mm Spindle Spindle speed range: 50 – 20,000 rpm Spindle power: 18.5 kW (S6) Spindle torque: 95 Nm (S6) Tool holder: HSK63 Control Control manufacturer: Fanuc Automatic Tool Changer Tool holder: HSK63 Number of tool positions: 80 Indunorm Pallet Changer Pallet size 1 for automation: 6 pcs 398 mm x 398 mm Preset pallet for Erowa IST: 1 pc 398 mm x 398 mm Pallet size 2 for automation: 15 pcs Erowa ITS115 mm Pallet size 3 for automation: 32 pcs Erowa ITS50 mm Transfer weight incl. pallet: 300 kg Rapid Traverse Rapid traverse X-axis: 48 m/min Rapid traverse Y-axis: 50 m/min Rapid traverse Z-axis: 50 m/min Rapid traverse A/C-axis: 18,000°/min (equivalent to 50 rpm) Feed Rate Feed X-axis: 32 m/min Bwedpfxjw Stpuj Ah Ioi Feed Y-axis: 40 m/min Feed Z-axis: 40 m/min Feed A/C-axis: 12,000°/min (equals 33.3 rpm at max. 500 kg) Feed A/C-axis: 18,000°/min (equals 50 rpm) MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 3,550 x 3,200 x 2,900 mm Machine weight: 16,000 kg Operating Hours (as of 30.04.2025) Power-on hours: 41,624 h Operating hours: 21,877 h Machining hours: 16,829 h Spindle hours: 21,109 h EQUIPMENT - Chip conveyor - Paper band filter - Bed flushing - Electronic handwheel - 6 Parotec pallets 398 mm x 398 mm - 1 Pre-pallet Parotec for Erowa ITS 398 mm x 398 mm - Extensive Fanuc control options - Machine documentation - Marposs infrared probe - Preparation for oil mist extraction - Blum laser tool measurement - Work area flushing - Hand rinsing gun - External coolant with 3 nozzles, 7 bar - Internal coolant 15 bar - Coolant temperature control - Internal & external air supply

Condition: excellent (used), Year of construction: 2003, PET bottle blowing machine Manufacturer: KRONES Model: CONTIFORM K781 Efficiency: 12,000 bph Includes 1.5 L and 0.5 L bottle molds Bwedpfovddkvjx Ah Ioi Power: 150 kW Air requirement: 10 bar - 1500 m3/h, 30 bar - 1000 m3/h Set dimensions (blow mold + preform feeder): 1100 x 340 cm, h: 450 cm Blow mold dimensions: 500 x 340 cm, h: 250 cm Feeder dimensions: 600 x 250 cm, h: 450 cm Air requirement: 10 bar - 1500 m3/h, 30 bar - 1000 m3/h Year of production: 2003 Technical documentation of machine operation Very good condition

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, The machine is in good technical condition. X-axis travel: 900 mm Y-axis travel: 500 mm Z-axis travel: 450 mm 4 axes Control: Fanuc FS31i Bjdjx Dazyopfx Ah Iewi Spindle speed: 20-20,000 rpm Table: - External length: 1,000 mm - External width: 500 mm - Maximum table load: 1,000 kg New electric spindle installed 4 years ago. Tool magazine for 30 tools, incl. tool holders. The machine operated in single-shift operation. Inspection under power possible by prior arrangement.

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, workpiece weight (max.): 1,000 kg, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 310 mm, wire diameter (max.): 0.3 mm, workpiece height (max.): 310 mm, workpiece width (max.): 820 mm, workpiece length (max.): 1,050 mm, feed rate X-axis: 600 m/min, feed rate Y-axis: 1,000 m/min, table load: 1,000 kg, Equipment: compressor, fridge, FANUC Robocut α-C600iA Bwodpfx Asyhb D Ejh Isi

Condition: used, Year of construction: 2015, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 310 mm, Travel: X 600 / Y 400 / Z 310; Water bath machine; Automatic wire threading; Chiller. Bwedpfex Hgg Dex Ah Isi

Year of construction: 2019, operating hours: 18,138 h, condition: ready for operation (used), overall weight: 25,340 kg, This SUMITOMO SHI DEMAG El-Exis SP 350/820-1600 was manufactured in 2019. A robust electrical injection moulding machine with a screw diameter of 50 mm, clamping force of 3,500 kN, and tiebar spacing of 820 mm. It has operated for 18,138 hours with 12,875,090 cycles. If you are looking to get high quality moulding capabilities consider the SUMITOMO SHI DEMAG El-Exis SP 350/820-1600 machine we have for tact us for more information. Additional information Bwjdox D Nxzspfx Ah Isi • Screw Diameter: 50 mm • Maximum Dosing Volume: 530 cc • Cycles: 12875090 • Tiebar Spacing: 820 mm • Clamping Force: 3500 kN

Condition: good (used), Year of construction: 2016, In good technical condition and fully functional. Built in 2016. Machine includes 4-axis TSUDAKOMA, workpiece probe, and tool probe. Drives Axis drives (X/Y/Z) 1,000 / 550 / 500 mm Distance table surface - spindle surface 130 - 630 mm Axis guide - linear rolling LM Table work surface 1,100 x 502 mm Load capacity 700 kg Table surface configuration mm 5x T-slot (width 18, pitch 80) Maximum spindle speed 12,000 rpm Spindle power (10 min./continuous) kW 18.5 / 11 Rapid feeds (X/Y/Z) m/min 36 / 36 / 30 Working feed (X/Y/Z) mm/min 1 - 24,000 Sliding motor (X/Z) kW 1.8 / 1.8 / 3.0 Automatic tool change Tool taper - BT40 Clamping bolt - MAS P40T-1 (45°) Number of tool positions: 24 Max. tool diameter mm Ø 80 / Ø 150 (without secondary tool) Max. tool length / weight mm / kg 300 / 8 Tool-to-tool change time: Section 2.5 Chip-to-chip change time: Section 4.3 Magazine and change disk design with rotating arm Power consumption: 30 kVA Tank capacity for spindle lubrication/cooling: l 6 / 20 For cooling emulsions: l 380 Machine dimensions: Height mm 2,670 Floor area (length x width) mm 3,335 x 2,200 Weight: 6,500 kg Control system: Fanuc 0i-MD Air blowing of the spindle Machine adjustment elements Machine protective cover Bsdpfxex Tti Se Ah Iowi Screw conveyor in the work area Cooling system Safety door Ethernet interface

Condition: used, Year of construction: 2011, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 300 mm, Mitsubishi wire-cut EDM machine FA20-S advance, year 2011, fully functional. Can be inspected under power. Bjdpfxsylyhko Ah Iswi

Condition: good (used), Year of construction: 2006, functionality: fully functional, workpiece weight (max.): 2,000 kg, travel distance X-axis: 800 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 400 mm, workpiece height (max.): 400 mm, workpiece width (max.): 1,000 mm, workpiece length (max.): 1,380 mm, Charmilles Robofil 690 - Maximum part dimension 1380 x 1000 x 400 Bwedpfx Aswz Iuxsh Iei - Travels X,Y,Z 800 x 600 x 600 x 400 - Travels U,V ±30 - Maximum demoulding ±15/110 - Global protection by EC-EMC cabinet - Fixed work table - Integrated monobloc flange table - Guaranteed thermal stability; polymer concrete - 5 axes controlled by numerical control (XYUVZ) - Linear glass rulers on all axes - Axis protection by anti-collision system - Tilting up to ±30°. - ThermoCut (automatic threading and rethreading) - Bonina thread holder 4, 8 and 16Kg - Filtration system: 2 filters (29m2) - Water/water heat exchanger - Automatic regulation of deionization with cylinder - Numerical control CT Millenium (Fanuc) - 12" TFT color graphic touch screen - Hard disk 10GB - Remote control - Machining strategy PROFIL-EXPERT - Integrated CT-EXPERT technology - Automatic adaption of the PILOT-EXPERT generator - Digital generator control - Autorestart - Self-diagnosis - Integrated Ethernet card Additionals: Contact electrode Pinch roller Chiller Spare motor for U/V axis

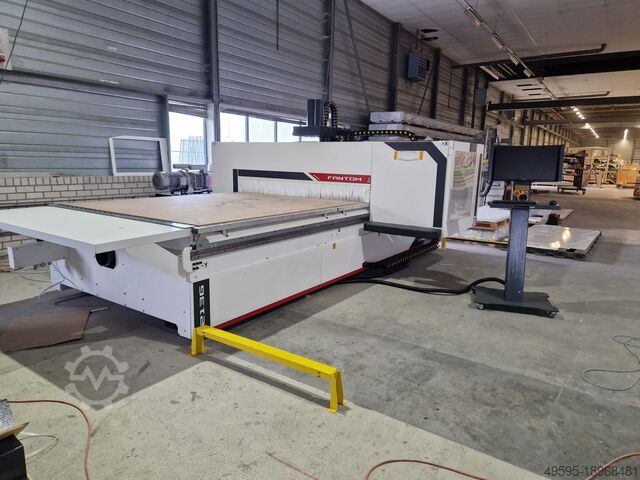

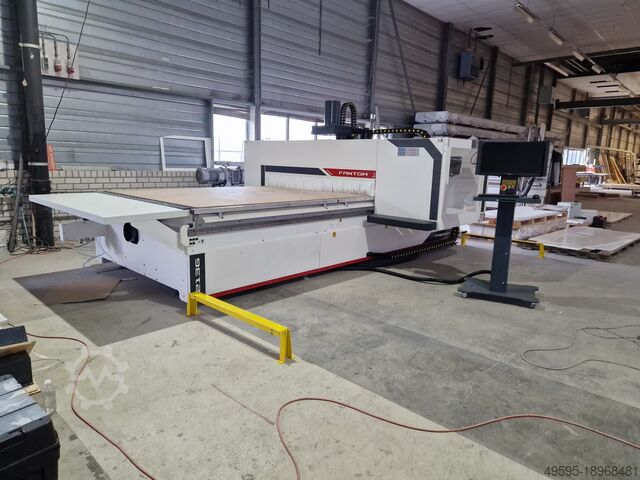

Condition: new, Year of construction: 2025, General specification FANTOM 2136, is associated with milling, optimizing, drilling in 2D and 3D processes of panels such as wood, fiberboard, chipboard, doors, furniture parts, plastic, alucobond (type of composite), aluminum and acrylic materials. The machine can be converted into a fully automatic production line. Bsdpfewc N Sbjx Ah Ijwi Technical specification FANTOM 2136 Working range 2100 mm x 3660 mm Z-axis 250 mm X-axis speed 90 m/min Y-axis speed 90m/min E0dkmojey Hnocm E T Ssld Uw Roi Rok Z-axis speed 30 m/min Motor power 11 kW / 15 hp HSK F63 Hiteco Spindle speed 24000 rpm Multi-drilling unit Control system Beckhoff PC based Cad Cam Software AlphaCam Lubrication system Automatic Tool cooling air cooling Tool change 16 pieces fixed magazine Standard Tool change Carousel: option Vacuum pump 250m3 Becker Vacuum area 9 automatic areas Power 25 kW Electricity 380V - 50Hz Weight 4040 kg Dimensions 3800mm X 5400mm.
